ripple::Door< Handler > Class Template Reference

A listening socket. More...

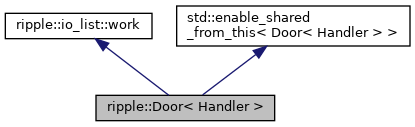

Inheritance diagram for ripple::Door< Handler >:

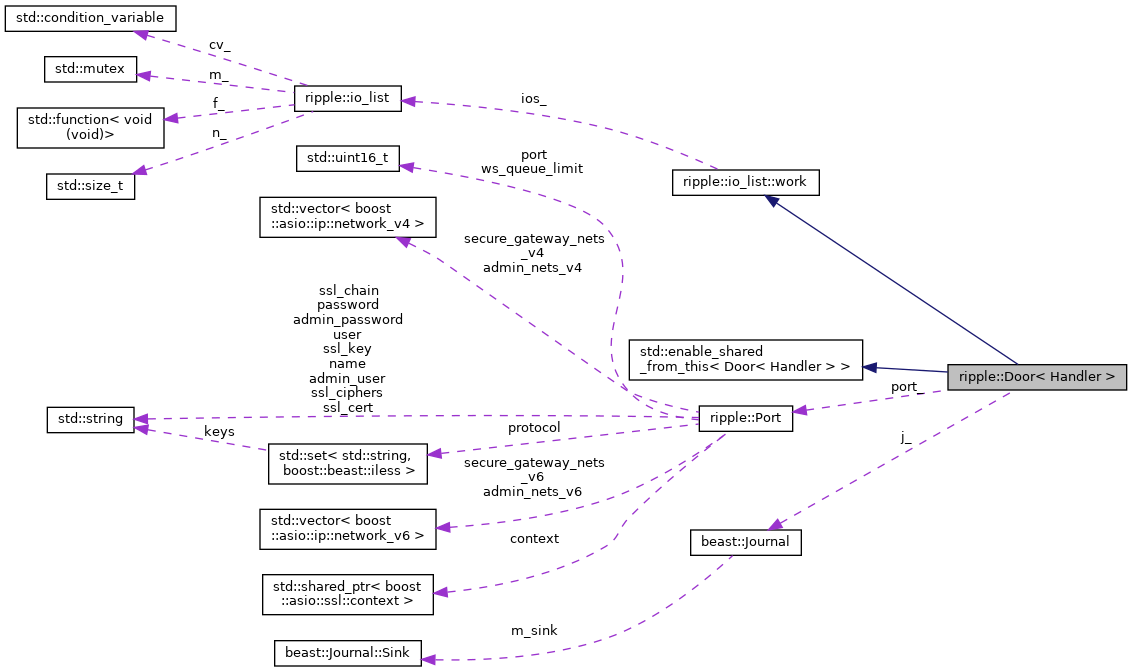

Collaboration diagram for ripple::Door< Handler >:

Classes
class	Detector

Public Member Functions
	Door (Handler &handler, boost::asio::io_context &io_context, Port const &port, beast::Journal j)
void	run ()
void	close () override
	Close the Door listening socket and connections. More...
endpoint_type	get_endpoint () const
io_list &	ios ()
	Return the io_list associated with the work. More...
T	shared_from_this (T... args)
T	weak_from_this (T... args)

Private Types
using	clock_type = std::chrono::steady_clock
using	timer_type = boost::asio::basic_waitable_timer< clock_type >
using	error_code = boost::system::error_code
using	yield_context = boost::asio::yield_context
using	protocol_type = boost::asio::ip::tcp
using	acceptor_type = protocol_type::acceptor
using	endpoint_type = protocol_type::endpoint
using	socket_type = boost::asio::ip::tcp::socket
using	stream_type = boost::beast::tcp_stream

Private Member Functions
void	reOpen ()
template<class ConstBufferSequence >
void	create (bool ssl, ConstBufferSequence const &buffers, stream_type &&stream, endpoint_type remote_address)
void	do_accept (yield_context yield)
template<class = void>
void	destroy ()

Private Attributes
const beast::Journal	j_
Port const &	port_
Handler &	handler_
boost::asio::io_context &	ioc_
acceptor_type	acceptor_
boost::asio::io_context::strand	strand_
bool	ssl_
bool	plain_
io_list *	ios_ = nullptr

Detailed Description

template<class Handler>
class ripple::Door< Handler >

A listening socket.

Definition at line 47 of file Door.h.

Member Typedef Documentation

clock_type

template<class Handler >

using ripple::Door< Handler >::clock_type = std::chrono::steady_clock

private

Definition at line 51 of file Door.h.

timer_type

template<class Handler >

using ripple::Door< Handler >::timer_type = boost::asio::basic_waitable_timer<clock_type>

private

Definition at line 52 of file Door.h.

error_code

template<class Handler >

using ripple::Door< Handler >::error_code = boost::system::error_code

private

Definition at line 53 of file Door.h.

yield_context

template<class Handler >

using ripple::Door< Handler >::yield_context = boost::asio::yield_context

private

Definition at line 54 of file Door.h.

protocol_type

template<class Handler >

using ripple::Door< Handler >::protocol_type = boost::asio::ip::tcp

private

Definition at line 55 of file Door.h.

acceptor_type

template<class Handler >

using ripple::Door< Handler >::acceptor_type = protocol_type::acceptor

private

Definition at line 56 of file Door.h.

endpoint_type

template<class Handler >

using ripple::Door< Handler >::endpoint_type = protocol_type::endpoint

private

Definition at line 57 of file Door.h.

socket_type

template<class Handler >

using ripple::Door< Handler >::socket_type = boost::asio::ip::tcp::socket

private

Definition at line 58 of file Door.h.

stream_type

template<class Handler >

using ripple::Door< Handler >::stream_type = boost::beast::tcp_stream

private

Definition at line 59 of file Door.h.

Constructor & Destructor Documentation

Door()

template<class Handler >

ripple::Door< Handler >::Door	(	Handler &	handler,
		boost::asio::io_context &	io_context,
		Port const &	port,
		beast::Journal	j
	)

Definition at line 284 of file Door.h.

Member Function Documentation

reOpen()

template<class Handler >

void ripple::Door< Handler >::reOpen

private

Definition at line 228 of file Door.h.

run()

template<class Handler >

void ripple::Door< Handler >::run

Definition at line 308 of file Door.h.

close()

template<class Handler >

void ripple::Door< Handler >::close

overridevirtual

Close the Door listening socket and connections.

The listening socket is closed, and all open connections belonging to the Door are closed. Thread Safety: May be called concurrently

Implements ripple::io_list::work.

Definition at line 320 of file Door.h.

get_endpoint()

template<class Handler >

endpoint_type ripple::Door< Handler >::get_endpoint

(

)

const

Definition at line 126 of file Door.h.

create()

template<class Handler >

template<class ConstBufferSequence >

void ripple::Door< Handler >::create ( bool  ssl, ConstBufferSequence const &  buffers, stream_type &&  stream, endpoint_type  remote_address  )

private

Definition at line 334 of file Door.h.

do_accept()

template<class Handler >

void ripple::Door< Handler >::do_accept ( yield_context  yield )

private

Definition at line 366 of file Door.h.

destroy()

template<class = void>

void ripple::io_list::work::destroy ( )

privateinherited

Definition at line 182 of file io_list.h.

ios()

io_list& ripple::io_list::work::ios ( )

inherited

Return the io_list associated with the work.

Requirements: The call to io_list::emplace to create the work has already returned.

Definition at line 60 of file io_list.h.

Member Data Documentation

j_

template<class Handler >

const beast::Journal ripple::Door< Handler >::j_

private

Definition at line 93 of file Door.h.

port_

template<class Handler >

Port const& ripple::Door< Handler >::port_

private

Definition at line 94 of file Door.h.

handler_

template<class Handler >

Handler& ripple::Door< Handler >::handler_

private

Definition at line 95 of file Door.h.

ioc_

template<class Handler >

boost::asio::io_context& ripple::Door< Handler >::ioc_

private

Definition at line 96 of file Door.h.

acceptor_

template<class Handler >

acceptor_type ripple::Door< Handler >::acceptor_

private

Definition at line 97 of file Door.h.

strand_

template<class Handler >

boost::asio::io_context::strand ripple::Door< Handler >::strand_

private

Definition at line 98 of file Door.h.

ssl_

template<class Handler >

bool ripple::Door< Handler >::ssl_

private

Definition at line 99 of file Door.h.

plain_

template<class Handler >

bool ripple::Door< Handler >::plain_

private

Definition at line 100 of file Door.h.

ios_

io_list* ripple::io_list::work::ios_ = nullptr

privateinherited

Definition at line 45 of file io_list.h.
