ripple::GRPCServerImpl Class Reference

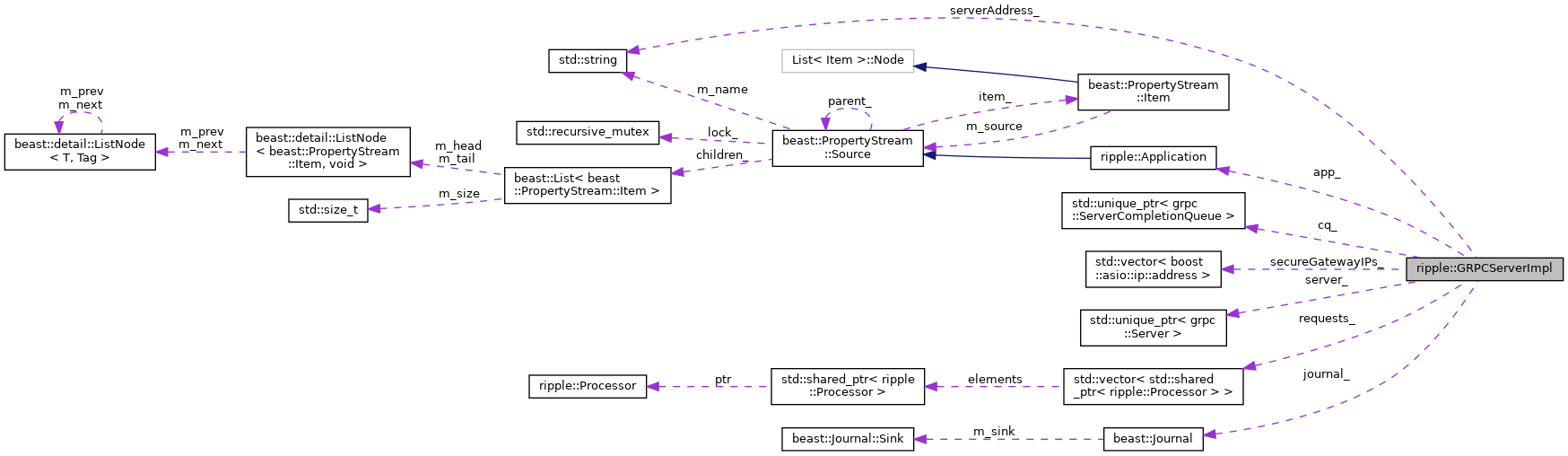

Collaboration diagram for ripple::GRPCServerImpl:

Classes
class	CallData

Public Member Functions
	GRPCServerImpl (Application &app)
	GRPCServerImpl (const GRPCServerImpl &)=delete
GRPCServerImpl &	operator= (const GRPCServerImpl &)=delete
void	shutdown ()
bool	start ()
void	handleRpcs ()
std::vector< std::shared_ptr< Processor > >	setupListeners ()

Private Types
template<class Request , class Response >
using	BindListener = std::function< void(org::xrpl::rpc::v1::XRPLedgerAPIService::AsyncService &, grpc::ServerContext *, Request *, grpc::ServerAsyncResponseWriter< Response > *, grpc::CompletionQueue *, grpc::ServerCompletionQueue *, void *)>
template<class Request , class Response >
using	Handler = std::function< std::pair< Response, grpc::Status >(RPC::GRPCContext< Request > &)>
template<class Request , class Response >
using	Forward = std::function< grpc::Status(org::xrpl::rpc::v1::XRPLedgerAPIService::Stub *, grpc::ClientContext *, Request, Response *)>

Private Attributes
std::unique_ptr< grpc::ServerCompletionQueue >	cq_
std::vector< std::shared_ptr< Processor > >	requests_
org::xrpl::rpc::v1::XRPLedgerAPIService::AsyncService	service_
std::unique_ptr< grpc::Server >	server_
Application &	app_
std::string	serverAddress_
std::vector< boost::asio::ip::address >	secureGatewayIPs_
beast::Journal	journal_

Static Private Attributes
static constexpr unsigned	apiVersion = 1

Detailed Description

Definition at line 70 of file GRPCServer.h.

Member Typedef Documentation

BindListener

template<class Request , class Response >

using ripple::GRPCServerImpl::BindListener = std::function<void( org::xrpl::rpc::v1::XRPLedgerAPIService::AsyncService&, grpc::ServerContext*, Request*, grpc::ServerAsyncResponseWriter<Response>*, grpc::CompletionQueue*, grpc::ServerCompletionQueue*, void*)>

private

Definition at line 103 of file GRPCServer.h.

Handler

template<class Request , class Response >

using ripple::GRPCServerImpl::Handler = std::function<std::pair<Response, grpc::Status>( RPC::GRPCContext<Request>&)>

private

Definition at line 109 of file GRPCServer.h.

Forward

template<class Request , class Response >

using ripple::GRPCServerImpl::Forward = std::function<grpc::Status( org::xrpl::rpc::v1::XRPLedgerAPIService::Stub*, grpc::ClientContext*, Request, Response*)>

private

Definition at line 118 of file GRPCServer.h.

Constructor & Destructor Documentation

GRPCServerImpl() [1/2]

ripple::GRPCServerImpl::GRPCServerImpl ( Application &  app )

explicit

Definition at line 426 of file GRPCServer.cpp.

GRPCServerImpl() [2/2]

ripple::GRPCServerImpl::GRPCServerImpl ( const GRPCServerImpl &  )

delete

Member Function Documentation

operator=()

GRPCServerImpl& ripple::GRPCServerImpl::operator= ( const GRPCServerImpl &  )

delete

shutdown()

void ripple::GRPCServerImpl::shutdown

(

)

Definition at line 492 of file GRPCServer.cpp.

start()

bool ripple::GRPCServerImpl::start

(

)

Definition at line 665 of file GRPCServer.cpp.

handleRpcs()

void ripple::GRPCServerImpl::handleRpcs

(

)

Definition at line 514 of file GRPCServer.cpp.

setupListeners()

std::vector< std::shared_ptr< Processor > > ripple::GRPCServerImpl::setupListeners

(

)

Definition at line 585 of file GRPCServer.cpp.

Member Data Documentation

cq_

std::unique_ptr<grpc::ServerCompletionQueue> ripple::GRPCServerImpl::cq_

private

Definition at line 75 of file GRPCServer.h.

requests_

std::vector<std::shared_ptr<Processor> > ripple::GRPCServerImpl::requests_

private

Definition at line 77 of file GRPCServer.h.

service_

org::xrpl::rpc::v1::XRPLedgerAPIService::AsyncService ripple::GRPCServerImpl::service_

private

Definition at line 80 of file GRPCServer.h.

server_

std::unique_ptr<grpc::Server> ripple::GRPCServerImpl::server_

private

Definition at line 82 of file GRPCServer.h.

app_

Application& ripple::GRPCServerImpl::app_

private

Definition at line 84 of file GRPCServer.h.

serverAddress_

std::string ripple::GRPCServerImpl::serverAddress_

private

Definition at line 86 of file GRPCServer.h.

secureGatewayIPs_

std::vector<boost::asio::ip::address> ripple::GRPCServerImpl::secureGatewayIPs_

private

Definition at line 88 of file GRPCServer.h.

journal_

beast::Journal ripple::GRPCServerImpl::journal_

private

Definition at line 90 of file GRPCServer.h.

apiVersion

constexpr unsigned ripple::GRPCServerImpl::apiVersion = 1

staticconstexprprivate

Definition at line 111 of file GRPCServer.h.
