Holds a ledger. More...

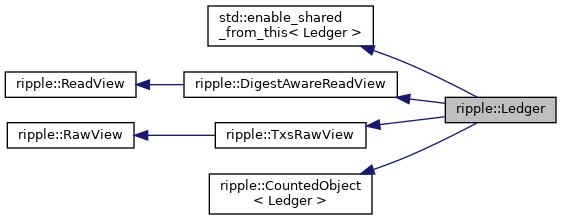

Inheritance diagram for ripple::Ledger:

[legend]

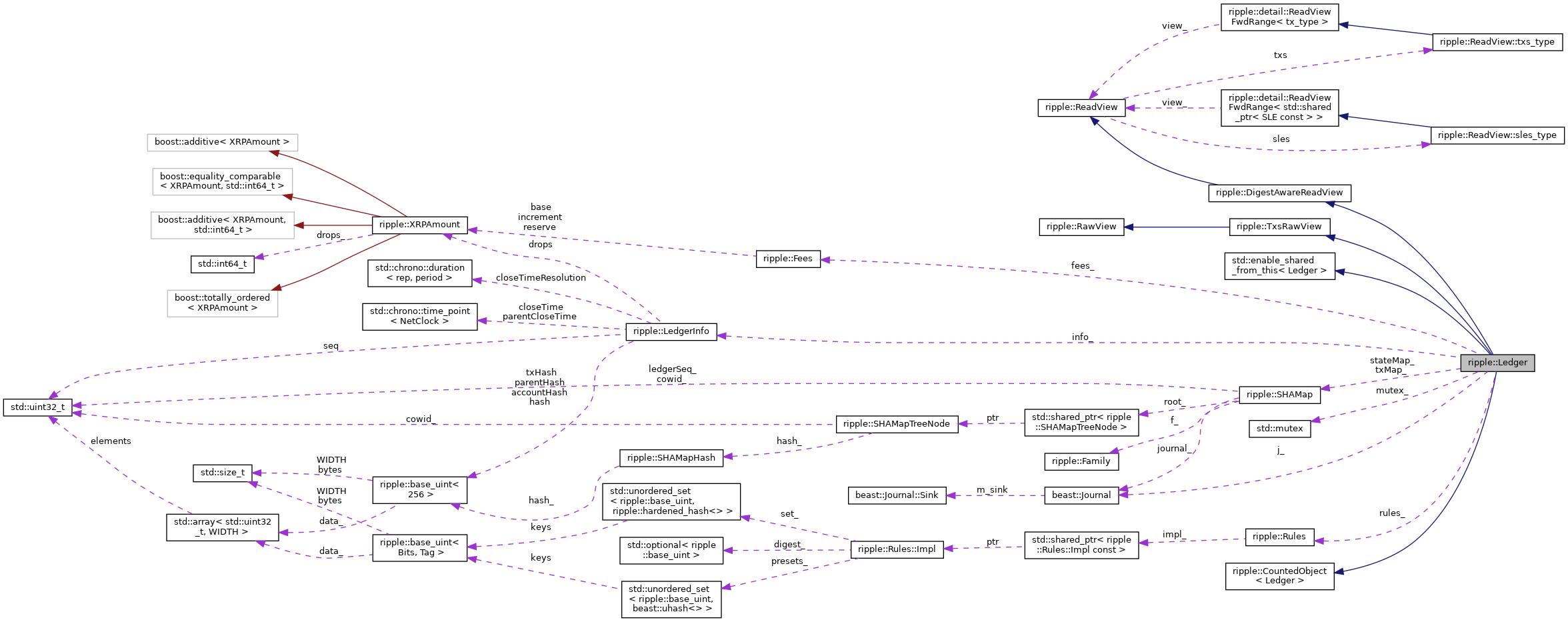

Collaboration diagram for ripple::Ledger:

[legend]

Classes
class	sles_iter_impl

class	txs_iter_impl

Public Types
using	digest_type = uint256

using	tx_type = std::pair< std::shared_ptr< STTx const >, std::shared_ptr< STObject const > >

using	key_type = uint256

using	mapped_type = std::shared_ptr< SLE const >

Public Member Functions
	Ledger (Ledger const &)=delete

Ledger &	operator= (Ledger const &)=delete

	Ledger (Ledger &&)=delete

Ledger &	operator= (Ledger &&)=delete

	Ledger (create_genesis_t, Config const &config, std::vector< uint256 > const &amendments, Family &family)
	Create the Genesis ledger. More...

	Ledger (LedgerInfo const &info, Config const &config, Family &family)

	Ledger (LedgerInfo const &info, bool &loaded, bool acquire, Config const &config, Family &family, beast::Journal j)
	Used for ledgers loaded from JSON files. More...

	Ledger (Ledger const &previous, NetClock::time_point closeTime)
	Create a new ledger following a previous ledger. More...

	Ledger (std::uint32_t ledgerSeq, NetClock::time_point closeTime, Config const &config, Family &family)

	~Ledger ()=default

bool	open () const override
	Returns true if this reflects an open ledger. More...

LedgerInfo const &	info () const override
	Returns information about the ledger. More...

void	setLedgerInfo (LedgerInfo const &info)

Fees const &	fees () const override
	Returns the fees for the base ledger. More...

Rules const &	rules () const override
	Returns the tx processing rules. More...

bool	exists (Keylet const &k) const override
	Determine if a state item exists. More...

bool	exists (uint256 const &key) const

std::optional< uint256 >	succ (uint256 const &key, std::optional< uint256 > const &last=std::nullopt) const override
	Return the key of the next state item. More...

std::shared_ptr< SLE const >	read (Keylet const &k) const override
	Return the state item associated with a key. More...

std::unique_ptr< sles_type::iter_base >	slesBegin () const override

std::unique_ptr< sles_type::iter_base >	slesEnd () const override

std::unique_ptr< sles_type::iter_base >	slesUpperBound (uint256 const &key) const override

std::unique_ptr< txs_type::iter_base >	txsBegin () const override

std::unique_ptr< txs_type::iter_base >	txsEnd () const override

bool	txExists (uint256 const &key) const override
	Returns `true` if a tx exists in the tx map. More...

tx_type	txRead (key_type const &key) const override
	Read a transaction from the tx map. More...

std::optional< digest_type >	digest (key_type const &key) const override
	Return the digest associated with the key. More...

void	rawErase (std::shared_ptr< SLE > const &sle) override
	Delete an existing state item. More...

void	rawInsert (std::shared_ptr< SLE > const &sle) override
	Unconditionally insert a state item. More...

void	rawErase (uint256 const &key)

void	rawReplace (std::shared_ptr< SLE > const &sle) override
	Unconditionally replace a state item. More...

void	rawDestroyXRP (XRPAmount const &fee) override
	Destroy XRP. More...

void	rawTxInsert (uint256 const &key, std::shared_ptr< Serializer const > const &txn, std::shared_ptr< Serializer const > const &metaData) override
	Add a transaction to the tx map. More...

uint256	rawTxInsertWithHash (uint256 const &key, std::shared_ptr< Serializer const > const &txn, std::shared_ptr< Serializer const > const &metaData)

void	setValidated () const

void	setAccepted (NetClock::time_point closeTime, NetClock::duration closeResolution, bool correctCloseTime)

void	setImmutable (bool rehash=true)

bool	isImmutable () const

void	setFull () const

void	setTotalDrops (std::uint64_t totDrops)

SHAMap const &	stateMap () const

SHAMap &	stateMap ()

SHAMap const &	txMap () const

SHAMap &	txMap ()

bool	addSLE (SLE const &sle)

void	updateSkipList ()

bool	walkLedger (beast::Journal j, bool parallel=false) const

bool	assertSensible (beast::Journal ledgerJ) const

void	invariants () const

void	unshare () const

hash_set< PublicKey >	negativeUNL () const
	get Negative UNL validators' master public keys More...

std::optional< PublicKey >	validatorToDisable () const
	get the to be disabled validator's master public key if any More...

std::optional< PublicKey >	validatorToReEnable () const
	get the to be re-enabled validator's master public key if any More...

void	updateNegativeUNL ()
	update the Negative UNL ledger component. More...

bool	isFlagLedger () const
	Returns true if the ledger is a flag ledger. More...

bool	isVotingLedger () const
	Returns true if the ledger directly precedes a flag ledger. More...

std::shared_ptr< SLE >	peek (Keylet const &k) const

T	shared_from_this (T... args)

T	weak_from_this (T... args)

NetClock::time_point	parentCloseTime () const
	Returns the close time of the previous ledger. More...

LedgerIndex	seq () const
	Returns the sequence number of the base ledger. More...

virtual STAmount	balanceHook (AccountID const &account, AccountID const &issuer, STAmount const &amount) const

virtual std::uint32_t	ownerCountHook (AccountID const &account, std::uint32_t count) const

Public Attributes
sles_type	sles
	Iterable range of ledger state items. More...

txs_type	txs

Private Member Functions
bool	setup ()

void	defaultFees (Config const &config)

Static Private Member Functions
static auto &	getCounter () noexcept

Private Attributes
bool	mImmutable

SHAMap	txMap_

SHAMap	stateMap_

std::mutex	mutex_

Fees	fees_

Rules	rules_

LedgerInfo	info_

beast::Journal	j_

Detailed Description

Holds a ledger.

The ledger is composed of two SHAMaps. The state map holds all of the ledger entries such as account roots and order books. The tx map holds all of the transactions and associated metadata that made it into that particular ledger. Most of the operations on a ledger are concerned with the state map.

This can hold just the header, a partial set of data, or the entire set of data. It all depends on what is in the corresponding SHAMap entry. Various functions are provided to populate or depopulate the caches that the object holds references to.

Ledgers are constructed as either mutable or immutable.

1) If you are the sole owner of a mutable ledger, you can do whatever you want with no need for locks.

2) If you have an immutable ledger, you cannot ever change it, so no need for locks.

3) Mutable ledgers cannot be shared.

Note: Presented to clients as ReadView; Calls virtuals in the constructor, so marked as final

Definition at line 76 of file Ledger.h.

Member Typedef Documentation

◆ digest_type

using ripple::DigestAwareReadView::digest_type = uint256

inherited

Definition at line 332 of file ReadView.h.

◆ tx_type

using ripple::ReadView::tx_type = std::pair<std::shared_ptr<STTx const>, std::shared_ptr<STObject const> >

inherited

Definition at line 129 of file ReadView.h.

◆ key_type

using ripple::ReadView::key_type = uint256

inherited

Definition at line 131 of file ReadView.h.

◆ mapped_type

using ripple::ReadView::mapped_type = std::shared_ptr<SLE const>

inherited

Definition at line 133 of file ReadView.h.

Constructor & Destructor Documentation

◆ Ledger() [1/7]

ripple::Ledger::Ledger ( Ledger const & )

delete

◆ Ledger() [2/7]

ripple::Ledger::Ledger ( Ledger && )

delete

◆ Ledger() [3/7]

ripple::Ledger::Ledger	(	create_genesis_t	,
		Config const &	config,
		std::vector< uint256 > const &	amendments,
		Family &	family
	)

Create the Genesis ledger.

The Genesis ledger contains a single account whose AccountID is generated with a Generator using the seed computed from the string "masterpassphrase" and ordinal zero.

The account has an XRP balance equal to the total amount of XRP in the system. No more XRP than the amount which starts in this account can ever exist, with amounts used to pay fees being destroyed.

Amendments specified are enabled in the genesis ledger

Definition at line 179 of file Ledger.cpp.

◆ Ledger() [4/7]

ripple::Ledger::Ledger	(	LedgerInfo const &	info,
		Config const &	config,
		Family &	family
	)

Definition at line 328 of file Ledger.cpp.

◆ Ledger() [5/7]

ripple::Ledger::Ledger	(	LedgerInfo const &	info,
		bool &	loaded,
		bool	acquire,
		Config const &	config,
		Family &	family,
		beast::Journal	j
	)

Used for ledgers loaded from JSON files.

Parameters

acquire If true, acquires the ledger if not found locally

Definition at line 242 of file Ledger.cpp.

◆ Ledger() [6/7]

ripple::Ledger::Ledger	(	Ledger const &	previous,
		NetClock::time_point	closeTime
	)

Create a new ledger following a previous ledger.

The ledger will have the sequence number that follows previous, and have parentCloseTime == previous.closeTime.

Definition at line 298 of file Ledger.cpp.

◆ Ledger() [7/7]

ripple::Ledger::Ledger	(	std::uint32_t	ledgerSeq,
		NetClock::time_point	closeTime,
		Config const &	config,
		Family &	family
	)

Definition at line 339 of file Ledger.cpp.

◆ ~Ledger()

ripple::Ledger::~Ledger ( )

default

Member Function Documentation

◆ operator=() [1/2]

Ledger& ripple::Ledger::operator= ( Ledger const & )

delete

◆ operator=() [2/2]

Ledger& ripple::Ledger::operator= ( Ledger && )

delete

◆ open()

bool ripple::Ledger::open ( ) const

overridevirtual

Returns true if this reflects an open ledger.

Implements ripple::ReadView.

Definition at line 146 of file Ledger.h.

◆ info()

LedgerInfo const& ripple::Ledger::info ( ) const

overridevirtual

Returns information about the ledger.

Implements ripple::ReadView.

Definition at line 152 of file Ledger.h.

◆ setLedgerInfo()

void ripple::Ledger::setLedgerInfo ( LedgerInfo const & info )

Definition at line 158 of file Ledger.h.

◆ fees()

Fees const& ripple::Ledger::fees ( ) const

overridevirtual

Returns the fees for the base ledger.

Implements ripple::ReadView.

Definition at line 164 of file Ledger.h.

◆ rules()

Rules const& ripple::Ledger::rules ( ) const

overridevirtual

Returns the tx processing rules.

Implements ripple::ReadView.

Definition at line 170 of file Ledger.h.

◆ exists() [1/2]

bool ripple::Ledger::exists ( Keylet const & k ) const

overridevirtual

Determine if a state item exists.

Note: This can be more efficient than calling read.

Returns: true if a SLE is associated with the specified key.

Implements ripple::ReadView.

Definition at line 429 of file Ledger.cpp.

◆ exists() [2/2]

bool ripple::Ledger::exists ( uint256 const & key ) const

Definition at line 436 of file Ledger.cpp.

◆ succ()

std::optional< uint256 > ripple::Ledger::succ	(	uint256 const &	key,
		std::optional< uint256 > const &	last = `std::nullopt`
	)		const

overridevirtual

Return the key of the next state item.

This returns the key of the first state item whose key is greater than the specified key. If no such key is present, std::nullopt is returned.

If last is engaged, returns std::nullopt when the key returned would be outside the open interval (key, last).

Implements ripple::ReadView.

Definition at line 442 of file Ledger.cpp.

◆ read()

std::shared_ptr< SLE const > ripple::Ledger::read ( Keylet const & k ) const

overridevirtual

Return the state item associated with a key.

Effects: If the key exists, gives the caller ownership of the non-modifiable corresponding SLE.

Note: While the returned SLE is const from the perspective of the caller, it can be changed by other callers through raw operations.

Returns: nullptr if the key is not present or if the type does not match.

Implements ripple::ReadView.

Definition at line 453 of file Ledger.cpp.

◆ slesBegin()

auto ripple::Ledger::slesBegin ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 472 of file Ledger.cpp.

◆ slesEnd()

auto ripple::Ledger::slesEnd ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 478 of file Ledger.cpp.

◆ slesUpperBound()

auto ripple::Ledger::slesUpperBound ( uint256 const & key ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 484 of file Ledger.cpp.

◆ txsBegin()

auto ripple::Ledger::txsBegin ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 491 of file Ledger.cpp.

◆ txsEnd()

auto ripple::Ledger::txsEnd ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 497 of file Ledger.cpp.

◆ txExists()

bool ripple::Ledger::txExists ( uint256 const & key ) const

overridevirtual

Returns true if a tx exists in the tx map.

A tx exists in the map if it is part of the base ledger, or if it is a newly inserted tx.

Implements ripple::ReadView.

Definition at line 503 of file Ledger.cpp.

◆ txRead()

auto ripple::Ledger::txRead ( key_type const & key ) const

overridevirtual

Read a transaction from the tx map.

If the view represents an open ledger, the metadata object will be empty.

Returns: A pair of nullptr if the key is not found in the tx map.

Implements ripple::ReadView.

Definition at line 509 of file Ledger.cpp.

◆ digest()

auto ripple::Ledger::digest ( key_type const & key ) const

overridevirtual

Return the digest associated with the key.

Returns: std::nullopt if the item does not exist.

Implements ripple::DigestAwareReadView.

Definition at line 523 of file Ledger.cpp.

◆ rawErase() [1/2]

void ripple::Ledger::rawErase ( std::shared_ptr< SLE > const & sle )

overridevirtual

Delete an existing state item.

The SLE is provided so the implementation can calculate metadata.

Implements ripple::RawView.

Definition at line 536 of file Ledger.cpp.

◆ rawInsert()

void ripple::Ledger::rawInsert ( std::shared_ptr< SLE > const & sle )

overridevirtual

Unconditionally insert a state item.

Requirements: The key must not already exist.

Effects:

The key is associated with the SLE.

Note: The key is taken from the SLE

Implements ripple::RawView.

Definition at line 550 of file Ledger.cpp.

◆ rawErase() [2/2]

void ripple::Ledger::rawErase ( uint256 const & key )

Definition at line 543 of file Ledger.cpp.

◆ rawReplace()

void ripple::Ledger::rawReplace ( std::shared_ptr< SLE > const & sle )

overridevirtual

Unconditionally replace a state item.

Requirements:

The key must exist.

Effects:

The key is associated with the SLE.

Note: The key is taken from the SLE

Implements ripple::RawView.

Definition at line 561 of file Ledger.cpp.

◆ rawDestroyXRP()

void ripple::Ledger::rawDestroyXRP ( XRPAmount const & fee )

overridevirtual

Destroy XRP.

This is used to pay for transaction fees.

Implements ripple::RawView.

Definition at line 233 of file Ledger.h.

◆ rawTxInsert()

void ripple::Ledger::rawTxInsert	(	uint256 const &	key,
		std::shared_ptr< Serializer const > const &	txn,
		std::shared_ptr< Serializer const > const &	metaData
	)

overridevirtual

Add a transaction to the tx map.

Closed ledgers must have metadata, while open ledgers omit metadata.

Implements ripple::TxsRawView.

Definition at line 572 of file Ledger.cpp.

◆ rawTxInsertWithHash()

uint256 ripple::Ledger::rawTxInsertWithHash	(	uint256 const &	key,
		std::shared_ptr< Serializer const > const &	txn,
		std::shared_ptr< Serializer const > const &	metaData
	)

Definition at line 589 of file Ledger.cpp.

◆ setValidated()

void ripple::Ledger::setValidated ( ) const

Definition at line 264 of file Ledger.h.

◆ setAccepted()

void ripple::Ledger::setAccepted	(	NetClock::time_point	closeTime,
		NetClock::duration	closeResolution,
		bool	correctCloseTime
	)

Definition at line 378 of file Ledger.cpp.

◆ setImmutable()

void ripple::Ledger::setImmutable ( bool rehash = true )

Definition at line 358 of file Ledger.cpp.

◆ isImmutable()

bool ripple::Ledger::isImmutable ( ) const

Definition at line 279 of file Ledger.h.

◆ setFull()

void ripple::Ledger::setFull ( ) const

Definition at line 295 of file Ledger.h.

◆ setTotalDrops()

void ripple::Ledger::setTotalDrops ( std::uint64_t totDrops )

Definition at line 304 of file Ledger.h.

◆ stateMap() [1/2]

SHAMap const& ripple::Ledger::stateMap ( ) const

Definition at line 310 of file Ledger.h.

◆ stateMap() [2/2]

SHAMap& ripple::Ledger::stateMap ( )

Definition at line 316 of file Ledger.h.

◆ txMap() [1/2]

SHAMap const& ripple::Ledger::txMap ( ) const

Definition at line 322 of file Ledger.h.

◆ txMap() [2/2]

SHAMap& ripple::Ledger::txMap ( )

Definition at line 328 of file Ledger.h.

◆ addSLE()

bool ripple::Ledger::addSLE ( SLE const & sle )

Definition at line 393 of file Ledger.cpp.

◆ updateSkipList()

void ripple::Ledger::updateSkipList ( )

Definition at line 894 of file Ledger.cpp.

◆ walkLedger()

bool ripple::Ledger::walkLedger	(	beast::Journal	j,
		bool	parallel = `false`
	)		const

Definition at line 819 of file Ledger.cpp.

◆ assertSensible()

bool ripple::Ledger::assertSensible ( beast::Journal ledgerJ ) const

Definition at line 870 of file Ledger.cpp.

◆ invariants()

void ripple::Ledger::invariants ( ) const

Definition at line 1060 of file Ledger.cpp.

◆ unshare()

void ripple::Ledger::unshare ( ) const

Definition at line 1053 of file Ledger.cpp.

◆ negativeUNL()

hash_set< PublicKey > ripple::Ledger::negativeUNL ( ) const

get Negative UNL validators' master public keys

Returns: the public keys

Definition at line 712 of file Ledger.cpp.

◆ validatorToDisable()

std::optional< PublicKey > ripple::Ledger::validatorToDisable ( ) const

get the to be disabled validator's master public key if any

Returns: the public key if any

Definition at line 738 of file Ledger.cpp.

◆ validatorToReEnable()

std::optional< PublicKey > ripple::Ledger::validatorToReEnable ( ) const

get the to be re-enabled validator's master public key if any

Returns: the public key if any

Definition at line 753 of file Ledger.cpp.

◆ updateNegativeUNL()

void ripple::Ledger::updateNegativeUNL ( )

update the Negative UNL ledger component.

Note: must be called at and only at flag ledgers must be called before applying UNLModify Tx

Definition at line 768 of file Ledger.cpp.

◆ isFlagLedger()

bool ripple::Ledger::isFlagLedger ( ) const

Returns true if the ledger is a flag ledger.

Definition at line 958 of file Ledger.cpp.

◆ isVotingLedger()

bool ripple::Ledger::isVotingLedger ( ) const

Returns true if the ledger directly precedes a flag ledger.

Definition at line 963 of file Ledger.cpp.

◆ peek()

std::shared_ptr< SLE > ripple::Ledger::peek ( Keylet const & k ) const

Definition at line 700 of file Ledger.cpp.

◆ setup()

bool ripple::Ledger::setup ( )

private

Definition at line 609 of file Ledger.cpp.

◆ defaultFees()

void ripple::Ledger::defaultFees ( Config const & config )

private

Definition at line 688 of file Ledger.cpp.

◆ parentCloseTime()

NetClock::time_point ripple::ReadView::parentCloseTime ( ) const

inherited

Returns the close time of the previous ledger.

Definition at line 186 of file ReadView.h.

◆ seq()

LedgerIndex ripple::ReadView::seq ( ) const

inherited

Returns the sequence number of the base ledger.

Definition at line 193 of file ReadView.h.

◆ balanceHook()

virtual STAmount ripple::ReadView::balanceHook	(	AccountID const &	account,
		AccountID const &	issuer,
		STAmount const &	amount
	)		const

virtualinherited

Reimplemented in ripple::PaymentSandbox.

Definition at line 253 of file ReadView.h.

◆ ownerCountHook()

virtual std::uint32_t ripple::ReadView::ownerCountHook	(	AccountID const &	account,
		std::uint32_t	count
	)		const

virtualinherited

Reimplemented in ripple::PaymentSandbox.

Definition at line 267 of file ReadView.h.

◆ getCounter()

static auto& ripple::CountedObject< Ledger >::getCounter

staticprivatenoexceptinherited

Definition at line 128 of file CountedObject.h.

Member Data Documentation

◆ mImmutable

bool ripple::Ledger::mImmutable

private

Definition at line 406 of file Ledger.h.

◆ txMap_

SHAMap ripple::Ledger::txMap_

mutableprivate

Definition at line 409 of file Ledger.h.

◆ stateMap_

SHAMap ripple::Ledger::stateMap_

mutableprivate

Definition at line 412 of file Ledger.h.

◆ mutex_

std::mutex ripple::Ledger::mutex_

mutableprivate

Definition at line 415 of file Ledger.h.

◆ fees_

Fees ripple::Ledger::fees_

private

Definition at line 417 of file Ledger.h.

◆ rules_

Rules ripple::Ledger::rules_

private

Definition at line 418 of file Ledger.h.

◆ info_

LedgerInfo ripple::Ledger::info_

private

Definition at line 419 of file Ledger.h.

◆ j_

beast::Journal ripple::Ledger::j_

private

Definition at line 420 of file Ledger.h.

◆ sles

sles_type ripple::ReadView::sles

inherited

Iterable range of ledger state items.

Note: Visiting each state entry in the ledger can become quite expensive as the ledger grows.

Definition at line 320 of file ReadView.h.

◆ txs

txs_type ripple::ReadView::txs

inherited

Definition at line 323 of file ReadView.h.

Classes

Public Types

Public Member Functions

Public Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ digest_type

◆ tx_type

◆ key_type

◆ mapped_type

Constructor & Destructor Documentation

◆ Ledger() [1/7]

◆ Ledger() [2/7]

◆ Ledger() [3/7]

◆ Ledger() [4/7]

◆ Ledger() [5/7]

◆ Ledger() [6/7]

◆ Ledger() [7/7]

◆ ~Ledger()

Member Function Documentation

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ open()

◆ info()

◆ setLedgerInfo()

◆ fees()

◆ rules()

◆ exists() [1/2]

◆ exists() [2/2]

◆ succ()

◆ read()

◆ slesBegin()

◆ slesEnd()

◆ slesUpperBound()

◆ txsBegin()

◆ txsEnd()

◆ txExists()

◆ txRead()

◆ digest()

◆ rawErase() [1/2]

◆ rawInsert()

◆ rawErase() [2/2]

◆ rawReplace()

◆ rawDestroyXRP()

◆ rawTxInsert()

◆ rawTxInsertWithHash()

◆ setValidated()

◆ setAccepted()

◆ setImmutable()

◆ isImmutable()

◆ setFull()

◆ setTotalDrops()

◆ stateMap() [1/2]

◆ stateMap() [2/2]

◆ txMap() [1/2]

◆ txMap() [2/2]

◆ addSLE()

◆ updateSkipList()

◆ walkLedger()

◆ assertSensible()

◆ invariants()

◆ unshare()

◆ negativeUNL()

◆ validatorToDisable()

◆ validatorToReEnable()

◆ updateNegativeUNL()

◆ isFlagLedger()

◆ isVotingLedger()

◆ peek()

◆ setup()

◆ defaultFees()

◆ parentCloseTime()

◆ seq()

◆ balanceHook()

◆ ownerCountHook()

◆ getCounter()

Member Data Documentation
