ripple::Message Class Reference

Inheritance diagram for ripple::Message:

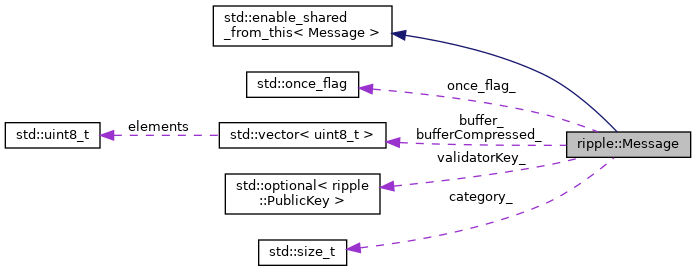

Collaboration diagram for ripple::Message:

Public Member Functions
	Message (::google::protobuf::Message const &message, int type, std::optional< PublicKey > const &validator={})
	Constructor. More...
std::size_t	getBufferSize ()
	Retrieve the size of the packed but uncompressed message data. More...
std::vector< uint8_t > const &	getBuffer (Compressed tryCompressed)
	Retrieve the packed message data. More...
std::size_t	getCategory () const
	Get the traffic category. More...
std::optional< PublicKey > const &	getValidatorKey () const
	Get the validator's key. More...
T	shared_from_this (T... args)
T	weak_from_this (T... args)

Static Public Member Functions
static std::size_t	messageSize (::google::protobuf::Message const &message)
static std::size_t	totalSize (::google::protobuf::Message const &message)

Private Types
using	Compressed = compression::Compressed
using	Algorithm = compression::Algorithm

Private Member Functions
void	setHeader (std::uint8_t *in, std::uint32_t payloadBytes, int type, Algorithm compression, std::uint32_t uncompressedBytes)
	Set the payload header. More...
void	compress ()
	Try to compress the payload. More...
int	getType (std::uint8_t const *in) const
	Get the message type from the payload header. More...

Private Attributes
std::vector< uint8_t >	buffer_
std::vector< uint8_t >	bufferCompressed_
std::size_t	category_
std::once_flag	once_flag_
std::optional< PublicKey >	validatorKey_

Detailed Description

Definition at line 53 of file overlay/Message.h.

Member Typedef Documentation

Compressed

using ripple::Message::Compressed = compression::Compressed

private

Definition at line 55 of file overlay/Message.h.

Algorithm

using ripple::Message::Algorithm = compression::Algorithm

private

Definition at line 56 of file overlay/Message.h.

Constructor & Destructor Documentation

Message()

ripple::Message::Message	(	::google::protobuf::Message const &	message,
		int	type,
		std::optional< PublicKey > const &	validator = {}
	)

Constructor.

Parameters

message	Protocol message to serialize
type	Protocol message type
validator	Public Key of the source validator for Validation or Proposal message. Used to check if the message should be squelched.

Definition at line 26 of file Message.cpp.

Member Function Documentation

getBufferSize()

std::size_t ripple::Message::getBufferSize

(

)

Retrieve the size of the packed but uncompressed message data.

Definition at line 204 of file Message.cpp.

messageSize()

std::size_t ripple::Message::messageSize ( ::google::protobuf::Message const &  message )

static

Definition at line 51 of file Message.cpp.

totalSize()

std::size_t ripple::Message::totalSize ( ::google::protobuf::Message const &  message )

static

Definition at line 62 of file Message.cpp.

getBuffer()

std::vector< uint8_t > const & ripple::Message::getBuffer

(

Compressed

tryCompressed

)

Retrieve the packed message data.

If compressed message is requested but the message is not compressible then the uncompressed buffer is returned.

Parameters

compressed

Request compressed (Compress::On) or uncompressed (Compress::Off) payload buffer

Returns

Payload buffer

Definition at line 210 of file Message.cpp.

getCategory()

std::size_t ripple::Message::getCategory

(

)

const

Get the traffic category.

Definition at line 91 of file overlay/Message.h.

getValidatorKey()

std::optional<PublicKey> const& ripple::Message::getValidatorKey

(

)

const

Get the validator's key.

Definition at line 98 of file overlay/Message.h.

setHeader()

void ripple::Message::setHeader ( std::uint8_t *  in, std::uint32_t  payloadBytes, int  type, Algorithm  compression, std::uint32_t  uncompressedBytes  )

private

Set the payload header.

Set payload header.

Parameters

in	Pointer to the payload
payloadBytes	Size of the payload excluding the header size
type	Protocol message type
compression	Compression algorithm used in compression, currently LZ4 only. If None then the message is uncompressed.
uncompressedBytes	Size of the uncompressed message

The header is a variable-sized structure that contains information about the type of the message and the length and encoding of the payload.

The first bit determines whether a message is compressed or uncompressed; for compressed messages, the next three bits identify the compression algorithm.

All multi-byte values are represented in big endian.

For uncompressed messages (6 bytes), numbering bits from left to right:

- The first 6 bits are set to 0.
- The next 26 bits represent the payload size.
- The remaining 16 bits represent the message type.

For compressed messages (10 bytes), numbering bits from left to right:

- The first 32 bits, together, represent the compression algorithm
  and payload size:
    - The first bit is set to 1 to indicate the message is compressed.
    - The next 3 bits indicate the compression algorithm.
    - The next 2 bits are reserved at this time and set to 0.
    - The remaining 26 bits represent the payload size.
- The next 16 bits represent the message type.
- The remaining 32 bits are the uncompressed message size.

The maximum size of a message at this time is 64 MB. Messages larger than this will be dropped and the recipient may, at its option, sever the link.

Note

While nominally a part of the wire protocol, the framing is subject to change; future versions of the code may negotiate the use of substantially different framing.

Definition at line 174 of file Message.cpp.

compress()

void ripple::Message::compress ( )

private

Try to compress the payload.

Can be called concurrently by multiple peers but is compressed once. If the message is not compressible then the serialized buffer_ is used.

Definition at line 68 of file Message.cpp.

getType()

int ripple::Message::getType ( std::uint8_t const *  in ) const

private

Get the message type from the payload header.

First four bytes are the compression/algorithm flag and the payload size. Next two bytes are the message type

Parameters

in	Payload header pointer

Returns

Message type

Definition at line 224 of file Message.cpp.

Member Data Documentation

buffer_

std::vector<uint8_t> ripple::Message::buffer_

private

Definition at line 104 of file overlay/Message.h.

bufferCompressed_

std::vector<uint8_t> ripple::Message::bufferCompressed_

private

Definition at line 105 of file overlay/Message.h.

category_

std::size_t ripple::Message::category_

private

Definition at line 106 of file overlay/Message.h.

once_flag_

std::once_flag ripple::Message::once_flag_

private

Definition at line 107 of file overlay/Message.h.

validatorKey_

std::optional<PublicKey> ripple::Message::validatorKey_

private

Definition at line 108 of file overlay/Message.h.
