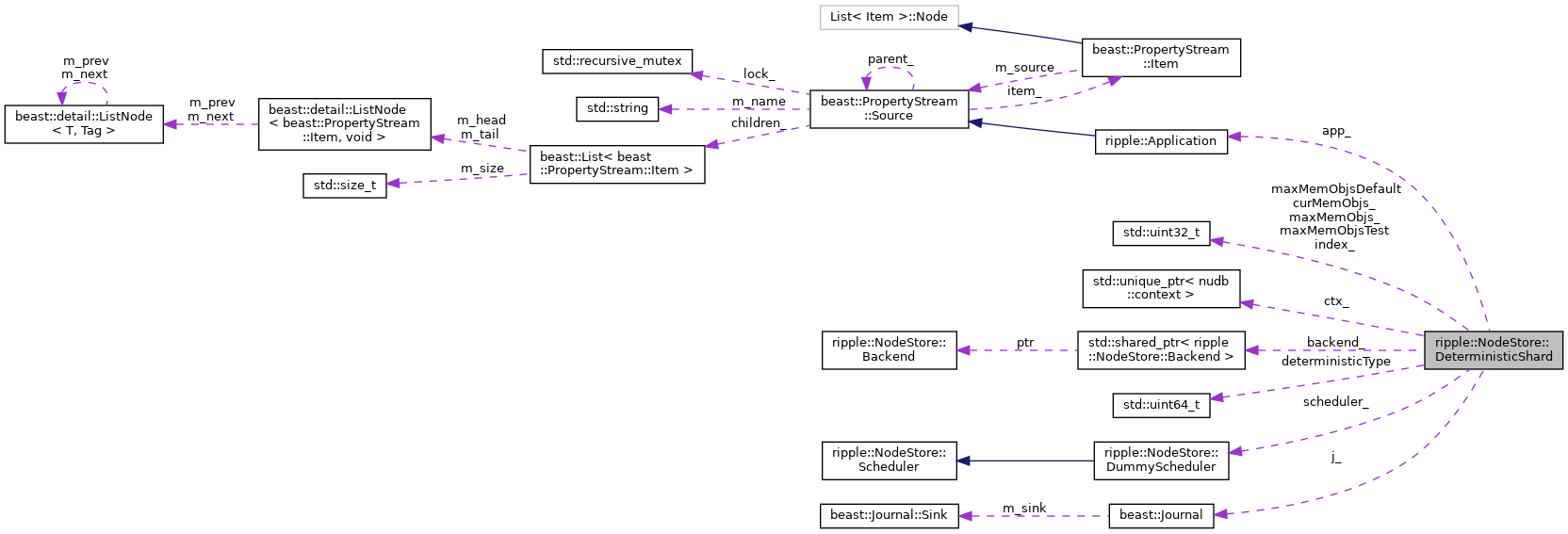

Collaboration diagram for ripple::NodeStore::DeterministicShard:

[legend]

Public Member Functions
	~DeterministicShard ()

void	close ()
	Finalizes and closes the shard. More...

boost::filesystem::path const &	getDir () const

bool	store (std::shared_ptr< NodeObject > const &nodeObject)
	Store a node object in memory. More...

Private Member Functions
	DeterministicShard (DeterministicShard const &)=delete

DeterministicShard &	operator= (DeterministicShard const &)=delete

	DeterministicShard (Application &app, boost::filesystem::path const &dir, std::uint32_t index, beast::Journal j)
	Creates the object for shard database. More...

bool	init (Serializer const &finalKey)
	Initializes the deterministic shard. More...

void	close (bool cancel)
	Finalizes and closes the shard. More...

Private Attributes
Application &	app_

const std::uint32_t	index_

const boost::filesystem::path	dir_

DummyScheduler	scheduler_

std::unique_ptr< nudb::context >	ctx_

std::shared_ptr< Backend >	backend_

const beast::Journal	j_

std::uint32_t	curMemObjs_

const std::uint32_t	maxMemObjs_

Static Private Attributes
constexpr static std::uint32_t	maxMemObjsDefault = 16384u

constexpr static std::uint32_t	maxMemObjsTest = 16u

constexpr static std::uint64_t	deterministicType = 0x5348524400000000ll

Friends
std::shared_ptr< DeterministicShard >	make_DeterministicShard (Application &app, boost::filesystem::path const &shardDir, std::uint32_t shardIndex, Serializer const &finalKey, beast::Journal j)
	Creates shared pointer to deterministic shard and initializes it. More...

Detailed Description

DeterministicShard class.

The init() method creates temporary folder dir_, and the deterministic shard is initialized in that folder.
The store() method adds object to memory pool.
The flush() method stores all objects from memory pool to the shard located in dir_ in sorted order.
The close(true) method closes the backend and removes the directory.

Definition at line 40 of file DeterministicShard.h.

Constructor & Destructor Documentation

◆ DeterministicShard() [1/2]

ripple::NodeStore::DeterministicShard::DeterministicShard ( DeterministicShard const & )

privatedelete

◆ DeterministicShard() [2/2]

ripple::NodeStore::DeterministicShard::DeterministicShard	(	Application &	app,
		boost::filesystem::path const &	dir,
		std::uint32_t	index,
		beast::Journal	j
	)

private

Creates the object for shard database.

Parameters

app	Application object
dir	Directory where shard is located
index	Index of the shard
j	Journal to logging

Definition at line 35 of file DeterministicShard.cpp.

◆ ~DeterministicShard()

ripple::NodeStore::DeterministicShard::~DeterministicShard ( )

Definition at line 52 of file DeterministicShard.cpp.

Member Function Documentation

◆ operator=()

DeterministicShard& ripple::NodeStore::DeterministicShard::operator= ( DeterministicShard const & )

privatedelete

◆ init()

bool ripple::NodeStore::DeterministicShard::init ( Serializer const & finalKey )

private

Initializes the deterministic shard.

Parameters

finalKey Serializer of shard's final key which consists of: shard version (32 bit) first ledger sequence in the shard (32 bit) last ledger sequence in the shard (32 bit) hash of last ledger (256 bits)

Returns: true if no error, false if error

Definition at line 58 of file DeterministicShard.cpp.

◆ close() [1/2]

void ripple::NodeStore::DeterministicShard::close ( )

Finalizes and closes the shard.

Definition at line 84 of file DeterministicShard.h.

◆ getDir()

boost::filesystem::path const& ripple::NodeStore::DeterministicShard::getDir ( ) const

Definition at line 90 of file DeterministicShard.h.

◆ store()

bool ripple::NodeStore::DeterministicShard::store ( std::shared_ptr< NodeObject > const & nodeObject )

Store a node object in memory.

Parameters

nodeObject The node object to store

Returns: true on success.

Note: Flushes all objects in memory to the backend when the number of node objects held in memory exceed a threshold

Definition at line 191 of file DeterministicShard.cpp.

◆ close() [2/2]

void ripple::NodeStore::DeterministicShard::close ( bool cancel )

private

Finalizes and closes the shard.

Parameters

cancel True if reject the shard and delete all files, false if finalize the shard and store them

Definition at line 166 of file DeterministicShard.cpp.

Friends And Related Function Documentation

◆ make_DeterministicShard

std::shared_ptr<DeterministicShard> make_DeterministicShard	(	Application &	app,
		boost::filesystem::path const &	shardDir,
		std::uint32_t	shardIndex,
		Serializer const &	finalKey,
		beast::Journal	j
	)

friend

Creates shared pointer to deterministic shard and initializes it.

Parameters

app	Application object
shardDir	Directory where shard is located
shardIndex	Index of the shard
finalKey	Serializer of shard's ginal key which consists of: shard version (32 bit) first ledger sequence in the shard (32 bit) last ledger sequence in the shard (32 bit) hash of last ledger (256 bits)
j	Journal to logging

Returns: Shared pointer to deterministic shard or {} in case of error.

Definition at line 151 of file DeterministicShard.cpp.

Member Data Documentation

◆ maxMemObjsDefault

constexpr static std::uint32_t ripple::NodeStore::DeterministicShard::maxMemObjsDefault = 16384u

staticconstexprprivate

Definition at line 42 of file DeterministicShard.h.

◆ maxMemObjsTest

constexpr static std::uint32_t ripple::NodeStore::DeterministicShard::maxMemObjsTest = 16u

staticconstexprprivate

Definition at line 43 of file DeterministicShard.h.

◆ deterministicType

constexpr static std::uint64_t ripple::NodeStore::DeterministicShard::deterministicType = 0x5348524400000000ll

staticconstexprprivate

Definition at line 46 of file DeterministicShard.h.

◆ app_

Application& ripple::NodeStore::DeterministicShard::app_

private

Definition at line 115 of file DeterministicShard.h.

◆ index_

const std::uint32_t ripple::NodeStore::DeterministicShard::index_

private

Definition at line 118 of file DeterministicShard.h.

◆ dir_

const boost::filesystem::path ripple::NodeStore::DeterministicShard::dir_

private

Definition at line 121 of file DeterministicShard.h.

◆ scheduler_

DummyScheduler ripple::NodeStore::DeterministicShard::scheduler_

private

Definition at line 124 of file DeterministicShard.h.

◆ ctx_

std::unique_ptr<nudb::context> ripple::NodeStore::DeterministicShard::ctx_

private

Definition at line 127 of file DeterministicShard.h.

◆ backend_

std::shared_ptr<Backend> ripple::NodeStore::DeterministicShard::backend_

private

Definition at line 130 of file DeterministicShard.h.

◆ j_

const beast::Journal ripple::NodeStore::DeterministicShard::j_

private

Definition at line 133 of file DeterministicShard.h.

◆ curMemObjs_

std::uint32_t ripple::NodeStore::DeterministicShard::curMemObjs_

private

Definition at line 136 of file DeterministicShard.h.

◆ maxMemObjs_

const std::uint32_t ripple::NodeStore::DeterministicShard::maxMemObjs_

private

Definition at line 139 of file DeterministicShard.h.
