Inheritance diagram for ripple::NodeStore::MemoryBackend:

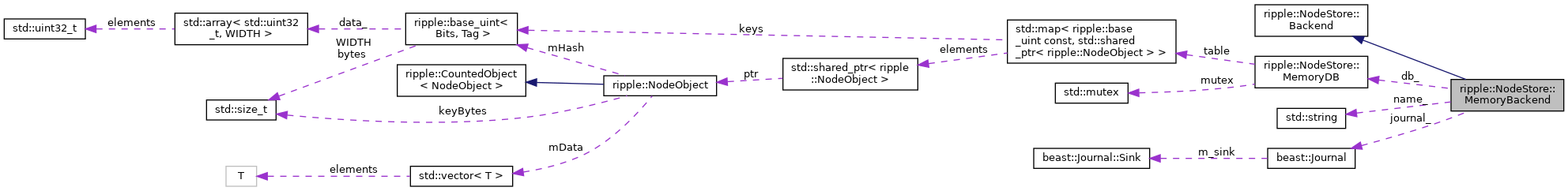

Collaboration diagram for ripple::NodeStore::MemoryBackend:

[legend]

Public Member Functions
	MemoryBackend (size_t keyBytes, Section const &keyValues, beast::Journal journal)

	~MemoryBackend () override

std::string	getName () override
	Get the human-readable name of this backend. More...

void	open (bool createIfMissing) override
	Open the backend. More...

bool	isOpen () override
	Returns true is the database is open. More...

void	close () override
	Close the backend. More...

Status	fetch (void const key, std::shared_ptr< NodeObject > pObject) override
	Fetch a single object. More...

std::pair< std::vector< std::shared_ptr< NodeObject > >, Status >	fetchBatch (std::vector< uint256 const * > const &hashes) override
	Fetch a batch synchronously. More...

void	store (std::shared_ptr< NodeObject > const &object) override
	Store a single object. More...

void	storeBatch (Batch const &batch) override
	Store a group of objects. More...

void	sync () override

void	for_each (std::function< void(std::shared_ptr< NodeObject >)> f) override
	Visit every object in the database This is usually called during import. More...

int	getWriteLoad () override
	Estimate the number of write operations pending. More...

void	setDeletePath () override
	Remove contents on disk upon destruction. More...

int	fdRequired () const override
	Returns the number of file descriptors the backend expects to need. More...

virtual void	open (bool createIfMissing, uint64_t appType, uint64_t uid, uint64_t salt)
	Open the backend. More...

virtual void	verify ()
	Perform consistency checks on database. More...

virtual std::optional< Counters< std::uint64_t > >	counters () const
	Returns read and write stats. More...

Private Types
using	Map = std::map< uint256 const, std::shared_ptr< NodeObject > >

Private Attributes
std::string	name_

const beast::Journal	journal_

MemoryDB *	db_ {nullptr}

Detailed Description

Definition at line 79 of file MemoryFactory.cpp.

Member Typedef Documentation

◆ Map

using ripple::NodeStore::MemoryBackend::Map = std::map<uint256 const, std::shared_ptr<NodeObject> >

private

Definition at line 82 of file MemoryFactory.cpp.

Constructor & Destructor Documentation

◆ MemoryBackend()

ripple::NodeStore::MemoryBackend::MemoryBackend	(	size_t	keyBytes,
		Section const &	keyValues,
		beast::Journal	journal
	)

Definition at line 89 of file MemoryFactory.cpp.

◆ ~MemoryBackend()

ripple::NodeStore::MemoryBackend::~MemoryBackend ( )

override

Definition at line 100 of file MemoryFactory.cpp.

Member Function Documentation

◆ getName()

std::string ripple::NodeStore::MemoryBackend::getName ( )

overridevirtual

Get the human-readable name of this backend.

This is used for diagnostic output.

Implements ripple::NodeStore::Backend.

Definition at line 106 of file MemoryFactory.cpp.

◆ open() [1/2]

void ripple::NodeStore::MemoryBackend::open ( bool createIfMissing )

overridevirtual

Open the backend.

Parameters

createIfMissing Create the database files if necessary. This allows the caller to catch exceptions.

Implements ripple::NodeStore::Backend.

Definition at line 112 of file MemoryFactory.cpp.

◆ isOpen()

bool ripple::NodeStore::MemoryBackend::isOpen ( )

overridevirtual

Returns true is the database is open.

Implements ripple::NodeStore::Backend.

Definition at line 118 of file MemoryFactory.cpp.

◆ close()

void ripple::NodeStore::MemoryBackend::close ( )

overridevirtual

Close the backend.

This allows the caller to catch exceptions.

Implements ripple::NodeStore::Backend.

Definition at line 124 of file MemoryFactory.cpp.

◆ fetch()

Status ripple::NodeStore::MemoryBackend::fetch	(	void const *	key,
		std::shared_ptr< NodeObject > *	pObject
	)

overridevirtual

Fetch a single object.

If the object is not found or an error is encountered, the result will indicate the condition.

Note: This will be called concurrently.

Parameters

key	A pointer to the key data.
pObject	[out] The created object if successful.

Returns: The result of the operation.

Implements ripple::NodeStore::Backend.

Definition at line 132 of file MemoryFactory.cpp.

◆ fetchBatch()

std::pair<std::vector<std::shared_ptr<NodeObject> >, Status> ripple::NodeStore::MemoryBackend::fetchBatch ( std::vector< uint256 const * > const & hashes )

overridevirtual

Fetch a batch synchronously.

Implements ripple::NodeStore::Backend.

Definition at line 150 of file MemoryFactory.cpp.

◆ store()

void ripple::NodeStore::MemoryBackend::store ( std::shared_ptr< NodeObject > const & object )

overridevirtual

Store a single object.

Depending on the implementation this may happen immediately or deferred using a scheduled task.

Note: This will be called concurrently.

Parameters

object The object to store.

Implements ripple::NodeStore::Backend.

Definition at line 168 of file MemoryFactory.cpp.

◆ storeBatch()

void ripple::NodeStore::MemoryBackend::storeBatch ( Batch const & batch )

overridevirtual

Store a group of objects.

Note: This function will not be called concurrently with itself or store.

Implements ripple::NodeStore::Backend.

Definition at line 176 of file MemoryFactory.cpp.

◆ sync()

void ripple::NodeStore::MemoryBackend::sync ( )

overridevirtual

Implements ripple::NodeStore::Backend.

Definition at line 183 of file MemoryFactory.cpp.

◆ for_each()

void ripple::NodeStore::MemoryBackend::for_each ( std::function< void(std::shared_ptr< NodeObject >)> f )

overridevirtual

Visit every object in the database This is usually called during import.

Note: This routine will not be called concurrently with itself or other methods.

See also: import

Implements ripple::NodeStore::Backend.

Definition at line 188 of file MemoryFactory.cpp.

◆ getWriteLoad()

int ripple::NodeStore::MemoryBackend::getWriteLoad ( )

overridevirtual

Estimate the number of write operations pending.

Implements ripple::NodeStore::Backend.

Definition at line 196 of file MemoryFactory.cpp.

◆ setDeletePath()

void ripple::NodeStore::MemoryBackend::setDeletePath ( )

overridevirtual

Remove contents on disk upon destruction.

Implements ripple::NodeStore::Backend.

Definition at line 202 of file MemoryFactory.cpp.

◆ fdRequired()

int ripple::NodeStore::MemoryBackend::fdRequired ( ) const

overridevirtual

Returns the number of file descriptors the backend expects to need.

Implements ripple::NodeStore::Backend.

Definition at line 207 of file MemoryFactory.cpp.

◆ open() [2/2]

virtual void ripple::NodeStore::Backend::open	(	bool	createIfMissing,
		uint64_t	appType,
		uint64_t	uid,
		uint64_t	salt
	)

virtualinherited

Open the backend.

Parameters

createIfMissing	Create the database files if necessary.
appType	Deterministic appType used to create a backend.
uid	Deterministic uid used to create a backend.
salt	Deterministic salt used to create a backend.

Exceptions

std::runtime_error is function is called not for NuDB backend.

Reimplemented in ripple::NodeStore::NuDBBackend.

Definition at line 99 of file Backend.h.

◆ verify()

virtual void ripple::NodeStore::Backend::verify ( )

virtualinherited

Perform consistency checks on database.

This method is implemented only by NuDBBackend. It is not yet called anywhere, but it might be a good idea to one day call it at startup to avert a crash.

Reimplemented in ripple::NodeStore::NuDBBackend.

Definition at line 170 of file Backend.h.

◆ counters()

virtual std::optional<Counters<std::uint64_t> > ripple::NodeStore::Backend::counters ( ) const

virtualinherited

Returns read and write stats.

Note: The Counters struct is specific to and only used by CassandraBackend.

Definition at line 184 of file Backend.h.

Member Data Documentation

◆ name_

std::string ripple::NodeStore::MemoryBackend::name_

private

Definition at line 84 of file MemoryFactory.cpp.

◆ journal_

const beast::Journal ripple::NodeStore::MemoryBackend::journal_

private

Definition at line 85 of file MemoryFactory.cpp.

◆ db_

MemoryDB* ripple::NodeStore::MemoryBackend::db_ {nullptr}

private

Definition at line 86 of file MemoryFactory.cpp.
