ripple::PeerFinder::Bootcache Class Reference

Stores IP addresses useful for gaining initial connections. More...

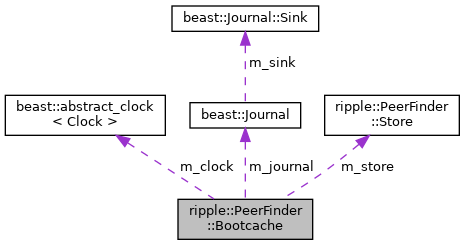

Collaboration diagram for ripple::PeerFinder::Bootcache:

Classes
class	Entry
struct	Transform

Public Types
using	iterator = boost::transform_iterator< Transform, map_type::right_map::const_iterator >
using	const_iterator = iterator

Public Member Functions
	Bootcache (Store &store, clock_type &clock, beast::Journal journal)
	~Bootcache ()
bool	empty () const
	Returns true if the cache is empty. More...
map_type::size_type	size () const
	Returns the number of entries in the cache. More...
void	load ()
	Load the persisted data from the Store into the container. More...
bool	insert (beast::IP::Endpoint const &endpoint)
	Add a newly-learned address to the cache. More...
bool	insertStatic (beast::IP::Endpoint const &endpoint)
	Add a staticallyconfigured address to the cache. More...
void	on_success (beast::IP::Endpoint const &endpoint)
	Called when an outbound connection handshake completes. More...
void	on_failure (beast::IP::Endpoint const &endpoint)
	Called when an outbound connection attempt fails to handshake. More...
void	periodicActivity ()
	Stores the cache in the persistent database on a timer. More...
void	onWrite (beast::PropertyStream::Map &map)
	Write the cache state to the property stream. More...
const_iterator	begin () const
	IP::Endpoint iterators that traverse in decreasing valence. More...
const_iterator	cbegin () const
const_iterator	end () const
const_iterator	cend () const
void	clear ()

Static Public Attributes
static constexpr int	staticValence = 32

Private Types
using	left_t = boost::bimaps::unordered_set_of< beast::IP::Endpoint, boost::hash< beast::IP::Endpoint >, ripple::equal_to< beast::IP::Endpoint > >
using	right_t = boost::bimaps::multiset_of< Entry, ripple::less< Entry > >
using	map_type = boost::bimap< left_t, right_t >
using	value_type = map_type::value_type

Private Member Functions
void	prune ()
void	update ()
void	checkUpdate ()
void	flagForUpdate ()

Private Attributes
map_type	m_map
Store &	m_store
clock_type &	m_clock
beast::Journal	m_journal
clock_type::time_point	m_whenUpdate
bool	m_needsUpdate

Detailed Description

Stores IP addresses useful for gaining initial connections.

This is one of the caches that is consulted when additional outgoing connections are needed. Along with the address, each entry has this additional metadata:

Valence A signed integer which represents the number of successful consecutive connection attempts when positive, and the number of failed consecutive connection attempts when negative.

When choosing addresses from the boot cache for the purpose of establishing outgoing connections, addresses are ranked in decreasing order of high uptime, with valence as the tie breaker.

Definition at line 51 of file Bootcache.h.

Member Typedef Documentation

left_t

using ripple::PeerFinder::Bootcache::left_t = boost::bimaps::unordered_set_of< beast::IP::Endpoint, boost::hash<beast::IP::Endpoint>, ripple::equal_to<beast::IP::Endpoint> >

private

Definition at line 88 of file Bootcache.h.

right_t

using ripple::PeerFinder::Bootcache::right_t = boost::bimaps::multiset_of<Entry, ripple::less<Entry> >

private

Definition at line 89 of file Bootcache.h.

map_type

using ripple::PeerFinder::Bootcache::map_type = boost::bimap<left_t, right_t>

private

Definition at line 90 of file Bootcache.h.

value_type

using ripple::PeerFinder::Bootcache::value_type = map_type::value_type

private

Definition at line 91 of file Bootcache.h.

iterator

using ripple::PeerFinder::Bootcache::iterator = boost:: transform_iterator<Transform, map_type::right_map::const_iterator>

Definition at line 126 of file Bootcache.h.

const_iterator

using ripple::PeerFinder::Bootcache::const_iterator = iterator

Definition at line 128 of file Bootcache.h.

Constructor & Destructor Documentation

Bootcache()

ripple::PeerFinder::Bootcache::Bootcache	(	Store &	store,
		clock_type &	clock,
		beast::Journal	journal
	)

Definition at line 28 of file Bootcache.cpp.

~Bootcache()

ripple::PeerFinder::Bootcache::~Bootcache

(

)

Definition at line 37 of file Bootcache.cpp.

Member Function Documentation

empty()

bool ripple::PeerFinder::Bootcache::empty

(

)

const

Returns true if the cache is empty.

Definition at line 43 of file Bootcache.cpp.

size()

Bootcache::map_type::size_type ripple::PeerFinder::Bootcache::size

(

)

const

Returns the number of entries in the cache.

Definition at line 49 of file Bootcache.cpp.

begin()

Bootcache::const_iterator ripple::PeerFinder::Bootcache::begin

(

)

const

IP::Endpoint iterators that traverse in decreasing valence.

Definition at line 55 of file Bootcache.cpp.

cbegin()

Bootcache::const_iterator ripple::PeerFinder::Bootcache::cbegin

(

)

const

Definition at line 61 of file Bootcache.cpp.

end()

Bootcache::const_iterator ripple::PeerFinder::Bootcache::end

(

)

const

Definition at line 67 of file Bootcache.cpp.

cend()

Bootcache::const_iterator ripple::PeerFinder::Bootcache::cend

(

)

const

Definition at line 73 of file Bootcache.cpp.

clear()

void ripple::PeerFinder::Bootcache::clear

(

)

Definition at line 79 of file Bootcache.cpp.

load()

void ripple::PeerFinder::Bootcache::load

(

)

Load the persisted data from the Store into the container.

Definition at line 88 of file Bootcache.cpp.

insert()

bool ripple::PeerFinder::Bootcache::insert

(

beast::IP::Endpoint const &

endpoint

)

Add a newly-learned address to the cache.

Definition at line 111 of file Bootcache.cpp.

insertStatic()

bool ripple::PeerFinder::Bootcache::insertStatic

(

beast::IP::Endpoint const &

endpoint

)

Add a staticallyconfigured address to the cache.

Definition at line 125 of file Bootcache.cpp.

on_success()

void ripple::PeerFinder::Bootcache::on_success

(

beast::IP::Endpoint const &

endpoint

)

Called when an outbound connection handshake completes.

Definition at line 147 of file Bootcache.cpp.

on_failure()

void ripple::PeerFinder::Bootcache::on_failure

(

beast::IP::Endpoint const &

endpoint

)

Called when an outbound connection attempt fails to handshake.

Definition at line 173 of file Bootcache.cpp.

periodicActivity()

void ripple::PeerFinder::Bootcache::periodicActivity

(

)

Stores the cache in the persistent database on a timer.

Definition at line 199 of file Bootcache.cpp.

onWrite()

void ripple::PeerFinder::Bootcache::onWrite

(

beast::PropertyStream::Map &

map

)

Write the cache state to the property stream.

Definition at line 207 of file Bootcache.cpp.

prune()

void ripple::PeerFinder::Bootcache::prune ( )

private

Definition at line 220 of file Bootcache.cpp.

update()

void ripple::PeerFinder::Bootcache::update ( )

private

Definition at line 251 of file Bootcache.cpp.

checkUpdate()

void ripple::PeerFinder::Bootcache::checkUpdate ( )

private

Definition at line 272 of file Bootcache.cpp.

flagForUpdate()

void ripple::PeerFinder::Bootcache::flagForUpdate ( )

private

Definition at line 280 of file Bootcache.cpp.

Member Data Documentation

m_map

map_type ripple::PeerFinder::Bootcache::m_map

private

Definition at line 110 of file Bootcache.h.

m_store

Store& ripple::PeerFinder::Bootcache::m_store

private

Definition at line 112 of file Bootcache.h.

m_clock

clock_type& ripple::PeerFinder::Bootcache::m_clock

private

Definition at line 113 of file Bootcache.h.

m_journal

beast::Journal ripple::PeerFinder::Bootcache::m_journal

private

Definition at line 114 of file Bootcache.h.

m_whenUpdate

clock_type::time_point ripple::PeerFinder::Bootcache::m_whenUpdate

private

Definition at line 117 of file Bootcache.h.

m_needsUpdate

bool ripple::PeerFinder::Bootcache::m_needsUpdate

private

Definition at line 120 of file Bootcache.h.

staticValence

constexpr int ripple::PeerFinder::Bootcache::staticValence = 32

staticconstexpr

Definition at line 123 of file Bootcache.h.
