Inheritance diagram for ripple::PeerFinder::SlotImp:

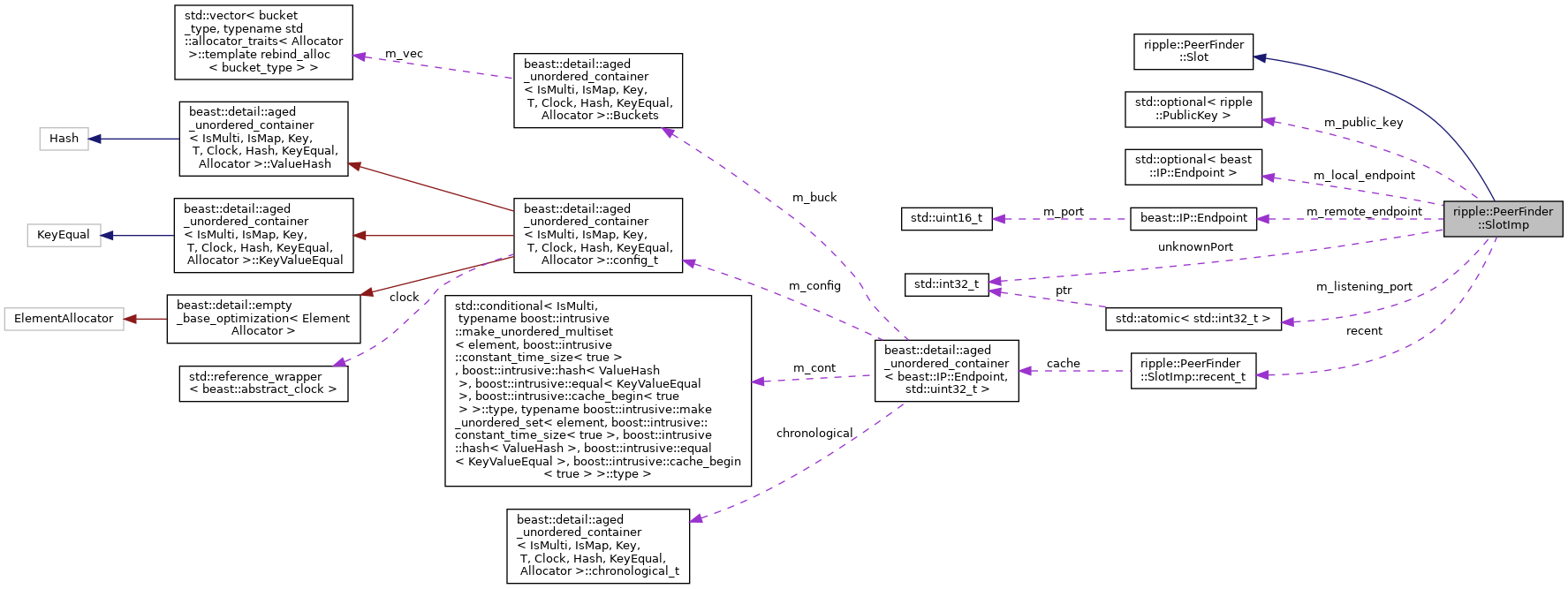

Collaboration diagram for ripple::PeerFinder::SlotImp:

[legend]

Classes
class	recent_t

Public Types
using	ptr = std::shared_ptr< SlotImp >

enum	State { accept, connect, connected, active, closing }

Public Member Functions
	SlotImp (beast::IP::Endpoint const &local_endpoint, beast::IP::Endpoint const &remote_endpoint, bool fixed, clock_type &clock)

	SlotImp (beast::IP::Endpoint const &remote_endpoint, bool fixed, clock_type &clock)

bool	inbound () const override
	Returns `true` if this is an inbound connection. More...

bool	fixed () const override
	Returns `true` if this is a fixed connection. More...

bool	reserved () const override
	Returns `true` if this is a reserved connection. More...

State	state () const override
	Returns the state of the connection. More...

beast::IP::Endpoint const &	remote_endpoint () const override
	The remote endpoint of socket. More...

std::optional< beast::IP::Endpoint > const &	local_endpoint () const override
	The local endpoint of the socket, when known. More...

std::optional< PublicKey > const &	public_key () const override
	The peer's public key, when known. More...

std::optional< std::uint16_t >	listening_port () const override

void	set_listening_port (std::uint16_t port)

void	local_endpoint (beast::IP::Endpoint const &endpoint)

void	remote_endpoint (beast::IP::Endpoint const &endpoint)

void	public_key (PublicKey const &key)

void	reserved (bool reserved_)

void	state (State state_)

void	activate (clock_type::time_point const &now)

void	expire ()

Public Attributes
class ripple::PeerFinder::SlotImp::recent_t	recent

bool	checked

bool	canAccept

bool	connectivityCheckInProgress

clock_type::time_point	whenAcceptEndpoints

Private Attributes
const bool	m_inbound

const bool	m_fixed

bool	m_reserved

State	m_state

beast::IP::Endpoint	m_remote_endpoint

std::optional< beast::IP::Endpoint >	m_local_endpoint

std::optional< PublicKey >	m_public_key

std::atomic< std::int32_t >	m_listening_port

Static Private Attributes
static constexpr std::int32_t	unknownPort = -1

Detailed Description

Definition at line 33 of file SlotImp.h.

Member Typedef Documentation

◆ ptr

using ripple::PeerFinder::SlotImp::ptr = std::shared_ptr<SlotImp>

Definition at line 36 of file SlotImp.h.

Member Enumeration Documentation

◆ State

enum ripple::PeerFinder::Slot::State

inherited

Enumerator
accept
connect
connected
active
closing

Definition at line 37 of file peerfinder/Slot.h.

Constructor & Destructor Documentation

◆ SlotImp() [1/2]

ripple::PeerFinder::SlotImp::SlotImp	(	beast::IP::Endpoint const &	local_endpoint,
		beast::IP::Endpoint const &	remote_endpoint,
		bool	fixed,
		clock_type &	clock
	)

Definition at line 27 of file SlotImp.cpp.

◆ SlotImp() [2/2]

ripple::PeerFinder::SlotImp::SlotImp	(	beast::IP::Endpoint const &	remote_endpoint,
		bool	fixed,
		clock_type &	clock
	)

Definition at line 46 of file SlotImp.cpp.

Member Function Documentation

◆ inbound()

bool ripple::PeerFinder::SlotImp::inbound ( ) const

overridevirtual

Returns true if this is an inbound connection.

Implements ripple::PeerFinder::Slot.

Definition at line 52 of file SlotImp.h.

◆ fixed()

bool ripple::PeerFinder::SlotImp::fixed ( ) const

overridevirtual

Returns true if this is a fixed connection.

A connection is fixed if its remote endpoint is in the list of remote endpoints for fixed connections.

Implements ripple::PeerFinder::Slot.

Definition at line 58 of file SlotImp.h.

◆ reserved() [1/2]

bool ripple::PeerFinder::SlotImp::reserved ( ) const

overridevirtual

Returns true if this is a reserved connection.

It might be a cluster peer, or a peer with a reservation. This is only known after then handshake completes.

Implements ripple::PeerFinder::Slot.

Definition at line 64 of file SlotImp.h.

◆ state() [1/2]

State ripple::PeerFinder::SlotImp::state ( ) const

overridevirtual

Returns the state of the connection.

Implements ripple::PeerFinder::Slot.

Definition at line 70 of file SlotImp.h.

◆ remote_endpoint() [1/2]

beast::IP::Endpoint const& ripple::PeerFinder::SlotImp::remote_endpoint ( ) const

overridevirtual

The remote endpoint of socket.

Implements ripple::PeerFinder::Slot.

Definition at line 76 of file SlotImp.h.

◆ local_endpoint() [1/2]

std::optional<beast::IP::Endpoint> const& ripple::PeerFinder::SlotImp::local_endpoint ( ) const

overridevirtual

The local endpoint of the socket, when known.

Implements ripple::PeerFinder::Slot.

Definition at line 82 of file SlotImp.h.

◆ public_key() [1/2]

std::optional<PublicKey> const& ripple::PeerFinder::SlotImp::public_key ( ) const

overridevirtual

The peer's public key, when known.

The public key is established when the handshake is complete.

Implements ripple::PeerFinder::Slot.

Definition at line 88 of file SlotImp.h.

◆ listening_port()

std::optional<std::uint16_t> ripple::PeerFinder::SlotImp::listening_port ( ) const

overridevirtual

Implements ripple::PeerFinder::Slot.

Definition at line 94 of file SlotImp.h.

◆ set_listening_port()

void ripple::PeerFinder::SlotImp::set_listening_port ( std::uint16_t port )

Definition at line 103 of file SlotImp.h.

◆ local_endpoint() [2/2]

void ripple::PeerFinder::SlotImp::local_endpoint ( beast::IP::Endpoint const & endpoint )

Definition at line 109 of file SlotImp.h.

◆ remote_endpoint() [2/2]

void ripple::PeerFinder::SlotImp::remote_endpoint ( beast::IP::Endpoint const & endpoint )

Definition at line 115 of file SlotImp.h.

◆ public_key() [2/2]

void ripple::PeerFinder::SlotImp::public_key ( PublicKey const & key )

Definition at line 121 of file SlotImp.h.

◆ reserved() [2/2]

void ripple::PeerFinder::SlotImp::reserved ( bool reserved_ )

Definition at line 127 of file SlotImp.h.

◆ state() [2/2]

void ripple::PeerFinder::SlotImp::state ( State state_ )

Definition at line 64 of file SlotImp.cpp.

◆ activate()

void ripple::PeerFinder::SlotImp::activate ( clock_type::time_point const & now )

Definition at line 85 of file SlotImp.cpp.

◆ expire()

void ripple::PeerFinder::SlotImp::expire ( )

Definition at line 170 of file SlotImp.h.

Member Data Documentation

◆ recent

class ripple::PeerFinder::SlotImp::recent_t ripple::PeerFinder::SlotImp::recent

◆ m_inbound

const bool ripple::PeerFinder::SlotImp::m_inbound

private

Definition at line 176 of file SlotImp.h.

◆ m_fixed

const bool ripple::PeerFinder::SlotImp::m_fixed

private

Definition at line 177 of file SlotImp.h.

◆ m_reserved

bool ripple::PeerFinder::SlotImp::m_reserved

private

Definition at line 178 of file SlotImp.h.

◆ m_state

State ripple::PeerFinder::SlotImp::m_state

private

Definition at line 179 of file SlotImp.h.

◆ m_remote_endpoint

beast::IP::Endpoint ripple::PeerFinder::SlotImp::m_remote_endpoint

private

Definition at line 180 of file SlotImp.h.

◆ m_local_endpoint

std::optional<beast::IP::Endpoint> ripple::PeerFinder::SlotImp::m_local_endpoint

private

Definition at line 181 of file SlotImp.h.

◆ m_public_key

std::optional<PublicKey> ripple::PeerFinder::SlotImp::m_public_key

private

Definition at line 182 of file SlotImp.h.

◆ unknownPort

constexpr std::int32_t ripple::PeerFinder::SlotImp::unknownPort = -1

staticconstexprprivate

Definition at line 184 of file SlotImp.h.

◆ m_listening_port

std::atomic<std::int32_t> ripple::PeerFinder::SlotImp::m_listening_port

private

Definition at line 185 of file SlotImp.h.

◆ checked

bool ripple::PeerFinder::SlotImp::checked

Definition at line 192 of file SlotImp.h.

◆ canAccept

bool ripple::PeerFinder::SlotImp::canAccept

Definition at line 196 of file SlotImp.h.

◆ connectivityCheckInProgress

bool ripple::PeerFinder::SlotImp::connectivityCheckInProgress

Definition at line 200 of file SlotImp.h.

◆ whenAcceptEndpoints

clock_type::time_point ripple::PeerFinder::SlotImp::whenAcceptEndpoints

Definition at line 206 of file SlotImp.h.
