ripple::TimeKeeper Class Reference

Manages various times used by the server. More...

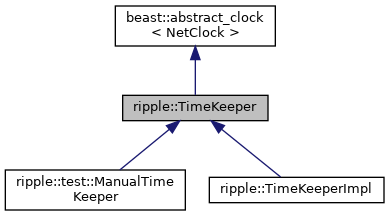

Inheritance diagram for ripple::TimeKeeper:

Collaboration diagram for ripple::TimeKeeper:

Public Types
using	rep = typename NetClock ::rep
using	period = typename NetClock ::period
using	duration = typename NetClock ::duration
using	time_point = typename NetClock ::time_point
using	clock_type = NetClock

Public Member Functions
virtual	~TimeKeeper ()=default
virtual void	run (std::vector< std::string > const &servers)=0
	Launch the internal thread. More...
virtual time_point	now () const override=0
	Returns the estimate of wall time, in network time. More...
virtual time_point	closeTime () const =0
	Returns the close time, in network time. More...
virtual void	adjustCloseTime (std::chrono::duration< std::int32_t > amount)=0
	Adjust the close time. More...
virtual std::chrono::duration< std::int32_t >	nowOffset () const =0
virtual std::chrono::duration< std::int32_t >	closeOffset () const =0
virtual time_point	now () const=0
	Returns the current time. More...

Static Public Attributes
static const bool	is_steady

Detailed Description

Manages various times used by the server.

Definition at line 32 of file TimeKeeper.h.

Member Typedef Documentation

rep

using beast::abstract_clock< NetClock >::rep = typename NetClock ::rep

inherited

Definition at line 60 of file abstract_clock.h.

period

using beast::abstract_clock< NetClock >::period = typename NetClock ::period

inherited

Definition at line 61 of file abstract_clock.h.

duration

using beast::abstract_clock< NetClock >::duration = typename NetClock ::duration

inherited

Definition at line 62 of file abstract_clock.h.

time_point

using beast::abstract_clock< NetClock >::time_point = typename NetClock ::time_point

inherited

Definition at line 63 of file abstract_clock.h.

clock_type

using beast::abstract_clock< NetClock >::clock_type = NetClock

inherited

Definition at line 64 of file abstract_clock.h.

Constructor & Destructor Documentation

~TimeKeeper()

virtual ripple::TimeKeeper::~TimeKeeper ( )

virtualdefault

Member Function Documentation

run()

virtual void ripple::TimeKeeper::run ( std::vector< std::string > const &  servers )

pure virtual

Launch the internal thread.

The internal thread synchronizes local network time using the provided list of SNTP servers.

Implemented in ripple::TimeKeeperImpl, and ripple::test::ManualTimeKeeper.

now() [1/2]

virtual time_point ripple::TimeKeeper::now ( ) const

overridepure virtual

Returns the estimate of wall time, in network time.

The network time is wall time adjusted for the Ripple epoch, the beginning of January 1st, 2000 UTC. Each server can compute a different value for network time. Other servers value for network time is not directly observable, but good guesses can be made by looking at validators' positions on close times.

Servers compute network time by adjusting a local wall clock using SNTP and then adjusting for the epoch.

Implemented in ripple::TimeKeeperImpl, and ripple::test::ManualTimeKeeper.

closeTime()

virtual time_point ripple::TimeKeeper::closeTime ( ) const

pure virtual

Returns the close time, in network time.

Close time is the time the network would agree that a ledger closed, if a ledger closed right now.

The close time represents the notional "center" of the network. Each server assumes its clock is correct, and tries to pull the close time towards its measure of network time.

Implemented in ripple::TimeKeeperImpl, and ripple::test::ManualTimeKeeper.

adjustCloseTime()

virtual void ripple::TimeKeeper::adjustCloseTime ( std::chrono::duration< std::int32_t >  amount )

pure virtual

Adjust the close time.

This is called in response to received validations.

Implemented in ripple::TimeKeeperImpl, and ripple::test::ManualTimeKeeper.

nowOffset()

virtual std::chrono::duration<std::int32_t> ripple::TimeKeeper::nowOffset ( ) const

pure virtual

Implemented in ripple::TimeKeeperImpl, and ripple::test::ManualTimeKeeper.

closeOffset()

virtual std::chrono::duration<std::int32_t> ripple::TimeKeeper::closeOffset ( ) const

pure virtual

Implemented in ripple::TimeKeeperImpl, and ripple::test::ManualTimeKeeper.

now() [2/2]

virtual time_point beast::abstract_clock< NetClock >::now

pure virtualinherited

Returns the current time.

Member Data Documentation

is_steady

const bool beast::abstract_clock< NetClock >::is_steady

staticinherited

Definition at line 66 of file abstract_clock.h.
