Basic histogram. More...

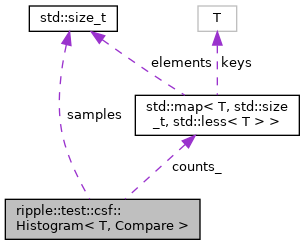

Collaboration diagram for ripple::test::csf::Histogram< T, Compare >:
Public Member Functions | |
| void | insert (T const &s) |
| Insert an sample. More... | |
| std::size_t | size () const |
| The number of samples. More... | |
| std::size_t | numBins () const |
| The number of distinct samples (bins) More... | |
| T | minValue () const |
| Minimum observed value. More... | |
| T | maxValue () const |
| Maximum observed value. More... | |
| T | avg () const |
| Histogram average. More... | |
| T | percentile (float p) const |
| Calculate the given percentile of the distribution. More... | |
Private Attributes | |
| std::map< T, std::size_t, Compare > | counts_ |
| std::size_t | samples = 0 |
Detailed Description
template<class T, class Compare = std::less<T>>
class ripple::test::csf::Histogram< T, Compare >
Basic histogram.
Histogram for a type T that satisfies
- Default construction: T{}
- Comparison : T a, b; bool res = a < b
- Addition: T a, b; T c = a + b;
- Multiplication : T a, std::size_t b; T c = a * b;
- Divison: T a; std::size_t b; T c = a/b;
Definition at line 42 of file Histogram.h.
Member Function Documentation
◆ insert()
template<class T , class Compare = std::less<T>>
| void ripple::test::csf::Histogram< T, Compare >::insert | ( | T const & | s | ) |
Insert an sample.
Definition at line 52 of file Histogram.h.
◆ size()
template<class T , class Compare = std::less<T>>
| std::size_t ripple::test::csf::Histogram< T, Compare >::size | ( | ) | const |
The number of samples.
Definition at line 60 of file Histogram.h.
◆ numBins()
template<class T , class Compare = std::less<T>>
| std::size_t ripple::test::csf::Histogram< T, Compare >::numBins | ( | ) | const |
The number of distinct samples (bins)
Definition at line 67 of file Histogram.h.
◆ minValue()
template<class T , class Compare = std::less<T>>
| T ripple::test::csf::Histogram< T, Compare >::minValue | ( | ) | const |
Minimum observed value.
Definition at line 74 of file Histogram.h.
◆ maxValue()
template<class T , class Compare = std::less<T>>
| T ripple::test::csf::Histogram< T, Compare >::maxValue | ( | ) | const |
Maximum observed value.
Definition at line 81 of file Histogram.h.
◆ avg()
template<class T , class Compare = std::less<T>>
| T ripple::test::csf::Histogram< T, Compare >::avg | ( | ) | const |
Histogram average.
Definition at line 88 of file Histogram.h.
◆ percentile()
template<class T , class Compare = std::less<T>>
| T ripple::test::csf::Histogram< T, Compare >::percentile | ( | float | p | ) | const |
Calculate the given percentile of the distribution.
- Parameters
-
p Percentile between 0 and 1, e.g. 0.50 is 50-th percentile If the percentile falls between two bins, uses the nearest bin.
- Returns
- The given percentile of the distribution
Definition at line 109 of file Histogram.h.
Member Data Documentation
◆ counts_
template<class T , class Compare = std::less<T>>
|
private |
Definition at line 46 of file Histogram.h.
◆ samples
template<class T , class Compare = std::less<T>>
|
private |
Definition at line 47 of file Histogram.h.
