ripple::test::csf::Scheduler Class Reference

Simulated discrete-event scheduler. More...

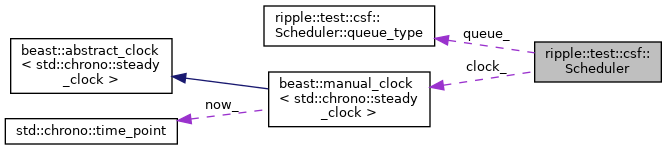

Collaboration diagram for ripple::test::csf::Scheduler:

Classes
struct	cancel_token
struct	event
class	event_impl
class	queue_type

Public Types
using	clock_type = beast::manual_clock< std::chrono::steady_clock >
using	duration = typename clock_type::duration
using	time_point = typename clock_type::time_point

Public Member Functions
	Scheduler (Scheduler const &)=delete
Scheduler &	operator= (Scheduler const &)=delete
	Scheduler ()
clock_type &	clock () const
	Return the clock. More...
time_point	now () const
	Return the current network time. More...
template<class Function >
cancel_token	at (time_point const &when, Function &&f)
	Schedule an event at a specific time. More...
template<class Function >
cancel_token	in (duration const &delay, Function &&f)
	Schedule an event after a specified duration passes. More...
void	cancel (cancel_token const &token)
	Cancel a timer. More...
bool	step_one ()
	Run the scheduler for up to one event. More...
bool	step ()
	Run the scheduler until no events remain. More...
template<class Function >
bool	step_while (Function &&func)
	Run the scheduler while a condition is true. More...
bool	step_until (time_point const &until)
	Run the scheduler until the specified time. More...
template<class Period , class Rep >
bool	step_for (std::chrono::duration< Period, Rep > const &amount)
	Run the scheduler until time has elapsed. More...
template<class Function >
auto	at (time_point const &when, Function &&f) -> cancel_token
template<class Function >
auto	in (duration const &delay, Function &&f) -> cancel_token

Private Types
using	by_when_hook = boost::intrusive::set_base_hook< boost::intrusive::link_mode< boost::intrusive::normal_link > >

Private Attributes
boost::container::pmr::monotonic_buffer_resource	alloc_ {kilobytes(256)}
queue_type	queue_
clock_type	clock_

Detailed Description

Simulated discrete-event scheduler.

Simulates the behavior of events using a single common clock.

An event is modeled using a lambda function and is scheduled to occur at a specific time. Events may be canceled using a token returned when the event is scheduled.

The caller uses one or more of the step, step_one, step_for, step_until and step_while functions to process scheduled events.

Definition at line 47 of file test/csf/Scheduler.h.

Member Typedef Documentation

clock_type

using ripple::test::csf::Scheduler::clock_type = beast::manual_clock<std::chrono::steady_clock>

Definition at line 50 of file test/csf/Scheduler.h.

duration

using ripple::test::csf::Scheduler::duration = typename clock_type::duration

Definition at line 52 of file test/csf/Scheduler.h.

time_point

using ripple::test::csf::Scheduler::time_point = typename clock_type::time_point

Definition at line 54 of file test/csf/Scheduler.h.

by_when_hook

using ripple::test::csf::Scheduler::by_when_hook = boost::intrusive::set_base_hook< boost::intrusive::link_mode<boost::intrusive::normal_link> >

private

Definition at line 58 of file test/csf/Scheduler.h.

Constructor & Destructor Documentation

Scheduler() [1/2]

ripple::test::csf::Scheduler::Scheduler ( Scheduler const &  )

delete

Scheduler() [2/2]

ripple::test::csf::Scheduler::Scheduler

(

)

Definition at line 354 of file test/csf/Scheduler.h.

Member Function Documentation

operator=()

Scheduler& ripple::test::csf::Scheduler::operator= ( Scheduler const &  )

delete

clock()

auto ripple::test::csf::Scheduler::clock

(

)

const

Return the clock.

(aged_containers want a non-const ref =(

Definition at line 359 of file test/csf/Scheduler.h.

now()

auto ripple::test::csf::Scheduler::now

(

)

const

Return the current network time.

Note

The epoch is unspecified

Definition at line 365 of file test/csf/Scheduler.h.

at() [1/2]

template<class Function >

cancel_token ripple::test::csf::Scheduler::at	(	time_point const &	when,
		Function &&	f
	)

Schedule an event at a specific time.

Effects:

When the network time is reached,
the function will be called with
no arguments.

in() [1/2]

template<class Function >

cancel_token ripple::test::csf::Scheduler::in	(	duration const &	delay,
		Function &&	f
	)

Schedule an event after a specified duration passes.

Effects:

When the specified time has elapsed,
the function will be called with
no arguments.

cancel()

void ripple::test::csf::Scheduler::cancel

(

cancel_token const &

token

)

Cancel a timer.

Preconditions:

`token` was the return value of a call
timer() which has not yet been invoked.

Definition at line 385 of file test/csf/Scheduler.h.

step_one()

bool ripple::test::csf::Scheduler::step_one

(

)

Run the scheduler for up to one event.

Effects:

The clock is advanced to the time
of the last delivered event.

Returns

true if an event was processed.

Definition at line 391 of file test/csf/Scheduler.h.

step()

bool ripple::test::csf::Scheduler::step

(

)

Run the scheduler until no events remain.

Effects:

The clock is advanced to the time
of the last event.

Returns

true if an event was processed.

Definition at line 403 of file test/csf/Scheduler.h.

step_while()

template<class Function >

bool ripple::test::csf::Scheduler::step_while

(

Function &&

func

)

Run the scheduler while a condition is true.

Function takes no arguments and will be called repeatedly after each event is processed to decide whether to continue.

Effects:

The clock is advanced to the time
of the last delivered event.

Returns

true if any event was processed.

Definition at line 415 of file test/csf/Scheduler.h.

step_until()

bool ripple::test::csf::Scheduler::step_until

(

time_point const &

until

)

Run the scheduler until the specified time.

Effects:

The clock is advanced to the
specified time.

Returns

true if any event remain.

Definition at line 424 of file test/csf/Scheduler.h.

step_for()

template<class Period , class Rep >

bool ripple::test::csf::Scheduler::step_for

(

std::chrono::duration< Period, Rep > const &

amount

)

Run the scheduler until time has elapsed.

Effects:

The clock is advanced by the
specified duration.

Returns

true if any event remain.

Definition at line 449 of file test/csf/Scheduler.h.

at() [2/2]

template<class Function >

auto ripple::test::csf::Scheduler::at	(	time_point const &	when,
		Function &&	f
	)		-> cancel_token

Definition at line 372 of file test/csf/Scheduler.h.

in() [2/2]

template<class Function >

auto ripple::test::csf::Scheduler::in	(	duration const &	delay,
		Function &&	f
	)		-> cancel_token

Definition at line 379 of file test/csf/Scheduler.h.

Member Data Documentation

alloc_

boost::container::pmr::monotonic_buffer_resource ripple::test::csf::Scheduler::alloc_ {kilobytes(256)}

private

Definition at line 148 of file test/csf/Scheduler.h.

queue_

queue_type ripple::test::csf::Scheduler::queue_

private

Definition at line 149 of file test/csf/Scheduler.h.

clock_

clock_type ripple::test::csf::Scheduler::clock_

mutableprivate

Definition at line 152 of file test/csf/Scheduler.h.
