Context needed to build Strand Steps and for error checking. More...

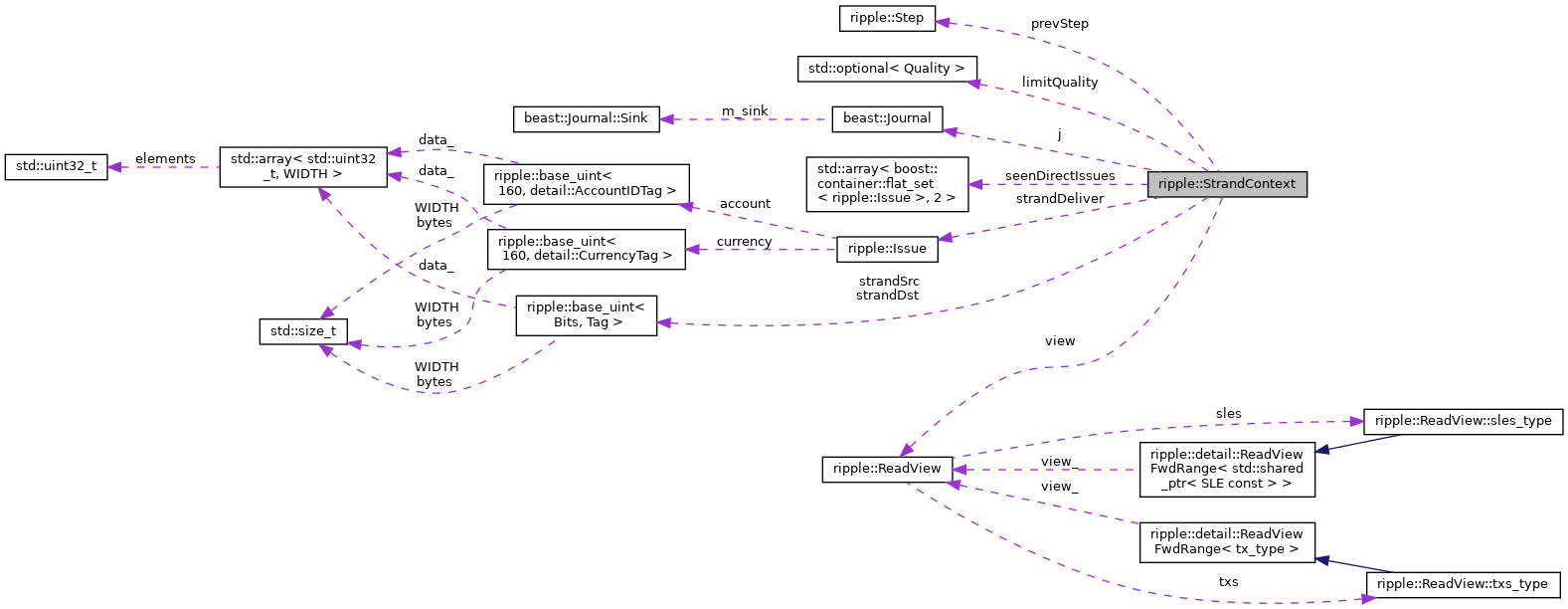

Collaboration diagram for ripple::StrandContext:

[legend]

Public Member Functions
	StrandContext (ReadView const &view_, std::vector< std::unique_ptr< Step >> const &strand_, AccountID const &strandSrc_, AccountID const &strandDst_, Issue const &strandDeliver_, std::optional< Quality > const &limitQuality_, bool isLast_, bool ownerPaysTransferFee_, bool offerCrossing_, bool isDefaultPath_, std::array< boost::container::flat_set< Issue >, 2 > &seenDirectIssues_, boost::container::flat_set< Issue > &seenBookOuts_, beast::Journal j_)
	StrandContext constructor. More...

Public Attributes
ReadView const &	view
	Current ReadView. More...

const AccountID	strandSrc
	Strand source account. More...

const AccountID	strandDst
	Strand destination account. More...

const Issue	strandDeliver
	Issue strand delivers. More...

const std::optional< Quality >	limitQuality
	Worst accepted quality. More...

const bool	isFirst
	true if Step is first in Strand More...

const bool	isLast = false
	true if Step is last in Strand More...

const bool	ownerPaysTransferFee
	true if owner, not sender, pays fee More...

const bool	offerCrossing
	true if offer crossing, not payment More...

const bool	isDefaultPath
	true if Strand is default path More...

const size_t	strandSize
	Length of Strand. More...

Step const *const	prevStep = nullptr
	The previous step in the strand. More...

std::array< boost::container::flat_set< Issue >, 2 > &	seenDirectIssues
	A strand may not include the same account node more than once in the same currency. More...

boost::container::flat_set< Issue > &	seenBookOuts
	A strand may not include an offer that output the same issue more than once. More...

const beast::Journal	j

Detailed Description

Context needed to build Strand Steps and for error checking.

Definition at line 497 of file Steps.h.

Constructor & Destructor Documentation

◆ StrandContext()

ripple::StrandContext::StrandContext	(	ReadView const &	view_,
		std::vector< std::unique_ptr< Step >> const &	strand_,
		AccountID const &	strandSrc_,
		AccountID const &	strandDst_,
		Issue const &	strandDeliver_,
		std::optional< Quality > const &	limitQuality_,
		bool	isLast_,
		bool	ownerPaysTransferFee_,
		bool	offerCrossing_,
		bool	isDefaultPath_,
		std::array< boost::container::flat_set< Issue >, 2 > &	seenDirectIssues_,
		boost::container::flat_set< Issue > &	seenBookOuts_,
		beast::Journal	j_
	)

StrandContext constructor.

Journal for logging

Parameters

seenDirectIssues_	For detecting currency loops
seenBookOuts_	For detecting book loops

Definition at line 575 of file PaySteps.cpp.

Member Data Documentation

◆ view

ReadView const& ripple::StrandContext::view

Current ReadView.

Definition at line 499 of file Steps.h.

◆ strandSrc

const AccountID ripple::StrandContext::strandSrc

Strand source account.

Definition at line 500 of file Steps.h.

◆ strandDst

const AccountID ripple::StrandContext::strandDst

Strand destination account.

Definition at line 501 of file Steps.h.

◆ strandDeliver

const Issue ripple::StrandContext::strandDeliver

Issue strand delivers.

Definition at line 502 of file Steps.h.

◆ limitQuality

const std::optional<Quality> ripple::StrandContext::limitQuality

Worst accepted quality.

Definition at line 503 of file Steps.h.

◆ isFirst

const bool ripple::StrandContext::isFirst

true if Step is first in Strand

Definition at line 504 of file Steps.h.

◆ isLast

const bool ripple::StrandContext::isLast = false

true if Step is last in Strand

Definition at line 505 of file Steps.h.

◆ ownerPaysTransferFee

const bool ripple::StrandContext::ownerPaysTransferFee

true if owner, not sender, pays fee

Definition at line 506 of file Steps.h.

◆ offerCrossing

const bool ripple::StrandContext::offerCrossing

true if offer crossing, not payment

Definition at line 507 of file Steps.h.

◆ isDefaultPath

const bool ripple::StrandContext::isDefaultPath

true if Strand is default path

Definition at line 508 of file Steps.h.

◆ strandSize

const size_t ripple::StrandContext::strandSize

Length of Strand.

Definition at line 509 of file Steps.h.

◆ prevStep

Step const* const ripple::StrandContext::prevStep = nullptr

The previous step in the strand.

Needed to check the no ripple constraint

Definition at line 513 of file Steps.h.

◆ seenDirectIssues

std::array<boost::container::flat_set<Issue>, 2>& ripple::StrandContext::seenDirectIssues

A strand may not include the same account node more than once in the same currency.

In a direct step, an account will show up at most twice: once as a src and once as a dst (hence the two element array). The strandSrc and strandDst will only show up once each.

Definition at line 519 of file Steps.h.

◆ seenBookOuts

boost::container::flat_set<Issue>& ripple::StrandContext::seenBookOuts

A strand may not include an offer that output the same issue more than once.

Definition at line 523 of file Steps.h.

◆ j

const beast::Journal ripple::StrandContext::j

Definition at line 524 of file Steps.h.
