beast::insight::Collector Class Reference

Interface for a manager that allows collection of metrics. More...

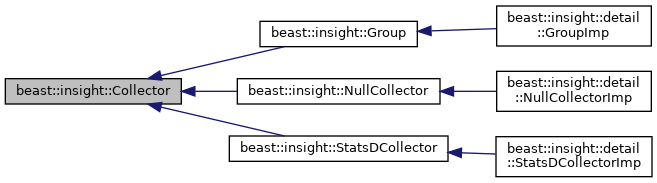

Inheritance diagram for beast::insight::Collector:

Public Types
using	ptr = std::shared_ptr< Collector >

Public Member Functions
virtual	~Collector ()=0
template<class Handler >
Hook	make_hook (Handler handler)
	Create a hook. More...
virtual Hook	make_hook (HookImpl::HandlerType const &handler)=0
virtual Counter	make_counter (std::string const &name)=0
	Create a counter with the specified name. More...
Counter	make_counter (std::string const &prefix, std::string const &name)
virtual Event	make_event (std::string const &name)=0
	Create an event with the specified name. More...
Event	make_event (std::string const &prefix, std::string const &name)
virtual Gauge	make_gauge (std::string const &name)=0
	Create a gauge with the specified name. More...
Gauge	make_gauge (std::string const &prefix, std::string const &name)
virtual Meter	make_meter (std::string const &name)=0
	Create a meter with the specified name. More...
Meter	make_meter (std::string const &prefix, std::string const &name)

Detailed Description

Interface for a manager that allows collection of metrics.

To export metrics from a class, pass and save a shared_ptr to this interface in the class constructor. Create the metric objects as desired (counters, events, gauges, meters, and an optional hook) using the interface.

See also

Counter, Event, Gauge, Hook, Meter

NullCollector, StatsDCollector

Definition at line 44 of file Collector.h.

Member Typedef Documentation

ptr

using beast::insight::Collector::ptr = std::shared_ptr<Collector>

Definition at line 47 of file Collector.h.

Constructor & Destructor Documentation

~Collector()

beast::insight::Collector::~Collector ( )

pure virtualdefault

Member Function Documentation

make_hook() [1/2]

template<class Handler >

Hook beast::insight::Collector::make_hook

(

Handler

handler

)

Create a hook.

A hook is called at each collection interval, on an implementation defined thread. This is a convenience facility for gathering metrics in the polling style. The typical usage is to update all the metrics of interest in the handler.

Handler will be called with this signature: void handler (void)

See also

Hook

Definition at line 66 of file Collector.h.

make_hook() [2/2]

virtual Hook beast::insight::Collector::make_hook ( HookImpl::HandlerType const &  handler )

pure virtual

Implemented in beast::insight::detail::StatsDCollectorImp, beast::insight::detail::GroupImp, and beast::insight::detail::NullCollectorImp.

make_counter() [1/2]

virtual Counter beast::insight::Collector::make_counter ( std::string const &  name )

pure virtual

Create a counter with the specified name.

See also

Counter

Implemented in beast::insight::detail::StatsDCollectorImp, beast::insight::detail::GroupImp, and beast::insight::detail::NullCollectorImp.

make_counter() [2/2]

Counter beast::insight::Collector::make_counter	(	std::string const &	prefix,
		std::string const &	name
	)

Definition at line 83 of file Collector.h.

make_event() [1/2]

virtual Event beast::insight::Collector::make_event ( std::string const &  name )

pure virtual

Create an event with the specified name.

See also

Event

Implemented in beast::insight::detail::StatsDCollectorImp, beast::insight::detail::GroupImp, and beast::insight::detail::NullCollectorImp.

make_event() [2/2]

Event beast::insight::Collector::make_event	(	std::string const &	prefix,
		std::string const &	name
	)

Definition at line 99 of file Collector.h.

make_gauge() [1/2]

virtual Gauge beast::insight::Collector::make_gauge ( std::string const &  name )

pure virtual

Create a gauge with the specified name.

See also

Gauge

Implemented in beast::insight::detail::StatsDCollectorImp, beast::insight::detail::GroupImp, and beast::insight::detail::NullCollectorImp.

make_gauge() [2/2]

Gauge beast::insight::Collector::make_gauge	(	std::string const &	prefix,
		std::string const &	name
	)

Definition at line 115 of file Collector.h.

make_meter() [1/2]

virtual Meter beast::insight::Collector::make_meter ( std::string const &  name )

pure virtual

Create a meter with the specified name.

See also

Meter

Implemented in beast::insight::detail::StatsDCollectorImp, beast::insight::detail::GroupImp, and beast::insight::detail::NullCollectorImp.

make_meter() [2/2]

Meter beast::insight::Collector::make_meter	(	std::string const &	prefix,
		std::string const &	name
	)

Definition at line 131 of file Collector.h.
