beast::insight::Gauge Class Reference

A metric for measuring an integral value. More...

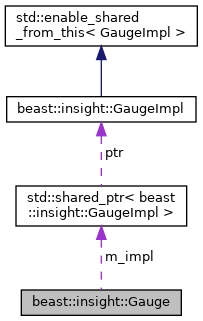

Collaboration diagram for beast::insight::Gauge:

Public Types
using	value_type = GaugeImpl::value_type
using	difference_type = GaugeImpl::difference_type

Public Member Functions
	Gauge ()
	Create a null metric. More...
	Gauge (std::shared_ptr< GaugeImpl > const &impl)
	Create the metric reference the specified implementation. More...
std::shared_ptr< GaugeImpl > const &	impl () const
void	set (value_type value) const
	Set the value on the gauge. More...
Gauge const &	operator= (value_type value) const
void	increment (difference_type amount) const
	Adjust the value of the gauge. More...
Gauge const &	operator+= (difference_type amount) const
Gauge const &	operator-= (difference_type amount) const
Gauge const &	operator++ () const
Gauge const &	operator++ (int) const
Gauge const &	operator-- () const
Gauge const &	operator-- (int) const

Private Attributes
std::shared_ptr< GaugeImpl >	m_impl

Detailed Description

A metric for measuring an integral value.

A gauge is an instantaneous measurement of a value, like the gas gauge in a car. The caller directly sets the value, or adjusts it by a specified amount. The value is kept in the client rather than the collector.

This is a lightweight reference wrapper which is cheap to copy and assign. When the last reference goes away, the metric is no longer collected.

Definition at line 39 of file Gauge.h.

Member Typedef Documentation

value_type

using beast::insight::Gauge::value_type = GaugeImpl::value_type

Definition at line 42 of file Gauge.h.

difference_type

using beast::insight::Gauge::difference_type = GaugeImpl::difference_type

Definition at line 43 of file Gauge.h.

Constructor & Destructor Documentation

Gauge() [1/2]

beast::insight::Gauge::Gauge

(

)

Create a null metric.

A null metric reports no information.

Definition at line 48 of file Gauge.h.

Gauge() [2/2]

beast::insight::Gauge::Gauge ( std::shared_ptr< GaugeImpl > const &  impl )

explicit

Create the metric reference the specified implementation.

Normally this won't be called directly. Instead, call the appropriate factory function in the Collector interface.

See also

Collector.

Definition at line 57 of file Gauge.h.

Member Function Documentation

set()

void beast::insight::Gauge::set

(

value_type

value

)

const

Set the value on the gauge.

A Collector implementation should combine multiple calls to value changes into a single change if the calls occur within a single collection interval.

Definition at line 68 of file Gauge.h.

operator=()

Gauge const& beast::insight::Gauge::operator=

(

value_type

value

)

const

Definition at line 75 of file Gauge.h.

increment()

void beast::insight::Gauge::increment

(

difference_type

amount

)

const

Adjust the value of the gauge.

Definition at line 85 of file Gauge.h.

operator+=()

Gauge const& beast::insight::Gauge::operator+=

(

difference_type

amount

)

const

Definition at line 92 of file Gauge.h.

operator-=()

Gauge const& beast::insight::Gauge::operator-=

(

difference_type

amount

)

const

Definition at line 99 of file Gauge.h.

operator++() [1/2]

Gauge const& beast::insight::Gauge::operator++

(

)

const

Definition at line 106 of file Gauge.h.

operator++() [2/2]

Gauge const& beast::insight::Gauge::operator++

(

int

)

const

Definition at line 113 of file Gauge.h.

operator--() [1/2]

Gauge const& beast::insight::Gauge::operator--

(

)

const

Definition at line 120 of file Gauge.h.

operator--() [2/2]

Gauge const& beast::insight::Gauge::operator--

(

int

)

const

Definition at line 127 of file Gauge.h.

impl()

std::shared_ptr<GaugeImpl> const& beast::insight::Gauge::impl

(

)

const

Definition at line 135 of file Gauge.h.

Member Data Documentation

m_impl

std::shared_ptr<GaugeImpl> beast::insight::Gauge::m_impl

private

Definition at line 141 of file Gauge.h.
