Inheritance diagram for ripple::BookStep< TIn, TOut, TDerived >:

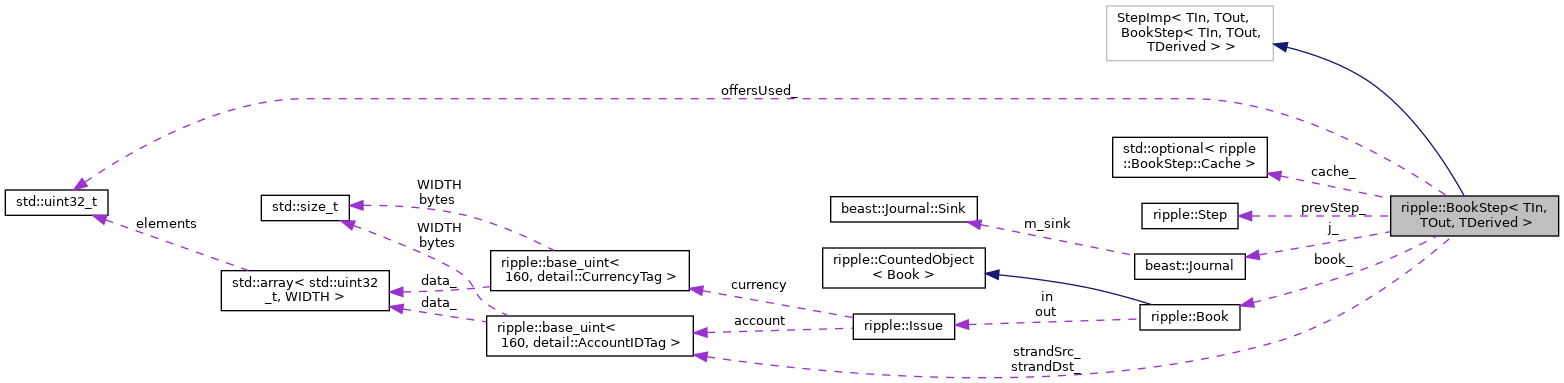

Collaboration diagram for ripple::BookStep< TIn, TOut, TDerived >:

[legend]

Classes
struct	Cache

Public Member Functions
	BookStep (StrandContext const &ctx, Issue const &in, Issue const &out)

Book const &	book () const

std::optional< EitherAmount >	cachedIn () const override

std::optional< EitherAmount >	cachedOut () const override

DebtDirection	debtDirection (ReadView const &sb, StrandDirection dir) const override

std::optional< Book >	bookStepBook () const override

std::pair< std::optional< Quality >, DebtDirection >	qualityUpperBound (ReadView const &v, DebtDirection prevStepDir) const override

std::uint32_t	offersUsed () const override

std::pair< TIn, TOut >	revImp (PaymentSandbox &sb, ApplyView &afView, boost::container::flat_set< uint256 > &ofrsToRm, TOut const &out)

std::pair< TIn, TOut >	fwdImp (PaymentSandbox &sb, ApplyView &afView, boost::container::flat_set< uint256 > &ofrsToRm, TIn const &in)

std::pair< bool, EitherAmount >	validFwd (PaymentSandbox &sb, ApplyView &afView, EitherAmount const &in) override

TER	check (StrandContext const &ctx) const

bool	inactive () const override

Protected Member Functions
std::string	logStringImpl (char const *name) const

Static Protected Member Functions
static uint32_t	getMaxOffersToConsume (StrandContext const &ctx)

Protected Attributes
const uint32_t	maxOffersToConsume_

Book	book_

AccountID	strandSrc_

AccountID	strandDst_

Step const *const	prevStep_ = nullptr

const bool	ownerPaysTransferFee_

bool	inactive_ = false

std::uint32_t	offersUsed_ = 0
	Number of offers consumed or partially consumed the last time the step ran, including expired and unfunded offers. More...

const beast::Journal	j_

std::optional< Cache >	cache_

Private Member Functions
bool	equal (Step const &rhs) const override

template<class Callback >
std::pair< boost::container::flat_set< uint256 >, std::uint32_t >	forEachOffer (PaymentSandbox &sb, ApplyView &afView, DebtDirection prevStepDebtDir, Callback &callback) const

void	consumeOffer (PaymentSandbox &sb, TOffer< TIn, TOut > &offer, TAmounts< TIn, TOut > const &ofrAmt, TAmounts< TIn, TOut > const &stepAmt, TOut const &ownerGives) const

Friends
bool	operator== (BookStep const &lhs, BookStep const &rhs)

bool	operator!= (BookStep const &lhs, BookStep const &rhs)

Detailed Description

template<class TIn, class TOut, class TDerived>
class ripple::BookStep< TIn, TOut, TDerived >

Definition at line 42 of file BookStep.cpp.

Constructor & Destructor Documentation

◆ BookStep()

template<class TIn , class TOut , class TDerived >

ripple::BookStep< TIn, TOut, TDerived >::BookStep	(	StrandContext const &	ctx,
		Issue const &	in,
		Issue const &	out
	)

Definition at line 85 of file BookStep.cpp.

Member Function Documentation

◆ getMaxOffersToConsume()

template<class TIn , class TOut , class TDerived >

static uint32_t ripple::BookStep< TIn, TOut, TDerived >::getMaxOffersToConsume ( StrandContext const & ctx )

staticprotected

Definition at line 77 of file BookStep.cpp.

◆ book()

template<class TIn , class TOut , class TDerived >

Book const& ripple::BookStep< TIn, TOut, TDerived >::book ( ) const

Definition at line 97 of file BookStep.cpp.

◆ cachedIn()

template<class TIn , class TOut , class TDerived >

std::optional<EitherAmount> ripple::BookStep< TIn, TOut, TDerived >::cachedIn ( ) const

override

Definition at line 103 of file BookStep.cpp.

◆ cachedOut()

template<class TIn , class TOut , class TDerived >

std::optional<EitherAmount> ripple::BookStep< TIn, TOut, TDerived >::cachedOut ( ) const

override

Definition at line 111 of file BookStep.cpp.

◆ debtDirection()

template<class TIn , class TOut , class TDerived >

DebtDirection ripple::BookStep< TIn, TOut, TDerived >::debtDirection	(	ReadView const &	sb,
		StrandDirection	dir
	)		const

override

Definition at line 119 of file BookStep.cpp.

◆ bookStepBook()

template<class TIn , class TOut , class TDerived >

std::optional<Book> ripple::BookStep< TIn, TOut, TDerived >::bookStepBook ( ) const

override

Definition at line 126 of file BookStep.cpp.

◆ qualityUpperBound()

template<class TIn , class TOut , class TDerived >

std::pair< std::optional< Quality >, DebtDirection > ripple::BookStep< TIn, TOut, TDerived >::qualityUpperBound	(	ReadView const &	v,
		DebtDirection	prevStepDir
	)		const

override

Definition at line 476 of file BookStep.cpp.

◆ offersUsed()

template<class TIn , class TOut , class TDerived >

std::uint32_t ripple::BookStep< TIn, TOut, TDerived >::offersUsed

override

Definition at line 495 of file BookStep.cpp.

◆ revImp()

template<class TIn , class TOut , class TDerived >

std::pair< TIn, TOut > ripple::BookStep< TIn, TOut, TDerived >::revImp	(	PaymentSandbox &	sb,
		ApplyView &	afView,
		boost::container::flat_set< uint256 > &	ofrsToRm,
		TOut const &	out
	)

Definition at line 720 of file BookStep.cpp.

◆ fwdImp()

template<class TIn , class TOut , class TDerived >

std::pair< TIn, TOut > ripple::BookStep< TIn, TOut, TDerived >::fwdImp	(	PaymentSandbox &	sb,
		ApplyView &	afView,
		boost::container::flat_set< uint256 > &	ofrsToRm,
		TIn const &	in
	)

Definition at line 841 of file BookStep.cpp.

◆ validFwd()

template<class TIn , class TOut , class TDerived >

std::pair< bool, EitherAmount > ripple::BookStep< TIn, TOut, TDerived >::validFwd	(	PaymentSandbox &	sb,
		ApplyView &	afView,
		EitherAmount const &	in
	)

override

Definition at line 1011 of file BookStep.cpp.

◆ check()

template<class TIn , class TOut , class TDerived >

TER ripple::BookStep< TIn, TOut, TDerived >::check ( StrandContext const & ctx ) const

Definition at line 1049 of file BookStep.cpp.

◆ inactive()

template<class TIn , class TOut , class TDerived >

bool ripple::BookStep< TIn, TOut, TDerived >::inactive ( ) const

override

Definition at line 161 of file BookStep.cpp.

◆ logStringImpl()

template<class TIn , class TOut , class TDerived >

std::string ripple::BookStep< TIn, TOut, TDerived >::logStringImpl ( char const * name ) const

protected

Definition at line 168 of file BookStep.cpp.

◆ equal()

template<class TIn , class TOut , class TDerived >

bool ripple::BookStep< TIn, TOut, TDerived >::equal ( Step const & rhs ) const

overrideprivate

Definition at line 467 of file BookStep.cpp.

◆ forEachOffer()

template<class TIn , class TOut , class TDerived >

template<class Callback >

std::pair< boost::container::flat_set< uint256 >, std::uint32_t > ripple::BookStep< TIn, TOut, TDerived >::forEachOffer	(	PaymentSandbox &	sb,
		ApplyView &	afView,
		DebtDirection	prevStepDebtDir,
		Callback &	callback
	)		const

private

Definition at line 550 of file BookStep.cpp.

◆ consumeOffer()

template<class TIn , class TOut , class TDerived >

void ripple::BookStep< TIn, TOut, TDerived >::consumeOffer	(	PaymentSandbox &	sb,
		TOffer< TIn, TOut > &	offer,
		TAmounts< TIn, TOut > const &	ofrAmt,
		TAmounts< TIn, TOut > const &	stepAmt,
		TOut const &	ownerGives
	)		const

private

Definition at line 672 of file BookStep.cpp.

Friends And Related Function Documentation

◆ operator==

template<class TIn , class TOut , class TDerived >

bool operator==	(	BookStep< TIn, TOut, TDerived > const &	lhs,
		BookStep< TIn, TOut, TDerived > const &	rhs
	)

friend

Definition at line 181 of file BookStep.cpp.

◆ operator!=

template<class TIn , class TOut , class TDerived >

bool operator!=	(	BookStep< TIn, TOut, TDerived > const &	lhs,
		BookStep< TIn, TOut, TDerived > const &	rhs
	)

friend

Definition at line 187 of file BookStep.cpp.

Member Data Documentation

◆ maxOffersToConsume_

template<class TIn , class TOut , class TDerived >

const uint32_t ripple::BookStep< TIn, TOut, TDerived >::maxOffersToConsume_

protected

Definition at line 45 of file BookStep.cpp.

◆ book_

template<class TIn , class TOut , class TDerived >

Book ripple::BookStep< TIn, TOut, TDerived >::book_

protected

Definition at line 46 of file BookStep.cpp.

◆ strandSrc_

template<class TIn , class TOut , class TDerived >

AccountID ripple::BookStep< TIn, TOut, TDerived >::strandSrc_

protected

Definition at line 47 of file BookStep.cpp.

◆ strandDst_

template<class TIn , class TOut , class TDerived >

AccountID ripple::BookStep< TIn, TOut, TDerived >::strandDst_

protected

Definition at line 48 of file BookStep.cpp.

◆ prevStep_

template<class TIn , class TOut , class TDerived >

Step const* const ripple::BookStep< TIn, TOut, TDerived >::prevStep_ = nullptr

protected

Definition at line 50 of file BookStep.cpp.

◆ ownerPaysTransferFee_

template<class TIn , class TOut , class TDerived >

const bool ripple::BookStep< TIn, TOut, TDerived >::ownerPaysTransferFee_

protected

Definition at line 51 of file BookStep.cpp.

◆ inactive_

template<class TIn , class TOut , class TDerived >

bool ripple::BookStep< TIn, TOut, TDerived >::inactive_ = false

protected

Definition at line 53 of file BookStep.cpp.

◆ offersUsed_

template<class TIn , class TOut , class TDerived >

std::uint32_t ripple::BookStep< TIn, TOut, TDerived >::offersUsed_ = 0

protected

Number of offers consumed or partially consumed the last time the step ran, including expired and unfunded offers.

N.B. This this not the total number offers consumed by this step for the entire payment, it is only the number the last time it ran. Offers may be partially consumed multiple times during a payment.

Definition at line 61 of file BookStep.cpp.

◆ j_

template<class TIn , class TOut , class TDerived >

const beast::Journal ripple::BookStep< TIn, TOut, TDerived >::j_

protected

Definition at line 62 of file BookStep.cpp.

◆ cache_

template<class TIn , class TOut , class TDerived >

std::optional<Cache> ripple::BookStep< TIn, TOut, TDerived >::cache_

protected

Definition at line 74 of file BookStep.cpp.
