This class manages a connection to a single ETL source. More...

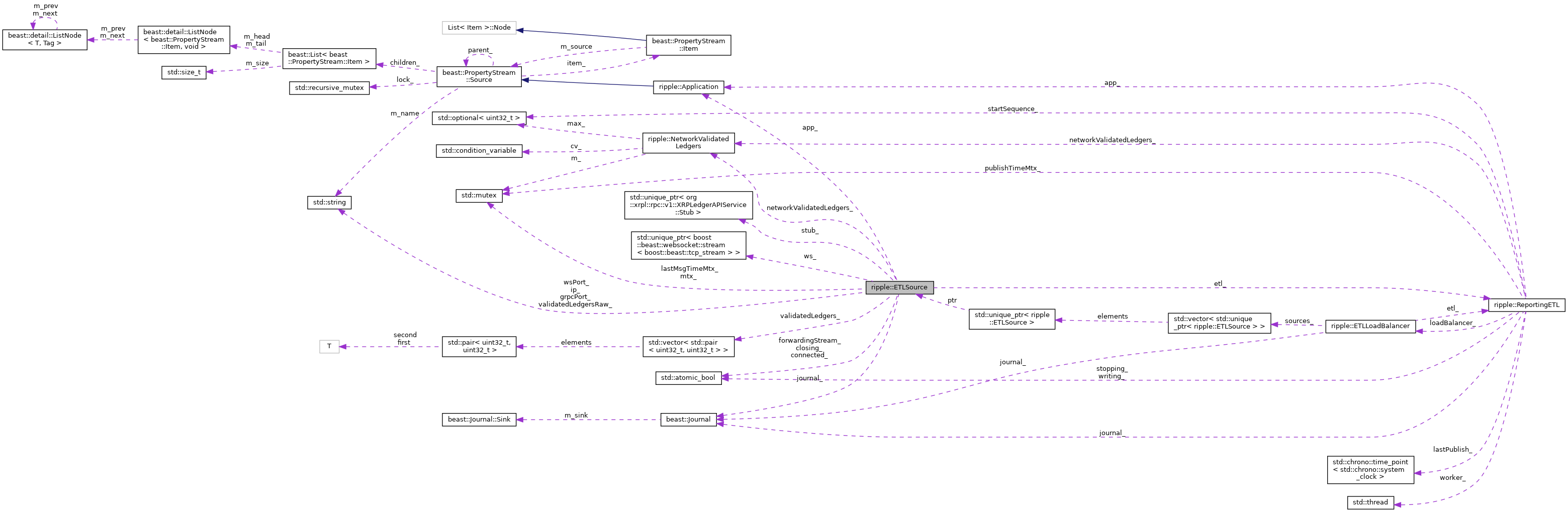

Collaboration diagram for ripple::ETLSource:

[legend]

Public Member Functions
bool	isConnected () const

std::chrono::system_clock::time_point	getLastMsgTime () const

void	setLastMsgTime ()

	ETLSource (std::string ip, std::string wsPort, ReportingETL &etl)
	Create ETL source without gRPC endpoint Fetch ledger and load initial ledger will fail for this source Primarly used in read-only mode, to monitor when ledgers are validated. More...

	ETLSource (std::string ip, std::string wsPort, std::string grpcPort, ReportingETL &etl)
	Create ETL source with gRPC endpoint. More...

bool	hasLedger (uint32_t sequence) const

void	setValidatedRange (std::string const &range)
	process the validated range received on the ledgers stream. More...

std::string	getValidatedRange () const

void	stop ()
	Close the underlying websocket. More...

std::pair< grpc::Status, org::xrpl::rpc::v1::GetLedgerResponse >	fetchLedger (uint32_t ledgerSequence, bool getObjects=true)
	Fetch the specified ledger. More...

std::string	toString () const

Json::Value	toJson () const

bool	loadInitialLedger (uint32_t ledgerSequence, ThreadSafeQueue< std::shared_ptr< SLE >> &writeQueue)
	Download a ledger in full. More...

void	start ()
	Begin sequence of operations to connect to the ETL source and subscribe to ledgers and transactions_proposed. More...

void	reconnect (boost::beast::error_code ec)
	Attempt to reconnect to the ETL source. More...

void	onResolve (boost::beast::error_code ec, boost::asio::ip::tcp::resolver::results_type results)
	Callback. More...

void	onConnect (boost::beast::error_code ec, boost::asio::ip::tcp::resolver::results_type::endpoint_type endpoint)
	Callback. More...

void	onHandshake (boost::beast::error_code ec)
	Callback. More...

void	onWrite (boost::beast::error_code ec, size_t size)
	Callback. More...

void	onRead (boost::beast::error_code ec, size_t size)
	Callback. More...

bool	handleMessage ()
	Handle the most recently received message. More...

void	close (bool startAgain)
	Close the websocket. More...

std::unique_ptr< org::xrpl::rpc::v1::XRPLedgerAPIService::Stub >	getP2pForwardingStub () const
	Get grpc stub to forward requests to p2p node. More...

Json::Value	forwardToP2p (RPC::JsonContext &context) const
	Forward a JSON RPC request to a p2p node. More...

Private Attributes
std::string	ip_

std::string	wsPort_

std::string	grpcPort_

ReportingETL &	etl_

boost::asio::io_context &	ioc_

std::unique_ptr< org::xrpl::rpc::v1::XRPLedgerAPIService::Stub >	stub_

std::unique_ptr< boost::beast::websocket::stream< boost::beast::tcp_stream > >	ws_

boost::asio::ip::tcp::resolver	resolver_

boost::beast::flat_buffer	readBuffer_

std::vector< std::pair< uint32_t, uint32_t > >	validatedLedgers_

std::string	validatedLedgersRaw_

NetworkValidatedLedgers &	networkValidatedLedgers_

beast::Journal	journal_

Application &	app_

std::mutex	mtx_

size_t	numFailures_ = 0

std::atomic_bool	closing_ = false

std::atomic_bool	connected_ = false

std::atomic_bool	forwardingStream_ = false

std::chrono::system_clock::time_point	lastMsgTime_

std::mutex	lastMsgTimeMtx_

boost::asio::steady_timer	timer_

Detailed Description

This class manages a connection to a single ETL source.

This is almost always a p2p node, but really could be another reporting node. This class subscribes to the ledgers and transactions_proposed streams of the associated p2p node, and keeps track of which ledgers the p2p node has. This class also has methods for extracting said ledgers. Lastly this class forwards transactions received on the transactions_proposed streams to any subscribers.

Definition at line 46 of file ETLSource.h.

Constructor & Destructor Documentation

◆ ETLSource() [1/2]

ripple::ETLSource::ETLSource	(	std::string	ip,
		std::string	wsPort,
		ReportingETL &	etl
	)

Create ETL source without gRPC endpoint Fetch ledger and load initial ledger will fail for this source Primarly used in read-only mode, to monitor when ledgers are validated.

Definition at line 31 of file ETLSource.cpp.

◆ ETLSource() [2/2]

ripple::ETLSource::ETLSource	(	std::string	ip,
		std::string	wsPort,
		std::string	grpcPort,
		ReportingETL &	etl
	)

Create ETL source with gRPC endpoint.

Definition at line 47 of file ETLSource.cpp.

Member Function Documentation

◆ isConnected()

bool ripple::ETLSource::isConnected ( ) const

Definition at line 100 of file ETLSource.h.

◆ getLastMsgTime()

std::chrono::system_clock::time_point ripple::ETLSource::getLastMsgTime ( ) const

Definition at line 106 of file ETLSource.h.

◆ setLastMsgTime()

void ripple::ETLSource::setLastMsgTime ( )

Definition at line 113 of file ETLSource.h.

◆ hasLedger()

bool ripple::ETLSource::hasLedger ( uint32_t sequence ) const

Parameters

sequence ledger sequence to check for

Returns: true if this source has the desired ledger

Definition at line 134 of file ETLSource.h.

◆ setValidatedRange()

void ripple::ETLSource::setValidatedRange ( std::string const & range )

process the validated range received on the ledgers stream.

set the appropriate member variable

Parameters

range validated range received on ledgers stream

Definition at line 158 of file ETLSource.h.

◆ getValidatedRange()

std::string ripple::ETLSource::getValidatedRange ( ) const

Returns: the validated range of this source

Note: this is only used by server_info

Definition at line 195 of file ETLSource.h.

◆ stop()

void ripple::ETLSource::stop ( )

Close the underlying websocket.

Definition at line 204 of file ETLSource.h.

◆ fetchLedger()

std::pair< grpc::Status, org::xrpl::rpc::v1::GetLedgerResponse > ripple::ETLSource::fetchLedger	(	uint32_t	ledgerSequence,
		bool	getObjects = `true`
	)

Fetch the specified ledger.

Parameters

ledgerSequence sequence of the ledger to fetch @getObjects whether to get the account state diff between this ledger and the prior one

Returns: the extracted data and the result status

Definition at line 624 of file ETLSource.cpp.

◆ toString()

std::string ripple::ETLSource::toString ( ) const

Definition at line 222 of file ETLSource.h.

◆ toJson()

Json::Value ripple::ETLSource::toJson ( ) const

Definition at line 230 of file ETLSource.h.

◆ loadInitialLedger()

bool ripple::ETLSource::loadInitialLedger	(	uint32_t	ledgerSequence,
		ThreadSafeQueue< std::shared_ptr< SLE >> &	writeQueue
	)

Download a ledger in full.

Parameters

ledgerSequence	sequence of the ledger to download
writeQueue	queue to push downloaded ledger objects

Returns: true if the download was successful

Definition at line 557 of file ETLSource.cpp.

◆ start()

void ripple::ETLSource::start ( )

Begin sequence of operations to connect to the ETL source and subscribe to ledgers and transactions_proposed.

Definition at line 170 of file ETLSource.cpp.

◆ reconnect()

void ripple::ETLSource::reconnect ( boost::beast::error_code ec )

Attempt to reconnect to the ETL source.

Definition at line 98 of file ETLSource.cpp.

◆ onResolve()

void ripple::ETLSource::onResolve	(	boost::beast::error_code	ec,
		boost::asio::ip::tcp::resolver::results_type	results
	)

Callback.

Definition at line 182 of file ETLSource.cpp.

◆ onConnect()

void ripple::ETLSource::onConnect	(	boost::beast::error_code	ec,
		boost::asio::ip::tcp::resolver::results_type::endpoint_type	endpoint
	)

Callback.

Definition at line 203 of file ETLSource.cpp.

◆ onHandshake()

void ripple::ETLSource::onHandshake ( boost::beast::error_code ec )

Callback.

Definition at line 245 of file ETLSource.cpp.

◆ onWrite()

void ripple::ETLSource::onWrite	(	boost::beast::error_code	ec,
		size_t	size
	)

Callback.

Definition at line 279 of file ETLSource.cpp.

◆ onRead()

void ripple::ETLSource::onRead	(	boost::beast::error_code	ec,
		size_t	size
	)

Callback.

Definition at line 296 of file ETLSource.cpp.

◆ handleMessage()

bool ripple::ETLSource::handleMessage ( )

Handle the most recently received message.

Returns: true if the message was handled successfully. false on error

Definition at line 319 of file ETLSource.cpp.

◆ close()

void ripple::ETLSource::close ( bool startAgain )

Close the websocket.

Parameters

startAgain whether to reconnect

Definition at line 135 of file ETLSource.cpp.

◆ getP2pForwardingStub()

std::unique_ptr< org::xrpl::rpc::v1::XRPLedgerAPIService::Stub > ripple::ETLSource::getP2pForwardingStub ( ) const

Get grpc stub to forward requests to p2p node.

Returns: stub to send requests to ETL source

Definition at line 791 of file ETLSource.cpp.

◆ forwardToP2p()

Json::Value ripple::ETLSource::forwardToP2p ( RPC::JsonContext & context ) const

Forward a JSON RPC request to a p2p node.

Parameters

context context of RPC request

Returns: response received from ETL source

Definition at line 812 of file ETLSource.cpp.

Member Data Documentation

◆ ip_

std::string ripple::ETLSource::ip_

private

Definition at line 48 of file ETLSource.h.

◆ wsPort_

std::string ripple::ETLSource::wsPort_

private

Definition at line 50 of file ETLSource.h.

◆ grpcPort_

std::string ripple::ETLSource::grpcPort_

private

Definition at line 52 of file ETLSource.h.

◆ etl_

ReportingETL& ripple::ETLSource::etl_

private

Definition at line 54 of file ETLSource.h.

◆ ioc_

boost::asio::io_context& ripple::ETLSource::ioc_

private

Definition at line 57 of file ETLSource.h.

◆ stub_

std::unique_ptr<org::xrpl::rpc::v1::XRPLedgerAPIService::Stub> ripple::ETLSource::stub_

private

Definition at line 59 of file ETLSource.h.

◆ ws_

std::unique_ptr<boost::beast::websocket::stream<boost::beast::tcp_stream> > ripple::ETLSource::ws_

private

Definition at line 62 of file ETLSource.h.

◆ resolver_

boost::asio::ip::tcp::resolver ripple::ETLSource::resolver_

private

Definition at line 63 of file ETLSource.h.

◆ readBuffer_

boost::beast::flat_buffer ripple::ETLSource::readBuffer_

private

Definition at line 65 of file ETLSource.h.

◆ validatedLedgers_

std::vector<std::pair<uint32_t, uint32_t> > ripple::ETLSource::validatedLedgers_

private

Definition at line 67 of file ETLSource.h.

◆ validatedLedgersRaw_

std::string ripple::ETLSource::validatedLedgersRaw_

private

Definition at line 69 of file ETLSource.h.

◆ networkValidatedLedgers_

NetworkValidatedLedgers& ripple::ETLSource::networkValidatedLedgers_

private

Definition at line 71 of file ETLSource.h.

◆ journal_

beast::Journal ripple::ETLSource::journal_

private

Definition at line 73 of file ETLSource.h.

◆ app_

Application& ripple::ETLSource::app_

private

Definition at line 75 of file ETLSource.h.

◆ mtx_

std::mutex ripple::ETLSource::mtx_

mutableprivate

Definition at line 77 of file ETLSource.h.

◆ numFailures_

size_t ripple::ETLSource::numFailures_ = 0

private

Definition at line 79 of file ETLSource.h.

◆ closing_

std::atomic_bool ripple::ETLSource::closing_ = false

private

Definition at line 81 of file ETLSource.h.

◆ connected_

std::atomic_bool ripple::ETLSource::connected_ = false

private

Definition at line 83 of file ETLSource.h.

◆ forwardingStream_

std::atomic_bool ripple::ETLSource::forwardingStream_ = false

private

Definition at line 89 of file ETLSource.h.

◆ lastMsgTime_

std::chrono::system_clock::time_point ripple::ETLSource::lastMsgTime_

private

Definition at line 92 of file ETLSource.h.

◆ lastMsgTimeMtx_

std::mutex ripple::ETLSource::lastMsgTimeMtx_

mutableprivate

Definition at line 93 of file ETLSource.h.

◆ timer_

boost::asio::steady_timer ripple::ETLSource::timer_

private

Definition at line 96 of file ETLSource.h.

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ETLSource() [1/2]

◆ ETLSource() [2/2]

Member Function Documentation

◆ isConnected()

◆ getLastMsgTime()

◆ setLastMsgTime()

◆ hasLedger()

◆ setValidatedRange()

◆ getValidatedRange()

◆ stop()

◆ fetchLedger()

◆ toString()

◆ toJson()

◆ loadInitialLedger()

◆ start()

◆ reconnect()

◆ onResolve()

◆ onConnect()

◆ onHandshake()

◆ onWrite()

◆ onRead()

◆ handleMessage()

◆ close()

◆ getP2pForwardingStub()

◆ forwardToP2p()

Member Data Documentation

◆ ip_

◆ wsPort_

◆ grpcPort_

◆ etl_

◆ ioc_

◆ stub_

◆ ws_

◆ resolver_

◆ readBuffer_

◆ validatedLedgers_

◆ validatedLedgersRaw_

◆ networkValidatedLedgers_

◆ journal_

◆ app_

◆ mtx_

◆ numFailures_

◆ closing_

◆ connected_

◆ forwardingStream_

◆ lastMsgTime_

◆ lastMsgTimeMtx_

◆ timer_
