Manage the retrieval of a ledger delta (header and transactions) from the network. More...

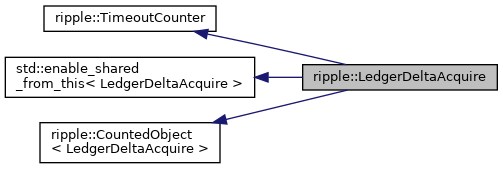

Inheritance diagram for ripple::LedgerDeltaAcquire:

[legend]

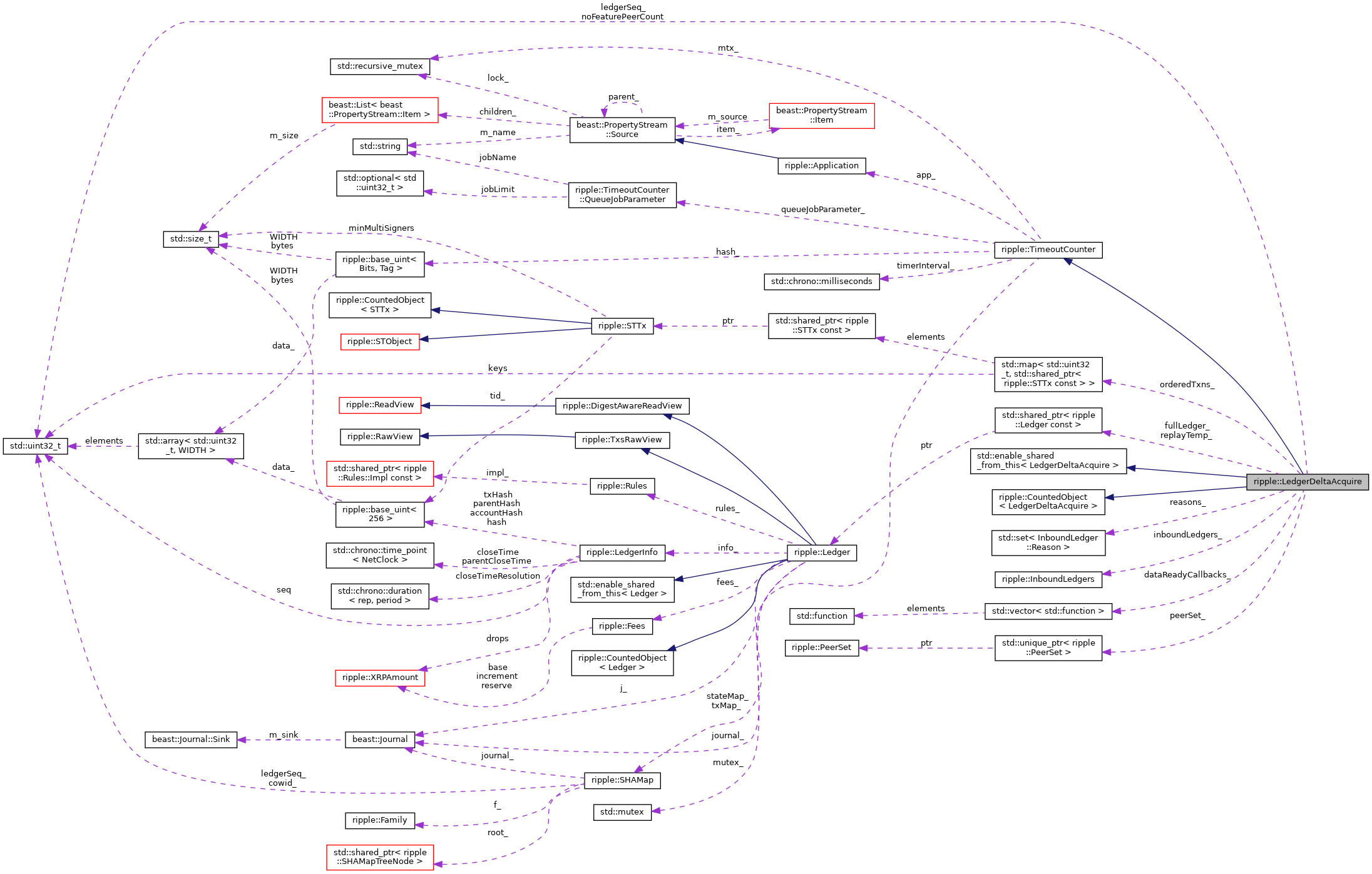

Collaboration diagram for ripple::LedgerDeltaAcquire:

[legend]

Public Types
using	OnDeltaDataCB = std::function< void(bool successful, uint256 const &hash)>
	A callback used to notify that the delta's data is ready or failed. More...

Public Member Functions
	LedgerDeltaAcquire (Application &app, InboundLedgers &inboundLedgers, uint256 const &ledgerHash, std::uint32_t ledgerSeq, std::unique_ptr< PeerSet > peerSet)
	Constructor. More...

	~LedgerDeltaAcquire () override

void	init (int numPeers)
	Start the LedgerDeltaAcquire task. More...

void	processData (LedgerInfo const &info, std::map< std::uint32_t, std::shared_ptr< STTx const >> &&orderedTxns)
	Process the data extracted from a peer's reply. More...

std::shared_ptr< Ledger const >	tryBuild (std::shared_ptr< Ledger const > const &parent)
	Try to build the ledger if not already. More...

void	addDataCallback (InboundLedger::Reason reason, OnDeltaDataCB &&cb)
	Add a reason and a callback to the LedgerDeltaAcquire subtask. More...

virtual void	cancel ()
	Cancel the task by marking it as failed if the task is not done. More...

T	shared_from_this (T... args)

T	weak_from_this (T... args)

Protected Types
using	ScopedLockType = std::unique_lock< std::recursive_mutex >

Protected Member Functions
void	setTimer (ScopedLockType &)
	Schedule a call to queueJob() after mTimerInterval. More...

void	queueJob (ScopedLockType &)
	Queue a job to call invokeOnTimer(). More...

bool	isDone () const

Protected Attributes
Application &	app_

beast::Journal	journal_

std::recursive_mutex	mtx_

const uint256	hash_
	The hash of the object (in practice, always a ledger) we are trying to fetch. More...

int	timeouts_

bool	complete_

bool	failed_

bool	progress_
	Whether forward progress has been made. More...

std::chrono::milliseconds	timerInterval_
	The minimum time to wait between calls to execute(). More...

QueueJobParameter	queueJobParameter_

Private Member Functions
void	onTimer (bool progress, ScopedLockType &peerSetLock) override
	Hook called from invokeOnTimer(). More...

std::weak_ptr< TimeoutCounter >	pmDowncast () override
	Return a weak pointer to this. More...

void	trigger (std::size_t limit, ScopedLockType &sl)
	Trigger another round. More...

void	onLedgerBuilt (ScopedLockType &sl, std::optional< InboundLedger::Reason > reason={})
	Process a newly built ledger, such as store it. More...

void	notify (ScopedLockType &sl)
	Call the OnDeltaDataCB callbacks. More...

void	invokeOnTimer ()
	Calls onTimer() if in the right state. More...

Static Private Member Functions
static auto &	getCounter () noexcept

Private Attributes
InboundLedgers &	inboundLedgers_

const std::uint32_t	ledgerSeq_

std::unique_ptr< PeerSet >	peerSet_

std::shared_ptr< Ledger const >	replayTemp_ = {}

std::shared_ptr< Ledger const >	fullLedger_ = {}

std::map< std::uint32_t, std::shared_ptr< STTx const > >	orderedTxns_

std::vector< OnDeltaDataCB >	dataReadyCallbacks_

std::set< InboundLedger::Reason >	reasons_

std::uint32_t	noFeaturePeerCount = 0

bool	fallBack_ = false

boost::asio::basic_waitable_timer< std::chrono::steady_clock >	timer_

Friends
class	LedgerReplayTask

class	test::LedgerReplayClient

Detailed Description

Manage the retrieval of a ledger delta (header and transactions) from the network.

Before asking peers, always check if the local node has the ledger.

Definition at line 44 of file LedgerDeltaAcquire.h.

Member Typedef Documentation

◆ OnDeltaDataCB

using ripple::LedgerDeltaAcquire::OnDeltaDataCB = std::function<void(bool successful, uint256 const& hash)>

A callback used to notify that the delta's data is ready or failed.

Parameters

successful	if the ledger delta data was acquired successfully
hash	hash of the ledger to build

Definition at line 56 of file LedgerDeltaAcquire.h.

◆ ScopedLockType

using ripple::TimeoutCounter::ScopedLockType = std::unique_lock<std::recursive_mutex>

protectedinherited

Definition at line 81 of file TimeoutCounter.h.

Constructor & Destructor Documentation

◆ LedgerDeltaAcquire()

ripple::LedgerDeltaAcquire::LedgerDeltaAcquire	(	Application &	app,
		InboundLedgers &	inboundLedgers,
		uint256 const &	ledgerHash,
		std::uint32_t	ledgerSeq,
		std::unique_ptr< PeerSet >	peerSet
	)

Constructor.

Parameters

app	Application reference
inboundLedgers	InboundLedgers reference
ledgerHash	hash of the ledger
ledgerSeq	sequence number of the ledger
peerSet	manage a set of peers that we will ask for the ledger

Definition at line 31 of file LedgerDeltaAcquire.cpp.

◆ ~LedgerDeltaAcquire()

ripple::LedgerDeltaAcquire::~LedgerDeltaAcquire ( )

override

Definition at line 52 of file LedgerDeltaAcquire.cpp.

Member Function Documentation

◆ init()

void ripple::LedgerDeltaAcquire::init ( int numPeers )

Start the LedgerDeltaAcquire task.

Parameters

numPeers number of peers to try initially

Definition at line 58 of file LedgerDeltaAcquire.cpp.

◆ processData()

void ripple::LedgerDeltaAcquire::processData	(	LedgerInfo const &	info,
		std::map< std::uint32_t, std::shared_ptr< STTx const >> &&	orderedTxns
	)

Process the data extracted from a peer's reply.

Parameters

info	info (header) of the ledger
orderedTxns	set of Txns of the ledger

Note: info and Txns must have been verified against the ledger hash

Definition at line 139 of file LedgerDeltaAcquire.cpp.

◆ tryBuild()

std::shared_ptr< Ledger const > ripple::LedgerDeltaAcquire::tryBuild ( std::shared_ptr< Ledger const > const & parent )

Try to build the ledger if not already.

Parameters

parent parent ledger

Returns: the ledger if built, nullptr otherwise (e.g. waiting for peers' replies of the ledger info (header) and Txns.)

Note: may throw runtime_error if the replay failed due to data error

Definition at line 192 of file LedgerDeltaAcquire.cpp.

◆ addDataCallback()

void ripple::LedgerDeltaAcquire::addDataCallback	(	InboundLedger::Reason	reason,
		OnDeltaDataCB &&	cb
	)

Add a reason and a callback to the LedgerDeltaAcquire subtask.

The reason is used to process the ledger once it is replayed. The callback is called when the delta's data is ready or failed

Note: the callback will be called once and only once unless this object is destructed before the call.

Definition at line 170 of file LedgerDeltaAcquire.cpp.

◆ onTimer()

void ripple::LedgerDeltaAcquire::onTimer	(	bool	progress,
		ScopedLockType &
	)

overrideprivatevirtual

Hook called from invokeOnTimer().

Implements ripple::TimeoutCounter.

Definition at line 117 of file LedgerDeltaAcquire.cpp.

◆ pmDowncast()

std::weak_ptr< TimeoutCounter > ripple::LedgerDeltaAcquire::pmDowncast ( )

overrideprivatevirtual

Return a weak pointer to this.

Implements ripple::TimeoutCounter.

Definition at line 133 of file LedgerDeltaAcquire.cpp.

◆ trigger()

void ripple::LedgerDeltaAcquire::trigger	(	std::size_t	limit,
		ScopedLockType &	sl
	)

private

Trigger another round.

Parameters

limit	number of new peers to send the request
sl	lock. this function must be called with the lock

Definition at line 69 of file LedgerDeltaAcquire.cpp.

◆ onLedgerBuilt()

void ripple::LedgerDeltaAcquire::onLedgerBuilt	(	ScopedLockType &	sl,
		std::optional< InboundLedger::Reason >	reason = `{}`
	)

private

Process a newly built ledger, such as store it.

Parameters

sl	lock. this function must be called with the lock
reason	specific new reason if any

Note: this function should be called (1) when the ledger is built the first time, and (2) when a LedgerReplayTask with a new reason is added.

Definition at line 224 of file LedgerDeltaAcquire.cpp.

◆ notify()

void ripple::LedgerDeltaAcquire::notify ( ScopedLockType & sl )

private

Call the OnDeltaDataCB callbacks.

Parameters

sl	lock. this function must be called with the lock

Definition at line 263 of file LedgerDeltaAcquire.cpp.

◆ cancel()

void ripple::TimeoutCounter::cancel ( )

virtualinherited

Cancel the task by marking it as failed if the task is not done.

Note: this function does not attempt to cancel the scheduled timer or to remove the queued job if any. When the timer expires or the queued job starts, however, the code will see that the task is done and returns immediately, if it can lock the weak pointer of the task.

Definition at line 118 of file TimeoutCounter.cpp.

◆ setTimer()

void ripple::TimeoutCounter::setTimer ( ScopedLockType & sl )

protectedinherited

Schedule a call to queueJob() after mTimerInterval.

Definition at line 50 of file TimeoutCounter.cpp.

◆ queueJob()

void ripple::TimeoutCounter::queueJob ( ScopedLockType & sl )

protectedinherited

Queue a job to call invokeOnTimer().

Definition at line 69 of file TimeoutCounter.cpp.

◆ isDone()

bool ripple::TimeoutCounter::isDone ( ) const

protectedinherited

Definition at line 116 of file TimeoutCounter.h.

◆ invokeOnTimer()

void ripple::TimeoutCounter::invokeOnTimer ( )

privateinherited

Calls onTimer() if in the right state.

Only called by queueJob().

Definition at line 93 of file TimeoutCounter.cpp.

◆ getCounter()

static auto& ripple::CountedObject< LedgerDeltaAcquire >::getCounter

staticprivatenoexceptinherited

Definition at line 128 of file CountedObject.h.

Friends And Related Function Documentation

◆ LedgerReplayTask

friend class LedgerReplayTask

friend

Definition at line 160 of file LedgerDeltaAcquire.h.

◆ test::LedgerReplayClient

friend class test::LedgerReplayClient

friend

Definition at line 161 of file LedgerDeltaAcquire.h.

Member Data Documentation

◆ inboundLedgers_

InboundLedgers& ripple::LedgerDeltaAcquire::inboundLedgers_

private

Definition at line 149 of file LedgerDeltaAcquire.h.

◆ ledgerSeq_

const std::uint32_t ripple::LedgerDeltaAcquire::ledgerSeq_

private

Definition at line 150 of file LedgerDeltaAcquire.h.

◆ peerSet_

std::unique_ptr<PeerSet> ripple::LedgerDeltaAcquire::peerSet_

private

Definition at line 151 of file LedgerDeltaAcquire.h.

◆ replayTemp_

std::shared_ptr<Ledger const> ripple::LedgerDeltaAcquire::replayTemp_ = {}

private

Definition at line 152 of file LedgerDeltaAcquire.h.

◆ fullLedger_

std::shared_ptr<Ledger const> ripple::LedgerDeltaAcquire::fullLedger_ = {}

private

Definition at line 153 of file LedgerDeltaAcquire.h.

◆ orderedTxns_

std::map<std::uint32_t, std::shared_ptr<STTx const> > ripple::LedgerDeltaAcquire::orderedTxns_

private

Definition at line 154 of file LedgerDeltaAcquire.h.

◆ dataReadyCallbacks_

std::vector<OnDeltaDataCB> ripple::LedgerDeltaAcquire::dataReadyCallbacks_

private

Definition at line 155 of file LedgerDeltaAcquire.h.

◆ reasons_

std::set<InboundLedger::Reason> ripple::LedgerDeltaAcquire::reasons_

private

Definition at line 156 of file LedgerDeltaAcquire.h.

◆ noFeaturePeerCount

std::uint32_t ripple::LedgerDeltaAcquire::noFeaturePeerCount = 0

private

Definition at line 157 of file LedgerDeltaAcquire.h.

◆ fallBack_

bool ripple::LedgerDeltaAcquire::fallBack_ = false

private

Definition at line 158 of file LedgerDeltaAcquire.h.

◆ app_

Application& ripple::TimeoutCounter::app_

protectedinherited

Definition at line 123 of file TimeoutCounter.h.

◆ journal_

beast::Journal ripple::TimeoutCounter::journal_

protectedinherited

Definition at line 124 of file TimeoutCounter.h.

◆ mtx_

std::recursive_mutex ripple::TimeoutCounter::mtx_

mutableprotectedinherited

Definition at line 125 of file TimeoutCounter.h.

◆ hash_

const uint256 ripple::TimeoutCounter::hash_

protectedinherited

The hash of the object (in practice, always a ledger) we are trying to fetch.

Definition at line 129 of file TimeoutCounter.h.

◆ timeouts_

int ripple::TimeoutCounter::timeouts_

protectedinherited

Definition at line 130 of file TimeoutCounter.h.

◆ complete_

bool ripple::TimeoutCounter::complete_

protectedinherited

Definition at line 131 of file TimeoutCounter.h.

◆ failed_

bool ripple::TimeoutCounter::failed_

protectedinherited

Definition at line 132 of file TimeoutCounter.h.

◆ progress_

bool ripple::TimeoutCounter::progress_

protectedinherited

Whether forward progress has been made.

Definition at line 134 of file TimeoutCounter.h.

◆ timerInterval_

std::chrono::milliseconds ripple::TimeoutCounter::timerInterval_

protectedinherited

The minimum time to wait between calls to execute().

Definition at line 136 of file TimeoutCounter.h.

◆ queueJobParameter_

QueueJobParameter ripple::TimeoutCounter::queueJobParameter_

protectedinherited

Definition at line 138 of file TimeoutCounter.h.

◆ timer_

boost::asio::basic_waitable_timer<std::chrono::steady_clock> ripple::TimeoutCounter::timer_

privateinherited

Definition at line 147 of file TimeoutCounter.h.

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ OnDeltaDataCB

◆ ScopedLockType

Constructor & Destructor Documentation

◆ LedgerDeltaAcquire()

◆ ~LedgerDeltaAcquire()

Member Function Documentation

◆ init()

◆ processData()

◆ tryBuild()

◆ addDataCallback()

◆ onTimer()

◆ pmDowncast()

◆ trigger()

◆ onLedgerBuilt()

◆ notify()

◆ cancel()

◆ setTimer()

◆ queueJob()

◆ isDone()

◆ invokeOnTimer()

◆ getCounter()

Friends And Related Function Documentation

◆ LedgerReplayTask

◆ test::LedgerReplayClient

Member Data Documentation

◆ inboundLedgers_

◆ ledgerSeq_

◆ peerSet_

◆ replayTemp_

◆ fullLedger_

◆ orderedTxns_

◆ dataReadyCallbacks_

◆ reasons_

◆ noFeaturePeerCount

◆ fallBack_

◆ app_

◆ journal_

◆ mtx_

◆ hash_

◆ timeouts_

◆ complete_

◆ failed_

◆ progress_

◆ timerInterval_

◆ queueJobParameter_

◆ timer_
