Manager to create NegativeUNL votes. More...

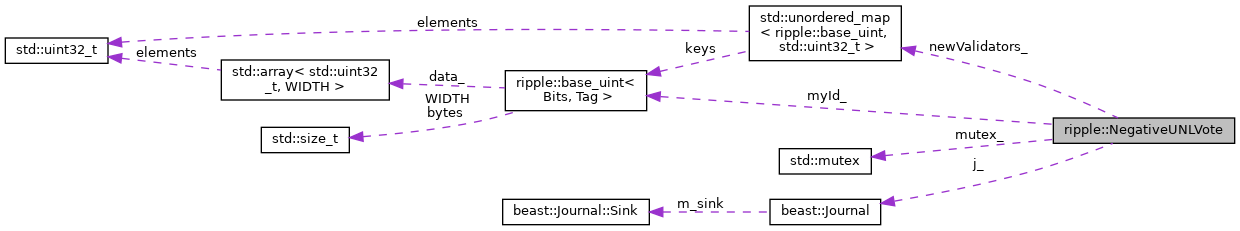

Collaboration diagram for ripple::NegativeUNLVote:

[legend]

Classes
struct	Candidates
	UNLModify Tx candidates. More...

Public Types
enum	NegativeUNLModify { ToDisable, ToReEnable }
	A flag indicating whether a UNLModify Tx is to disable or to re-enable a validator. More...

Public Member Functions
	NegativeUNLVote (NodeID const &myId, beast::Journal j)
	Constructor. More...

	~NegativeUNLVote ()=default

void	doVoting (std::shared_ptr< Ledger const > const &prevLedger, hash_set< PublicKey > const &unlKeys, RCLValidations &validations, std::shared_ptr< SHAMap > const &initialSet)
	Cast our local vote on the NegativeUNL candidates. More...

void	newValidators (LedgerIndex seq, hash_set< NodeID > const &nowTrusted)
	Notify NegativeUNLVote that new validators are added. More...

Static Public Attributes
static constexpr size_t	negativeUNLLowWaterMark
	A validator is considered unreliable if its validations is less than negativeUNLLowWaterMark in the last flag ledger period. More...

static constexpr size_t	negativeUNLHighWaterMark
	An unreliable validator must have more than negativeUNLHighWaterMark validations in the last flag ledger period to be re-enabled. More...

static constexpr size_t	negativeUNLMinLocalValsToVote
	The minimum number of validations of the local node for it to participate in the voting. More...

static constexpr size_t	newValidatorDisableSkip = FLAG_LEDGER_INTERVAL * 2
	We don't want to disable new validators immediately after adding them. More...

static constexpr float	negativeUNLMaxListed = 0.25
	We only want to put 25% of the UNL on the NegativeUNL. More...

Private Member Functions
void	addTx (LedgerIndex seq, PublicKey const &vp, NegativeUNLModify modify, std::shared_ptr< SHAMap > const &initialSet)
	Add a ttUNL_MODIFY Tx to the transaction set. More...

NodeID	choose (uint256 const &randomPadData, std::vector< NodeID > const &candidates)
	Pick one candidate from a vector of candidates. More...

std::optional< hash_map< NodeID, std::uint32_t > >	buildScoreTable (std::shared_ptr< Ledger const > const &prevLedger, hash_set< NodeID > const &unl, RCLValidations &validations)
	Build a reliability measurement score table of validators' validation messages in the last flag ledger period. More...

const Candidates	findAllCandidates (hash_set< NodeID > const &unl, hash_set< NodeID > const &negUnl, hash_map< NodeID, std::uint32_t > const &scoreTable)
	Process the score table and find all disabling and re-enabling candidates. More...

void	purgeNewValidators (LedgerIndex seq)
	Purge validators that are not new anymore. More...

Private Attributes
const NodeID	myId_

beast::Journal	j_

std::mutex	mutex_

hash_map< NodeID, LedgerIndex >	newValidators_

Friends
class	test::NegativeUNLVoteInternal_test

class	test::NegativeUNLVoteScoreTable_test

Detailed Description

Manager to create NegativeUNL votes.

Definition at line 46 of file NegativeUNLVote.h.

Member Enumeration Documentation

◆ NegativeUNLModify

enum ripple::NegativeUNLVote::NegativeUNLModify

A flag indicating whether a UNLModify Tx is to disable or to re-enable a validator.

Enumerator
ToDisable
ToReEnable

Definition at line 83 of file NegativeUNLVote.h.

Constructor & Destructor Documentation

◆ NegativeUNLVote()

ripple::NegativeUNLVote::NegativeUNLVote	(	NodeID const &	myId,
		beast::Journal	j
	)

Constructor.

Parameters

myId	the NodeID of the local node
j	log

Definition at line 27 of file NegativeUNLVote.cpp.

◆ ~NegativeUNLVote()

ripple::NegativeUNLVote::~NegativeUNLVote ( )

default

Member Function Documentation

◆ doVoting()

void ripple::NegativeUNLVote::doVoting	(	std::shared_ptr< Ledger const > const &	prevLedger,
		hash_set< PublicKey > const &	unlKeys,
		RCLValidations &	validations,
		std::shared_ptr< SHAMap > const &	initialSet
	)

Cast our local vote on the NegativeUNL candidates.

Parameters

prevLedger	the parent ledger
unlKeys	the trusted master keys of validators in the UNL
validations	the validation message container

Note: validations is an in/out parameter. It contains validation messages that will be deleted when no longer needed by other consensus logic. This function asks it to keep the validation messages long enough for this function to use.

Parameters

initialSet the transactions set for adding ttUNL_MODIFY Tx if any

Definition at line 33 of file NegativeUNLVote.cpp.

◆ newValidators()

void ripple::NegativeUNLVote::newValidators	(	LedgerIndex	seq,
		hash_set< NodeID > const &	nowTrusted
	)

Notify NegativeUNLVote that new validators are added.

So that they don't get voted to the NegativeUNL immediately.

Parameters

seq	the current LedgerIndex when adding the new validators
nowTrusted	the new validators

Definition at line 317 of file NegativeUNLVote.cpp.

◆ addTx()

void ripple::NegativeUNLVote::addTx	(	LedgerIndex	seq,
		PublicKey const &	vp,
		NegativeUNLModify	modify,
		std::shared_ptr< SHAMap > const &	initialSet
	)

private

Add a ttUNL_MODIFY Tx to the transaction set.

Parameters

seq	the LedgerIndex when adding the Tx
vp	the master public key of the validator
modify	disabling or re-enabling the validator
initialSet	the transaction set

Definition at line 107 of file NegativeUNLVote.cpp.

◆ choose()

NodeID ripple::NegativeUNLVote::choose	(	uint256 const &	randomPadData,
		std::vector< NodeID > const &	candidates
	)

private

Pick one candidate from a vector of candidates.

Parameters

randomPadData the data used for picking a candidate.

Note: Nodes must use the same randomPadData for picking the same candidate. The hash of the parent ledger is used.

Parameters

candidates the vector of candidates

Returns: the picked candidate

Definition at line 139 of file NegativeUNLVote.cpp.

◆ buildScoreTable()

std::optional< hash_map< NodeID, std::uint32_t > > ripple::NegativeUNLVote::buildScoreTable	(	std::shared_ptr< Ledger const > const &	prevLedger,
		hash_set< NodeID > const &	unl,
		RCLValidations &	validations
	)

private

Build a reliability measurement score table of validators' validation messages in the last flag ledger period.

Parameters

prevLedger	the parent ledger
unl	the trusted master keys
validations	the validation container

Note: validations is an in/out parameter. It contains validation messages that will be deleted when no longer needed by other consensus logic. This function asks it to keep the validation messages long enough for this function to use.

Returns: the built scoreTable or empty optional if table could not be built

Definition at line 158 of file NegativeUNLVote.cpp.

◆ findAllCandidates()

const NegativeUNLVote::Candidates ripple::NegativeUNLVote::findAllCandidates	(	hash_set< NodeID > const &	unl,
		hash_set< NodeID > const &	negUnl,
		hash_map< NodeID, std::uint32_t > const &	scoreTable
	)

private

Process the score table and find all disabling and re-enabling candidates.

Parameters

unl	the trusted master keys
negUnl	the NegativeUNL
scoreTable	the score table

Returns: the candidates to disable and the candidates to re-enable

Definition at line 242 of file NegativeUNLVote.cpp.

◆ purgeNewValidators()

void ripple::NegativeUNLVote::purgeNewValidators ( LedgerIndex seq )

private

Purge validators that are not new anymore.

Parameters

seq	the current LedgerIndex

Definition at line 334 of file NegativeUNLVote.cpp.

Friends And Related Function Documentation

◆ test::NegativeUNLVoteInternal_test

friend class test::NegativeUNLVoteInternal_test

friend

Definition at line 211 of file NegativeUNLVote.h.

◆ test::NegativeUNLVoteScoreTable_test

friend class test::NegativeUNLVoteScoreTable_test

friend

Definition at line 212 of file NegativeUNLVote.h.

Member Data Documentation

◆ negativeUNLLowWaterMark

constexpr size_t ripple::NegativeUNLVote::negativeUNLLowWaterMark

staticconstexpr

Initial value:

=

FLAG_LEDGER_INTERVAL * 50 / 100

A validator is considered unreliable if its validations is less than negativeUNLLowWaterMark in the last flag ledger period.

An unreliable validator is a candidate to be disabled by the NegativeUNL protocol.

Definition at line 55 of file NegativeUNLVote.h.

◆ negativeUNLHighWaterMark

constexpr size_t ripple::NegativeUNLVote::negativeUNLHighWaterMark

staticconstexpr

Initial value:

=

FLAG_LEDGER_INTERVAL * 80 / 100

An unreliable validator must have more than negativeUNLHighWaterMark validations in the last flag ledger period to be re-enabled.

Definition at line 61 of file NegativeUNLVote.h.

◆ negativeUNLMinLocalValsToVote

constexpr size_t ripple::NegativeUNLVote::negativeUNLMinLocalValsToVote

staticconstexpr

Initial value:

=

FLAG_LEDGER_INTERVAL * 90 / 100

The minimum number of validations of the local node for it to participate in the voting.

Definition at line 67 of file NegativeUNLVote.h.

◆ newValidatorDisableSkip

constexpr size_t ripple::NegativeUNLVote::newValidatorDisableSkip = FLAG_LEDGER_INTERVAL * 2

staticconstexpr

We don't want to disable new validators immediately after adding them.

So we skip voting for disabling them for 2 flag ledgers.

Definition at line 73 of file NegativeUNLVote.h.

◆ negativeUNLMaxListed

constexpr float ripple::NegativeUNLVote::negativeUNLMaxListed = 0.25

staticconstexpr

We only want to put 25% of the UNL on the NegativeUNL.

Definition at line 77 of file NegativeUNLVote.h.

◆ myId_

const NodeID ripple::NegativeUNLVote::myId_

private

Definition at line 127 of file NegativeUNLVote.h.

◆ j_

beast::Journal ripple::NegativeUNLVote::j_

private

Definition at line 128 of file NegativeUNLVote.h.

◆ mutex_

std::mutex ripple::NegativeUNLVote::mutex_

mutableprivate

Definition at line 129 of file NegativeUNLVote.h.

◆ newValidators_

hash_map<NodeID, LedgerIndex> ripple::NegativeUNLVote::newValidators_

private

Definition at line 130 of file NegativeUNLVote.h.
