ripple::OpenLedger Class Reference

Represents the open ledger. More...

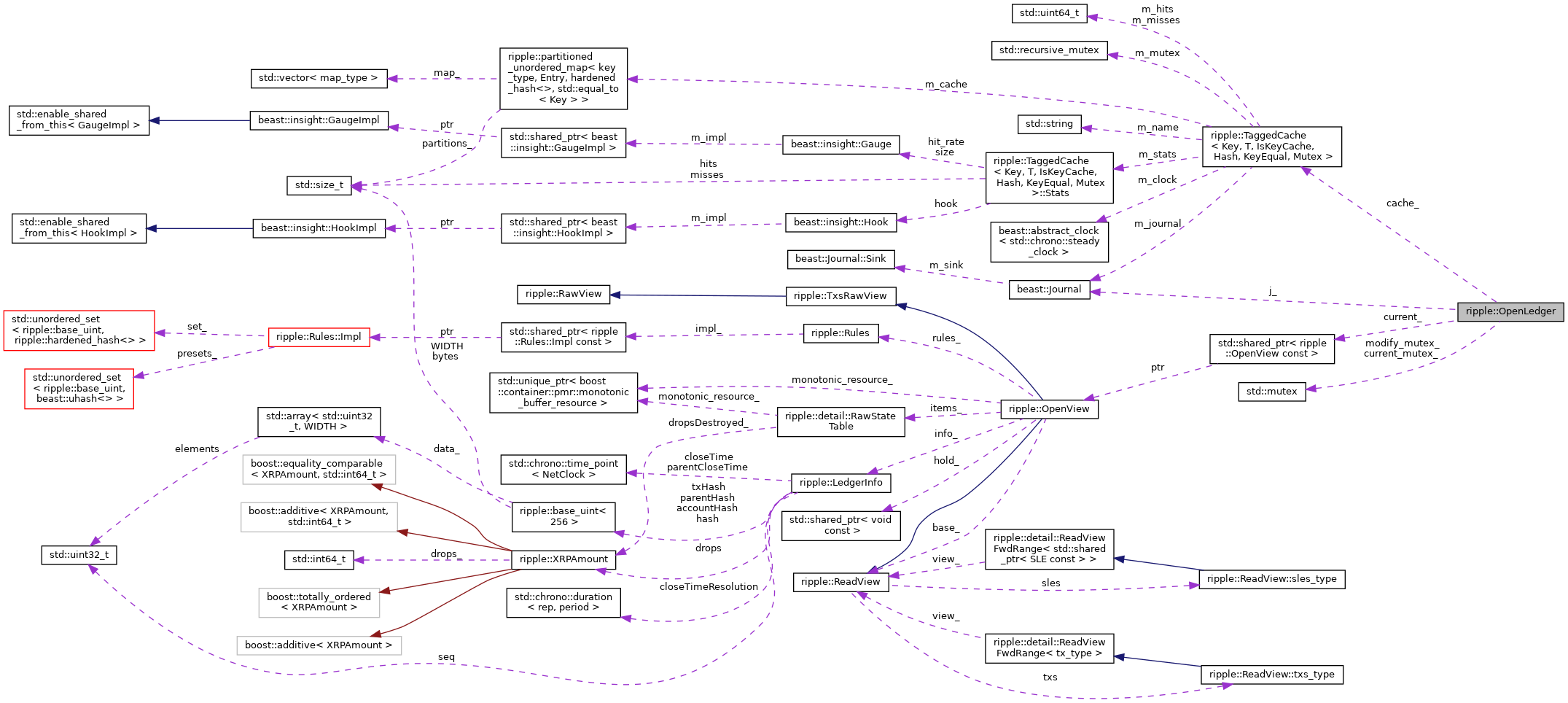

Collaboration diagram for ripple::OpenLedger:

Public Types
using	modify_type = std::function< bool(OpenView &, beast::Journal)>
	Signature for modification functions. More...

Public Member Functions
	OpenLedger ()=delete
	OpenLedger (OpenLedger const &)=delete
OpenLedger &	operator= (OpenLedger const &)=delete
	OpenLedger (std::shared_ptr< Ledger const > const &ledger, CachedSLEs &cache, beast::Journal journal)
	Create a new open ledger object. More...
bool	empty () const
	Returns true if there are no transactions. More...
std::shared_ptr< OpenView const >	current () const
	Returns a view to the current open ledger. More...
bool	modify (modify_type const &f)
	Modify the open ledger. More...
void	accept (Application &app, Rules const &rules, std::shared_ptr< Ledger const > const &ledger, OrderedTxs const &locals, bool retriesFirst, OrderedTxs &retries, ApplyFlags flags, std::string const &suffix="", modify_type const &f={})
	Accept a new ledger. More...

Private Types
enum	Result { success, failure, retry }

Private Member Functions
std::shared_ptr< OpenView >	create (Rules const &rules, std::shared_ptr< Ledger const > const &ledger)

Static Private Member Functions
template<class FwdRange >
static void	apply (Application &app, OpenView &view, ReadView const &check, FwdRange const &txs, OrderedTxs &retries, ApplyFlags flags, beast::Journal j)
	Algorithm for applying transactions. More...
static Result	apply_one (Application &app, OpenView &view, std::shared_ptr< STTx const > const &tx, bool retry, ApplyFlags flags, beast::Journal j)

Private Attributes
const beast::Journal	j_
CachedSLEs &	cache_
std::mutex	modify_mutex_
std::mutex	current_mutex_
std::shared_ptr< OpenView const >	current_

Detailed Description

Represents the open ledger.

Definition at line 49 of file OpenLedger.h.

Member Typedef Documentation

modify_type

using ripple::OpenLedger::modify_type = std::function<bool(OpenView&, beast::Journal)>

Signature for modification functions.

The modification function is called during apply and modify with an OpenView to accumulate changes and the Journal to use for logging.

A return value of true informs OpenLedger that changes were made. Always returning true won't cause harm, but it may be sub-optimal.

Definition at line 70 of file OpenLedger.h.

Member Enumeration Documentation

Result

enum ripple::OpenLedger::Result

private

Enumerator
success
failure
retry

Definition at line 190 of file OpenLedger.h.

Constructor & Destructor Documentation

OpenLedger() [1/3]

ripple::OpenLedger::OpenLedger ( )

delete

OpenLedger() [2/3]

ripple::OpenLedger::OpenLedger ( OpenLedger const &  )

delete

OpenLedger() [3/3]

ripple::OpenLedger::OpenLedger ( std::shared_ptr< Ledger const > const &  ledger, CachedSLEs &  cache, beast::Journal  journal  )

explicit

Create a new open ledger object.

Parameters

ledger

A closed ledger

Definition at line 34 of file OpenLedger.cpp.

Member Function Documentation

operator=()

OpenLedger& ripple::OpenLedger::operator= ( OpenLedger const &  )

delete

empty()

bool ripple::OpenLedger::empty

(

)

const

Returns true if there are no transactions.

The behavior of ledger closing can be different depending on whether or not transactions exist in the open ledger.

Note

The value returned is only meaningful for that specific instant in time. An open, empty ledger can become non empty from subsequent modifications. Caller is responsible for synchronizing the meaning of the return value.

Definition at line 43 of file OpenLedger.cpp.

current()

std::shared_ptr< OpenView const > ripple::OpenLedger::current

(

)

const

Returns a view to the current open ledger.

Thread safety: Can be called concurrently from any thread.

Effects: The caller is given ownership of a non-modifiable snapshot of the open ledger at the time of the call.

Definition at line 50 of file OpenLedger.cpp.

modify()

bool ripple::OpenLedger::modify

(

modify_type const &

f

)

Modify the open ledger.

Thread safety: Can be called concurrently from any thread.

If f returns true, the changes made in the OpenView will be published to the open ledger.

Returns

true if the open view was changed

Definition at line 57 of file OpenLedger.cpp.

accept()

void ripple::OpenLedger::accept	(	Application &	app,
		Rules const &	rules,
		std::shared_ptr< Ledger const > const &	ledger,
		OrderedTxs const &	locals,
		bool	retriesFirst,
		OrderedTxs &	retries,
		ApplyFlags	flags,
		std::string const &	suffix = "",
		modify_type const &	f = {}
	)

Accept a new ledger.

Thread safety: Can be called concurrently from any thread.

Effects:

A new open view based on the accepted ledger
is created, and the list of retriable
transactions is optionally applied first
depending on the value of `retriesFirst`.

The transactions in the current open view
are applied to the new open view.

The list of local transactions are applied
to the new open view.

The optional modify function f is called
to perform further modifications to the
open view, atomically. Changes made in
the modify function are not visible to
callers until accept() returns.

Any failed, retriable transactions are left
in `retries` for the caller.

The current view is atomically set to the
new open view.

Parameters

rules	The rules for the open ledger
ledger	A new closed ledger

Definition at line 71 of file OpenLedger.cpp.

apply()

template<class FwdRange >

void ripple::OpenLedger::apply ( Application &  app, OpenView &  view, ReadView const &  check, FwdRange const &  txs, OrderedTxs &  retries, ApplyFlags  flags, beast::Journal  j  )

staticprivate

Algorithm for applying transactions.

This has the retry logic and ordering semantics used for consensus and building the open ledger.

Definition at line 209 of file OpenLedger.h.

create()

std::shared_ptr< OpenView > ripple::OpenLedger::create ( Rules const &  rules, std::shared_ptr< Ledger const > const &  ledger  )

private

Definition at line 147 of file OpenLedger.cpp.

apply_one()

auto ripple::OpenLedger::apply_one ( Application &  app, OpenView &  view, std::shared_ptr< STTx const > const &  tx, bool  retry, ApplyFlags  flags, beast::Journal  j  )

staticprivate

Definition at line 158 of file OpenLedger.cpp.

Member Data Documentation

j_

const beast::Journal ripple::OpenLedger::j_

private

Definition at line 52 of file OpenLedger.h.

cache_

CachedSLEs& ripple::OpenLedger::cache_

private

Definition at line 53 of file OpenLedger.h.

modify_mutex_

std::mutex ripple::OpenLedger::modify_mutex_

mutableprivate

Definition at line 54 of file OpenLedger.h.

current_mutex_

std::mutex ripple::OpenLedger::current_mutex_

mutableprivate

Definition at line 55 of file OpenLedger.h.

current_

std::shared_ptr<OpenView const> ripple::OpenLedger::current_

private

Definition at line 56 of file OpenLedger.h.
