Inheritance diagram for ripple::PostgresDatabaseImp:

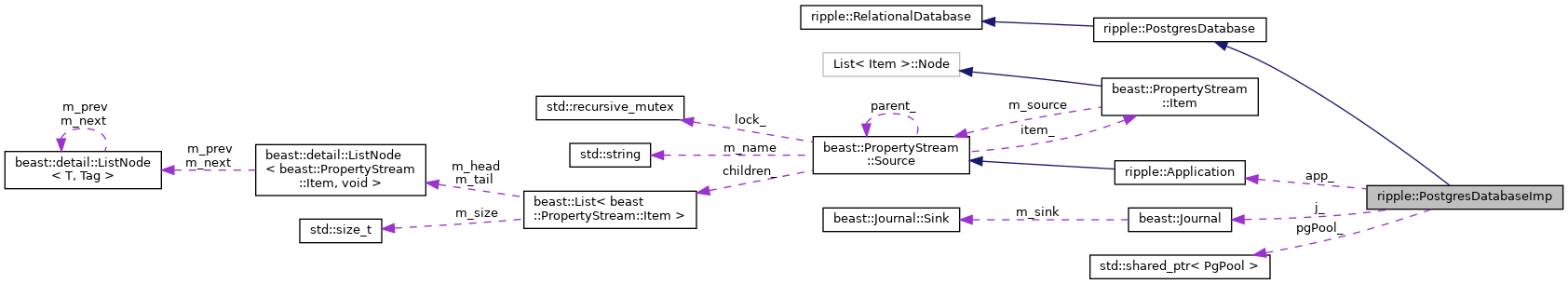

Collaboration diagram for ripple::PostgresDatabaseImp:

[legend]

Public Types
using	AccountTx = std::pair< std::shared_ptr< Transaction >, std::shared_ptr< TxMeta > >

using	AccountTxs = std::vector< AccountTx >

using	txnMetaLedgerType = std::tuple< Blob, Blob, std::uint32_t >

using	MetaTxsList = std::vector< txnMetaLedgerType >

using	LedgerSequence = uint32_t

using	LedgerHash = uint256

using	LedgerShortcut = RPC::LedgerShortcut

using	LedgerSpecifier = std::variant< LedgerRange, LedgerShortcut, LedgerSequence, LedgerHash >

Public Member Functions
	PostgresDatabaseImp (Application &app, Config const &config, JobQueue &jobQueue)

void	stop () override

void	sweep () override
	sweep Sweeps the database. More...

std::optional< LedgerIndex >	getMinLedgerSeq () override
	getMinLedgerSeq Returns the minimum ledger sequence in the Ledgers table. More...

std::optional< LedgerIndex >	getMaxLedgerSeq () override
	getMaxLedgerSeq Returns the maximum ledger sequence in the Ledgers table. More...

std::string	getCompleteLedgers () override
	getCompleteLedgers Returns a string which contains a list of completed ledgers. More...

std::chrono::seconds	getValidatedLedgerAge () override
	getValidatedLedgerAge Returns the age of the last validated ledger. More...

bool	writeLedgerAndTransactions (LedgerInfo const &info, std::vector< AccountTransactionsData > const &accountTxData) override
	writeLedgerAndTransactions Writes new ledger and transaction data into the database. More...

std::optional< LedgerInfo >	getLedgerInfoByIndex (LedgerIndex ledgerSeq) override
	getLedgerInfoByIndex Returns a ledger by its sequence. More...

std::optional< LedgerInfo >	getNewestLedgerInfo () override
	getNewestLedgerInfo Returns the info of the newest saved ledger. More...

std::optional< LedgerInfo >	getLedgerInfoByHash (uint256 const &ledgerHash) override
	getLedgerInfoByHash Returns the info of the ledger with given hash. More...

uint256	getHashByIndex (LedgerIndex ledgerIndex) override
	getHashByIndex Returns the hash of the ledger with the given sequence. More...

std::optional< LedgerHashPair >	getHashesByIndex (LedgerIndex ledgerIndex) override
	getHashesByIndex Returns the hashes of the ledger and its parent as specified by the ledgerIndex. More...

std::map< LedgerIndex, LedgerHashPair >	getHashesByIndex (LedgerIndex minSeq, LedgerIndex maxSeq) override
	getHashesByIndex Returns hashes of each ledger and its parent for all ledgers within the provided range. More...

std::vector< uint256 >	getTxHashes (LedgerIndex seq) override
	getTxHashes Returns a vector of the hashes of transactions belonging to the ledger with the provided sequence. More...

std::vector< std::shared_ptr< Transaction > >	getTxHistory (LedgerIndex startIndex) override
	getTxHistory Returns the 20 most recent transactions starting from the given number. More...

std::pair< AccountTxResult, RPC::Status >	getAccountTx (AccountTxArgs const &args) override
	getAccountTx Get the last account transactions specified by the AccountTxArgs struct. More...

Transaction::Locator	locateTransaction (uint256 const &id) override
	locateTransaction Returns information used to locate a transaction. More...

bool	ledgerDbHasSpace (Config const &config) override
	ledgerDbHasSpace Checks if the ledger database has available space. More...

bool	transactionDbHasSpace (Config const &config) override
	transactionDbHasSpace Checks if the transaction database has available space. More...

bool	isCaughtUp (std::string &reason) override
	isCaughtUp returns whether the database is caught up with the network More...

Static Public Member Functions
static std::unique_ptr< RelationalDatabase >	init (Application &app, Config const &config, JobQueue &jobQueue)
	init Creates and returns an appropriate RelationalDatabase instance based on configuration. More...

Private Member Functions
bool	dbHasSpace (Config const &config)

Private Attributes
Application &	app_

beast::Journal	j_

std::shared_ptr< PgPool >	pgPool_

Detailed Description

Definition at line 49 of file PostgresDatabase.cpp.

Member Typedef Documentation

◆ AccountTx

using ripple::RelationalDatabase::AccountTx = std::pair<std::shared_ptr<Transaction>, std::shared_ptr<TxMeta> >

inherited

Definition at line 85 of file RelationalDatabase.h.

◆ AccountTxs

using ripple::RelationalDatabase::AccountTxs = std::vector<AccountTx>

inherited

Definition at line 86 of file RelationalDatabase.h.

◆ txnMetaLedgerType

using ripple::RelationalDatabase::txnMetaLedgerType = std::tuple<Blob, Blob, std::uint32_t>

inherited

Definition at line 87 of file RelationalDatabase.h.

◆ MetaTxsList

using ripple::RelationalDatabase::MetaTxsList = std::vector<txnMetaLedgerType>

inherited

Definition at line 88 of file RelationalDatabase.h.

◆ LedgerSequence

using ripple::RelationalDatabase::LedgerSequence = uint32_t

inherited

Definition at line 90 of file RelationalDatabase.h.

◆ LedgerHash

using ripple::RelationalDatabase::LedgerHash = uint256

inherited

Definition at line 91 of file RelationalDatabase.h.

◆ LedgerShortcut

using ripple::RelationalDatabase::LedgerShortcut = RPC::LedgerShortcut

inherited

Definition at line 92 of file RelationalDatabase.h.

◆ LedgerSpecifier

using ripple::RelationalDatabase::LedgerSpecifier = std::variant<LedgerRange, LedgerShortcut, LedgerSequence, LedgerHash>

inherited

Definition at line 94 of file RelationalDatabase.h.

Constructor & Destructor Documentation

◆ PostgresDatabaseImp()

ripple::PostgresDatabaseImp::PostgresDatabaseImp	(	Application &	app,
		Config const &	config,
		JobQueue &	jobQueue
	)

Definition at line 52 of file PostgresDatabase.cpp.

Member Function Documentation

◆ stop()

void ripple::PostgresDatabaseImp::stop ( )

overridevirtual

Implements ripple::PostgresDatabase.

Definition at line 74 of file PostgresDatabase.cpp.

◆ sweep()

void ripple::PostgresDatabaseImp::sweep ( )

overridevirtual

sweep Sweeps the database.

Implements ripple::PostgresDatabase.

Definition at line 484 of file PostgresDatabase.cpp.

◆ getMinLedgerSeq()

std::optional< LedgerIndex > ripple::PostgresDatabaseImp::getMinLedgerSeq ( )

overridevirtual

getMinLedgerSeq Returns the minimum ledger sequence in the Ledgers table.

Returns: Ledger sequence or no value if no ledgers exist.

Implements ripple::RelationalDatabase.

Definition at line 492 of file PostgresDatabase.cpp.

◆ getMaxLedgerSeq()

std::optional< LedgerIndex > ripple::PostgresDatabaseImp::getMaxLedgerSeq ( )

overridevirtual

getMaxLedgerSeq Returns the maximum ledger sequence in the Ledgers table.

Returns: Ledger sequence or none if no ledgers exist.

Implements ripple::RelationalDatabase.

Definition at line 507 of file PostgresDatabase.cpp.

◆ getCompleteLedgers()

std::string ripple::PostgresDatabaseImp::getCompleteLedgers ( )

overridevirtual

getCompleteLedgers Returns a string which contains a list of completed ledgers.

Returns: String with completed ledger sequences

Implements ripple::PostgresDatabase.

Definition at line 518 of file PostgresDatabase.cpp.

◆ getValidatedLedgerAge()

std::chrono::seconds ripple::PostgresDatabaseImp::getValidatedLedgerAge ( )

overridevirtual

getValidatedLedgerAge Returns the age of the last validated ledger.

Returns: Age of the last validated ledger in seconds

Implements ripple::PostgresDatabase.

Definition at line 529 of file PostgresDatabase.cpp.

◆ writeLedgerAndTransactions()

bool ripple::PostgresDatabaseImp::writeLedgerAndTransactions	(	LedgerInfo const &	info,
		std::vector< AccountTransactionsData > const &	accountTxData
	)

overridevirtual

writeLedgerAndTransactions Writes new ledger and transaction data into the database.

Parameters

info	Ledger info to write.
accountTxData	Transaction data to write

Returns: True on success, false on failure.

Implements ripple::PostgresDatabase.

Definition at line 543 of file PostgresDatabase.cpp.

◆ getLedgerInfoByIndex()

std::optional< LedgerInfo > ripple::PostgresDatabaseImp::getLedgerInfoByIndex ( LedgerIndex ledgerSeq )

overridevirtual

getLedgerInfoByIndex Returns a ledger by its sequence.

Parameters

ledgerSeq Ledger sequence.

Returns: The ledger if found, otherwise no value.

Implements ripple::RelationalDatabase.

Definition at line 628 of file PostgresDatabase.cpp.

◆ getNewestLedgerInfo()

std::optional< LedgerInfo > ripple::PostgresDatabaseImp::getNewestLedgerInfo ( )

overridevirtual

getNewestLedgerInfo Returns the info of the newest saved ledger.

Returns: Ledger info if found, otherwise no value.

Implements ripple::RelationalDatabase.

Definition at line 634 of file PostgresDatabase.cpp.

◆ getLedgerInfoByHash()

std::optional< LedgerInfo > ripple::PostgresDatabaseImp::getLedgerInfoByHash ( uint256 const & ledgerHash )

overridevirtual

getLedgerInfoByHash Returns the info of the ledger with given hash.

Parameters

ledgerHash Hash of the ledger.

Returns: Ledger if found, otherwise no value.

Implements ripple::RelationalDatabase.

Definition at line 640 of file PostgresDatabase.cpp.

◆ getHashByIndex()

uint256 ripple::PostgresDatabaseImp::getHashByIndex ( LedgerIndex ledgerIndex )

overridevirtual

getHashByIndex Returns the hash of the ledger with the given sequence.

Parameters

ledgerIndex Ledger sequence.

Returns: Hash of the ledger.

Implements ripple::RelationalDatabase.

Definition at line 646 of file PostgresDatabase.cpp.

◆ getHashesByIndex() [1/2]

std::optional< LedgerHashPair > ripple::PostgresDatabaseImp::getHashesByIndex ( LedgerIndex ledgerIndex )

overridevirtual

getHashesByIndex Returns the hashes of the ledger and its parent as specified by the ledgerIndex.

Parameters

ledgerIndex Ledger sequence.

Returns: Struct LedgerHashPair which contains hashes of the ledger and its parent.

Implements ripple::RelationalDatabase.

Definition at line 656 of file PostgresDatabase.cpp.

◆ getHashesByIndex() [2/2]

std::map< LedgerIndex, LedgerHashPair > ripple::PostgresDatabaseImp::getHashesByIndex	(	LedgerIndex	minSeq,
		LedgerIndex	maxSeq
	)

overridevirtual

getHashesByIndex Returns hashes of each ledger and its parent for all ledgers within the provided range.

Parameters

minSeq	Minimum ledger sequence.
maxSeq	Maximum ledger sequence.

Returns: Container that maps the sequence number of a found ledger to the struct LedgerHashPair which contains the hashes of the ledger and its parent.

Implements ripple::RelationalDatabase.

Definition at line 671 of file PostgresDatabase.cpp.

◆ getTxHashes()

std::vector< uint256 > ripple::PostgresDatabaseImp::getTxHashes ( LedgerIndex seq )

overridevirtual

getTxHashes Returns a vector of the hashes of transactions belonging to the ledger with the provided sequence.

Parameters

seq	Ledger sequence

Returns: Vector of transaction hashes

Implements ripple::PostgresDatabase.

Definition at line 683 of file PostgresDatabase.cpp.

◆ getTxHistory()

std::vector< std::shared_ptr< Transaction > > ripple::PostgresDatabaseImp::getTxHistory ( LedgerIndex startIndex )

overridevirtual

getTxHistory Returns the 20 most recent transactions starting from the given number.

Parameters

startIndex First number of returned entry.

Returns: Vector of shared pointers to transactions sorted in descending order by ledger sequence.

Implements ripple::RelationalDatabase.

Definition at line 753 of file PostgresDatabase.cpp.

◆ getAccountTx()

std::pair< AccountTxResult, RPC::Status > ripple::PostgresDatabaseImp::getAccountTx ( AccountTxArgs const & args )

overridevirtual

getAccountTx Get the last account transactions specified by the AccountTxArgs struct.

Parameters

args	Arguments which specify the account and which transactions to return.

Returns: Vector of account transactions and the RPC status response.

Implements ripple::PostgresDatabase.

Definition at line 844 of file PostgresDatabase.cpp.

◆ locateTransaction()

Transaction::Locator ripple::PostgresDatabaseImp::locateTransaction ( uint256 const & id )

overridevirtual

locateTransaction Returns information used to locate a transaction.

Parameters

id	Hash of the transaction.

Returns: Information used to locate a transaction. Contains a nodestore hash and a ledger sequence pair if the transaction was found. Otherwise, contains the range of ledgers present in the database at the time of search.

Implements ripple::PostgresDatabase.

Definition at line 955 of file PostgresDatabase.cpp.

◆ ledgerDbHasSpace()

bool ripple::PostgresDatabaseImp::ledgerDbHasSpace ( Config const & config )

overridevirtual

ledgerDbHasSpace Checks if the ledger database has available space.

Parameters

config Config object.

Returns: True if space is available.

Implements ripple::RelationalDatabase.

Definition at line 1040 of file PostgresDatabase.cpp.

◆ transactionDbHasSpace()

bool ripple::PostgresDatabaseImp::transactionDbHasSpace ( Config const & config )

overridevirtual

transactionDbHasSpace Checks if the transaction database has available space.

Parameters

config Config object.

Returns: True if space is available.

Implements ripple::RelationalDatabase.

Definition at line 1046 of file PostgresDatabase.cpp.

◆ isCaughtUp()

bool ripple::PostgresDatabaseImp::isCaughtUp ( std::string & reason )

overridevirtual

isCaughtUp returns whether the database is caught up with the network

Parameters

[out] reason if the database is not caught up, reason contains a helpful message describing why

Returns: false if the most recently written ledger has a close time over 3 minutes ago, or if there are no ledgers in the database. true otherwise

Implements ripple::PostgresDatabase.

Definition at line 1058 of file PostgresDatabase.cpp.

◆ dbHasSpace()

bool ripple::PostgresDatabaseImp::dbHasSpace ( Config const & config )

private

Definition at line 1032 of file PostgresDatabase.cpp.

◆ init()

std::unique_ptr< RelationalDatabase > ripple::RelationalDatabase::init	(	Application &	app,
		Config const &	config,
		JobQueue &	jobQueue
	)

staticinherited

init Creates and returns an appropriate RelationalDatabase instance based on configuration.

Parameters

app	Application object.
config	Config object.
jobQueue	JobQueue object.

Returns: Unique pointer to the interface.

Definition at line 34 of file RelationalDatabase.cpp.

Member Data Documentation

◆ app_

Application& ripple::PostgresDatabaseImp::app_

private

Definition at line 141 of file PostgresDatabase.cpp.

◆ j_

beast::Journal ripple::PostgresDatabaseImp::j_

private

Definition at line 142 of file PostgresDatabase.cpp.

◆ pgPool_

std::shared_ptr<PgPool> ripple::PostgresDatabaseImp::pgPool_

private

Definition at line 143 of file PostgresDatabase.cpp.

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ AccountTx

◆ AccountTxs

◆ txnMetaLedgerType

◆ MetaTxsList

◆ LedgerSequence

◆ LedgerHash

◆ LedgerShortcut

◆ LedgerSpecifier

Constructor & Destructor Documentation

◆ PostgresDatabaseImp()

Member Function Documentation

◆ stop()

◆ sweep()

◆ getMinLedgerSeq()

◆ getMaxLedgerSeq()

◆ getCompleteLedgers()

◆ getValidatedLedgerAge()

◆ writeLedgerAndTransactions()

◆ getLedgerInfoByIndex()

◆ getNewestLedgerInfo()

◆ getLedgerInfoByHash()

◆ getHashByIndex()

◆ getHashesByIndex() [1/2]

◆ getHashesByIndex() [2/2]

◆ getTxHashes()

◆ getTxHistory()

◆ getAccountTx()

◆ locateTransaction()

◆ ledgerDbHasSpace()

◆ transactionDbHasSpace()

◆ isCaughtUp()

◆ dbHasSpace()

◆ init()

Member Data Documentation

◆ app_

◆ j_

◆ pgPool_
