Tracks load and resource consumption. More...

Inheritance diagram for ripple::Resource::Manager:

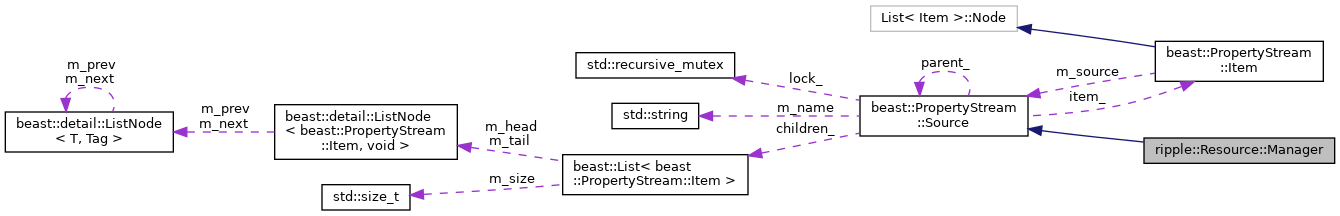

Collaboration diagram for ripple::Resource::Manager:

[legend]

Public Member Functions
virtual	~Manager ()=0

virtual Consumer	newInboundEndpoint (beast::IP::Endpoint const &address)=0
	Create a new endpoint keyed by inbound IP address or the forwarded IP if proxied. More...

virtual Consumer	newInboundEndpoint (beast::IP::Endpoint const &address, bool const proxy, boost::string_view const &forwardedFor)=0

virtual Consumer	newOutboundEndpoint (beast::IP::Endpoint const &address)=0
	Create a new endpoint keyed by outbound IP address and port. More...

virtual Consumer	newUnlimitedEndpoint (beast::IP::Endpoint const &address)=0
	Create a new unlimited endpoint keyed by forwarded IP. More...

virtual Gossip	exportConsumers ()=0
	Extract packaged consumer information for export. More...

virtual Json::Value	getJson ()=0
	Extract consumer information for reporting. More...

virtual Json::Value	getJson (int threshold)=0

virtual void	importConsumers (std::string const &origin, Gossip const &gossip)=0
	Import packaged consumer information. More...

std::string const &	name () const
	Returns the name of this source. More...

void	add (Source &source)
	Add a child source. More...

template<class Derived >
Derived *	add (Derived *child)
	Add a child source by pointer. More...

void	remove (Source &child)
	Remove a child source from this Source. More...

void	removeAll ()
	Remove all child sources from this Source. More...

void	write_one (PropertyStream &stream)
	Write only this Source to the stream. More...

void	write (PropertyStream &stream)
	write this source and all its children recursively to the stream. More...

void	write (PropertyStream &stream, std::string const &path)
	Parse the path and write the corresponding Source and optional children. More...

std::pair< Source *, bool >	find (std::string path)
	Parse the dot-delimited Source path and return the result. More...

Source *	find_one_deep (std::string const &name)

PropertyStream::Source *	find_path (std::string path)

PropertyStream::Source *	find_one (std::string const &name)

virtual void	onWrite (Map &)
	Subclass override. More...

Static Public Member Functions
static bool	peel_leading_slash (std::string *path)

static bool	peel_trailing_slashstar (std::string *path)

static std::string	peel_name (std::string *path)

Protected Member Functions
	Manager ()

Private Attributes
const std::string	m_name

std::recursive_mutex	lock_

Item	item_

Source *	parent_

List< Item >	children_

Detailed Description

Tracks load and resource consumption.

Definition at line 36 of file ResourceManager.h.

Constructor & Destructor Documentation

◆ Manager()

ripple::Resource::Manager::Manager ( )

protected

Definition at line 166 of file ResourceManager.cpp.

◆ ~Manager()

ripple::Resource::Manager::~Manager ( )

pure virtualdefault

Member Function Documentation

◆ newInboundEndpoint() [1/2]

virtual Consumer ripple::Resource::Manager::newInboundEndpoint ( beast::IP::Endpoint const & address )

pure virtual

Create a new endpoint keyed by inbound IP address or the forwarded IP if proxied.

Implemented in ripple::Resource::ManagerImp.

◆ newInboundEndpoint() [2/2]

virtual Consumer ripple::Resource::Manager::newInboundEndpoint	(	beast::IP::Endpoint const &	address,
		bool const	proxy,
		boost::string_view const &	forwardedFor
	)

pure virtual

Implemented in ripple::Resource::ManagerImp.

◆ newOutboundEndpoint()

virtual Consumer ripple::Resource::Manager::newOutboundEndpoint ( beast::IP::Endpoint const & address )

pure virtual

Create a new endpoint keyed by outbound IP address and port.

Implemented in ripple::Resource::ManagerImp.

◆ newUnlimitedEndpoint()

virtual Consumer ripple::Resource::Manager::newUnlimitedEndpoint ( beast::IP::Endpoint const & address )

pure virtual

Create a new unlimited endpoint keyed by forwarded IP.

Implemented in ripple::Resource::ManagerImp.

◆ exportConsumers()

virtual Gossip ripple::Resource::Manager::exportConsumers ( )

pure virtual

Extract packaged consumer information for export.

Implemented in ripple::Resource::ManagerImp.

◆ getJson() [1/2]

virtual Json::Value ripple::Resource::Manager::getJson ( )

pure virtual

Extract consumer information for reporting.

Implemented in ripple::Resource::ManagerImp.

◆ getJson() [2/2]

virtual Json::Value ripple::Resource::Manager::getJson ( int threshold )

pure virtual

Implemented in ripple::Resource::ManagerImp.

◆ importConsumers()

virtual void ripple::Resource::Manager::importConsumers	(	std::string const &	origin,
		Gossip const &	gossip
	)

pure virtual

Import packaged consumer information.

Parameters

origin An identifier that unique labels the origin.

Implemented in ripple::Resource::ManagerImp.

◆ name()

std::string const & beast::PropertyStream::Source::name ( ) const

inherited

Returns the name of this source.

Definition at line 190 of file beast_PropertyStream.cpp.

◆ add() [1/2]

void beast::PropertyStream::Source::add ( Source & source )

inherited

Add a child source.

Definition at line 196 of file beast_PropertyStream.cpp.

◆ add() [2/2]

template<class Derived >

Derived* beast::PropertyStream::Source::add ( Derived * child )

inherited

Add a child source by pointer.

The source pointer is returned so it can be used in ctor-initializers.

Definition at line 360 of file PropertyStream.h.

◆ remove()

void beast::PropertyStream::Source::remove ( Source & child )

inherited

Remove a child source from this Source.

Definition at line 208 of file beast_PropertyStream.cpp.

◆ removeAll()

void beast::PropertyStream::Source::removeAll ( )

inherited

Remove all child sources from this Source.

Definition at line 220 of file beast_PropertyStream.cpp.

◆ write_one()

void beast::PropertyStream::Source::write_one ( PropertyStream & stream )

inherited

Write only this Source to the stream.

Definition at line 233 of file beast_PropertyStream.cpp.

◆ write() [1/2]

void beast::PropertyStream::Source::write ( PropertyStream & stream )

inherited

write this source and all its children recursively to the stream.

Definition at line 240 of file beast_PropertyStream.cpp.

◆ write() [2/2]

void beast::PropertyStream::Source::write	(	PropertyStream &	stream,
		std::string const &	path
	)

inherited

Parse the path and write the corresponding Source and optional children.

If the source is found, it is written. If the wildcard character '*' exists as the last character in the path, then all the children are written recursively.

Definition at line 252 of file beast_PropertyStream.cpp.

◆ find()

std::pair< PropertyStream::Source *, bool > beast::PropertyStream::Source::find ( std::string path )

inherited

Parse the dot-delimited Source path and return the result.

The first value will be a pointer to the Source object corresponding to the given path. If no Source object exists, then the first value will be nullptr and the second value will be undefined. The second value is a boolean indicating whether or not the path string specifies the wildcard character '*' as the last character.

print statement examples "parent.child" prints child and all of its children "parent.child." start at the parent and print down to child "parent.grandchild" prints nothing- grandchild not direct discendent "parent.grandchild." starts at the parent and prints down to grandchild "parent.grandchild.*" starts at parent, print through grandchild children

Definition at line 266 of file beast_PropertyStream.cpp.

◆ find_one_deep()

PropertyStream::Source * beast::PropertyStream::Source::find_one_deep ( std::string const & name )

inherited

Definition at line 333 of file beast_PropertyStream.cpp.

◆ find_path()

PropertyStream::Source * beast::PropertyStream::Source::find_path ( std::string path )

inherited

Definition at line 350 of file beast_PropertyStream.cpp.

◆ find_one()

PropertyStream::Source * beast::PropertyStream::Source::find_one ( std::string const & name )

inherited

Definition at line 368 of file beast_PropertyStream.cpp.

◆ peel_leading_slash()

bool beast::PropertyStream::Source::peel_leading_slash ( std::string * path )

staticinherited

Definition at line 286 of file beast_PropertyStream.cpp.

◆ peel_trailing_slashstar()

bool beast::PropertyStream::Source::peel_trailing_slashstar ( std::string * path )

staticinherited

Definition at line 297 of file beast_PropertyStream.cpp.

◆ peel_name()

std::string beast::PropertyStream::Source::peel_name ( std::string * path )

staticinherited

Definition at line 313 of file beast_PropertyStream.cpp.

◆ onWrite()

void beast::PropertyStream::Source::onWrite ( Map & )

virtualinherited

Subclass override.

The default version does nothing.

Reimplemented in ripple::ApplicationImp, ripple::OverlayImpl, ripple::PeerFinder::ManagerImp, ripple::Resource::ManagerImp, and ripple::LedgerCleanerImp.

Definition at line 380 of file beast_PropertyStream.cpp.

Member Data Documentation

◆ m_name

const std::string beast::PropertyStream::Source::m_name

privateinherited

Definition at line 333 of file PropertyStream.h.

◆ lock_

std::recursive_mutex beast::PropertyStream::Source::lock_

privateinherited

Definition at line 334 of file PropertyStream.h.

◆ item_

Item beast::PropertyStream::Source::item_

privateinherited

Definition at line 335 of file PropertyStream.h.

◆ parent_

Source* beast::PropertyStream::Source::parent_

privateinherited

Definition at line 336 of file PropertyStream.h.

◆ children_

List<Item> beast::PropertyStream::Source::children_

privateinherited

Definition at line 337 of file PropertyStream.h.
