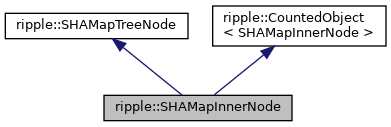

Inheritance diagram for ripple::SHAMapInnerNode:

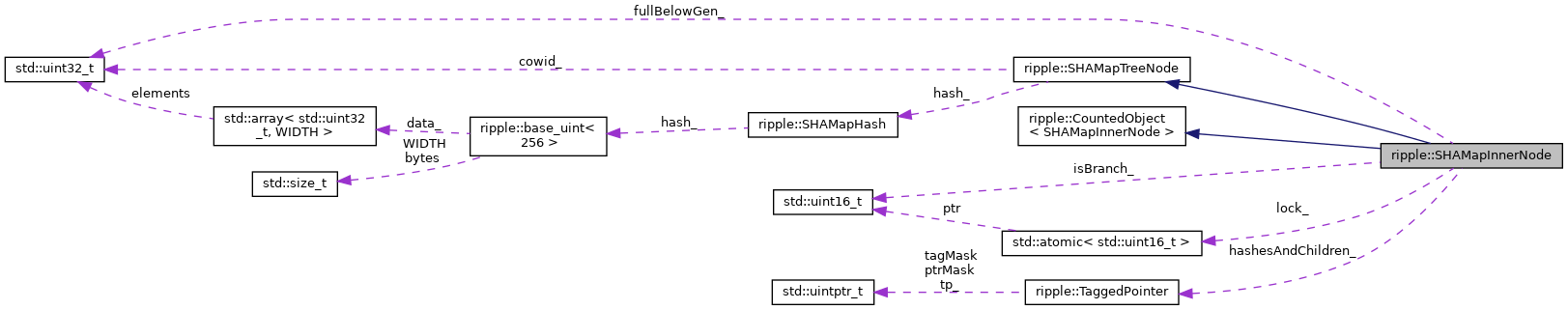

Collaboration diagram for ripple::SHAMapInnerNode:

[legend]

Public Member Functions
	SHAMapInnerNode (std::uint32_t cowid, std::uint8_t numAllocatedChildren=2)

	SHAMapInnerNode (SHAMapInnerNode const &)=delete

SHAMapInnerNode &	operator= (SHAMapInnerNode const &)=delete

	~SHAMapInnerNode ()

std::shared_ptr< SHAMapTreeNode >	clone (std::uint32_t cowid) const override
	Make a copy of this node, setting the owner. More...

SHAMapNodeType	getType () const override
	Determines the type of node. More...

bool	isLeaf () const override
	Determines if this is a leaf node. More...

bool	isInner () const override
	Determines if this is an inner node. More...

bool	isEmpty () const

bool	isEmptyBranch (int m) const

int	getBranchCount () const

SHAMapHash const &	getChildHash (int m) const

void	setChild (int m, std::shared_ptr< SHAMapTreeNode > child)

void	shareChild (int m, std::shared_ptr< SHAMapTreeNode > const &child)

SHAMapTreeNode *	getChildPointer (int branch)

std::shared_ptr< SHAMapTreeNode >	getChild (int branch)

std::shared_ptr< SHAMapTreeNode >	canonicalizeChild (int branch, std::shared_ptr< SHAMapTreeNode > node)

bool	isFullBelow (std::uint32_t generation) const

void	setFullBelowGen (std::uint32_t gen)

void	updateHash () override
	Recalculate the hash of this node. More...

void	updateHashDeep ()
	Recalculate the hash of all children and this node. More...

void	serializeForWire (Serializer &) const override
	Serialize the node in a format appropriate for sending over the wire. More...

void	serializeWithPrefix (Serializer &) const override
	Serialize the node in a format appropriate for hashing. More...

std::string	getString (SHAMapNodeID const &) const override

void	invariants (bool is_root=false) const override

std::uint32_t	cowid () const
	Returns the SHAMap that owns this node. More...

void	unshare ()
	If this node is shared with another map, mark it as no longer shared. More...

SHAMapHash const &	getHash () const
	Return the hash of this node. More...

Static Public Member Functions
static std::shared_ptr< SHAMapTreeNode >	makeFullInner (Slice data, SHAMapHash const &hash, bool hashValid)

static std::shared_ptr< SHAMapTreeNode >	makeCompressedInner (Slice data)

static std::shared_ptr< SHAMapTreeNode >	makeFromPrefix (Slice rawNode, SHAMapHash const &hash)

static std::shared_ptr< SHAMapTreeNode >	makeFromWire (Slice rawNode)

Static Public Attributes
static constexpr unsigned int	branchFactor = 16
	Each inner node has 16 children (the 'radix tree' part of the map) More...

Protected Attributes
SHAMapHash	hash_

std::uint32_t	cowid_
	Determines the owning SHAMap, if any. More...

Private Member Functions
void	resizeChildArrays (std::uint8_t toAllocate)
	Convert arrays stored in `hashesAndChildren_` so they can store the requested number of children. More...

std::optional< int >	getChildIndex (int i) const
	Get the child's index inside the `hashes` or `children` array (stored in `hashesAndChildren_`. More...

template<class F >
void	iterChildren (F &&f) const
	Call the `f` callback for all 16 (branchFactor) branches - even if the branch is empty. More...

template<class F >
void	iterNonEmptyChildIndexes (F &&f) const
	Call the `f` callback for all non-empty branches. More...

Static Private Member Functions
static std::shared_ptr< SHAMapTreeNode >	makeTransaction (Slice data, SHAMapHash const &hash, bool hashValid)

static std::shared_ptr< SHAMapTreeNode >	makeAccountState (Slice data, SHAMapHash const &hash, bool hashValid)

static std::shared_ptr< SHAMapTreeNode >	makeTransactionWithMeta (Slice data, SHAMapHash const &hash, bool hashValid)

static auto &	getCounter () noexcept

Private Attributes
TaggedPointer	hashesAndChildren_
	Opaque type that contains the `hashes` array (array of type `SHAMapHash`) and the `children` array (array of type `std::shared_ptr<SHAMapInnerNode>`). More...

std::uint32_t	fullBelowGen_ = 0

std::uint16_t	isBranch_ = 0

std::atomic< std::uint16_t >	lock_ = 0
	A bitlock for the children of this node, with one bit per child. More...

Detailed Description

Definition at line 41 of file SHAMapInnerNode.h.

Constructor & Destructor Documentation

◆ SHAMapInnerNode() [1/2]

ripple::SHAMapInnerNode::SHAMapInnerNode	(	std::uint32_t	cowid,
		std::uint8_t	numAllocatedChildren = `2`
	)

explicit

Definition at line 38 of file SHAMapInnerNode.cpp.

◆ SHAMapInnerNode() [2/2]

ripple::SHAMapInnerNode::SHAMapInnerNode ( SHAMapInnerNode const & )

delete

◆ ~SHAMapInnerNode()

ripple::SHAMapInnerNode::~SHAMapInnerNode ( )

default

Member Function Documentation

◆ resizeChildArrays()

void ripple::SHAMapInnerNode::resizeChildArrays ( std::uint8_t toAllocate )

private

Convert arrays stored in hashesAndChildren_ so they can store the requested number of children.

Parameters

toAllocate allocate space for at least this number of children (must be <= branchFactor)

Note: the arrays may allocate more than the requested value in toAllocate. This is due to the implementation of TagPointer, which only supports allocating arrays of 4 different sizes.

Definition at line 62 of file SHAMapInnerNode.cpp.

◆ getChildIndex()

std::optional< int > ripple::SHAMapInnerNode::getChildIndex ( int i ) const

private

Get the child's index inside the hashes or children array (stored in hashesAndChildren_.

These arrays may or may not be sparse). The optional will be empty is an empty branch is requested and the arrays are sparse.

Parameters

i	index of the requested child

Definition at line 69 of file SHAMapInnerNode.cpp.

◆ iterChildren()

template<class F >

void ripple::SHAMapInnerNode::iterChildren ( F && f ) const

private

Call the f callback for all 16 (branchFactor) branches - even if the branch is empty.

Parameters

f	a one parameter callback function. The parameter is the child's hash.

Definition at line 49 of file SHAMapInnerNode.cpp.

◆ iterNonEmptyChildIndexes()

template<class F >

void ripple::SHAMapInnerNode::iterNonEmptyChildIndexes ( F && f ) const

private

Call the f callback for all non-empty branches.

Parameters

f	a two parameter callback function. The first parameter is the branch number, the second parameter is the index into the array. For dense formats these are the same, for sparse they may be different.

Definition at line 56 of file SHAMapInnerNode.cpp.

◆ operator=()

SHAMapInnerNode& ripple::SHAMapInnerNode::operator= ( SHAMapInnerNode const & )

delete

◆ clone()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapInnerNode::clone ( std::uint32_t cowid ) const

overridevirtual

Make a copy of this node, setting the owner.

Implements ripple::SHAMapTreeNode.

Definition at line 75 of file SHAMapInnerNode.cpp.

◆ getType()

SHAMapNodeType ripple::SHAMapInnerNode::getType ( ) const

overridevirtual

Determines the type of node.

Implements ripple::SHAMapTreeNode.

Definition at line 120 of file SHAMapInnerNode.h.

◆ isLeaf()

bool ripple::SHAMapInnerNode::isLeaf ( ) const

overridevirtual

Determines if this is a leaf node.

Implements ripple::SHAMapTreeNode.

Definition at line 126 of file SHAMapInnerNode.h.

◆ isInner()

bool ripple::SHAMapInnerNode::isInner ( ) const

overridevirtual

Determines if this is an inner node.

Implements ripple::SHAMapTreeNode.

Definition at line 132 of file SHAMapInnerNode.h.

◆ isEmpty()

bool ripple::SHAMapInnerNode::isEmpty ( ) const

Definition at line 260 of file SHAMapInnerNode.cpp.

◆ isEmptyBranch()

bool ripple::SHAMapInnerNode::isEmptyBranch ( int m ) const

Definition at line 198 of file SHAMapInnerNode.h.

◆ getBranchCount()

int ripple::SHAMapInnerNode::getBranchCount ( ) const

Definition at line 266 of file SHAMapInnerNode.cpp.

◆ getChildHash()

SHAMapHash const & ripple::SHAMapInnerNode::getChildHash ( int m ) const

Definition at line 361 of file SHAMapInnerNode.cpp.

◆ setChild()

void ripple::SHAMapInnerNode::setChild	(	int	m,
		std::shared_ptr< SHAMapTreeNode >	child
	)

Definition at line 287 of file SHAMapInnerNode.cpp.

◆ shareChild()

void ripple::SHAMapInnerNode::shareChild	(	int	m,
		std::shared_ptr< SHAMapTreeNode > const &	child
	)

Definition at line 323 of file SHAMapInnerNode.cpp.

◆ getChildPointer()

SHAMapTreeNode * ripple::SHAMapInnerNode::getChildPointer ( int branch )

Definition at line 335 of file SHAMapInnerNode.cpp.

◆ getChild()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapInnerNode::getChild ( int branch )

Definition at line 348 of file SHAMapInnerNode.cpp.

◆ canonicalizeChild()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapInnerNode::canonicalizeChild	(	int	branch,
		std::shared_ptr< SHAMapTreeNode >	node
	)

Definition at line 371 of file SHAMapInnerNode.cpp.

◆ isFullBelow()

bool ripple::SHAMapInnerNode::isFullBelow ( std::uint32_t generation ) const

Definition at line 204 of file SHAMapInnerNode.h.

◆ setFullBelowGen()

void ripple::SHAMapInnerNode::setFullBelowGen ( std::uint32_t gen )

Definition at line 210 of file SHAMapInnerNode.h.

◆ updateHash()

void ripple::SHAMapInnerNode::updateHash ( )

overridevirtual

Recalculate the hash of this node.

Implements ripple::SHAMapTreeNode.

Definition at line 196 of file SHAMapInnerNode.cpp.

◆ updateHashDeep()

void ripple::SHAMapInnerNode::updateHashDeep ( )

Recalculate the hash of all children and this node.

Definition at line 211 of file SHAMapInnerNode.cpp.

◆ serializeForWire()

void ripple::SHAMapInnerNode::serializeForWire ( Serializer & ) const

overridevirtual

Serialize the node in a format appropriate for sending over the wire.

Implements ripple::SHAMapTreeNode.

Definition at line 226 of file SHAMapInnerNode.cpp.

◆ serializeWithPrefix()

void ripple::SHAMapInnerNode::serializeWithPrefix ( Serializer & ) const

overridevirtual

Serialize the node in a format appropriate for hashing.

Implements ripple::SHAMapTreeNode.

Definition at line 250 of file SHAMapInnerNode.cpp.

◆ getString()

std::string ripple::SHAMapInnerNode::getString ( SHAMapNodeID const & id ) const

overridevirtual

Reimplemented from ripple::SHAMapTreeNode.

Definition at line 272 of file SHAMapInnerNode.cpp.

◆ invariants()

void ripple::SHAMapInnerNode::invariants ( bool is_root = false ) const

overridevirtual

Implements ripple::SHAMapTreeNode.

Definition at line 399 of file SHAMapInnerNode.cpp.

◆ makeFullInner()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapInnerNode::makeFullInner	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

static

Definition at line 126 of file SHAMapInnerNode.cpp.

◆ makeCompressedInner()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapInnerNode::makeCompressedInner ( Slice data )

static

Definition at line 160 of file SHAMapInnerNode.cpp.

◆ getHash()

SHAMapHash const& ripple::SHAMapTreeNode::getHash ( ) const

inherited

Return the hash of this node.

Definition at line 143 of file SHAMapTreeNode.h.

◆ makeFromPrefix()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeFromPrefix	(	Slice	rawNode,
		SHAMapHash const &	hash
	)

staticinherited

Definition at line 148 of file SHAMapTreeNode.cpp.

◆ makeFromWire()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeFromWire ( Slice rawNode )

staticinherited

Definition at line 116 of file SHAMapTreeNode.cpp.

◆ makeTransaction()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeTransaction	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivateinherited

Definition at line 40 of file SHAMapTreeNode.cpp.

◆ makeAccountState()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeAccountState	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivateinherited

Definition at line 84 of file SHAMapTreeNode.cpp.

◆ makeTransactionWithMeta()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeTransactionWithMeta	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivateinherited

Definition at line 55 of file SHAMapTreeNode.cpp.

◆ getCounter()

static auto& ripple::CountedObject< SHAMapInnerNode >::getCounter

staticprivatenoexceptinherited

Definition at line 128 of file CountedObject.h.

Member Data Documentation

◆ branchFactor

constexpr unsigned int ripple::SHAMapInnerNode::branchFactor = 16

staticconstexpr

Each inner node has 16 children (the 'radix tree' part of the map)

Definition at line 46 of file SHAMapInnerNode.h.

◆ hashesAndChildren_

TaggedPointer ripple::SHAMapInnerNode::hashesAndChildren_

private

Opaque type that contains the hashes array (array of type SHAMapHash) and the children array (array of type std::shared_ptr<SHAMapInnerNode>).

Definition at line 53 of file SHAMapInnerNode.h.

◆ fullBelowGen_

std::uint32_t ripple::SHAMapInnerNode::fullBelowGen_ = 0

private

Definition at line 55 of file SHAMapInnerNode.h.

◆ isBranch_

std::uint16_t ripple::SHAMapInnerNode::isBranch_ = 0

private

Definition at line 56 of file SHAMapInnerNode.h.

◆ lock_

std::atomic<std::uint16_t> ripple::SHAMapInnerNode::lock_ = 0

mutableprivate

A bitlock for the children of this node, with one bit per child.

Definition at line 59 of file SHAMapInnerNode.h.

◆ hash_

SHAMapHash ripple::SHAMapTreeNode::hash_

protectedinherited

Definition at line 56 of file SHAMapTreeNode.h.

◆ cowid_

std::uint32_t ripple::SHAMapTreeNode::cowid_

protectedinherited

Determines the owning SHAMap, if any.

Used for copy-on-write semantics.

If this value is 0, the node is not dirty and does not need to be flushed. It is eligible for sharing and may be included multiple SHAMap instances.

Definition at line 64 of file SHAMapTreeNode.h.

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SHAMapInnerNode() [1/2]

◆ SHAMapInnerNode() [2/2]

◆ ~SHAMapInnerNode()

Member Function Documentation

◆ resizeChildArrays()

◆ getChildIndex()

◆ iterChildren()

◆ iterNonEmptyChildIndexes()

◆ operator=()

◆ clone()

◆ getType()

◆ isLeaf()

◆ isInner()

◆ isEmpty()

◆ isEmptyBranch()

◆ getBranchCount()

◆ getChildHash()

◆ setChild()

◆ shareChild()

◆ getChildPointer()

◆ getChild()

◆ canonicalizeChild()

◆ isFullBelow()

◆ setFullBelowGen()

◆ updateHash()

◆ updateHashDeep()

◆ serializeForWire()

◆ serializeWithPrefix()

◆ getString()

◆ invariants()

◆ makeFullInner()

◆ makeCompressedInner()

◆ getHash()

◆ makeFromPrefix()

◆ makeFromWire()

◆ makeTransaction()

◆ makeAccountState()

◆ makeTransactionWithMeta()

◆ getCounter()

Member Data Documentation

◆ branchFactor

◆ hashesAndChildren_

◆ fullBelowGen_

◆ isBranch_

◆ lock_

◆ hash_

◆ cowid_
