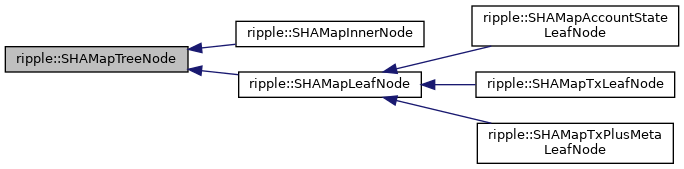

Inheritance diagram for ripple::SHAMapTreeNode:

[legend]

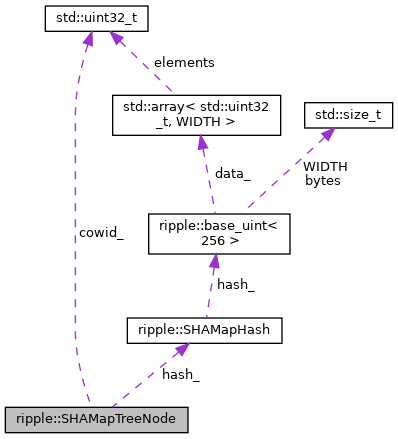

Collaboration diagram for ripple::SHAMapTreeNode:

[legend]

Public Member Functions
virtual	~SHAMapTreeNode () noexcept=default

std::uint32_t	cowid () const
	Returns the SHAMap that owns this node. More...

void	unshare ()
	If this node is shared with another map, mark it as no longer shared. More...

virtual std::shared_ptr< SHAMapTreeNode >	clone (std::uint32_t cowid) const =0
	Make a copy of this node, setting the owner. More...

virtual void	updateHash ()=0
	Recalculate the hash of this node. More...

SHAMapHash const &	getHash () const
	Return the hash of this node. More...

virtual SHAMapNodeType	getType () const =0
	Determines the type of node. More...

virtual bool	isLeaf () const =0
	Determines if this is a leaf node. More...

virtual bool	isInner () const =0
	Determines if this is an inner node. More...

virtual void	serializeForWire (Serializer &) const =0
	Serialize the node in a format appropriate for sending over the wire. More...

virtual void	serializeWithPrefix (Serializer &) const =0
	Serialize the node in a format appropriate for hashing. More...

virtual std::string	getString (SHAMapNodeID const &) const

virtual void	invariants (bool is_root=false) const =0

Static Public Member Functions
static std::shared_ptr< SHAMapTreeNode >	makeFromPrefix (Slice rawNode, SHAMapHash const &hash)

static std::shared_ptr< SHAMapTreeNode >	makeFromWire (Slice rawNode)

Protected Member Functions
	SHAMapTreeNode (SHAMapTreeNode const &)=delete

SHAMapTreeNode &	operator= (SHAMapTreeNode const &)=delete


	SHAMapTreeNode (std::uint32_t cowid) noexcept
	Construct a node. More...

	SHAMapTreeNode (std::uint32_t cowid, SHAMapHash const &hash) noexcept

Protected Attributes
SHAMapHash	hash_

std::uint32_t	cowid_
	Determines the owning SHAMap, if any. More...

Static Private Member Functions
static std::shared_ptr< SHAMapTreeNode >	makeTransaction (Slice data, SHAMapHash const &hash, bool hashValid)

static std::shared_ptr< SHAMapTreeNode >	makeAccountState (Slice data, SHAMapHash const &hash, bool hashValid)

static std::shared_ptr< SHAMapTreeNode >	makeTransactionWithMeta (Slice data, SHAMapHash const &hash, bool hashValid)

Detailed Description

Definition at line 53 of file SHAMapTreeNode.h.

Constructor & Destructor Documentation

◆ SHAMapTreeNode() [1/3]

ripple::SHAMapTreeNode::SHAMapTreeNode ( SHAMapTreeNode const & )

protecteddelete

◆ SHAMapTreeNode() [2/3]

ripple::SHAMapTreeNode::SHAMapTreeNode ( std::uint32_t cowid )

explicitprotectednoexcept

Construct a node.

Parameters

cowid	The identifier of a SHAMap. For more, see cowid_
hash	The hash associated with this node, if any.

Definition at line 77 of file SHAMapTreeNode.h.

◆ SHAMapTreeNode() [3/3]

ripple::SHAMapTreeNode::SHAMapTreeNode	(	std::uint32_t	cowid,
		SHAMapHash const &	hash
	)

explicitprotectednoexcept

Definition at line 81 of file SHAMapTreeNode.h.

◆ ~SHAMapTreeNode()

virtual ripple::SHAMapTreeNode::~SHAMapTreeNode ( )

virtualdefaultnoexcept

Member Function Documentation

◆ operator=()

SHAMapTreeNode& ripple::SHAMapTreeNode::operator= ( SHAMapTreeNode const & )

protecteddelete

◆ updateHash()

virtual void ripple::SHAMapTreeNode::updateHash ( )

pure virtual

Recalculate the hash of this node.

Implemented in ripple::SHAMapInnerNode, ripple::SHAMapAccountStateLeafNode, ripple::SHAMapTxPlusMetaLeafNode, and ripple::SHAMapTxLeafNode.

◆ getHash()

SHAMapHash const& ripple::SHAMapTreeNode::getHash ( ) const

Return the hash of this node.

Definition at line 143 of file SHAMapTreeNode.h.

◆ getType()

virtual SHAMapNodeType ripple::SHAMapTreeNode::getType ( ) const

pure virtual

Determines the type of node.

Implemented in ripple::SHAMapInnerNode, ripple::SHAMapTxPlusMetaLeafNode, ripple::SHAMapAccountStateLeafNode, and ripple::SHAMapTxLeafNode.

◆ isLeaf()

virtual bool ripple::SHAMapTreeNode::isLeaf ( ) const

pure virtual

Determines if this is a leaf node.

Implemented in ripple::SHAMapInnerNode, and ripple::SHAMapLeafNode.

◆ isInner()

virtual bool ripple::SHAMapTreeNode::isInner ( ) const

pure virtual

Determines if this is an inner node.

Implemented in ripple::SHAMapInnerNode, and ripple::SHAMapLeafNode.

◆ serializeForWire()

virtual void ripple::SHAMapTreeNode::serializeForWire ( Serializer & ) const

pure virtual

Serialize the node in a format appropriate for sending over the wire.

Implemented in ripple::SHAMapAccountStateLeafNode, ripple::SHAMapTxPlusMetaLeafNode, ripple::SHAMapTxLeafNode, and ripple::SHAMapInnerNode.

◆ serializeWithPrefix()

virtual void ripple::SHAMapTreeNode::serializeWithPrefix ( Serializer & ) const

pure virtual

Serialize the node in a format appropriate for hashing.

Implemented in ripple::SHAMapAccountStateLeafNode, ripple::SHAMapTxPlusMetaLeafNode, ripple::SHAMapTxLeafNode, and ripple::SHAMapInnerNode.

◆ getString()

std::string ripple::SHAMapTreeNode::getString ( SHAMapNodeID const & id ) const

virtual

Reimplemented in ripple::SHAMapInnerNode, and ripple::SHAMapLeafNode.

Definition at line 184 of file SHAMapTreeNode.cpp.

◆ invariants()

virtual void ripple::SHAMapTreeNode::invariants ( bool is_root = false ) const

pure virtual

Implemented in ripple::SHAMapInnerNode, and ripple::SHAMapLeafNode.

◆ makeFromPrefix()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeFromPrefix	(	Slice	rawNode,
		SHAMapHash const &	hash
	)

static

Definition at line 148 of file SHAMapTreeNode.cpp.

◆ makeFromWire()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeFromWire ( Slice rawNode )

static

Definition at line 116 of file SHAMapTreeNode.cpp.

◆ makeTransaction()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeTransaction	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivate

Definition at line 40 of file SHAMapTreeNode.cpp.

◆ makeAccountState()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeAccountState	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivate

Definition at line 84 of file SHAMapTreeNode.cpp.

◆ makeTransactionWithMeta()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeTransactionWithMeta	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivate

Definition at line 55 of file SHAMapTreeNode.cpp.

Member Data Documentation

◆ hash_

SHAMapHash ripple::SHAMapTreeNode::hash_

protected

Definition at line 56 of file SHAMapTreeNode.h.

◆ cowid_

std::uint32_t ripple::SHAMapTreeNode::cowid_

protected

Determines the owning SHAMap, if any.

Used for copy-on-write semantics.

If this value is 0, the node is not dirty and does not need to be flushed. It is eligible for sharing and may be included multiple SHAMap instances.

Definition at line 64 of file SHAMapTreeNode.h.
