A leaf node for a transaction and its associated metadata. More...

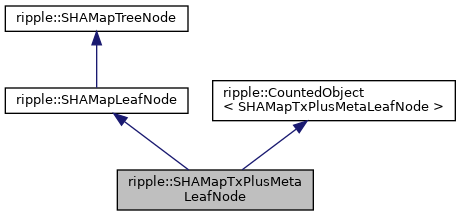

Inheritance diagram for ripple::SHAMapTxPlusMetaLeafNode:

[legend]

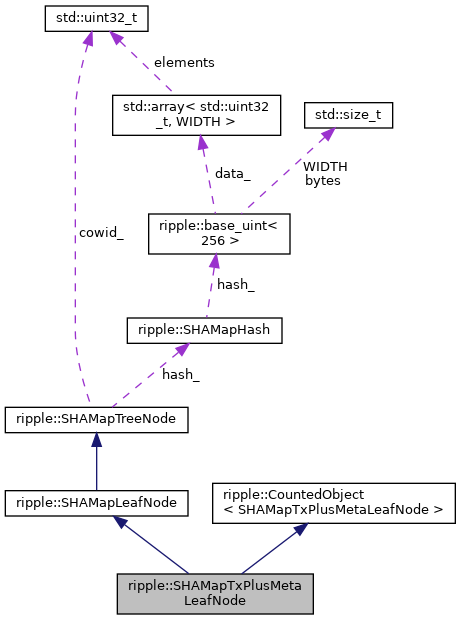

Collaboration diagram for ripple::SHAMapTxPlusMetaLeafNode:

[legend]

Public Member Functions
	SHAMapTxPlusMetaLeafNode (boost::intrusive_ptr< SHAMapItem const > item, std::uint32_t cowid)

	SHAMapTxPlusMetaLeafNode (boost::intrusive_ptr< SHAMapItem const > item, std::uint32_t cowid, SHAMapHash const &hash)

std::shared_ptr< SHAMapTreeNode >	clone (std::uint32_t cowid) const override
	Make a copy of this node, setting the owner. More...

SHAMapNodeType	getType () const override
	Determines the type of node. More...

void	updateHash () final override
	Recalculate the hash of this node. More...

void	serializeForWire (Serializer &s) const final override
	Serialize the node in a format appropriate for sending over the wire. More...

void	serializeWithPrefix (Serializer &s) const final override
	Serialize the node in a format appropriate for hashing. More...

bool	isLeaf () const final override
	Determines if this is a leaf node. More...

bool	isInner () const final override
	Determines if this is an inner node. More...

void	invariants (bool is_root=false) const final override

boost::intrusive_ptr< SHAMapItem const > const &	peekItem () const

bool	setItem (boost::intrusive_ptr< SHAMapItem const > i)
	Set the item that this node points to and update the node's hash. More...

std::string	getString (SHAMapNodeID const &) const final override

std::uint32_t	cowid () const
	Returns the SHAMap that owns this node. More...

void	unshare ()
	If this node is shared with another map, mark it as no longer shared. More...

SHAMapHash const &	getHash () const
	Return the hash of this node. More...

Static Public Member Functions
static std::shared_ptr< SHAMapTreeNode >	makeFromPrefix (Slice rawNode, SHAMapHash const &hash)

static std::shared_ptr< SHAMapTreeNode >	makeFromWire (Slice rawNode)

Protected Attributes
boost::intrusive_ptr< SHAMapItem const >	item_

SHAMapHash	hash_

std::uint32_t	cowid_
	Determines the owning SHAMap, if any. More...

Static Private Member Functions
static std::shared_ptr< SHAMapTreeNode >	makeTransaction (Slice data, SHAMapHash const &hash, bool hashValid)

static std::shared_ptr< SHAMapTreeNode >	makeAccountState (Slice data, SHAMapHash const &hash, bool hashValid)

static std::shared_ptr< SHAMapTreeNode >	makeTransactionWithMeta (Slice data, SHAMapHash const &hash, bool hashValid)

static auto &	getCounter () noexcept

Detailed Description

A leaf node for a transaction and its associated metadata.

Definition at line 33 of file SHAMapTxPlusMetaLeafNode.h.

Constructor & Destructor Documentation

◆ SHAMapTxPlusMetaLeafNode() [1/2]

ripple::SHAMapTxPlusMetaLeafNode::SHAMapTxPlusMetaLeafNode	(	boost::intrusive_ptr< SHAMapItem const >	item,
		std::uint32_t	cowid
	)

Definition at line 38 of file SHAMapTxPlusMetaLeafNode.h.

◆ SHAMapTxPlusMetaLeafNode() [2/2]

ripple::SHAMapTxPlusMetaLeafNode::SHAMapTxPlusMetaLeafNode	(	boost::intrusive_ptr< SHAMapItem const >	item,
		std::uint32_t	cowid,
		SHAMapHash const &	hash
	)

Definition at line 46 of file SHAMapTxPlusMetaLeafNode.h.

Member Function Documentation

◆ clone()

std::shared_ptr<SHAMapTreeNode> ripple::SHAMapTxPlusMetaLeafNode::clone ( std::uint32_t cowid ) const

overridevirtual

Make a copy of this node, setting the owner.

Implements ripple::SHAMapTreeNode.

Definition at line 55 of file SHAMapTxPlusMetaLeafNode.h.

◆ getType()

SHAMapNodeType ripple::SHAMapTxPlusMetaLeafNode::getType ( ) const

overridevirtual

Determines the type of node.

Implements ripple::SHAMapTreeNode.

Definition at line 61 of file SHAMapTxPlusMetaLeafNode.h.

◆ updateHash()

void ripple::SHAMapTxPlusMetaLeafNode::updateHash ( )

finaloverridevirtual

Recalculate the hash of this node.

Implements ripple::SHAMapTreeNode.

Definition at line 67 of file SHAMapTxPlusMetaLeafNode.h.

◆ serializeForWire()

void ripple::SHAMapTxPlusMetaLeafNode::serializeForWire ( Serializer & ) const

finaloverridevirtual

Serialize the node in a format appropriate for sending over the wire.

Implements ripple::SHAMapTreeNode.

Definition at line 74 of file SHAMapTxPlusMetaLeafNode.h.

◆ serializeWithPrefix()

void ripple::SHAMapTxPlusMetaLeafNode::serializeWithPrefix ( Serializer & ) const

finaloverridevirtual

Serialize the node in a format appropriate for hashing.

Implements ripple::SHAMapTreeNode.

Definition at line 82 of file SHAMapTxPlusMetaLeafNode.h.

◆ isLeaf()

bool ripple::SHAMapLeafNode::isLeaf ( ) const

finaloverridevirtualinherited

Determines if this is a leaf node.

Implements ripple::SHAMapTreeNode.

Definition at line 52 of file SHAMapLeafNode.h.

◆ isInner()

bool ripple::SHAMapLeafNode::isInner ( ) const

finaloverridevirtualinherited

Determines if this is an inner node.

Implements ripple::SHAMapTreeNode.

Definition at line 58 of file SHAMapLeafNode.h.

◆ invariants()

void ripple::SHAMapLeafNode::invariants ( bool is_root = false ) const

finaloverridevirtualinherited

Implements ripple::SHAMapTreeNode.

Definition at line 88 of file SHAMapLeafNode.cpp.

◆ peekItem()

boost::intrusive_ptr< SHAMapItem const > const & ripple::SHAMapLeafNode::peekItem ( ) const

inherited

Definition at line 44 of file SHAMapLeafNode.cpp.

◆ setItem()

bool ripple::SHAMapLeafNode::setItem ( boost::intrusive_ptr< SHAMapItem const > i )

inherited

Set the item that this node points to and update the node's hash.

Parameters

i	the new item

Returns: false if the change was, effectively, a noop (that is, if the hash was unchanged); true otherwise.

Definition at line 50 of file SHAMapLeafNode.cpp.

◆ getString()

std::string ripple::SHAMapLeafNode::getString ( SHAMapNodeID const & id ) const

finaloverridevirtualinherited

Reimplemented from ripple::SHAMapTreeNode.

Definition at line 63 of file SHAMapLeafNode.cpp.

◆ getHash()

SHAMapHash const& ripple::SHAMapTreeNode::getHash ( ) const

inherited

Return the hash of this node.

Definition at line 143 of file SHAMapTreeNode.h.

◆ makeFromPrefix()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeFromPrefix	(	Slice	rawNode,
		SHAMapHash const &	hash
	)

staticinherited

Definition at line 148 of file SHAMapTreeNode.cpp.

◆ makeFromWire()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeFromWire ( Slice rawNode )

staticinherited

Definition at line 116 of file SHAMapTreeNode.cpp.

◆ makeTransaction()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeTransaction	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivateinherited

Definition at line 40 of file SHAMapTreeNode.cpp.

◆ makeAccountState()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeAccountState	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivateinherited

Definition at line 84 of file SHAMapTreeNode.cpp.

◆ makeTransactionWithMeta()

std::shared_ptr< SHAMapTreeNode > ripple::SHAMapTreeNode::makeTransactionWithMeta	(	Slice	data,
		SHAMapHash const &	hash,
		bool	hashValid
	)

staticprivateinherited

Definition at line 55 of file SHAMapTreeNode.cpp.

◆ getCounter()

static auto& ripple::CountedObject< SHAMapTxPlusMetaLeafNode >::getCounter

staticprivatenoexceptinherited

Definition at line 128 of file CountedObject.h.

Member Data Documentation

◆ item_

boost::intrusive_ptr<SHAMapItem const> ripple::SHAMapLeafNode::item_

protectedinherited

Definition at line 35 of file SHAMapLeafNode.h.

◆ hash_

SHAMapHash ripple::SHAMapTreeNode::hash_

protectedinherited

Definition at line 56 of file SHAMapTreeNode.h.

◆ cowid_

std::uint32_t ripple::SHAMapTreeNode::cowid_

protectedinherited

Determines the owning SHAMap, if any.

Used for copy-on-write semantics.

If this value is 0, the node is not dirty and does not need to be flushed. It is eligible for sharing and may be included multiple SHAMap instances.

Definition at line 64 of file SHAMapTreeNode.h.
