Map/cache combination. More...

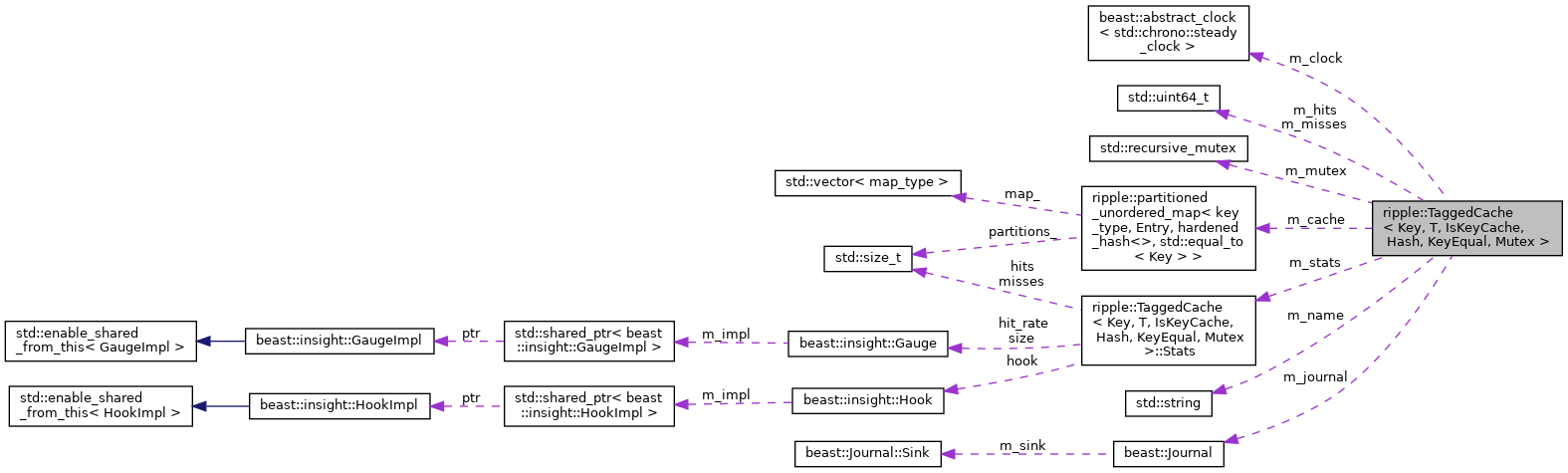

Collaboration diagram for ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >:

[legend]

Classes
class	KeyOnlyEntry

struct	Stats

class	ValueEntry

Public Types
using	mutex_type = Mutex

using	key_type = Key

using	mapped_type = T

using	clock_type = beast::abstract_clock< std::chrono::steady_clock >

using	SweptPointersVector = std::pair< std::vector< std::shared_ptr< mapped_type > >, std::vector< std::weak_ptr< mapped_type > >>

Public Member Functions
	TaggedCache (std::string const &name, int size, clock_type::duration expiration, clock_type &clock, beast::Journal journal, beast::insight::Collector::ptr const &collector=beast::insight::NullCollector::New())

clock_type &	clock ()
	Return the clock associated with the cache. More...

std::size_t	size () const
	Returns the number of items in the container. More...

void	setTargetSize (int s)

clock_type::duration	getTargetAge () const

void	setTargetAge (clock_type::duration s)

int	getCacheSize () const

int	getTrackSize () const

float	getHitRate ()

void	clear ()

void	reset ()

template<class KeyComparable >
bool	touch_if_exists (KeyComparable const &key)
	Refresh the last access time on a key if present. More...

void	sweep ()

bool	del (const key_type &key, bool valid)

bool	canonicalize (const key_type &key, std::shared_ptr< T > &data, std::function< bool(std::shared_ptr< T > const &)> &&replace)
	Replace aliased objects with originals. More...

bool	canonicalize_replace_cache (const key_type &key, std::shared_ptr< T > const &data)

bool	canonicalize_replace_client (const key_type &key, std::shared_ptr< T > &data)

std::shared_ptr< T >	fetch (const key_type &key)

template<class ReturnType = bool>
auto	insert (key_type const &key, T const &value) -> std::enable_if_t<!IsKeyCache, ReturnType >
	Insert the element into the container. More...

template<class ReturnType = bool>
auto	insert (key_type const &key) -> std::enable_if_t< IsKeyCache, ReturnType >

bool	retrieve (const key_type &key, T &data)

mutex_type &	peekMutex ()

std::vector< key_type >	getKeys () const

double	rate () const
	Returns the fraction of cache hits. More...

template<class Handler >
std::shared_ptr< T >	fetch (key_type const &digest, Handler const &h)
	Fetch an item from the cache. More...

Private Types
typedef std::conditional< IsKeyCache, KeyOnlyEntry, ValueEntry >::type	Entry

using	KeyOnlyCacheType = hardened_partitioned_hash_map< key_type, KeyOnlyEntry, Hash, KeyEqual >

using	KeyValueCacheType = hardened_partitioned_hash_map< key_type, ValueEntry, Hash, KeyEqual >

using	cache_type = hardened_partitioned_hash_map< key_type, Entry, Hash, KeyEqual >

Private Member Functions
std::shared_ptr< T >	initialFetch (key_type const &key, std::lock_guard< mutex_type > const &l)

void	collect_metrics ()

std::thread	sweepHelper (clock_type::time_point const &when_expire, [[maybe_unused]] clock_type::time_point const &now, typename KeyValueCacheType::map_type &partition, SweptPointersVector &stuffToSweep, std::atomic< int > &allRemovals, std::lock_guard< std::recursive_mutex > const &)

std::thread	sweepHelper (clock_type::time_point const &when_expire, clock_type::time_point const &now, typename KeyOnlyCacheType::map_type &partition, SweptPointersVector &, std::atomic< int > &allRemovals, std::lock_guard< std::recursive_mutex > const &)

Private Attributes
beast::Journal	m_journal

clock_type &	m_clock

Stats	m_stats

mutex_type	m_mutex

std::string	m_name

int	m_target_size

clock_type::duration	m_target_age

int	m_cache_count

cache_type	m_cache

std::uint64_t	m_hits

std::uint64_t	m_misses

Detailed Description

template<class Key, class T, bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>
class ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >

Map/cache combination.

This class implements a cache and a map. The cache keeps objects alive in the map. The map allows multiple code paths that reference objects with the same tag to get the same actual object.

So long as data is in the cache, it will stay in memory. If it stays in memory even after it is ejected from the cache, the map will track it.

Note: Callers must not modify data objects that are stored in the cache unless they hold their own lock over all cache operations.

Definition at line 64 of file Application.h.

Member Typedef Documentation

◆ mutex_type

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::mutex_type = Mutex

Definition at line 59 of file TaggedCache.h.

◆ key_type

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::key_type = Key

Definition at line 60 of file TaggedCache.h.

◆ mapped_type

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::mapped_type = T

Definition at line 61 of file TaggedCache.h.

◆ clock_type

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::clock_type = beast::abstract_clock<std::chrono::steady_clock>

Definition at line 62 of file TaggedCache.h.

◆ SweptPointersVector

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::SweptPointersVector = std::pair< std::vector<std::shared_ptr<mapped_type> >, std::vector<std::weak_ptr<mapped_type> >>

Definition at line 201 of file TaggedCache.h.

◆ Entry

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

typedef std::conditional<IsKeyCache, KeyOnlyEntry, ValueEntry>::type ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::Entry

private

Definition at line 642 of file TaggedCache.h.

◆ KeyOnlyCacheType

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::KeyOnlyCacheType = hardened_partitioned_hash_map<key_type, KeyOnlyEntry, Hash, KeyEqual>

private

Definition at line 645 of file TaggedCache.h.

◆ KeyValueCacheType

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::KeyValueCacheType = hardened_partitioned_hash_map<key_type, ValueEntry, Hash, KeyEqual>

private

Definition at line 648 of file TaggedCache.h.

◆ cache_type

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

using ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::cache_type = hardened_partitioned_hash_map<key_type, Entry, Hash, KeyEqual>

private

Definition at line 651 of file TaggedCache.h.

Constructor & Destructor Documentation

◆ TaggedCache()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::TaggedCache	(	std::string const &	name,
		int	size,
		clock_type::duration	expiration,
		clock_type &	clock,
		beast::Journal	journal,
		beast::insight::Collector::ptr const &	collector = `beast::insight::NullCollector::New()`
	)

Definition at line 65 of file TaggedCache.h.

Member Function Documentation

◆ clock()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

clock_type& ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::clock ( )

Return the clock associated with the cache.

Definition at line 91 of file TaggedCache.h.

◆ size()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::size_t ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::size ( ) const

Returns the number of items in the container.

Definition at line 98 of file TaggedCache.h.

◆ setTargetSize()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

void ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::setTargetSize ( int s )

Definition at line 105 of file TaggedCache.h.

◆ getTargetAge()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

clock_type::duration ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::getTargetAge ( ) const

Definition at line 125 of file TaggedCache.h.

◆ setTargetAge()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

void ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::setTargetAge ( clock_type::duration s )

Definition at line 132 of file TaggedCache.h.

◆ getCacheSize()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

int ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::getCacheSize ( ) const

Definition at line 141 of file TaggedCache.h.

◆ getTrackSize()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

int ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::getTrackSize ( ) const

Definition at line 148 of file TaggedCache.h.

◆ getHitRate()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

float ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::getHitRate ( )

Definition at line 155 of file TaggedCache.h.

◆ clear()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

void ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::clear ( )

Definition at line 163 of file TaggedCache.h.

◆ reset()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

void ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::reset ( )

Definition at line 171 of file TaggedCache.h.

◆ touch_if_exists()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

template<class KeyComparable >

bool ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::touch_if_exists ( KeyComparable const & key )

Refresh the last access time on a key if present.

Returns: true If the key was found.

Definition at line 185 of file TaggedCache.h.

◆ sweep()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

void ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::sweep ( )

Definition at line 204 of file TaggedCache.h.

◆ del()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

bool ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::del	(	const key_type &	key,
		bool	valid
	)

Definition at line 269 of file TaggedCache.h.

◆ canonicalize()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

bool ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::canonicalize	(	const key_type &	key,
		std::shared_ptr< T > &	data,
		std::function< bool(std::shared_ptr< T > const &)> &&	replace
	)

Replace aliased objects with originals.

Due to concurrency it is possible for two separate objects with the same content and referring to the same unique "thing" to exist. This routine eliminates the duplicate and performs a replacement on the callers shared pointer if needed.

Parameters

key	The key corresponding to the object
data	A shared pointer to the data corresponding to the object.
replace	Function that decides if cache should be replaced

Returns: true If the key already existed.

Definition at line 312 of file TaggedCache.h.

◆ canonicalize_replace_cache()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

bool ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::canonicalize_replace_cache	(	const key_type &	key,
		std::shared_ptr< T > const &	data
	)

Definition at line 378 of file TaggedCache.h.

◆ canonicalize_replace_client()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

bool ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::canonicalize_replace_client	(	const key_type &	key,
		std::shared_ptr< T > &	data
	)

Definition at line 389 of file TaggedCache.h.

◆ fetch() [1/2]

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::shared_ptr<T> ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::fetch ( const key_type & key )

Definition at line 396 of file TaggedCache.h.

◆ insert() [1/2]

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

template<class ReturnType = bool>

auto ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::insert	(	key_type const &	key,
		T const &	value
	)		-> std::enable_if_t<!IsKeyCache, ReturnType>

Insert the element into the container.

If the key already exists, nothing happens.

Returns: true If the element was inserted

Definition at line 411 of file TaggedCache.h.

◆ insert() [2/2]

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

template<class ReturnType = bool>

auto ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::insert ( key_type const & key ) -> std::enable_if_t<IsKeyCache, ReturnType>

Definition at line 420 of file TaggedCache.h.

◆ retrieve()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

bool ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::retrieve	(	const key_type &	key,
		T &	data
	)

Definition at line 439 of file TaggedCache.h.

◆ peekMutex()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

mutex_type& ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::peekMutex ( )

Definition at line 452 of file TaggedCache.h.

◆ getKeys()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::vector<key_type> ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::getKeys ( ) const

Definition at line 458 of file TaggedCache.h.

◆ rate()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

double ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::rate ( ) const

Returns the fraction of cache hits.

Definition at line 475 of file TaggedCache.h.

◆ fetch() [2/2]

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

template<class Handler >

std::shared_ptr<T> ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::fetch	(	key_type const &	digest,
		Handler const &	h
	)

Fetch an item from the cache.

If the digest was not found, Handler will be called with this signature: std::shared_ptr<SLE const>(void)

Definition at line 491 of file TaggedCache.h.

◆ initialFetch()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::shared_ptr<T> ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::initialFetch	(	key_type const &	key,
		std::lock_guard< mutex_type > const &	l
	)

private

Definition at line 515 of file TaggedCache.h.

◆ collect_metrics()

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

void ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::collect_metrics ( )

private

Definition at line 542 of file TaggedCache.h.

◆ sweepHelper() [1/2]

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::thread ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::sweepHelper	(	clock_type::time_point const &	when_expire,
		[[maybe_unused] ] clock_type::time_point const &	now,
		typename KeyValueCacheType::map_type &	partition,
		SweptPointersVector &	stuffToSweep,
		std::atomic< int > &	allRemovals,
		std::lock_guard< std::recursive_mutex > const &
	)

private

Definition at line 654 of file TaggedCache.h.

◆ sweepHelper() [2/2]

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::thread ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::sweepHelper	(	clock_type::time_point const &	when_expire,
		clock_type::time_point const &	now,
		typename KeyOnlyCacheType::map_type &	partition,
		SweptPointersVector &	,
		std::atomic< int > &	allRemovals,
		std::lock_guard< std::recursive_mutex > const &
	)

private

Definition at line 728 of file TaggedCache.h.

Member Data Documentation

◆ m_journal

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

beast::Journal ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::m_journal

private

Definition at line 772 of file TaggedCache.h.

◆ m_clock

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

clock_type& ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::m_clock

private

Definition at line 775 of file TaggedCache.h.

◆ m_stats

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

Stats ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::m_stats

private

Definition at line 776 of file TaggedCache.h.

◆ m_mutex

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

mutex_type ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::m_mutex

mutableprivate

Definition at line 778 of file TaggedCache.h.

◆ m_name

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::string ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::m_name

private

Definition at line 781 of file TaggedCache.h.

◆ m_target_size

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

int ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::m_target_size

private

Definition at line 784 of file TaggedCache.h.

◆ m_target_age

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

clock_type::duration ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::m_target_age

private

Definition at line 787 of file TaggedCache.h.

◆ m_cache_count

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

int ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::m_cache_count

private

Definition at line 790 of file TaggedCache.h.

◆ m_cache

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

cache_type ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::m_cache

private

Definition at line 791 of file TaggedCache.h.

◆ m_hits

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::uint64_t ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::m_hits

private

Definition at line 792 of file TaggedCache.h.

◆ m_misses

template<class Key , class T , bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>

std::uint64_t ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >::m_misses

private

Definition at line 793 of file TaggedCache.h.

Classes

Public Types

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

template<class Key, class T, bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex> class ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >

Member Typedef Documentation

◆ mutex_type

◆ key_type

◆ mapped_type

◆ clock_type

◆ SweptPointersVector

◆ Entry

◆ KeyOnlyCacheType

◆ KeyValueCacheType

◆ cache_type

Constructor & Destructor Documentation

◆ TaggedCache()

Member Function Documentation

◆ clock()

◆ size()

◆ setTargetSize()

◆ getTargetAge()

◆ setTargetAge()

◆ getCacheSize()

◆ getTrackSize()

◆ getHitRate()

◆ clear()

◆ reset()

◆ touch_if_exists()

◆ sweep()

◆ del()

◆ canonicalize()

◆ canonicalize_replace_cache()

◆ canonicalize_replace_client()

◆ fetch() [1/2]

◆ insert() [1/2]

◆ insert() [2/2]

◆ retrieve()

◆ peekMutex()

◆ getKeys()

◆ rate()

◆ fetch() [2/2]

◆ initialFetch()

◆ collect_metrics()

◆ sweepHelper() [1/2]

◆ sweepHelper() [2/2]

Member Data Documentation

◆ m_journal

◆ m_clock

◆ m_stats

◆ m_mutex

◆ m_name

◆ m_target_size

◆ m_target_age

◆ m_cache_count

◆ m_cache

◆ m_hits

◆ m_misses

template<class Key, class T, bool IsKeyCache = false, class Hash = hardened_hash<>, class KeyEqual = std::equal_to<Key>, class Mutex = std::recursive_mutex>
class ripple::TaggedCache< Key, T, IsKeyCache, Hash, KeyEqual, Mutex >
