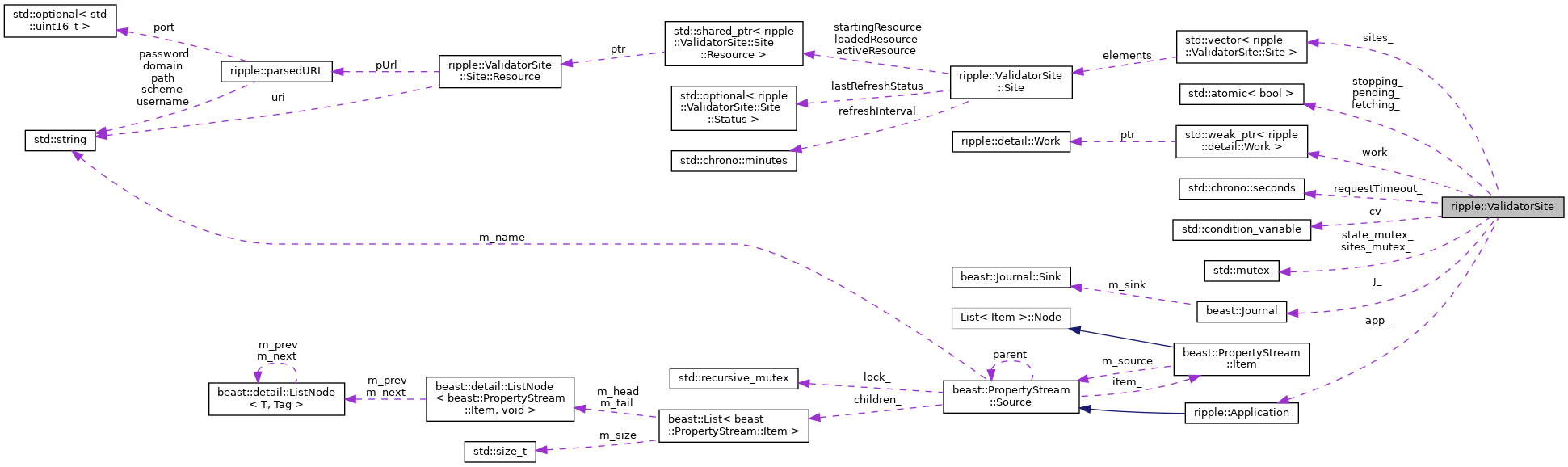

Collaboration diagram for ripple::ValidatorSite:

[legend]

Classes
struct	Site

Public Member Functions
	ValidatorSite (Application &app, std::optional< beast::Journal > j=std::nullopt, std::chrono::seconds timeout=std::chrono::seconds{20})

	~ValidatorSite ()

bool	load (std::vector< std::string > const &siteURIs)
	Load configured site URIs. More...

void	start ()
	Start fetching lists from sites. More...

void	join ()
	Wait for current fetches from sites to complete. More...

void	stop ()
	Stop fetching lists from sites. More...

Json::Value	getJson () const
	Return JSON representation of configured validator sites. More...

Private Types
using	error_code = boost::system::error_code

using	clock_type = std::chrono::system_clock

using	endpoint_type = boost::asio::ip::tcp::endpoint

Private Member Functions
bool	load (std::vector< std::string > const &siteURIs, std::lock_guard< std::mutex > const &)
	Load configured site URIs. More...

void	setTimer (std::lock_guard< std::mutex > const &, std::lock_guard< std::mutex > const &)
	Queue next site to be fetched lock over site_mutex_ and state_mutex_ required. More...

void	onRequestTimeout (std::size_t siteIdx, error_code const &ec)
	request took too long More...

void	onTimer (std::size_t siteIdx, error_code const &ec)
	Fetch site whose time has come. More...

void	onSiteFetch (boost::system::error_code const &ec, endpoint_type const &endpoint, detail::response_type &&res, std::size_t siteIdx)
	Store latest list fetched from site. More...

void	onTextFetch (boost::system::error_code const &ec, std::string const &res, std::size_t siteIdx)
	Store latest list fetched from anywhere. More...

void	makeRequest (std::shared_ptr< Site::Resource > resource, std::size_t siteIdx, std::lock_guard< std::mutex > const &)
	Initiate request to given resource. More...

void	parseJsonResponse (std::string const &res, std::size_t siteIdx, std::lock_guard< std::mutex > const &)
	Parse json response from validator list site. More...

std::shared_ptr< Site::Resource >	processRedirect (detail::response_type &res, std::size_t siteIdx, std::lock_guard< std::mutex > const &)
	Interpret a redirect response. More...

bool	missingSite (std::lock_guard< std::mutex > const &)
	If no sites are provided, or a site fails to load, get a list of local cache files from the ValidatorList. More...

Private Attributes
Application &	app_

const beast::Journal	j_

std::mutex	sites_mutex_

std::mutex	state_mutex_

std::condition_variable	cv_

std::weak_ptr< detail::Work >	work_

boost::asio::basic_waitable_timer< clock_type >	timer_

std::atomic< bool >	fetching_

std::atomic< bool >	pending_

std::atomic< bool >	stopping_

std::vector< Site >	sites_

const std::chrono::seconds	requestTimeout_

Friends
class	Work

Detailed Description

Validator Sites

This class manages the set of configured remote sites used to fetch the latest published recommended validator lists.

Lists are fetched at a regular interval. Fetched lists are expected to be in JSON format and contain the following fields:

"blob": Base64-encoded JSON string containing a "sequence", "validUntil", and "validators" field. "validUntil" contains the Ripple timestamp (seconds since January 1st, 2000 (00:00 UTC)) for when the list expires. "validators" contains an array of objects with a "validation_public_key" and optional "manifest" field. "validation_public_key" should be the hex-encoded master public key. "manifest" should be the base64-encoded validator manifest.

"manifest": Base64-encoded serialization of a manifest containing the publisher's master and signing public keys.

"signature": Hex-encoded signature of the blob using the publisher's signing key.

"version": 1

"refreshInterval" (optional, integer minutes). This value is clamped internally to [1,1440] (1 min - 1 day)

Definition at line 69 of file ValidatorSite.h.

Member Typedef Documentation

◆ error_code

using ripple::ValidatorSite::error_code = boost::system::error_code

private

Definition at line 74 of file ValidatorSite.h.

◆ clock_type

using ripple::ValidatorSite::clock_type = std::chrono::system_clock

private

Definition at line 75 of file ValidatorSite.h.

◆ endpoint_type

using ripple::ValidatorSite::endpoint_type = boost::asio::ip::tcp::endpoint

private

Definition at line 76 of file ValidatorSite.h.

Constructor & Destructor Documentation

◆ ValidatorSite()

ripple::ValidatorSite::ValidatorSite	(	Application &	app,
		std::optional< beast::Journal >	j = `std::nullopt`,
		std::chrono::seconds	timeout = `std::chrono::seconds{20}`
	)

Definition at line 88 of file ValidatorSite.cpp.

◆ ~ValidatorSite()

ripple::ValidatorSite::~ValidatorSite ( )

Definition at line 102 of file ValidatorSite.cpp.

Member Function Documentation

◆ load() [1/2]

bool ripple::ValidatorSite::load ( std::vector< std::string > const & siteURIs )

Load configured site URIs.

Parameters

siteURIs List of URIs to fetch published validator lists

Thread Safety

May be called concurrently

Returns: false if an entry is invalid or unparsable

Definition at line 127 of file ValidatorSite.cpp.

◆ start()

void ripple::ValidatorSite::start ( )

Start fetching lists from sites.

This does nothing if list fetching has already started

Thread Safety

May be called concurrently

Definition at line 167 of file ValidatorSite.cpp.

◆ join()

void ripple::ValidatorSite::join ( )

Wait for current fetches from sites to complete.

Thread Safety

May be called concurrently

Definition at line 176 of file ValidatorSite.cpp.

◆ stop()

void ripple::ValidatorSite::stop ( )

Stop fetching lists from sites.

This blocks until list fetching has stopped

Thread Safety

May be called concurrently

Definition at line 183 of file ValidatorSite.cpp.

◆ getJson()

Json::Value ripple::ValidatorSite::getJson ( ) const

Return JSON representation of configured validator sites.

Definition at line 667 of file ValidatorSite.cpp.

◆ load() [2/2]

bool ripple::ValidatorSite::load	(	std::vector< std::string > const &	siteURIs,
		std::lock_guard< std::mutex > const &	lock_sites
	)

private

Load configured site URIs.

Definition at line 137 of file ValidatorSite.cpp.

◆ setTimer()

void ripple::ValidatorSite::setTimer	(	std::lock_guard< std::mutex > const &	site_lock,
		std::lock_guard< std::mutex > const &	state_lock
	)

private

Queue next site to be fetched lock over site_mutex_ and state_mutex_ required.

Definition at line 209 of file ValidatorSite.cpp.

◆ onRequestTimeout()

void ripple::ValidatorSite::onRequestTimeout	(	std::size_t	siteIdx,
		error_code const &	ec
	)

private

request took too long

Definition at line 312 of file ValidatorSite.cpp.

◆ onTimer()

void ripple::ValidatorSite::onTimer	(	std::size_t	siteIdx,
		error_code const &	ec
	)

private

Fetch site whose time has come.

Definition at line 340 of file ValidatorSite.cpp.

◆ onSiteFetch()

void ripple::ValidatorSite::onSiteFetch	(	boost::system::error_code const &	ec,
		endpoint_type const &	endpoint,
		detail::response_type &&	res,
		std::size_t	siteIdx
	)

private

Store latest list fetched from site.

Definition at line 540 of file ValidatorSite.cpp.

◆ onTextFetch()

void ripple::ValidatorSite::onTextFetch	(	boost::system::error_code const &	ec,
		std::string const &	res,
		std::size_t	siteIdx
	)

private

Store latest list fetched from anywhere.

Definition at line 628 of file ValidatorSite.cpp.

◆ makeRequest()

void ripple::ValidatorSite::makeRequest	(	std::shared_ptr< Site::Resource >	resource,
		std::size_t	siteIdx,
		std::lock_guard< std::mutex > const &	sites_lock
	)

private

Initiate request to given resource.

lock over sites_mutex_ required

Definition at line 231 of file ValidatorSite.cpp.

◆ parseJsonResponse()

void ripple::ValidatorSite::parseJsonResponse	(	std::string const &	res,
		std::size_t	siteIdx,
		std::lock_guard< std::mutex > const &	sites_lock
	)

private

Parse json response from validator list site.

lock over sites_mutex_ required

Definition at line 372 of file ValidatorSite.cpp.

◆ processRedirect()

std::shared_ptr< ValidatorSite::Site::Resource > ripple::ValidatorSite::processRedirect	(	detail::response_type &	res,
		std::size_t	siteIdx,
		std::lock_guard< std::mutex > const &	sites_lock
	)

private

Interpret a redirect response.

lock over sites_mutex_ required

Definition at line 494 of file ValidatorSite.cpp.

◆ missingSite()

bool ripple::ValidatorSite::missingSite ( std::lock_guard< std::mutex > const & lock_sites )

private

If no sites are provided, or a site fails to load, get a list of local cache files from the ValidatorList.

Definition at line 120 of file ValidatorSite.cpp.

Friends And Related Function Documentation

◆ Work

friend class Work

friend

Definition at line 71 of file ValidatorSite.h.

Member Data Documentation

◆ app_

Application& ripple::ValidatorSite::app_

private

Definition at line 117 of file ValidatorSite.h.

◆ j_

const beast::Journal ripple::ValidatorSite::j_

private

Definition at line 118 of file ValidatorSite.h.

◆ sites_mutex_

std::mutex ripple::ValidatorSite::sites_mutex_

mutableprivate

Definition at line 122 of file ValidatorSite.h.

◆ state_mutex_

std::mutex ripple::ValidatorSite::state_mutex_

mutableprivate

Definition at line 123 of file ValidatorSite.h.

◆ cv_

std::condition_variable ripple::ValidatorSite::cv_

private

Definition at line 125 of file ValidatorSite.h.

◆ work_

std::weak_ptr<detail::Work> ripple::ValidatorSite::work_

private

Definition at line 126 of file ValidatorSite.h.

◆ timer_

boost::asio::basic_waitable_timer<clock_type> ripple::ValidatorSite::timer_

private

Definition at line 127 of file ValidatorSite.h.

◆ fetching_

std::atomic<bool> ripple::ValidatorSite::fetching_

private

Definition at line 130 of file ValidatorSite.h.

◆ pending_

std::atomic<bool> ripple::ValidatorSite::pending_

private

Definition at line 133 of file ValidatorSite.h.

◆ stopping_

std::atomic<bool> ripple::ValidatorSite::stopping_

private

Definition at line 134 of file ValidatorSite.h.

◆ sites_

std::vector<Site> ripple::ValidatorSite::sites_

private

Definition at line 137 of file ValidatorSite.h.

◆ requestTimeout_

const std::chrono::seconds ripple::ValidatorSite::requestTimeout_

private

Definition at line 140 of file ValidatorSite.h.
