Inheritance diagram for ripple::detail::CachedViewImpl:

[legend]

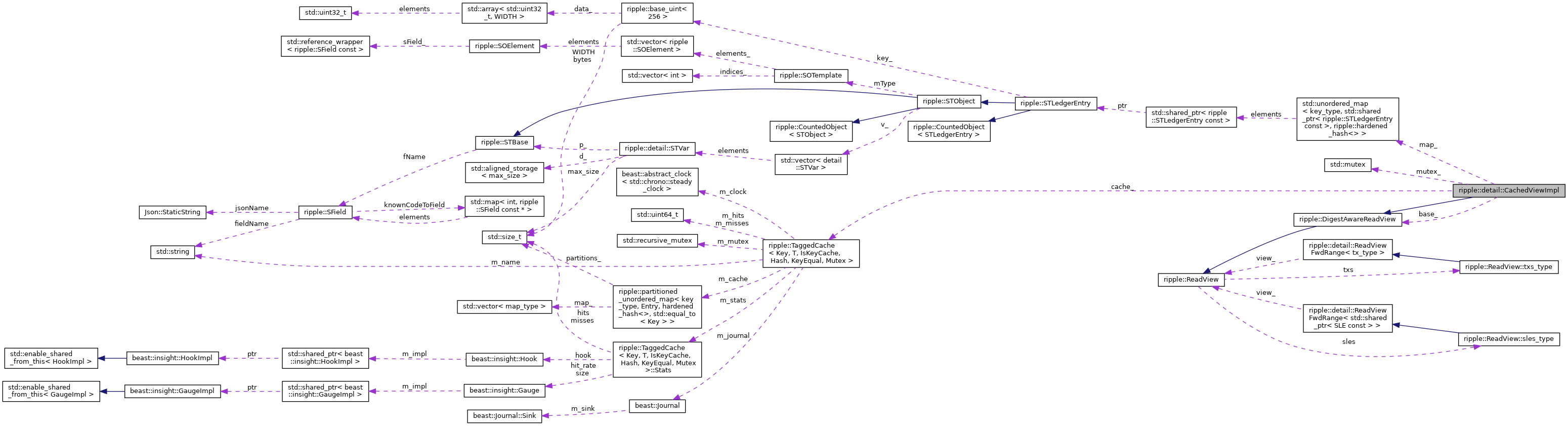

Collaboration diagram for ripple::detail::CachedViewImpl:

[legend]

Public Types
using	digest_type = uint256

using	tx_type = std::pair< std::shared_ptr< STTx const >, std::shared_ptr< STObject const > >

using	key_type = uint256

using	mapped_type = std::shared_ptr< SLE const >

Public Member Functions
	CachedViewImpl ()=delete

	CachedViewImpl (CachedViewImpl const &)=delete

CachedViewImpl &	operator= (CachedViewImpl const &)=delete

	CachedViewImpl (DigestAwareReadView const *base, CachedSLEs &cache)

bool	exists (Keylet const &k) const override
	Determine if a state item exists. More...

std::shared_ptr< SLE const >	read (Keylet const &k) const override
	Return the state item associated with a key. More...

bool	open () const override
	Returns true if this reflects an open ledger. More...

LedgerInfo const &	info () const override
	Returns information about the ledger. More...

Fees const &	fees () const override
	Returns the fees for the base ledger. More...

Rules const &	rules () const override
	Returns the tx processing rules. More...

std::optional< key_type >	succ (key_type const &key, std::optional< key_type > const &last=std::nullopt) const override

std::unique_ptr< sles_type::iter_base >	slesBegin () const override

std::unique_ptr< sles_type::iter_base >	slesEnd () const override

std::unique_ptr< sles_type::iter_base >	slesUpperBound (uint256 const &key) const override

std::unique_ptr< txs_type::iter_base >	txsBegin () const override

std::unique_ptr< txs_type::iter_base >	txsEnd () const override

bool	txExists (key_type const &key) const override

tx_type	txRead (key_type const &key) const override

std::optional< digest_type >	digest (key_type const &key) const override

virtual std::optional< digest_type >	digest (key_type const &key) const =0
	Return the digest associated with the key. More...

NetClock::time_point	parentCloseTime () const
	Returns the close time of the previous ledger. More...

LedgerIndex	seq () const
	Returns the sequence number of the base ledger. More...

virtual std::optional< key_type >	succ (key_type const &key, std::optional< key_type > const &last=std::nullopt) const =0
	Return the key of the next state item. More...

virtual STAmount	balanceHook (AccountID const &account, AccountID const &issuer, STAmount const &amount) const

virtual std::uint32_t	ownerCountHook (AccountID const &account, std::uint32_t count) const

virtual bool	txExists (key_type const &key) const =0
	Returns `true` if a tx exists in the tx map. More...

virtual tx_type	txRead (key_type const &key) const =0
	Read a transaction from the tx map. More...

Public Attributes
sles_type	sles
	Iterable range of ledger state items. More...

txs_type	txs

Private Attributes
DigestAwareReadView const &	base_

CachedSLEs &	cache_

std::mutex	mutex_

std::unordered_map< key_type, std::shared_ptr< SLE const >, hardened_hash<> >	map_

Detailed Description

Definition at line 35 of file CachedView.h.

Member Typedef Documentation

◆ digest_type

using ripple::DigestAwareReadView::digest_type = uint256

inherited

Definition at line 332 of file ReadView.h.

◆ tx_type

using ripple::ReadView::tx_type = std::pair<std::shared_ptr<STTx const>, std::shared_ptr<STObject const> >

inherited

Definition at line 129 of file ReadView.h.

◆ key_type

using ripple::ReadView::key_type = uint256

inherited

Definition at line 131 of file ReadView.h.

◆ mapped_type

using ripple::ReadView::mapped_type = std::shared_ptr<SLE const>

inherited

Definition at line 133 of file ReadView.h.

Constructor & Destructor Documentation

◆ CachedViewImpl() [1/3]

ripple::detail::CachedViewImpl::CachedViewImpl ( )

delete

◆ CachedViewImpl() [2/3]

ripple::detail::CachedViewImpl::CachedViewImpl ( CachedViewImpl const & )

delete

◆ CachedViewImpl() [3/3]

ripple::detail::CachedViewImpl::CachedViewImpl	(	DigestAwareReadView const *	base,
		CachedSLEs &	cache
	)

Definition at line 52 of file CachedView.h.

Member Function Documentation

◆ operator=()

CachedViewImpl& ripple::detail::CachedViewImpl::operator= ( CachedViewImpl const & )

delete

◆ exists()

bool ripple::detail::CachedViewImpl::exists ( Keylet const & k ) const

overridevirtual

Determine if a state item exists.

Note: This can be more efficient than calling read.

Returns: true if a SLE is associated with the specified key.

Implements ripple::ReadView.

Definition at line 28 of file CachedView.cpp.

◆ read()

std::shared_ptr< SLE const > ripple::detail::CachedViewImpl::read ( Keylet const & k ) const

overridevirtual

Return the state item associated with a key.

Effects: If the key exists, gives the caller ownership of the non-modifiable corresponding SLE.

Note: While the returned SLE is const from the perspective of the caller, it can be changed by other callers through raw operations.

Returns: nullptr if the key is not present or if the type does not match.

Implements ripple::ReadView.

Definition at line 34 of file CachedView.cpp.

◆ open()

bool ripple::detail::CachedViewImpl::open ( ) const

overridevirtual

Returns true if this reflects an open ledger.

Implements ripple::ReadView.

Definition at line 68 of file CachedView.h.

◆ info()

LedgerInfo const& ripple::detail::CachedViewImpl::info ( ) const

overridevirtual

Returns information about the ledger.

Implements ripple::ReadView.

Definition at line 74 of file CachedView.h.

◆ fees()

Fees const& ripple::detail::CachedViewImpl::fees ( ) const

overridevirtual

Returns the fees for the base ledger.

Implements ripple::ReadView.

Definition at line 80 of file CachedView.h.

◆ rules()

Rules const& ripple::detail::CachedViewImpl::rules ( ) const

overridevirtual

Returns the tx processing rules.

Implements ripple::ReadView.

Definition at line 86 of file CachedView.h.

◆ succ() [1/2]

std::optional<key_type> ripple::detail::CachedViewImpl::succ	(	key_type const &	key,
		std::optional< key_type > const &	last = `std::nullopt`
	)		const

override

Definition at line 92 of file CachedView.h.

◆ slesBegin()

std::unique_ptr<sles_type::iter_base> ripple::detail::CachedViewImpl::slesBegin ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 100 of file CachedView.h.

◆ slesEnd()

std::unique_ptr<sles_type::iter_base> ripple::detail::CachedViewImpl::slesEnd ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 106 of file CachedView.h.

◆ slesUpperBound()

std::unique_ptr<sles_type::iter_base> ripple::detail::CachedViewImpl::slesUpperBound ( uint256 const & key ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 112 of file CachedView.h.

◆ txsBegin()

std::unique_ptr<txs_type::iter_base> ripple::detail::CachedViewImpl::txsBegin ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 118 of file CachedView.h.

◆ txsEnd()

std::unique_ptr<txs_type::iter_base> ripple::detail::CachedViewImpl::txsEnd ( ) const

overridevirtual

Implements ripple::ReadView.

Definition at line 124 of file CachedView.h.

◆ txExists() [1/2]

bool ripple::detail::CachedViewImpl::txExists ( key_type const & key ) const

override

Definition at line 130 of file CachedView.h.

◆ txRead() [1/2]

tx_type ripple::detail::CachedViewImpl::txRead ( key_type const & key ) const

override

Definition at line 136 of file CachedView.h.

◆ digest() [1/2]

std::optional<digest_type> ripple::detail::CachedViewImpl::digest ( key_type const & key ) const

override

Definition at line 146 of file CachedView.h.

◆ digest() [2/2]

virtual std::optional<digest_type> ripple::DigestAwareReadView::digest ( key_type const & key ) const

pure virtualinherited

Return the digest associated with the key.

Returns: std::nullopt if the item does not exist.

Implemented in ripple::Ledger.

◆ parentCloseTime()

NetClock::time_point ripple::ReadView::parentCloseTime ( ) const

inherited

Returns the close time of the previous ledger.

Definition at line 186 of file ReadView.h.

◆ seq()

LedgerIndex ripple::ReadView::seq ( ) const

inherited

Returns the sequence number of the base ledger.

Definition at line 193 of file ReadView.h.

◆ succ() [2/2]

virtual std::optional<key_type> ripple::ReadView::succ	(	key_type const &	key,
		std::optional< key_type > const &	last = `std::nullopt`
	)		const

pure virtualinherited

Return the key of the next state item.

This returns the key of the first state item whose key is greater than the specified key. If no such key is present, std::nullopt is returned.

If last is engaged, returns std::nullopt when the key returned would be outside the open interval (key, last).

Implemented in ripple::Ledger, ripple::OpenView, and ripple::detail::ApplyViewBase.

◆ balanceHook()

virtual STAmount ripple::ReadView::balanceHook	(	AccountID const &	account,
		AccountID const &	issuer,
		STAmount const &	amount
	)		const

virtualinherited

Reimplemented in ripple::PaymentSandbox.

Definition at line 253 of file ReadView.h.

◆ ownerCountHook()

virtual std::uint32_t ripple::ReadView::ownerCountHook	(	AccountID const &	account,
		std::uint32_t	count
	)		const

virtualinherited

Reimplemented in ripple::PaymentSandbox.

Definition at line 267 of file ReadView.h.

◆ txExists() [2/2]

virtual bool ripple::ReadView::txExists ( key_type const & key ) const

pure virtualinherited

Returns true if a tx exists in the tx map.

A tx exists in the map if it is part of the base ledger, or if it is a newly inserted tx.

Implemented in ripple::Ledger, ripple::OpenView, and ripple::detail::ApplyViewBase.

◆ txRead() [2/2]

virtual tx_type ripple::ReadView::txRead ( key_type const & key ) const

pure virtualinherited

Read a transaction from the tx map.

If the view represents an open ledger, the metadata object will be empty.

Returns: A pair of nullptr if the key is not found in the tx map.

Implemented in ripple::OpenView, ripple::Ledger, and ripple::detail::ApplyViewBase.

Member Data Documentation

◆ base_

DigestAwareReadView const& ripple::detail::CachedViewImpl::base_

private

Definition at line 38 of file CachedView.h.

◆ cache_

CachedSLEs& ripple::detail::CachedViewImpl::cache_

private

Definition at line 39 of file CachedView.h.

◆ mutex_

std::mutex ripple::detail::CachedViewImpl::mutex_

mutableprivate

Definition at line 40 of file CachedView.h.

◆ map_

std::unordered_map< key_type, std::shared_ptr<SLE const>, hardened_hash<> > ripple::detail::CachedViewImpl::map_

mutableprivate

Definition at line 44 of file CachedView.h.

◆ sles

sles_type ripple::ReadView::sles

inherited

Iterable range of ledger state items.

Note: Visiting each state entry in the ledger can become quite expensive as the ledger grows.

Definition at line 320 of file ReadView.h.

◆ txs

txs_type ripple::ReadView::txs

inherited

Definition at line 323 of file ReadView.h.
