Inheritance diagram for ripple::test::reduce_relay_test:

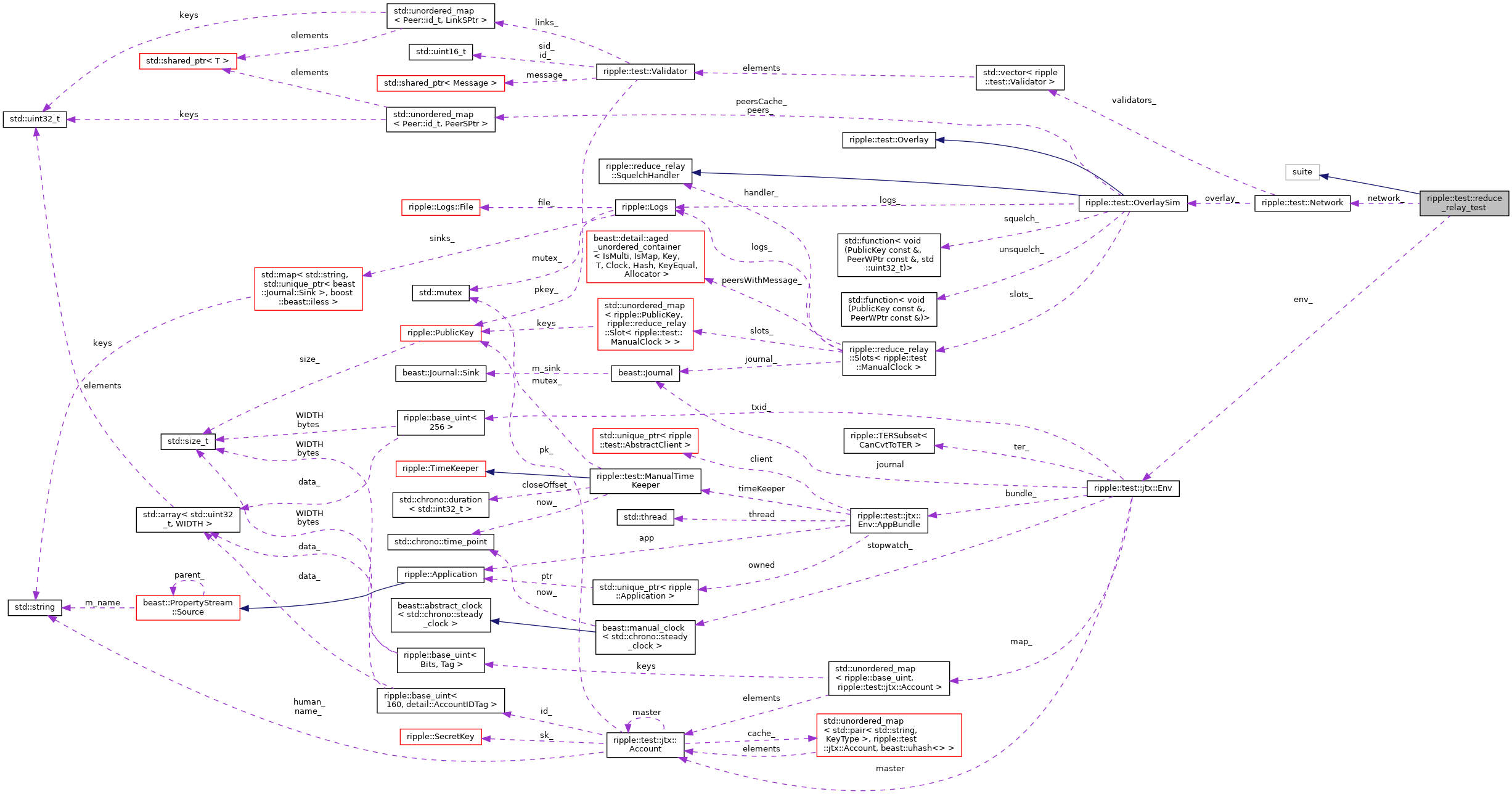

Collaboration diagram for ripple::test::reduce_relay_test:

[legend]

Classes
struct	Event

struct	Handler

Public Member Functions
	reduce_relay_test ()

void	run () override

Protected Types
enum	State { On, Off, WaitReset }

enum	EventType { LinkDown = 0, PeerDisconnected = 1 }

Protected Member Functions
void	printPeers (const std::string &msg, std::uint16_t validator=0)

Peer::id_t	sendSquelch (PublicKey const &validator, PeerWPtr const &peerPtr, std::optional< std::uint32_t > duration)
	Send squelch (if duration is set) or unsquelch (if duration not set) More...

void	random (bool log)
	Randomly brings the link between a validator and a peer down. More...

bool	checkCounting (PublicKey const &validator, bool isCountingState)

void	doTest (const std::string &msg, bool log, std::function< void(bool)> f)

void	testInitialRound (bool log)
	Initial counting round: three peers receive message "faster" then others. More...

void	testPeerUnsquelchedTooSoon (bool log)
	Receiving message from squelched peer too soon should not change the slot's state to Counting. More...

void	testPeerUnsquelched (bool log)
	Receiving message from squelched peer should change the slot's state to Counting. More...

bool	propagateAndSquelch (bool log, bool purge=true, bool resetClock=true)
	Propagate enough messages to generate one squelch event. More...

bool	propagateNoSquelch (bool log, std::uint16_t nMessages, bool countingState, bool purge=true, bool resetClock=true)
	Send fewer message so that squelch event is not generated. More...

void	testNewPeer (bool log)
	Receiving a message from new peer should change the slot's state to Counting. More...

void	testSelectedPeerDisconnects (bool log)
	Selected peer disconnects. More...

void	testSelectedPeerStopsRelaying (bool log)
	Selected peer stops relaying. More...

void	testSquelchedPeerDisconnects (bool log)
	Squelched peer disconnects. More...

void	testConfig (bool log)

void	testInternalHashRouter (bool log)

void	testRandomSquelch (bool l)

void	testHandshake (bool log)

Protected Attributes
jtx::Env	env_

Network	network_

Private Types
using	Slot = reduce_relay::Slot< ManualClock >

using	id_t = Peer::id_t

Detailed Description

Definition at line 877 of file reduce_relay_test.cpp.

Member Typedef Documentation

◆ Slot

using ripple::test::reduce_relay_test::Slot = reduce_relay::Slot<ManualClock>

private

Definition at line 879 of file reduce_relay_test.cpp.

◆ id_t

using ripple::test::reduce_relay_test::id_t = Peer::id_t

private

Definition at line 880 of file reduce_relay_test.cpp.

Member Enumeration Documentation

◆ State

enum ripple::test::reduce_relay_test::State

protected

Enumerator
On
Off
WaitReset

Definition at line 915 of file reduce_relay_test.cpp.

◆ EventType

enum ripple::test::reduce_relay_test::EventType

protected

Enumerator
LinkDown
PeerDisconnected

Definition at line 916 of file reduce_relay_test.cpp.

Constructor & Destructor Documentation

◆ reduce_relay_test()

ripple::test::reduce_relay_test::reduce_relay_test ( )

Definition at line 1557 of file reduce_relay_test.cpp.

Member Function Documentation

◆ printPeers()

void ripple::test::reduce_relay_test::printPeers	(	const std::string &	msg,
		std::uint16_t	validator = `0`
	)

protected

Definition at line 884 of file reduce_relay_test.cpp.

◆ sendSquelch()

Peer::id_t ripple::test::reduce_relay_test::sendSquelch	(	PublicKey const &	validator,
		PeerWPtr const &	peerPtr,
		std::optional< std::uint32_t >	duration
	)

protected

Send squelch (if duration is set) or unsquelch (if duration not set)

Definition at line 898 of file reduce_relay_test.cpp.

◆ random()

void ripple::test::reduce_relay_test::random ( bool log )

protected

Randomly brings the link between a validator and a peer down.

Randomly disconnects a peer. Those events are generated one at a time.

Definition at line 938 of file reduce_relay_test.cpp.

◆ checkCounting()

bool ripple::test::reduce_relay_test::checkCounting	(	PublicKey const &	validator,
		bool	isCountingState
	)

protected

Definition at line 1112 of file reduce_relay_test.cpp.

◆ doTest()

void ripple::test::reduce_relay_test::doTest	(	const std::string &	msg,
		bool	log,
		std::function< void(bool)>	f
	)

protected

Definition at line 1120 of file reduce_relay_test.cpp.

◆ testInitialRound()

void ripple::test::reduce_relay_test::testInitialRound ( bool log )

protected

Initial counting round: three peers receive message "faster" then others.

Once the message count for the three peers reaches threshold the rest of the peers are squelched and the slot for the given validator is in Selected state.

Definition at line 1132 of file reduce_relay_test.cpp.

◆ testPeerUnsquelchedTooSoon()

void ripple::test::reduce_relay_test::testPeerUnsquelchedTooSoon ( bool log )

protected

Receiving message from squelched peer too soon should not change the slot's state to Counting.

Definition at line 1143 of file reduce_relay_test.cpp.

◆ testPeerUnsquelched()

void ripple::test::reduce_relay_test::testPeerUnsquelched ( bool log )

protected

Receiving message from squelched peer should change the slot's state to Counting.

Definition at line 1154 of file reduce_relay_test.cpp.

◆ propagateAndSquelch()

bool ripple::test::reduce_relay_test::propagateAndSquelch	(	bool	log,
		bool	purge = `true`,
		bool	resetClock = `true`
	)

protected

Propagate enough messages to generate one squelch event.

Definition at line 1164 of file reduce_relay_test.cpp.

◆ propagateNoSquelch()

bool ripple::test::reduce_relay_test::propagateNoSquelch	(	bool	log,
		std::uint16_t	nMessages,
		bool	countingState,
		bool	purge = `true`,
		bool	resetClock = `true`
	)

protected

Send fewer message so that squelch event is not generated.

Definition at line 1200 of file reduce_relay_test.cpp.

◆ testNewPeer()

void ripple::test::reduce_relay_test::testNewPeer ( bool log )

protected

Receiving a message from new peer should change the slot's state to Counting.

Definition at line 1231 of file reduce_relay_test.cpp.

◆ testSelectedPeerDisconnects()

void ripple::test::reduce_relay_test::testSelectedPeerDisconnects ( bool log )

protected

Selected peer disconnects.

Should change the state to counting and unsquelch squelched peers.

Definition at line 1243 of file reduce_relay_test.cpp.

◆ testSelectedPeerStopsRelaying()

void ripple::test::reduce_relay_test::testSelectedPeerStopsRelaying ( bool log )

protected

Selected peer stops relaying.

Should change the state to counting and unsquelch squelched peers.

Definition at line 1263 of file reduce_relay_test.cpp.

◆ testSquelchedPeerDisconnects()

void ripple::test::reduce_relay_test::testSquelchedPeerDisconnects ( bool log )

protected

Squelched peer disconnects.

Should not change the state to counting.

Definition at line 1284 of file reduce_relay_test.cpp.

◆ testConfig()

void ripple::test::reduce_relay_test::testConfig ( bool log )

protected

Definition at line 1306 of file reduce_relay_test.cpp.

◆ testInternalHashRouter()

void ripple::test::reduce_relay_test::testInternalHashRouter ( bool log )

protected

Definition at line 1348 of file reduce_relay_test.cpp.

◆ testRandomSquelch()

void ripple::test::reduce_relay_test::testRandomSquelch ( bool l )

protected

Definition at line 1410 of file reduce_relay_test.cpp.

◆ testHandshake()

void ripple::test::reduce_relay_test::testHandshake ( bool log )

protected

Definition at line 1489 of file reduce_relay_test.cpp.

◆ run()

void ripple::test::reduce_relay_test::run ( )

override

Definition at line 1562 of file reduce_relay_test.cpp.

Member Data Documentation

◆ env_

jtx::Env ripple::test::reduce_relay_test::env_

protected

Definition at line 1553 of file reduce_relay_test.cpp.

◆ network_

Network ripple::test::reduce_relay_test::network_

protected

Definition at line 1554 of file reduce_relay_test.cpp.
