rippled: ripple::Peer Class Reference

rippled

Represents a peer connection in the overlay. More...

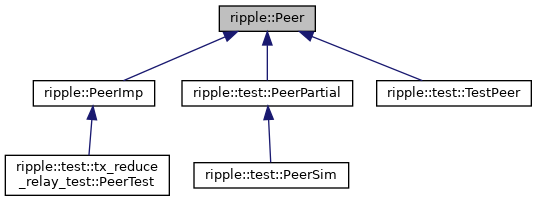

Inheritance diagram for ripple::Peer:

Inheritance graph

[legend]

Public Types
using	ptr = std::shared_ptr< Peer >

using	id_t = std::uint32_t
	Uniquely identifies a peer. More...

Public Member Functions
virtual	~Peer ()=default

virtual void	send (std::shared_ptr< Message > const &m)=0

virtual beast::IP::Endpoint	getRemoteAddress () const =0

virtual void	sendTxQueue ()=0
	Send aggregated transactions' hashes. More...

virtual void	addTxQueue (uint256 const &)=0
	Aggregate transaction's hash. More...

virtual void	removeTxQueue (uint256 const &)=0
	Remove hash from the transactions' hashes queue. More...

virtual void	charge (Resource::Charge const &fee)=0
	Adjust this peer's load balance based on the type of load imposed. More...

virtual id_t	id () const =0

virtual bool	cluster () const =0
	Returns `true` if this connection is a member of the cluster. More...

virtual bool	isHighLatency () const =0

virtual int	getScore (bool) const =0

virtual PublicKey const &	getNodePublic () const =0

virtual Json::Value	json ()=0

virtual bool	supportsFeature (ProtocolFeature f) const =0

virtual std::optional< std::size_t >	publisherListSequence (PublicKey const &) const =0

virtual void	setPublisherListSequence (PublicKey const &, std::size_t const)=0

virtual uint256 const &	getClosedLedgerHash () const =0

virtual bool	hasLedger (uint256 const &hash, std::uint32_t seq) const =0

virtual void	ledgerRange (std::uint32_t &minSeq, std::uint32_t &maxSeq) const =0

virtual bool	hasTxSet (uint256 const &hash) const =0

virtual void	cycleStatus ()=0

virtual bool	hasRange (std::uint32_t uMin, std::uint32_t uMax)=0

virtual bool	compressionEnabled () const =0

virtual bool	txReduceRelayEnabled () const =0

Detailed Description

Represents a peer connection in the overlay.

Definition at line 45 of file ripple/overlay/Peer.h.

Member Typedef Documentation

◆ ptr

using ripple::Peer::ptr = std::shared_ptr<Peer>

Definition at line 48 of file ripple/overlay/Peer.h.

◆ id_t

using ripple::Peer::id_t = std::uint32_t

Uniquely identifies a peer.

This can be stored in tables to find the peer later. Callers can discover if the peer is no longer connected and make adjustments as needed.

Definition at line 55 of file ripple/overlay/Peer.h.

Constructor & Destructor Documentation

◆ ~Peer()

virtual ripple::Peer::~Peer ( )

virtualdefault

Member Function Documentation

◆ send()

virtual void ripple::Peer::send ( std::shared_ptr< Message > const & m )

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, ripple::test::PeerPartial, and ripple::test::tx_reduce_relay_test::PeerTest.

◆ getRemoteAddress()

virtual beast::IP::Endpoint ripple::Peer::getRemoteAddress ( ) const

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ sendTxQueue()

virtual void ripple::Peer::sendTxQueue ( )

pure virtual

Send aggregated transactions' hashes.

Implemented in ripple::test::TestPeer, ripple::PeerImp, and ripple::test::PeerPartial.

◆ addTxQueue()

virtual void ripple::Peer::addTxQueue ( uint256 const & )

pure virtual

Aggregate transaction's hash.

Implemented in ripple::PeerImp, ripple::test::tx_reduce_relay_test::PeerTest, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ removeTxQueue()

virtual void ripple::Peer::removeTxQueue ( uint256 const & )

pure virtual

Remove hash from the transactions' hashes queue.

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ charge()

virtual void ripple::Peer::charge ( Resource::Charge const & fee )

pure virtual

Adjust this peer's load balance based on the type of load imposed.

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ id()

virtual id_t ripple::Peer::id ( ) const

pure virtual

Implemented in ripple::test::PeerSim, ripple::PeerImp, and ripple::test::TestPeer.

◆ cluster()

virtual bool ripple::Peer::cluster ( ) const

pure virtual

Returns true if this connection is a member of the cluster.

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ isHighLatency()

virtual bool ripple::Peer::isHighLatency ( ) const

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ getScore()

virtual int ripple::Peer::getScore ( bool ) const

pure virtual

Implemented in ripple::test::TestPeer, ripple::test::PeerPartial, and ripple::PeerImp.

◆ getNodePublic()

virtual PublicKey const& ripple::Peer::getNodePublic ( ) const

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ json()

virtual Json::Value ripple::Peer::json ( )

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ supportsFeature()

virtual bool ripple::Peer::supportsFeature ( ProtocolFeature f ) const

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ publisherListSequence()

virtual std::optional<std::size_t> ripple::Peer::publisherListSequence ( PublicKey const & ) const

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ setPublisherListSequence()

virtual void ripple::Peer::setPublisherListSequence	(	PublicKey const &	,
		std::size_t const
	)

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ getClosedLedgerHash()

virtual uint256 const& ripple::Peer::getClosedLedgerHash ( ) const

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ hasLedger()

virtual bool ripple::Peer::hasLedger	(	uint256 const &	hash,
		std::uint32_t	seq
	)		const

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ ledgerRange()

virtual void ripple::Peer::ledgerRange	(	std::uint32_t &	minSeq,
		std::uint32_t &	maxSeq
	)		const

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ hasTxSet()

virtual bool ripple::Peer::hasTxSet ( uint256 const & hash ) const

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ cycleStatus()

virtual void ripple::Peer::cycleStatus ( )

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ hasRange()

virtual bool ripple::Peer::hasRange	(	std::uint32_t	uMin,
		std::uint32_t	uMax
	)

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ compressionEnabled()

virtual bool ripple::Peer::compressionEnabled ( ) const

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.

◆ txReduceRelayEnabled()

virtual bool ripple::Peer::txReduceRelayEnabled ( ) const

pure virtual

Implemented in ripple::PeerImp, ripple::test::TestPeer, and ripple::test::PeerPartial.
