This class is used to manage connections to transaction processing processes This class spawns a listener for each etl source, which listens to messages on the ledgers stream (to keep track of which ledgers have been validated by the network, and the range of ledgers each etl source has). More...

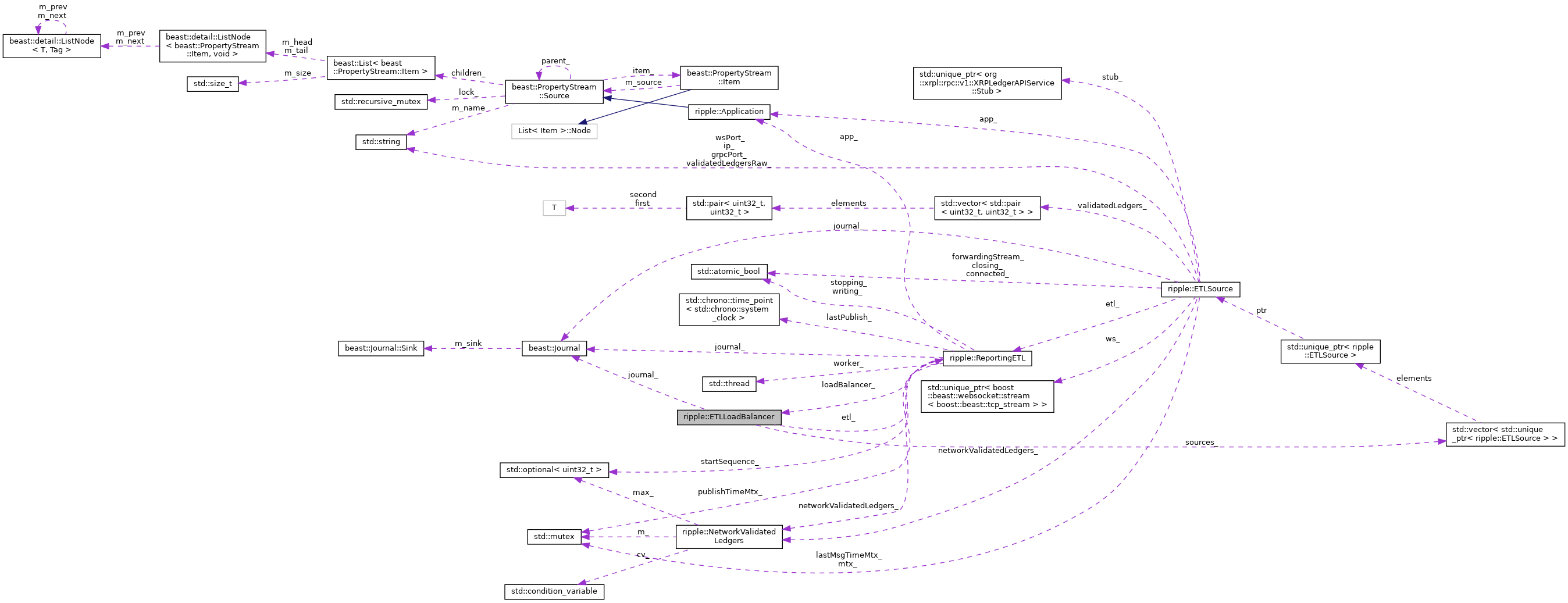

Collaboration diagram for ripple::ETLLoadBalancer:

[legend]

Public Member Functions
	ETLLoadBalancer (ReportingETL &etl)

void	add (std::string &host, std::string &websocketPort, std::string &grpcPort)
	Add an ETL source. More...

void	add (std::string &host, std::string &websocketPort)
	Add an ETL source without gRPC support. More...

void	loadInitialLedger (uint32_t sequence, ThreadSafeQueue< std::shared_ptr< SLE >> &writeQueue)
	Load the initial ledger, writing data to the queue. More...

std::optional< org::xrpl::rpc::v1::GetLedgerResponse >	fetchLedger (uint32_t ledgerSequence, bool getObjects)
	Fetch data for a specific ledger. More...

void	start ()
	Setup all of the ETL sources and subscribe to the necessary streams. More...

void	stop ()

bool	shouldPropagateStream (ETLSource *in) const
	Determine whether messages received on the transactions_proposed stream should be forwarded to subscribing clients. More...

Json::Value	toJson () const

std::unique_ptr< org::xrpl::rpc::v1::XRPLedgerAPIService::Stub >	getP2pForwardingStub () const
	Randomly select a p2p node to forward a gRPC request to. More...

Json::Value	forwardToP2p (RPC::JsonContext &context) const
	Forward a JSON RPC request to a randomly selected p2p node. More...

Private Member Functions
template<class Func >
bool	execute (Func f, uint32_t ledgerSequence)
	f is a function that takes an ETLSource as an argument and returns a bool. More...

Private Attributes
ReportingETL &	etl_

beast::Journal	journal_

std::vector< std::unique_ptr< ETLSource > >	sources_

Detailed Description

This class is used to manage connections to transaction processing processes This class spawns a listener for each etl source, which listens to messages on the ledgers stream (to keep track of which ledgers have been validated by the network, and the range of ledgers each etl source has).

This class also allows requests for ledger data to be load balanced across all possible etl sources.

Definition at line 315 of file ETLSource.h.

Constructor & Destructor Documentation

◆ ETLLoadBalancer()

ripple::ETLLoadBalancer::ETLLoadBalancer ( ReportingETL & etl )

Definition at line 650 of file ETLSource.cpp.

Member Function Documentation

◆ add() [1/2]

void ripple::ETLLoadBalancer::add	(	std::string &	host,
		std::string &	websocketPort,
		std::string &	grpcPort
	)

Add an ETL source.

Parameters

host	host or ip of ETL source
websocketPort	port where ETL source accepts websocket connections
grpcPort	port where ETL source accepts gRPC requests

Definition at line 657 of file ETLSource.cpp.

◆ add() [2/2]

void ripple::ETLLoadBalancer::add	(	std::string &	host,
		std::string &	websocketPort
	)

Add an ETL source without gRPC support.

This source will send messages on the ledgers and transactions_proposed streams, but will not be able to handle the gRPC requests that are used for ETL

Parameters

host	host or ip of ETL source
websocketPort	port where ETL source accepts websocket connections

Definition at line 670 of file ETLSource.cpp.

◆ loadInitialLedger()

void ripple::ETLLoadBalancer::loadInitialLedger	(	uint32_t	sequence,
		ThreadSafeQueue< std::shared_ptr< SLE >> &	writeQueue
	)

Load the initial ledger, writing data to the queue.

Parameters

sequence	sequence of ledger to download
writeQueue	queue to push downloaded data to

Definition at line 680 of file ETLSource.cpp.

◆ fetchLedger()

std::optional< org::xrpl::rpc::v1::GetLedgerResponse > ripple::ETLLoadBalancer::fetchLedger	(	uint32_t	ledgerSequence,
		bool	getObjects
	)

Fetch data for a specific ledger.

This function will continuously try to fetch data for the specified ledger until the fetch succeeds, the ledger is found in the database, or the server is shutting down.

Parameters

ledgerSequence	sequence of ledger to fetch data for
getObjects	if true, fetch diff between specified ledger and previous

Returns: the extracted data, if extraction was successful. If the ledger was found in the database or the server is shutting down, the optional will be empty

Definition at line 699 of file ETLSource.cpp.

◆ start()

void ripple::ETLLoadBalancer::start ( )

Setup all of the ETL sources and subscribe to the necessary streams.

Definition at line 969 of file ETLSource.cpp.

◆ stop()

void ripple::ETLLoadBalancer::stop ( )

Definition at line 976 of file ETLSource.cpp.

◆ shouldPropagateStream()

bool ripple::ETLLoadBalancer::shouldPropagateStream ( ETLSource * in ) const

Determine whether messages received on the transactions_proposed stream should be forwarded to subscribing clients.

The server subscribes to transactions_proposed, validations, and manifests on multiple ETLSources, yet only forwards messages from one source at any given time (to avoid sending duplicate messages to clients).

Parameters

in	ETLSource in question

Returns: true if messages should be forwarded

Definition at line 377 of file ETLSource.h.

◆ toJson()

Json::Value ripple::ETLLoadBalancer::toJson ( ) const

Definition at line 397 of file ETLSource.h.

◆ getP2pForwardingStub()

std::unique_ptr< org::xrpl::rpc::v1::XRPLedgerAPIService::Stub > ripple::ETLLoadBalancer::getP2pForwardingStub ( ) const

Randomly select a p2p node to forward a gRPC request to.

Returns: gRPC stub to forward requests to p2p node

Definition at line 733 of file ETLSource.cpp.

◆ forwardToP2p()

Json::Value ripple::ETLLoadBalancer::forwardToP2p ( RPC::JsonContext & context ) const

Forward a JSON RPC request to a randomly selected p2p node.

Parameters

context context of the request

Returns: response received from p2p node

Definition at line 755 of file ETLSource.cpp.

◆ execute()

template<class Func >

bool ripple::ETLLoadBalancer::execute	(	Func	f,
		uint32_t	ledgerSequence
	)

private

f is a function that takes an ETLSource as an argument and returns a bool.

Attempt to execute f for one randomly chosen ETLSource that has the specified ledger. If f returns false, another randomly chosen ETLSource is used. The process repeats until f returns true.

Parameters

f	function to execute. This function takes the ETL source as an argument, and returns a bool.
ledgerSequence	f is executed for each ETLSource that has this ledger

Returns: true if f was eventually executed successfully. false if the ledger was found in the database or the server is shutting down

Definition at line 898 of file ETLSource.cpp.

Member Data Documentation

◆ etl_

ReportingETL& ripple::ETLLoadBalancer::etl_

private

Definition at line 318 of file ETLSource.h.

◆ journal_

beast::Journal ripple::ETLLoadBalancer::journal_

private

Definition at line 320 of file ETLSource.h.

◆ sources_

std::vector<std::unique_ptr<ETLSource> > ripple::ETLLoadBalancer::sources_

private

Definition at line 322 of file ETLSource.h.
