ripple::NetworkOPsImp::StateAccounting Class Reference

State accounting records two attributes for each possible server state: 1) Amount of time spent in each state (in microseconds). More...

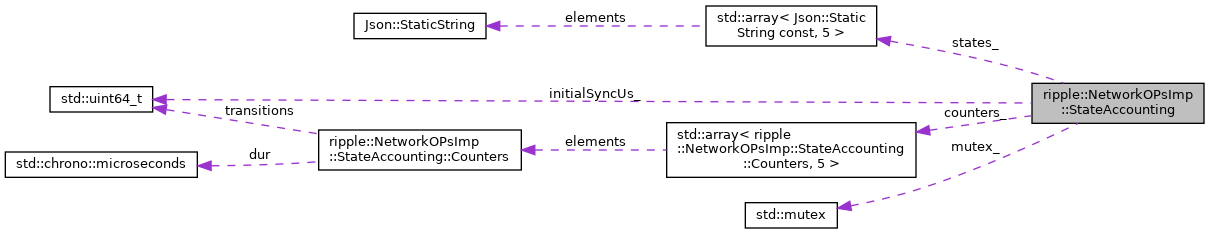

Collaboration diagram for ripple::NetworkOPsImp::StateAccounting:

Classes
struct	CounterData
struct	Counters

Public Member Functions
	StateAccounting ()
void	mode (OperatingMode om)
	Record state transition. More...
void	json (Json::Value &obj) const
	Output state counters in JSON format. More...
CounterData	getCounterData () const

Private Attributes
OperatingMode	mode_ = OperatingMode::DISCONNECTED
std::array< Counters, 5 >	counters_
std::mutex	mutex_
std::chrono::steady_clock::time_point	start_
const std::chrono::steady_clock::time_point	processStart_ = start_
std::uint64_t	initialSyncUs_ {0}

Static Private Attributes
static const std::array< Json::StaticString const, 5 >	states_

Detailed Description

State accounting records two attributes for each possible server state: 1) Amount of time spent in each state (in microseconds).

This value is updated upon each state transition. 2) Number of transitions to each state.

This data can be polled through server_info and represented by monitoring systems similarly to how bandwidth, CPU, and other counter-based metrics are managed.

State accounting is more accurate than periodic sampling of server state. With periodic sampling, it is very likely that state transitions are missed, and accuracy of time spent in each state is very rough.

Definition at line 131 of file NetworkOPs.cpp.

Constructor & Destructor Documentation

StateAccounting()

ripple::NetworkOPsImp::StateAccounting::StateAccounting ( )

explicit

Definition at line 151 of file NetworkOPs.cpp.

Member Function Documentation

mode()

void ripple::NetworkOPsImp::StateAccounting::mode

(

OperatingMode

om

)

Record state transition.

Update duration spent in previous state.

Parameters

om	New state.

Definition at line 4533 of file NetworkOPs.cpp.

json()

void ripple::NetworkOPsImp::StateAccounting::json

(

Json::Value &

obj

)

const

Output state counters in JSON format.

@obj Json object to which to add state accounting data.

Definition at line 4554 of file NetworkOPs.cpp.

getCounterData()

CounterData ripple::NetworkOPsImp::StateAccounting::getCounterData

(

)

const

Definition at line 183 of file NetworkOPs.cpp.

Member Data Documentation

mode_

OperatingMode ripple::NetworkOPsImp::StateAccounting::mode_ = OperatingMode::DISCONNECTED

private

Definition at line 141 of file NetworkOPs.cpp.

counters_

std::array<Counters, 5> ripple::NetworkOPsImp::StateAccounting::counters_

private

Definition at line 142 of file NetworkOPs.cpp.

mutex_

std::mutex ripple::NetworkOPsImp::StateAccounting::mutex_

mutableprivate

Definition at line 143 of file NetworkOPs.cpp.

start_

std::chrono::steady_clock::time_point ripple::NetworkOPsImp::StateAccounting::start_

private

Initial value:

=
            std::chrono::steady_clock::now()

Definition at line 144 of file NetworkOPs.cpp.

processStart_

const std::chrono::steady_clock::time_point ripple::NetworkOPsImp::StateAccounting::processStart_ = start_

private

Definition at line 146 of file NetworkOPs.cpp.

initialSyncUs_

std::uint64_t ripple::NetworkOPsImp::StateAccounting::initialSyncUs_ {0}

private

Definition at line 147 of file NetworkOPs.cpp.

states_

const std::array< Json::StaticString const, 5 > ripple::NetworkOPsImp::StateAccounting::states_

staticprivate

Initial value:

= {
        {Json::StaticString(stateNames[0]),
         Json::StaticString(stateNames[1]),
         Json::StaticString(stateNames[2]),
         Json::StaticString(stateNames[3]),
         Json::StaticString(stateNames[4])}}

Definition at line 148 of file NetworkOPs.cpp.
