Inheritance diagram for ripple::NetworkOPsImp:

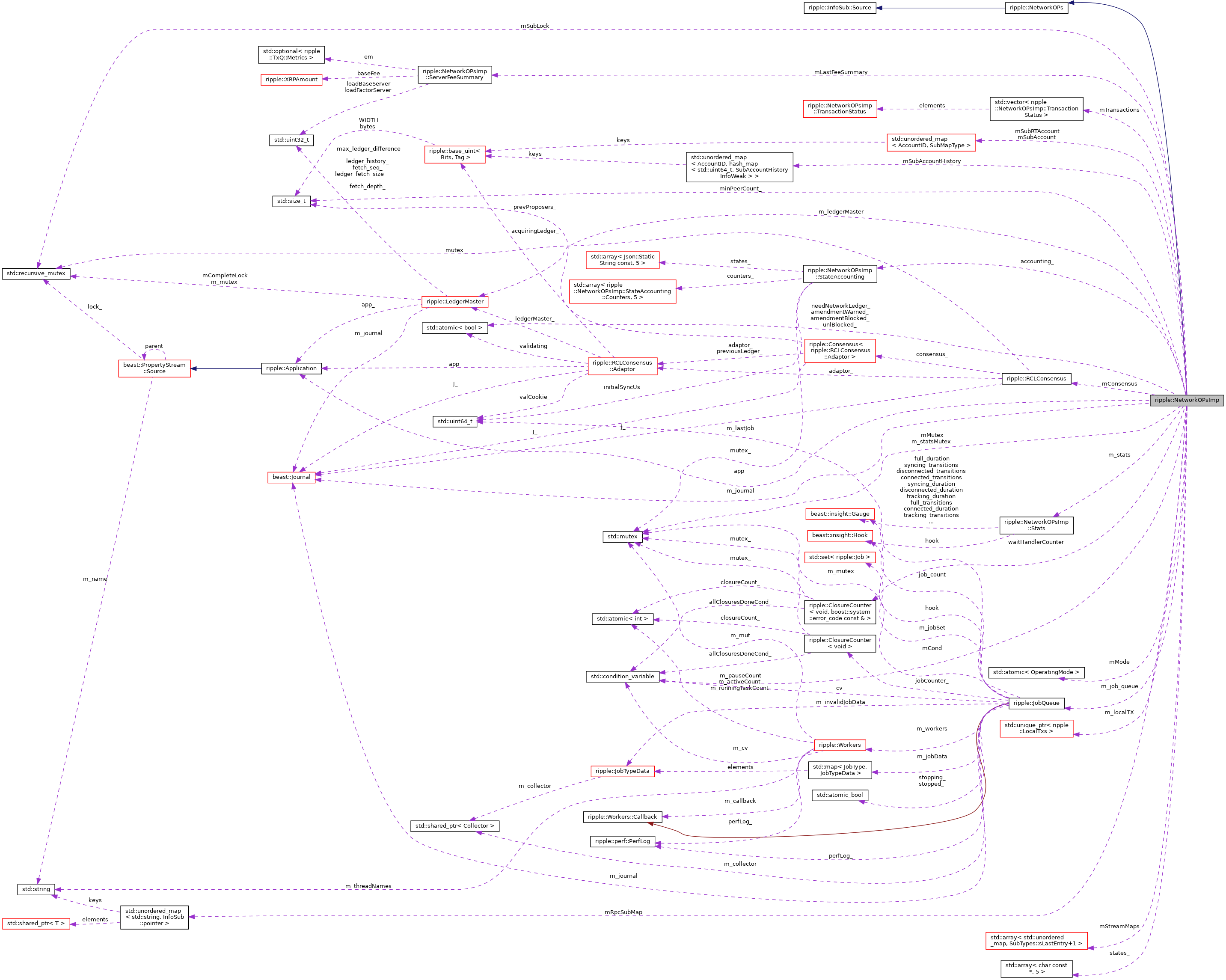

Collaboration diagram for ripple::NetworkOPsImp:

[legend]

Classes
struct	ServerFeeSummary
	Server fees published on `server` subscription. More...

class	StateAccounting
	State accounting records two attributes for each possible server state: 1) Amount of time spent in each state (in microseconds). More...

struct	Stats

struct	SubAccountHistoryIndex

struct	SubAccountHistoryInfo

struct	SubAccountHistoryInfoWeak

class	TransactionStatus
	Transaction with input flags and results to be applied in batches. More...

Public Types
enum	FailHard : unsigned char { FailHard::no, FailHard::yes }

using	clock_type = beast::abstract_clock< std::chrono::steady_clock >

Public Member Functions
	NetworkOPsImp (Application &app, NetworkOPs::clock_type &clock, bool standalone, std::size_t minPeerCount, bool start_valid, JobQueue &job_queue, LedgerMaster &ledgerMaster, ValidatorKeys const &validatorKeys, boost::asio::io_service &io_svc, beast::Journal journal, beast::insight::Collector::ptr const &collector)

	~NetworkOPsImp () override

OperatingMode	getOperatingMode () const override

std::string	strOperatingMode (OperatingMode const mode, bool const admin) const override

std::string	strOperatingMode (bool const admin=false) const override

void	submitTransaction (std::shared_ptr< STTx const > const &) override

void	processTransaction (std::shared_ptr< Transaction > &transaction, bool bUnlimited, bool bLocal, FailHard failType) override
	Process transactions as they arrive from the network or which are submitted by clients. More...

void	doTransactionSync (std::shared_ptr< Transaction > transaction, bool bUnlimited, FailHard failType)
	For transactions submitted directly by a client, apply batch of transactions and wait for this transaction to complete. More...

void	doTransactionAsync (std::shared_ptr< Transaction > transaction, bool bUnlimited, FailHard failtype)
	For transactions not submitted by a locally connected client, fire and forget. More...

void	transactionBatch ()
	Apply transactions in batches. More...

void	apply (std::unique_lock< std::mutex > &batchLock)
	Attempt to apply transactions and post-process based on the results. More...

Json::Value	getOwnerInfo (std::shared_ptr< ReadView const > lpLedger, AccountID const &account) override

void	getBookPage (std::shared_ptr< ReadView const > &lpLedger, Book const &, AccountID const &uTakerID, const bool bProof, unsigned int iLimit, Json::Value const &jvMarker, Json::Value &jvResult) override

bool	processTrustedProposal (RCLCxPeerPos proposal) override

bool	recvValidation (std::shared_ptr< STValidation > const &val, std::string const &source) override

void	mapComplete (std::shared_ptr< SHAMap > const &map, bool fromAcquire) override

bool	beginConsensus (uint256 const &networkClosed) override

void	endConsensus () override

void	setStandAlone () override

void	setStateTimer () override
	Called to initially start our timers. More...

void	setNeedNetworkLedger () override

void	clearNeedNetworkLedger () override

bool	isNeedNetworkLedger () override

bool	isFull () override

void	setMode (OperatingMode om) override

bool	isBlocked () override

bool	isAmendmentBlocked () override

void	setAmendmentBlocked () override

bool	isAmendmentWarned () override

void	setAmendmentWarned () override

void	clearAmendmentWarned () override

bool	isUNLBlocked () override

void	setUNLBlocked () override

void	clearUNLBlocked () override

void	consensusViewChange () override

Json::Value	getConsensusInfo () override

Json::Value	getServerInfo (bool human, bool admin, bool counters) override

void	clearLedgerFetch () override

Json::Value	getLedgerFetchInfo () override

std::uint32_t	acceptLedger (std::optional< std::chrono::milliseconds > consensusDelay) override
	Accepts the current transaction tree, return the new ledger's sequence. More...

void	reportFeeChange () override

void	reportConsensusStateChange (ConsensusPhase phase)

void	updateLocalTx (ReadView const &view) override

std::size_t	getLocalTxCount () override

void	pubLedger (std::shared_ptr< ReadView const > const &lpAccepted) override

void	pubProposedTransaction (std::shared_ptr< ReadView const > const &ledger, std::shared_ptr< STTx const > const &transaction, TER result) override

void	pubValidation (std::shared_ptr< STValidation > const &val) override

void	forwardValidation (Json::Value const &jvObj) override

void	forwardManifest (Json::Value const &jvObj) override

void	forwardProposedTransaction (Json::Value const &jvObj) override

void	forwardProposedAccountTransaction (Json::Value const &jvObj) override

void	subAccount (InfoSub::ref ispListener, hash_set< AccountID > const &vnaAccountIDs, bool rt) override

void	unsubAccount (InfoSub::ref ispListener, hash_set< AccountID > const &vnaAccountIDs, bool rt) override

void	unsubAccountInternal (std::uint64_t seq, hash_set< AccountID > const &vnaAccountIDs, bool rt) override

error_code_i	subAccountHistory (InfoSub::ref ispListener, AccountID const &account) override
	subscribe an account's new transactions and retrieve the account's historical transactions More...

void	unsubAccountHistory (InfoSub::ref ispListener, AccountID const &account, bool historyOnly) override
	unsubscribe an account's transactions More...

void	unsubAccountHistoryInternal (std::uint64_t seq, AccountID const &account, bool historyOnly) override

bool	subLedger (InfoSub::ref ispListener, Json::Value &jvResult) override

bool	unsubLedger (std::uint64_t uListener) override

bool	subBookChanges (InfoSub::ref ispListener) override

bool	unsubBookChanges (std::uint64_t uListener) override

bool	subServer (InfoSub::ref ispListener, Json::Value &jvResult, bool admin) override

bool	unsubServer (std::uint64_t uListener) override

bool	subBook (InfoSub::ref ispListener, Book const &) override

bool	unsubBook (std::uint64_t uListener, Book const &) override

bool	subManifests (InfoSub::ref ispListener) override

bool	unsubManifests (std::uint64_t uListener) override

void	pubManifest (Manifest const &) override

bool	subTransactions (InfoSub::ref ispListener) override

bool	unsubTransactions (std::uint64_t uListener) override

bool	subRTTransactions (InfoSub::ref ispListener) override

bool	unsubRTTransactions (std::uint64_t uListener) override

bool	subValidations (InfoSub::ref ispListener) override

bool	unsubValidations (std::uint64_t uListener) override

bool	subPeerStatus (InfoSub::ref ispListener) override

bool	unsubPeerStatus (std::uint64_t uListener) override

void	pubPeerStatus (std::function< Json::Value(void)> const &) override

bool	subConsensus (InfoSub::ref ispListener) override

bool	unsubConsensus (std::uint64_t uListener) override

InfoSub::pointer	findRpcSub (std::string const &strUrl) override

InfoSub::pointer	addRpcSub (std::string const &strUrl, InfoSub::ref) override

bool	tryRemoveRpcSub (std::string const &strUrl) override

void	stop () override

void	stateAccounting (Json::Value &obj) override

Static Public Member Functions
static FailHard	doFailHard (bool noMeansDont)

Private Types
enum	DispatchState : unsigned char { DispatchState::none, DispatchState::scheduled, DispatchState::running }
	Synchronization states for transaction batches. More...

enum	SubTypes { sLedger, sManifests, sServer, sTransactions, sRTTransactions, sValidations, sPeerStatus, sConsensusPhase, sBookChanges, sLastEntry = sBookChanges }

using	SubMapType = hash_map< std::uint64_t, InfoSub::wptr >

using	SubInfoMapType = hash_map< AccountID, SubMapType >

using	subRpcMapType = hash_map< std::string, InfoSub::pointer >

using	SubAccountHistoryMapType = hash_map< AccountID, hash_map< std::uint64_t, SubAccountHistoryInfoWeak > >

Private Member Functions
void	switchLastClosedLedger (std::shared_ptr< Ledger const > const &newLCL)

bool	checkLastClosedLedger (const Overlay::PeerSequence &, uint256 &networkClosed)

void	setTimer (boost::asio::steady_timer &timer, std::chrono::milliseconds const &expiry_time, std::function< void()> onExpire, std::function< void()> onError)

void	setHeartbeatTimer ()

void	setClusterTimer ()

void	processHeartbeatTimer ()

void	processClusterTimer ()

Json::Value	transJson (const STTx &transaction, TER result, bool validated, std::shared_ptr< ReadView const > const &ledger)

void	pubValidatedTransaction (std::shared_ptr< ReadView const > const &ledger, AcceptedLedgerTx const &transaction)

void	pubAccountTransaction (std::shared_ptr< ReadView const > const &ledger, AcceptedLedgerTx const &transaction)

void	pubProposedAccountTransaction (std::shared_ptr< ReadView const > const &ledger, std::shared_ptr< STTx const > const &transaction, TER result)

void	pubServer ()

void	pubConsensus (ConsensusPhase phase)

std::string	getHostId (bool forAdmin)

void	subAccountHistoryStart (std::shared_ptr< ReadView const > const &ledger, SubAccountHistoryInfoWeak &subInfo)

void	addAccountHistoryJob (SubAccountHistoryInfoWeak subInfo)

void	setAccountHistoryJobTimer (SubAccountHistoryInfoWeak subInfo)

void	collect_metrics ()

Private Attributes
Application &	app_

beast::Journal	m_journal

std::unique_ptr< LocalTxs >	m_localTX

std::recursive_mutex	mSubLock

std::atomic< OperatingMode >	mMode

std::atomic< bool >	needNetworkLedger_ {false}

std::atomic< bool >	amendmentBlocked_ {false}

std::atomic< bool >	amendmentWarned_ {false}

std::atomic< bool >	unlBlocked_ {false}

ClosureCounter< void, boost::system::error_code const & >	waitHandlerCounter_

boost::asio::steady_timer	heartbeatTimer_

boost::asio::steady_timer	clusterTimer_

boost::asio::steady_timer	accountHistoryTxTimer_

RCLConsensus	mConsensus

ConsensusPhase	mLastConsensusPhase

LedgerMaster &	m_ledgerMaster

SubInfoMapType	mSubAccount

SubInfoMapType	mSubRTAccount

subRpcMapType	mRpcSubMap

SubAccountHistoryMapType	mSubAccountHistory

std::array< SubMapType, SubTypes::sLastEntry+1 >	mStreamMaps

ServerFeeSummary	mLastFeeSummary

JobQueue &	m_job_queue

const bool	m_standalone

const std::size_t	minPeerCount_

std::condition_variable	mCond

std::mutex	mMutex

DispatchState	mDispatchState = DispatchState::none

std::vector< TransactionStatus >	mTransactions

StateAccounting	accounting_ {}

std::mutex	m_statsMutex

Stats	m_stats

Static Private Attributes
static const std::array< char const *, 5 >	states_ = stateNames

Detailed Description

Definition at line 79 of file NetworkOPs.cpp.

Member Typedef Documentation

◆ SubMapType

using ripple::NetworkOPsImp::SubMapType = hash_map<std::uint64_t, InfoSub::wptr>

private

Definition at line 650 of file NetworkOPs.cpp.

◆ SubInfoMapType

using ripple::NetworkOPsImp::SubInfoMapType = hash_map<AccountID, SubMapType>

private

Definition at line 651 of file NetworkOPs.cpp.

◆ subRpcMapType

using ripple::NetworkOPsImp::subRpcMapType = hash_map<std::string, InfoSub::pointer>

private

Definition at line 652 of file NetworkOPs.cpp.

◆ SubAccountHistoryMapType

using ripple::NetworkOPsImp::SubAccountHistoryMapType = hash_map<AccountID, hash_map<std::uint64_t, SubAccountHistoryInfoWeak> >

private

Definition at line 697 of file NetworkOPs.cpp.

◆ clock_type

using ripple::NetworkOPs::clock_type = beast::abstract_clock<std::chrono::steady_clock>

inherited

Definition at line 89 of file NetworkOPs.h.

Member Enumeration Documentation

◆ DispatchState

enum ripple::NetworkOPsImp::DispatchState : unsigned char

strongprivate

Synchronization states for transaction batches.

Enumerator
none
scheduled
running

Definition at line 109 of file NetworkOPs.cpp.

◆ SubTypes

enum ripple::NetworkOPsImp::SubTypes

private

Enumerator
sLedger
sManifests
sServer
sTransactions
sRTTransactions
sValidations
sPeerStatus
sConsensusPhase
sBookChanges
sLastEntry

Definition at line 743 of file NetworkOPs.cpp.

◆ FailHard

enum ripple::NetworkOPs::FailHard : unsigned char

stronginherited

Enumerator
no
yes

Definition at line 91 of file NetworkOPs.h.

Constructor & Destructor Documentation

◆ NetworkOPsImp()

ripple::NetworkOPsImp::NetworkOPsImp	(	Application &	app,
		NetworkOPs::clock_type &	clock,
		bool	standalone,
		std::size_t	minPeerCount,
		bool	start_valid,
		JobQueue &	job_queue,
		LedgerMaster &	ledgerMaster,
		ValidatorKeys const &	validatorKeys,
		boost::asio::io_service &	io_svc,
		beast::Journal	journal,
		beast::insight::Collector::ptr const &	collector
	)

Definition at line 215 of file NetworkOPs.cpp.

◆ ~NetworkOPsImp()

ripple::NetworkOPsImp::~NetworkOPsImp ( )

override

Definition at line 253 of file NetworkOPs.cpp.

Member Function Documentation

◆ getOperatingMode()

OperatingMode ripple::NetworkOPsImp::getOperatingMode ( ) const

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 858 of file NetworkOPs.cpp.

◆ strOperatingMode() [1/2]

std::string ripple::NetworkOPsImp::strOperatingMode	(	OperatingMode const	mode,
		bool const	admin
	)		const

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1110 of file NetworkOPs.cpp.

◆ strOperatingMode() [2/2]

std::string ripple::NetworkOPsImp::strOperatingMode ( bool const admin = false ) const

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 864 of file NetworkOPs.cpp.

◆ submitTransaction()

void ripple::NetworkOPsImp::submitTransaction ( std::shared_ptr< STTx const > const & iTrans )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1130 of file NetworkOPs.cpp.

◆ processTransaction()

void ripple::NetworkOPsImp::processTransaction	(	std::shared_ptr< Transaction > &	transaction,
		bool	bUnlimited,
		bool	bLocal,
		FailHard	failType
	)

overridevirtual

Process transactions as they arrive from the network or which are submitted by clients.

Process local transactions synchronously

Parameters

transaction	Transaction object
bUnlimited	Whether a privileged client connection submitted it.
bLocal	Client submission.
failType	fail_hard setting from transaction submission.

Implements ripple::NetworkOPs.

Definition at line 1184 of file NetworkOPs.cpp.

◆ doTransactionSync()

void ripple::NetworkOPsImp::doTransactionSync	(	std::shared_ptr< Transaction >	transaction,
		bool	bUnlimited,
		FailHard	failType
	)

For transactions submitted directly by a client, apply batch of transactions and wait for this transaction to complete.

Parameters

transaction	Transaction object.
bUnliimited	Whether a privileged client connection submitted it.
failType	fail_hard setting from transaction submission.

Definition at line 1258 of file NetworkOPs.cpp.

◆ doTransactionAsync()

void ripple::NetworkOPsImp::doTransactionAsync	(	std::shared_ptr< Transaction >	transaction,
		bool	bUnlimited,
		FailHard	failtype
	)

For transactions not submitted by a locally connected client, fire and forget.

Add to batch and trigger it to be processed if there's no batch currently being applied.

Parameters

transaction	Transaction object
bUnlimited	Whether a privileged client connection submitted it.
failType	fail_hard setting from transaction submission.

Definition at line 1233 of file NetworkOPs.cpp.

◆ transactionBatch()

void ripple::NetworkOPsImp::transactionBatch ( )

Apply transactions in batches.

Continue until none are queued.

Definition at line 1298 of file NetworkOPs.cpp.

◆ apply()

void ripple::NetworkOPsImp::apply ( std::unique_lock< std::mutex > & batchLock )

Attempt to apply transactions and post-process based on the results.

Parameters

Lock	that protects the transaction batching

Definition at line 1312 of file NetworkOPs.cpp.

◆ getOwnerInfo()

Json::Value ripple::NetworkOPsImp::getOwnerInfo	(	std::shared_ptr< ReadView const >	lpLedger,
		AccountID const &	account
	)

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1519 of file NetworkOPs.cpp.

◆ getBookPage()

void ripple::NetworkOPsImp::getBookPage	(	std::shared_ptr< ReadView const > &	lpLedger,
		Book const &	book,
		AccountID const &	uTakerID,
		const bool	bProof,
		unsigned int	iLimit,
		Json::Value const &	jvMarker,
		Json::Value &	jvResult
	)

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 4155 of file NetworkOPs.cpp.

◆ processTrustedProposal()

bool ripple::NetworkOPsImp::processTrustedProposal ( RCLCxPeerPos proposal )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1859 of file NetworkOPs.cpp.

◆ recvValidation()

bool ripple::NetworkOPsImp::recvValidation	(	std::shared_ptr< STValidation > const &	val,
		std::string const &	source
	)

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2273 of file NetworkOPs.cpp.

◆ mapComplete()

void ripple::NetworkOPsImp::mapComplete	(	std::shared_ptr< SHAMap > const &	map,
		bool	fromAcquire
	)

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1865 of file NetworkOPs.cpp.

◆ switchLastClosedLedger()

void ripple::NetworkOPsImp::switchLastClosedLedger ( std::shared_ptr< Ledger const > const & newLCL )

private

Definition at line 1746 of file NetworkOPs.cpp.

◆ checkLastClosedLedger()

bool ripple::NetworkOPsImp::checkLastClosedLedger	(	const Overlay::PeerSequence &	peerList,
		uint256 &	networkClosed
	)

private

Definition at line 1641 of file NetworkOPs.cpp.

◆ beginConsensus()

bool ripple::NetworkOPsImp::beginConsensus ( uint256 const & networkClosed )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1800 of file NetworkOPs.cpp.

◆ endConsensus()

void ripple::NetworkOPsImp::endConsensus ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1884 of file NetworkOPs.cpp.

◆ setStandAlone()

void ripple::NetworkOPsImp::setStandAlone ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 870 of file NetworkOPs.cpp.

◆ setStateTimer()

void ripple::NetworkOPsImp::setStateTimer ( )

overridevirtual

Called to initially start our timers.

Not called for stand-alone mode.

Implements ripple::NetworkOPs.

Definition at line 919 of file NetworkOPs.cpp.

◆ setNeedNetworkLedger()

void ripple::NetworkOPsImp::setNeedNetworkLedger ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 876 of file NetworkOPs.cpp.

◆ clearNeedNetworkLedger()

void ripple::NetworkOPsImp::clearNeedNetworkLedger ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 882 of file NetworkOPs.cpp.

◆ isNeedNetworkLedger()

bool ripple::NetworkOPsImp::isNeedNetworkLedger ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 888 of file NetworkOPs.cpp.

◆ isFull()

bool ripple::NetworkOPsImp::isFull ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 894 of file NetworkOPs.cpp.

◆ setMode()

void ripple::NetworkOPsImp::setMode ( OperatingMode om )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2244 of file NetworkOPs.cpp.

◆ isBlocked()

bool ripple::NetworkOPsImp::isBlocked ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1585 of file NetworkOPs.cpp.

◆ isAmendmentBlocked()

bool ripple::NetworkOPsImp::isAmendmentBlocked ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1591 of file NetworkOPs.cpp.

◆ setAmendmentBlocked()

void ripple::NetworkOPsImp::setAmendmentBlocked ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1597 of file NetworkOPs.cpp.

◆ isAmendmentWarned()

bool ripple::NetworkOPsImp::isAmendmentWarned ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1604 of file NetworkOPs.cpp.

◆ setAmendmentWarned()

void ripple::NetworkOPsImp::setAmendmentWarned ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1610 of file NetworkOPs.cpp.

◆ clearAmendmentWarned()

void ripple::NetworkOPsImp::clearAmendmentWarned ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1616 of file NetworkOPs.cpp.

◆ isUNLBlocked()

bool ripple::NetworkOPsImp::isUNLBlocked ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1622 of file NetworkOPs.cpp.

◆ setUNLBlocked()

void ripple::NetworkOPsImp::setUNLBlocked ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1628 of file NetworkOPs.cpp.

◆ clearUNLBlocked()

void ripple::NetworkOPsImp::clearUNLBlocked ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1635 of file NetworkOPs.cpp.

◆ consensusViewChange()

void ripple::NetworkOPsImp::consensusViewChange ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 1940 of file NetworkOPs.cpp.

◆ getConsensusInfo()

Json::Value ripple::NetworkOPsImp::getConsensusInfo ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2290 of file NetworkOPs.cpp.

◆ getServerInfo()

Json::Value ripple::NetworkOPsImp::getServerInfo	(	bool	human,
		bool	admin,
		bool	counters
	)

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2296 of file NetworkOPs.cpp.

◆ clearLedgerFetch()

void ripple::NetworkOPsImp::clearLedgerFetch ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2668 of file NetworkOPs.cpp.

◆ getLedgerFetchInfo()

Json::Value ripple::NetworkOPsImp::getLedgerFetchInfo ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2674 of file NetworkOPs.cpp.

◆ acceptLedger()

std::uint32_t ripple::NetworkOPsImp::acceptLedger ( std::optional< std::chrono::milliseconds > consensusDelay )

overridevirtual

Accepts the current transaction tree, return the new ledger's sequence.

This API is only used via RPC with the server in STANDALONE mode and performs a virtual consensus round, with all the transactions we are proposing being accepted.

Implements ripple::NetworkOPs.

Definition at line 3880 of file NetworkOPs.cpp.

◆ reportFeeChange()

void ripple::NetworkOPsImp::reportFeeChange ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2980 of file NetworkOPs.cpp.

◆ reportConsensusStateChange()

void ripple::NetworkOPsImp::reportConsensusStateChange ( ConsensusPhase phase )

Definition at line 3000 of file NetworkOPs.cpp.

◆ updateLocalTx()

void ripple::NetworkOPsImp::updateLocalTx ( ReadView const & view )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 3009 of file NetworkOPs.cpp.

◆ getLocalTxCount()

std::size_t ripple::NetworkOPsImp::getLocalTxCount ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 3014 of file NetworkOPs.cpp.

◆ pubLedger()

void ripple::NetworkOPsImp::pubLedger ( std::shared_ptr< ReadView const > const & lpAccepted )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2868 of file NetworkOPs.cpp.

◆ pubProposedTransaction()

void ripple::NetworkOPsImp::pubProposedTransaction	(	std::shared_ptr< ReadView const > const &	ledger,
		std::shared_ptr< STTx const > const &	transaction,
		TER	result
	)

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2680 of file NetworkOPs.cpp.

◆ pubValidation()

void ripple::NetworkOPsImp::pubValidation ( std::shared_ptr< STValidation > const & val )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2123 of file NetworkOPs.cpp.

◆ forwardValidation()

void ripple::NetworkOPsImp::forwardValidation ( Json::Value const & jvObj )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2742 of file NetworkOPs.cpp.

◆ forwardManifest()

void ripple::NetworkOPsImp::forwardManifest ( Json::Value const & jvObj )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2762 of file NetworkOPs.cpp.

◆ forwardProposedTransaction()

void ripple::NetworkOPsImp::forwardProposedTransaction ( Json::Value const & jvObj )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2711 of file NetworkOPs.cpp.

◆ forwardProposedAccountTransaction()

void ripple::NetworkOPsImp::forwardProposedAccountTransaction ( Json::Value const & jvObj )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 2800 of file NetworkOPs.cpp.

◆ subAccount()

void ripple::NetworkOPsImp::subAccount	(	InfoSub::ref	ispListener,
		hash_set< AccountID > const &	vnaAccountIDs,
		bool	rt
	)

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3328 of file NetworkOPs.cpp.

◆ unsubAccount()

void ripple::NetworkOPsImp::unsubAccount	(	InfoSub::ref	ispListener,
		hash_set< AccountID > const &	vnaAccountIDs,
		bool	rt
	)

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3365 of file NetworkOPs.cpp.

◆ unsubAccountInternal()

void ripple::NetworkOPsImp::unsubAccountInternal	(	std::uint64_t	seq,
		hash_set< AccountID > const &	vnaAccountIDs,
		bool	rt
	)

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3381 of file NetworkOPs.cpp.

◆ subAccountHistory()

error_code_i ripple::NetworkOPsImp::subAccountHistory	(	InfoSub::ref	ispListener,
		AccountID const &	account
	)

overridevirtual

subscribe an account's new transactions and retrieve the account's historical transactions

Returns: rpcSUCCESS if successful, otherwise an error code

Implements ripple::InfoSub::Source.

Definition at line 3773 of file NetworkOPs.cpp.

◆ unsubAccountHistory()

void ripple::NetworkOPsImp::unsubAccountHistory	(	InfoSub::ref	ispListener,
		AccountID const &	account,
		bool	historyOnly
	)

overridevirtual

unsubscribe an account's transactions

Parameters

historyOnly if true, only stop historical transactions

Note: once a client receives enough historical transactions, it should unsubscribe with historyOnly == true to stop receiving more historical transactions. It will continue to receive new transactions.

Implements ripple::InfoSub::Source.

Definition at line 3819 of file NetworkOPs.cpp.

◆ unsubAccountHistoryInternal()

void ripple::NetworkOPsImp::unsubAccountHistoryInternal	(	std::uint64_t	seq,
		AccountID const &	account,
		bool	historyOnly
	)

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3830 of file NetworkOPs.cpp.

◆ subLedger()

bool ripple::NetworkOPsImp::subLedger	(	InfoSub::ref	ispListener,
		Json::Value &	jvResult
	)

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3900 of file NetworkOPs.cpp.

◆ unsubLedger()

bool ripple::NetworkOPsImp::unsubLedger ( std::uint64_t uListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3940 of file NetworkOPs.cpp.

◆ subBookChanges()

bool ripple::NetworkOPsImp::subBookChanges ( InfoSub::ref ispListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3930 of file NetworkOPs.cpp.

◆ unsubBookChanges()

bool ripple::NetworkOPsImp::unsubBookChanges ( std::uint64_t uListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3948 of file NetworkOPs.cpp.

◆ subServer()

bool ripple::NetworkOPsImp::subServer	(	InfoSub::ref	ispListener,
		Json::Value &	jvResult,
		bool	admin
	)

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3974 of file NetworkOPs.cpp.

◆ unsubServer()

bool ripple::NetworkOPsImp::unsubServer ( std::uint64_t uListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4004 of file NetworkOPs.cpp.

◆ subBook()

bool ripple::NetworkOPsImp::subBook	(	InfoSub::ref	ispListener,
		Book const &	book
	)

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3861 of file NetworkOPs.cpp.

◆ unsubBook()

bool ripple::NetworkOPsImp::unsubBook	(	std::uint64_t	uListener,
		Book const &	book
	)

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3871 of file NetworkOPs.cpp.

◆ subManifests()

bool ripple::NetworkOPsImp::subManifests ( InfoSub::ref ispListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3956 of file NetworkOPs.cpp.

◆ unsubManifests()

bool ripple::NetworkOPsImp::unsubManifests ( std::uint64_t uListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 3966 of file NetworkOPs.cpp.

◆ pubManifest()

void ripple::NetworkOPsImp::pubManifest ( Manifest const & mo )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 1949 of file NetworkOPs.cpp.

◆ subTransactions()

bool ripple::NetworkOPsImp::subTransactions ( InfoSub::ref ispListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4012 of file NetworkOPs.cpp.

◆ unsubTransactions()

bool ripple::NetworkOPsImp::unsubTransactions ( std::uint64_t uListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4022 of file NetworkOPs.cpp.

◆ subRTTransactions()

bool ripple::NetworkOPsImp::subRTTransactions ( InfoSub::ref ispListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4030 of file NetworkOPs.cpp.

◆ unsubRTTransactions()

bool ripple::NetworkOPsImp::unsubRTTransactions ( std::uint64_t uListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4040 of file NetworkOPs.cpp.

◆ subValidations()

bool ripple::NetworkOPsImp::subValidations ( InfoSub::ref ispListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4048 of file NetworkOPs.cpp.

◆ unsubValidations()

bool ripple::NetworkOPsImp::unsubValidations ( std::uint64_t uListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4064 of file NetworkOPs.cpp.

◆ subPeerStatus()

bool ripple::NetworkOPsImp::subPeerStatus ( InfoSub::ref ispListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4072 of file NetworkOPs.cpp.

◆ unsubPeerStatus()

bool ripple::NetworkOPsImp::unsubPeerStatus ( std::uint64_t uListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4082 of file NetworkOPs.cpp.

◆ pubPeerStatus()

void ripple::NetworkOPsImp::pubPeerStatus ( std::function< Json::Value(void)> const & func )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 2215 of file NetworkOPs.cpp.

◆ subConsensus()

bool ripple::NetworkOPsImp::subConsensus ( InfoSub::ref ispListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4090 of file NetworkOPs.cpp.

◆ unsubConsensus()

bool ripple::NetworkOPsImp::unsubConsensus ( std::uint64_t uListener )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4100 of file NetworkOPs.cpp.

◆ findRpcSub()

InfoSub::pointer ripple::NetworkOPsImp::findRpcSub ( std::string const & strUrl )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4107 of file NetworkOPs.cpp.

◆ addRpcSub()

InfoSub::pointer ripple::NetworkOPsImp::addRpcSub	(	std::string const &	strUrl,
		InfoSub::ref	rspEntry
	)

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4120 of file NetworkOPs.cpp.

◆ tryRemoveRpcSub()

bool ripple::NetworkOPsImp::tryRemoveRpcSub ( std::string const & strUrl )

overridevirtual

Implements ripple::InfoSub::Source.

Definition at line 4130 of file NetworkOPs.cpp.

◆ stop()

void ripple::NetworkOPsImp::stop ( )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 564 of file NetworkOPs.cpp.

◆ stateAccounting()

void ripple::NetworkOPsImp::stateAccounting ( Json::Value & obj )

overridevirtual

Implements ripple::NetworkOPs.

Definition at line 4057 of file NetworkOPs.cpp.

◆ setTimer()

void ripple::NetworkOPsImp::setTimer	(	boost::asio::steady_timer &	timer,
		std::chrono::milliseconds const &	expiry_time,
		std::function< void()>	onExpire,
		std::function< void()>	onError
	)

private

Definition at line 929 of file NetworkOPs.cpp.

◆ setHeartbeatTimer()

void ripple::NetworkOPsImp::setHeartbeatTimer ( )

private

Definition at line 961 of file NetworkOPs.cpp.

◆ setClusterTimer()

void ripple::NetworkOPsImp::setClusterTimer ( )

private

Definition at line 975 of file NetworkOPs.cpp.

◆ processHeartbeatTimer()

void ripple::NetworkOPsImp::processHeartbeatTimer ( )

private

Definition at line 1004 of file NetworkOPs.cpp.

◆ processClusterTimer()

void ripple::NetworkOPsImp::processClusterTimer ( )

private

Definition at line 1062 of file NetworkOPs.cpp.

◆ transJson()

Json::Value ripple::NetworkOPsImp::transJson	(	const STTx &	transaction,
		TER	result,
		bool	validated,
		std::shared_ptr< ReadView const > const &	ledger
	)

private

Definition at line 3022 of file NetworkOPs.cpp.

◆ pubValidatedTransaction()

void ripple::NetworkOPsImp::pubValidatedTransaction	(	std::shared_ptr< ReadView const > const &	ledger,
		AcceptedLedgerTx const &	transaction
	)

private

Definition at line 3080 of file NetworkOPs.cpp.

◆ pubAccountTransaction()

void ripple::NetworkOPsImp::pubAccountTransaction	(	std::shared_ptr< ReadView const > const &	ledger,
		AcceptedLedgerTx const &	transaction
	)

private

Definition at line 3135 of file NetworkOPs.cpp.

◆ pubProposedAccountTransaction()

void ripple::NetworkOPsImp::pubProposedAccountTransaction	(	std::shared_ptr< ReadView const > const &	ledger,
		std::shared_ptr< STTx const > const &	transaction,
		TER	result
	)

private

Definition at line 3258 of file NetworkOPs.cpp.

◆ pubServer()

void ripple::NetworkOPsImp::pubServer ( )

private

Definition at line 2028 of file NetworkOPs.cpp.

◆ pubConsensus()

void ripple::NetworkOPsImp::pubConsensus ( ConsensusPhase phase )

private

Definition at line 2096 of file NetworkOPs.cpp.

◆ getHostId()

std::string ripple::NetworkOPsImp::getHostId ( bool forAdmin )

private

Definition at line 900 of file NetworkOPs.cpp.

◆ subAccountHistoryStart()

void ripple::NetworkOPsImp::subAccountHistoryStart	(	std::shared_ptr< ReadView const > const &	ledger,
		SubAccountHistoryInfoWeak &	subInfo
	)

private

Note: called while holding mSubLock

Definition at line 3729 of file NetworkOPs.cpp.

◆ addAccountHistoryJob()

void ripple::NetworkOPsImp::addAccountHistoryJob ( SubAccountHistoryInfoWeak subInfo )

private

Definition at line 3409 of file NetworkOPs.cpp.

◆ setAccountHistoryJobTimer()

void ripple::NetworkOPsImp::setAccountHistoryJobTimer ( SubAccountHistoryInfoWeak subInfo )

private

Definition at line 991 of file NetworkOPs.cpp.

◆ collect_metrics()

void ripple::NetworkOPsImp::collect_metrics ( )

private

Definition at line 4495 of file NetworkOPs.cpp.

◆ doFailHard()

static FailHard ripple::NetworkOPs::doFailHard ( bool noMeansDont )

staticinherited

Definition at line 93 of file NetworkOPs.h.

Member Data Documentation

◆ states_

const std::array< char const *, 5 > ripple::NetworkOPsImp::states_ = stateNames

staticprivate

Definition at line 115 of file NetworkOPs.cpp.

◆ app_

Application& ripple::NetworkOPsImp::app_

private

Definition at line 711 of file NetworkOPs.cpp.

◆ m_journal

beast::Journal ripple::NetworkOPsImp::m_journal

private

Definition at line 712 of file NetworkOPs.cpp.

◆ m_localTX

std::unique_ptr<LocalTxs> ripple::NetworkOPsImp::m_localTX

private

Definition at line 714 of file NetworkOPs.cpp.

◆ mSubLock

std::recursive_mutex ripple::NetworkOPsImp::mSubLock

private

Definition at line 716 of file NetworkOPs.cpp.

◆ mMode

std::atomic<OperatingMode> ripple::NetworkOPsImp::mMode

private

Definition at line 718 of file NetworkOPs.cpp.

◆ needNetworkLedger_

std::atomic<bool> ripple::NetworkOPsImp::needNetworkLedger_ {false}

private

Definition at line 720 of file NetworkOPs.cpp.

◆ amendmentBlocked_

std::atomic<bool> ripple::NetworkOPsImp::amendmentBlocked_ {false}

private

Definition at line 721 of file NetworkOPs.cpp.

◆ amendmentWarned_

std::atomic<bool> ripple::NetworkOPsImp::amendmentWarned_ {false}

private

Definition at line 722 of file NetworkOPs.cpp.

◆ unlBlocked_

std::atomic<bool> ripple::NetworkOPsImp::unlBlocked_ {false}

private

Definition at line 723 of file NetworkOPs.cpp.

◆ waitHandlerCounter_

ClosureCounter<void, boost::system::error_code const&> ripple::NetworkOPsImp::waitHandlerCounter_

private

Definition at line 725 of file NetworkOPs.cpp.

◆ heartbeatTimer_

boost::asio::steady_timer ripple::NetworkOPsImp::heartbeatTimer_

private

Definition at line 726 of file NetworkOPs.cpp.

◆ clusterTimer_

boost::asio::steady_timer ripple::NetworkOPsImp::clusterTimer_

private

Definition at line 727 of file NetworkOPs.cpp.

◆ accountHistoryTxTimer_

boost::asio::steady_timer ripple::NetworkOPsImp::accountHistoryTxTimer_

private

Definition at line 728 of file NetworkOPs.cpp.

◆ mConsensus

RCLConsensus ripple::NetworkOPsImp::mConsensus

private

Definition at line 730 of file NetworkOPs.cpp.

◆ mLastConsensusPhase

ConsensusPhase ripple::NetworkOPsImp::mLastConsensusPhase

private

Definition at line 732 of file NetworkOPs.cpp.

◆ m_ledgerMaster

LedgerMaster& ripple::NetworkOPsImp::m_ledgerMaster

private

Definition at line 734 of file NetworkOPs.cpp.

◆ mSubAccount

SubInfoMapType ripple::NetworkOPsImp::mSubAccount

private

Definition at line 736 of file NetworkOPs.cpp.

◆ mSubRTAccount

SubInfoMapType ripple::NetworkOPsImp::mSubRTAccount

private

Definition at line 737 of file NetworkOPs.cpp.

◆ mRpcSubMap

subRpcMapType ripple::NetworkOPsImp::mRpcSubMap

private

Definition at line 739 of file NetworkOPs.cpp.

◆ mSubAccountHistory

SubAccountHistoryMapType ripple::NetworkOPsImp::mSubAccountHistory

private

Definition at line 741 of file NetworkOPs.cpp.

◆ mStreamMaps

std::array<SubMapType, SubTypes::sLastEntry + 1> ripple::NetworkOPsImp::mStreamMaps

private

Definition at line 757 of file NetworkOPs.cpp.

◆ mLastFeeSummary

ServerFeeSummary ripple::NetworkOPsImp::mLastFeeSummary

private

Definition at line 759 of file NetworkOPs.cpp.

◆ m_job_queue

JobQueue& ripple::NetworkOPsImp::m_job_queue

private

Definition at line 761 of file NetworkOPs.cpp.

◆ m_standalone

const bool ripple::NetworkOPsImp::m_standalone

private

Definition at line 764 of file NetworkOPs.cpp.

◆ minPeerCount_

const std::size_t ripple::NetworkOPsImp::minPeerCount_

private

Definition at line 767 of file NetworkOPs.cpp.

◆ mCond

std::condition_variable ripple::NetworkOPsImp::mCond

private

Definition at line 770 of file NetworkOPs.cpp.

◆ mMutex

std::mutex ripple::NetworkOPsImp::mMutex

private

Definition at line 771 of file NetworkOPs.cpp.

◆ mDispatchState

DispatchState ripple::NetworkOPsImp::mDispatchState = DispatchState::none

private

Definition at line 772 of file NetworkOPs.cpp.

◆ mTransactions

std::vector<TransactionStatus> ripple::NetworkOPsImp::mTransactions

private

Definition at line 773 of file NetworkOPs.cpp.

◆ accounting_

StateAccounting ripple::NetworkOPsImp::accounting_ {}

private

Definition at line 775 of file NetworkOPs.cpp.

◆ m_statsMutex

std::mutex ripple::NetworkOPsImp::m_statsMutex

private

Definition at line 829 of file NetworkOPs.cpp.

◆ m_stats

Stats ripple::NetworkOPsImp::m_stats

private

Definition at line 830 of file NetworkOPs.cpp.

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ SubMapType

◆ SubInfoMapType

◆ subRpcMapType

◆ SubAccountHistoryMapType

◆ clock_type

Member Enumeration Documentation

◆ DispatchState

◆ SubTypes

◆ FailHard

Constructor & Destructor Documentation

◆ NetworkOPsImp()

◆ ~NetworkOPsImp()

Member Function Documentation

◆ getOperatingMode()

◆ strOperatingMode() [1/2]

◆ strOperatingMode() [2/2]

◆ submitTransaction()

◆ processTransaction()

◆ doTransactionSync()

◆ doTransactionAsync()

◆ transactionBatch()

◆ apply()

◆ getOwnerInfo()

◆ getBookPage()

◆ processTrustedProposal()

◆ recvValidation()

◆ mapComplete()

◆ switchLastClosedLedger()

◆ checkLastClosedLedger()

◆ beginConsensus()

◆ endConsensus()

◆ setStandAlone()

◆ setStateTimer()

◆ setNeedNetworkLedger()

◆ clearNeedNetworkLedger()

◆ isNeedNetworkLedger()

◆ isFull()

◆ setMode()

◆ isBlocked()

◆ isAmendmentBlocked()

◆ setAmendmentBlocked()

◆ isAmendmentWarned()

◆ setAmendmentWarned()

◆ clearAmendmentWarned()

◆ isUNLBlocked()

◆ setUNLBlocked()

◆ clearUNLBlocked()

◆ consensusViewChange()

◆ getConsensusInfo()

◆ getServerInfo()

◆ clearLedgerFetch()

◆ getLedgerFetchInfo()

◆ acceptLedger()

◆ reportFeeChange()

◆ reportConsensusStateChange()

◆ updateLocalTx()

◆ getLocalTxCount()

◆ pubLedger()

◆ pubProposedTransaction()

◆ pubValidation()

◆ forwardValidation()

◆ forwardManifest()

◆ forwardProposedTransaction()

◆ forwardProposedAccountTransaction()

◆ subAccount()

◆ unsubAccount()

◆ unsubAccountInternal()

◆ subAccountHistory()

◆ unsubAccountHistory()

◆ unsubAccountHistoryInternal()
