Manages the set of connected peers. More...

Inheritance diagram for ripple::Overlay:

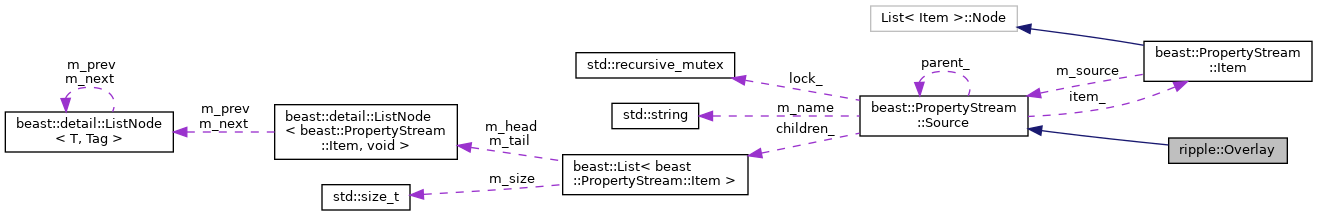

Collaboration diagram for ripple::Overlay:

[legend]

Classes
struct	Setup

Public Types
enum	Promote { Promote::automatic, Promote::never, Promote::always }

using	PeerSequence = std::vector< std::shared_ptr< Peer > >

Public Member Functions
virtual	~Overlay ()=default

virtual void	start ()

virtual void	stop ()

virtual Handoff	onHandoff (std::unique_ptr< stream_type > &&bundle, http_request_type &&request, boost::asio::ip::tcp::endpoint remote_address)=0
	Conditionally accept an incoming HTTP request. More...

virtual void	connect (beast::IP::Endpoint const &address)=0
	Establish a peer connection to the specified endpoint. More...

virtual int	limit ()=0
	Returns the maximum number of peers we are configured to allow. More...

virtual std::size_t	size () const =0
	Returns the number of active peers. More...

virtual Json::Value	json ()=0
	Return diagnostics on the status of all peers. More...

virtual PeerSequence	getActivePeers () const =0
	Returns a sequence representing the current list of peers. More...

virtual void	checkTracking (std::uint32_t index)=0
	Calls the checkTracking function on each peer. More...

virtual std::shared_ptr< Peer >	findPeerByShortID (Peer::id_t const &id) const =0
	Returns the peer with the matching short id, or null. More...

virtual std::shared_ptr< Peer >	findPeerByPublicKey (PublicKey const &pubKey)=0
	Returns the peer with the matching public key, or null. More...

virtual void	broadcast (protocol::TMProposeSet &m)=0
	Broadcast a proposal. More...

virtual void	broadcast (protocol::TMValidation &m)=0
	Broadcast a validation. More...

virtual std::set< Peer::id_t >	relay (protocol::TMProposeSet &m, uint256 const &uid, PublicKey const &validator)=0
	Relay a proposal. More...

virtual std::set< Peer::id_t >	relay (protocol::TMValidation &m, uint256 const &uid, PublicKey const &validator)=0
	Relay a validation. More...

virtual void	relay (uint256 const &hash, protocol::TMTransaction &m, std::set< Peer::id_t > const &toSkip)=0
	Relay a transaction. More...

template<class Function >
void	foreach (Function f) const
	Visit every active peer. More...

virtual void	incJqTransOverflow ()=0
	Increment and retrieve counter for transaction job queue overflows. More...

virtual std::uint64_t	getJqTransOverflow () const =0

virtual void	incPeerDisconnect ()=0
	Increment and retrieve counters for total peer disconnects, and disconnects we initiate for excessive resource consumption. More...

virtual std::uint64_t	getPeerDisconnect () const =0

virtual void	incPeerDisconnectCharges ()=0

virtual std::uint64_t	getPeerDisconnectCharges () const =0

virtual Json::Value	crawlShards (bool includePublicKey, std::uint32_t hops)=0
	Returns information reported to the crawl shard RPC command. More...

virtual std::optional< std::uint32_t >	networkID () const =0
	Returns the ID of the network this server is configured for, if any. More...

virtual Json::Value	txMetrics () const =0
	Returns tx reduce-relay metrics. More...

std::string const &	name () const
	Returns the name of this source. More...

void	add (Source &source)
	Add a child source. More...

template<class Derived >
Derived *	add (Derived *child)
	Add a child source by pointer. More...

void	remove (Source &child)
	Remove a child source from this Source. More...

void	removeAll ()
	Remove all child sources from this Source. More...

void	write_one (PropertyStream &stream)
	Write only this Source to the stream. More...

void	write (PropertyStream &stream)
	write this source and all its children recursively to the stream. More...

void	write (PropertyStream &stream, std::string const &path)
	Parse the path and write the corresponding Source and optional children. More...

std::pair< Source *, bool >	find (std::string path)
	Parse the dot-delimited Source path and return the result. More...

Source *	find_one_deep (std::string const &name)

PropertyStream::Source *	find_path (std::string path)

PropertyStream::Source *	find_one (std::string const &name)

virtual void	onWrite (Map &)
	Subclass override. More...

Static Public Member Functions
static bool	peel_leading_slash (std::string *path)

static bool	peel_trailing_slashstar (std::string *path)

static std::string	peel_name (std::string *path)

Protected Types
using	socket_type = boost::beast::tcp_stream

using	stream_type = boost::beast::ssl_stream< socket_type >

Protected Member Functions
	Overlay ()

Private Attributes
const std::string	m_name

std::recursive_mutex	lock_

Item	item_

Source *	parent_

List< Item >	children_

Detailed Description

Manages the set of connected peers.

Definition at line 51 of file Overlay.h.

Member Typedef Documentation

◆ socket_type

using ripple::Overlay::socket_type = boost::beast::tcp_stream

protected

Definition at line 54 of file Overlay.h.

◆ stream_type

using ripple::Overlay::stream_type = boost::beast::ssl_stream<socket_type>

protected

Definition at line 55 of file Overlay.h.

◆ PeerSequence

using ripple::Overlay::PeerSequence = std::vector<std::shared_ptr<Peer> >

Definition at line 79 of file Overlay.h.

Member Enumeration Documentation

◆ Promote

enum ripple::Overlay::Promote

strong

Enumerator
automatic
never
always

Definition at line 65 of file Overlay.h.

Constructor & Destructor Documentation

◆ Overlay()

ripple::Overlay::Overlay ( )

protected

Definition at line 60 of file Overlay.h.

◆ ~Overlay()

virtual ripple::Overlay::~Overlay ( )

virtualdefault

Member Function Documentation

◆ start()

virtual void ripple::Overlay::start ( )

virtual

Reimplemented in ripple::OverlayImpl.

Definition at line 84 of file Overlay.h.

◆ stop()

virtual void ripple::Overlay::stop ( )

virtual

Reimplemented in ripple::OverlayImpl.

Definition at line 89 of file Overlay.h.

◆ onHandoff()

virtual Handoff ripple::Overlay::onHandoff	(	std::unique_ptr< stream_type > &&	bundle,
		http_request_type &&	request,
		boost::asio::ip::tcp::endpoint	remote_address
	)

pure virtual

Conditionally accept an incoming HTTP request.

Implemented in ripple::OverlayImpl.

◆ connect()

virtual void ripple::Overlay::connect ( beast::IP::Endpoint const & address )

pure virtual

Establish a peer connection to the specified endpoint.

The call returns immediately, the connection attempt is performed asynchronously.

Implemented in ripple::OverlayImpl.

◆ limit()

virtual int ripple::Overlay::limit ( )

pure virtual

Returns the maximum number of peers we are configured to allow.

Implemented in ripple::OverlayImpl.

◆ size()

virtual std::size_t ripple::Overlay::size ( ) const

pure virtual

Returns the number of active peers.

Active peers are only those peers that have completed the handshake and are using the peer protocol.

Implemented in ripple::OverlayImpl.

◆ json()

virtual Json::Value ripple::Overlay::json ( )

pure virtual

Return diagnostics on the status of all peers.

Implemented in ripple::OverlayImpl.

◆ getActivePeers()

virtual PeerSequence ripple::Overlay::getActivePeers ( ) const

pure virtual

Returns a sequence representing the current list of peers.

The snapshot is made at the time of the call.

Implemented in ripple::OverlayImpl.

◆ checkTracking()

virtual void ripple::Overlay::checkTracking ( std::uint32_t index )

pure virtual

Calls the checkTracking function on each peer.

Parameters

index the value to pass to the peer's checkTracking function

Implemented in ripple::OverlayImpl.

◆ findPeerByShortID()

virtual std::shared_ptr<Peer> ripple::Overlay::findPeerByShortID ( Peer::id_t const & id ) const

pure virtual

Returns the peer with the matching short id, or null.

Implemented in ripple::OverlayImpl.

◆ findPeerByPublicKey()

virtual std::shared_ptr<Peer> ripple::Overlay::findPeerByPublicKey ( PublicKey const & pubKey )

pure virtual

Returns the peer with the matching public key, or null.

Implemented in ripple::OverlayImpl.

◆ broadcast() [1/2]

virtual void ripple::Overlay::broadcast ( protocol::TMProposeSet & m )

pure virtual

Broadcast a proposal.

Implemented in ripple::OverlayImpl.

◆ broadcast() [2/2]

virtual void ripple::Overlay::broadcast ( protocol::TMValidation & m )

pure virtual

Broadcast a validation.

Implemented in ripple::OverlayImpl.

◆ relay() [1/3]

virtual std::set<Peer::id_t> ripple::Overlay::relay	(	protocol::TMProposeSet &	m,
		uint256 const &	uid,
		PublicKey const &	validator
	)

pure virtual

Relay a proposal.

Parameters

m	the serialized proposal
uid	the id used to identify this proposal
validator	The pubkey of the validator that issued this proposal

Returns: the set of peers which have already sent us this proposal

Implemented in ripple::OverlayImpl.

◆ relay() [2/3]

virtual std::set<Peer::id_t> ripple::Overlay::relay	(	protocol::TMValidation &	m,
		uint256 const &	uid,
		PublicKey const &	validator
	)

pure virtual

Relay a validation.

Parameters

m	the serialized validation
uid	the id used to identify this validation
validator	The pubkey of the validator that issued this validation

Returns: the set of peers which have already sent us this validation

Implemented in ripple::OverlayImpl.

◆ relay() [3/3]

virtual void ripple::Overlay::relay	(	uint256 const &	hash,
		protocol::TMTransaction &	m,
		std::set< Peer::id_t > const &	toSkip
	)

pure virtual

Relay a transaction.

If the tx reduce-relay feature is enabled then randomly select peers to relay to and queue transaction's hash for the rest of the peers.

Parameters

hash	transaction's hash
m	transaction's protocol message to relay
toSkip	peers which have already seen this transaction

Implemented in ripple::OverlayImpl.

◆ foreach()

template<class Function >

void ripple::Overlay::foreach ( Function f ) const

Visit every active peer.

The visitor must be invocable as: Function(std::shared_ptr<Peer> const& peer);

Parameters

f	the invocable to call with every peer

Definition at line 198 of file Overlay.h.

◆ incJqTransOverflow()

virtual void ripple::Overlay::incJqTransOverflow ( )

pure virtual

Increment and retrieve counter for transaction job queue overflows.

Implemented in ripple::OverlayImpl.

◆ getJqTransOverflow()

virtual std::uint64_t ripple::Overlay::getJqTransOverflow ( ) const

pure virtual

Implemented in ripple::OverlayImpl.

◆ incPeerDisconnect()

virtual void ripple::Overlay::incPeerDisconnect ( )

pure virtual

Increment and retrieve counters for total peer disconnects, and disconnects we initiate for excessive resource consumption.

Implemented in ripple::OverlayImpl.

◆ getPeerDisconnect()

virtual std::uint64_t ripple::Overlay::getPeerDisconnect ( ) const

pure virtual

Implemented in ripple::OverlayImpl.

◆ incPeerDisconnectCharges()

virtual void ripple::Overlay::incPeerDisconnectCharges ( )

pure virtual

Implemented in ripple::OverlayImpl.

◆ getPeerDisconnectCharges()

virtual std::uint64_t ripple::Overlay::getPeerDisconnectCharges ( ) const

pure virtual

Implemented in ripple::OverlayImpl.

◆ crawlShards()

virtual Json::Value ripple::Overlay::crawlShards	(	bool	includePublicKey,
		std::uint32_t	hops
	)

pure virtual

Returns information reported to the crawl shard RPC command.

Parameters

includePublicKey	include peer public keys in the result.
hops	the maximum jumps the crawler will attempt. The number of hops achieved is not guaranteed.

Implemented in ripple::OverlayImpl.

◆ networkID()

virtual std::optional<std::uint32_t> ripple::Overlay::networkID ( ) const

pure virtual

Returns the ID of the network this server is configured for, if any.

The ID is just a numerical identifier, with the IDs 0, 1 and 2 used to identify the mainnet, the testnet and the devnet respectively.

Returns: The numerical identifier configured by the administrator of the server. An unseated optional, otherwise.

Implemented in ripple::OverlayImpl.

◆ txMetrics()

virtual Json::Value ripple::Overlay::txMetrics ( ) const

pure virtual

Returns tx reduce-relay metrics.

Returns: json value of tx reduce-relay metrics

Implemented in ripple::OverlayImpl.

◆ name()

std::string const & beast::PropertyStream::Source::name ( ) const

inherited

Returns the name of this source.

Definition at line 190 of file beast_PropertyStream.cpp.

◆ add() [1/2]

void beast::PropertyStream::Source::add ( Source & source )

inherited

Add a child source.

Definition at line 196 of file beast_PropertyStream.cpp.

◆ add() [2/2]

template<class Derived >

Derived* beast::PropertyStream::Source::add ( Derived * child )

inherited

Add a child source by pointer.

The source pointer is returned so it can be used in ctor-initializers.

Definition at line 360 of file PropertyStream.h.

◆ remove()

void beast::PropertyStream::Source::remove ( Source & child )

inherited

Remove a child source from this Source.

Definition at line 208 of file beast_PropertyStream.cpp.

◆ removeAll()

void beast::PropertyStream::Source::removeAll ( )

inherited

Remove all child sources from this Source.

Definition at line 220 of file beast_PropertyStream.cpp.

◆ write_one()

void beast::PropertyStream::Source::write_one ( PropertyStream & stream )

inherited

Write only this Source to the stream.

Definition at line 233 of file beast_PropertyStream.cpp.

◆ write() [1/2]

void beast::PropertyStream::Source::write ( PropertyStream & stream )

inherited

write this source and all its children recursively to the stream.

Definition at line 240 of file beast_PropertyStream.cpp.

◆ write() [2/2]

void beast::PropertyStream::Source::write	(	PropertyStream &	stream,
		std::string const &	path
	)

inherited

Parse the path and write the corresponding Source and optional children.

If the source is found, it is written. If the wildcard character '*' exists as the last character in the path, then all the children are written recursively.

Definition at line 252 of file beast_PropertyStream.cpp.

◆ find()

std::pair< PropertyStream::Source *, bool > beast::PropertyStream::Source::find ( std::string path )

inherited

Parse the dot-delimited Source path and return the result.

The first value will be a pointer to the Source object corresponding to the given path. If no Source object exists, then the first value will be nullptr and the second value will be undefined. The second value is a boolean indicating whether or not the path string specifies the wildcard character '*' as the last character.

print statement examples "parent.child" prints child and all of its children "parent.child." start at the parent and print down to child "parent.grandchild" prints nothing- grandchild not direct discendent "parent.grandchild." starts at the parent and prints down to grandchild "parent.grandchild.*" starts at parent, print through grandchild children

Definition at line 266 of file beast_PropertyStream.cpp.

◆ find_one_deep()

PropertyStream::Source * beast::PropertyStream::Source::find_one_deep ( std::string const & name )

inherited

Definition at line 333 of file beast_PropertyStream.cpp.

◆ find_path()

PropertyStream::Source * beast::PropertyStream::Source::find_path ( std::string path )

inherited

Definition at line 350 of file beast_PropertyStream.cpp.

◆ find_one()

PropertyStream::Source * beast::PropertyStream::Source::find_one ( std::string const & name )

inherited

Definition at line 368 of file beast_PropertyStream.cpp.

◆ peel_leading_slash()

bool beast::PropertyStream::Source::peel_leading_slash ( std::string * path )

staticinherited

Definition at line 286 of file beast_PropertyStream.cpp.

◆ peel_trailing_slashstar()

bool beast::PropertyStream::Source::peel_trailing_slashstar ( std::string * path )

staticinherited

Definition at line 297 of file beast_PropertyStream.cpp.

◆ peel_name()

std::string beast::PropertyStream::Source::peel_name ( std::string * path )

staticinherited

Definition at line 313 of file beast_PropertyStream.cpp.

◆ onWrite()

void beast::PropertyStream::Source::onWrite ( Map & )

virtualinherited

Subclass override.

The default version does nothing.

Reimplemented in ripple::ApplicationImp, ripple::OverlayImpl, ripple::PeerFinder::ManagerImp, ripple::Resource::ManagerImp, and ripple::LedgerCleanerImp.

Definition at line 380 of file beast_PropertyStream.cpp.

Member Data Documentation

◆ m_name

const std::string beast::PropertyStream::Source::m_name

privateinherited

Definition at line 333 of file PropertyStream.h.

◆ lock_

std::recursive_mutex beast::PropertyStream::Source::lock_

privateinherited

Definition at line 334 of file PropertyStream.h.

◆ item_

Item beast::PropertyStream::Source::item_

privateinherited

Definition at line 335 of file PropertyStream.h.

◆ parent_

Source* beast::PropertyStream::Source::parent_

privateinherited

Definition at line 336 of file PropertyStream.h.

◆ children_

List<Item> beast::PropertyStream::Source::children_

privateinherited

Definition at line 337 of file PropertyStream.h.

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ socket_type

◆ stream_type

◆ PeerSequence

Member Enumeration Documentation

◆ Promote

Constructor & Destructor Documentation

◆ Overlay()

◆ ~Overlay()

Member Function Documentation

◆ start()

◆ stop()

◆ onHandoff()

◆ connect()

◆ limit()

◆ size()

◆ json()

◆ getActivePeers()

◆ checkTracking()

◆ findPeerByShortID()

◆ findPeerByPublicKey()

◆ broadcast() [1/2]

◆ broadcast() [2/2]

◆ relay() [1/3]

◆ relay() [2/3]

◆ relay() [3/3]

◆ foreach()

◆ incJqTransOverflow()

◆ getJqTransOverflow()

◆ incPeerDisconnect()

◆ getPeerDisconnect()

◆ incPeerDisconnectCharges()

◆ getPeerDisconnectCharges()

◆ crawlShards()

◆ networkID()

◆ txMetrics()

◆ name()

◆ add() [1/2]

◆ add() [2/2]

◆ remove()

◆ removeAll()

◆ write_one()

◆ write() [1/2]

◆ write() [2/2]

◆ find()

◆ find_one_deep()

◆ find_path()

◆ find_one()

◆ peel_leading_slash()

◆ peel_trailing_slashstar()

◆ peel_name()

◆ onWrite()

Member Data Documentation

◆ m_name

◆ lock_

◆ item_

◆ parent_

◆ children_
