ripple::RCLConsensus Class Reference

Manages the generic consensus algorithm for use by the RCL. More...

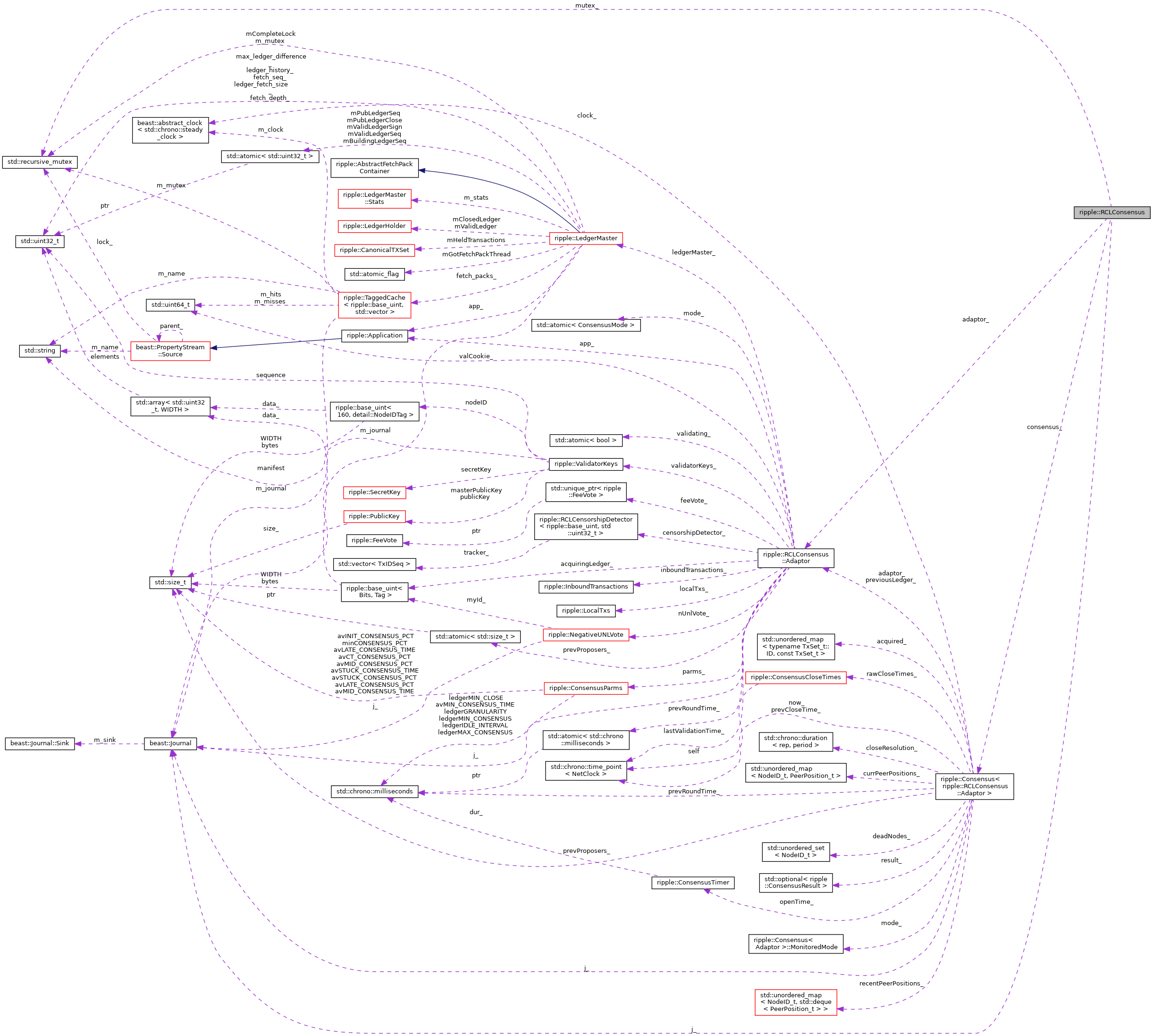

Collaboration diagram for ripple::RCLConsensus:

Classes
class	Adaptor

Public Member Functions
	RCLConsensus (Application &app, std::unique_ptr< FeeVote > &&feeVote, LedgerMaster &ledgerMaster, LocalTxs &localTxs, InboundTransactions &inboundTransactions, Consensus< Adaptor >::clock_type const &clock, ValidatorKeys const &validatorKeys, beast::Journal journal)
	Constructor. More...
	RCLConsensus (RCLConsensus const &)=delete
RCLConsensus &	operator= (RCLConsensus const &)=delete
bool	validating () const
	Whether we are validating consensus ledgers. More...
std::size_t	prevProposers () const
	Get the number of proposing peers that participated in the previous round. More...
std::chrono::milliseconds	prevRoundTime () const
	Get duration of the previous round. More...
ConsensusMode	mode () const
ConsensusPhase	phase () const
Json::Value	getJson (bool full) const
void	startRound (NetClock::time_point const &now, RCLCxLedger::ID const &prevLgrId, RCLCxLedger const &prevLgr, hash_set< NodeID > const &nowUntrusted, hash_set< NodeID > const &nowTrusted)
	Adjust the set of trusted validators and kick-off the next round of consensus. More...
void	timerEntry (NetClock::time_point const &now)
void	gotTxSet (NetClock::time_point const &now, RCLTxSet const &txSet)
RCLCxLedger::ID	prevLedgerID () const
void	simulate (NetClock::time_point const &now, std::optional< std::chrono::milliseconds > consensusDelay)
bool	peerProposal (NetClock::time_point const &now, RCLCxPeerPos const &newProposal)
ConsensusParms const &	parms () const

Private Attributes
std::recursive_mutex	mutex_
Adaptor	adaptor_
Consensus< Adaptor >	consensus_
const beast::Journal	j_

Static Private Attributes
constexpr static unsigned int	censorshipWarnInternal = 15
	Warn for transactions that haven't been included every so many ledgers. More...

Detailed Description

Manages the generic consensus algorithm for use by the RCL.

Definition at line 50 of file RCLConsensus.h.

Constructor & Destructor Documentation

RCLConsensus() [1/2]

ripple::RCLConsensus::RCLConsensus	(	Application &	app,
		std::unique_ptr< FeeVote > &&	feeVote,
		LedgerMaster &	ledgerMaster,
		LocalTxs &	localTxs,
		InboundTransactions &	inboundTransactions,
		Consensus< Adaptor >::clock_type const &	clock,
		ValidatorKeys const &	validatorKeys,
		beast::Journal	journal
	)

Constructor.

Definition at line 52 of file RCLConsensus.cpp.

RCLConsensus() [2/2]

ripple::RCLConsensus::RCLConsensus ( RCLConsensus const &  )

delete

Member Function Documentation

operator=()

RCLConsensus& ripple::RCLConsensus::operator= ( RCLConsensus const &  )

delete

validating()

bool ripple::RCLConsensus::validating

(

)

const

Whether we are validating consensus ledgers.

Definition at line 435 of file RCLConsensus.h.

prevProposers()

std::size_t ripple::RCLConsensus::prevProposers

(

)

const

Get the number of proposing peers that participated in the previous round.

Definition at line 443 of file RCLConsensus.h.

prevRoundTime()

std::chrono::milliseconds ripple::RCLConsensus::prevRoundTime

(

)

const

Get duration of the previous round.

The duration of the round is the establish phase, measured from closing the open ledger to accepting the consensus result.

Returns

Last round duration in milliseconds

Definition at line 456 of file RCLConsensus.h.

mode()

ConsensusMode ripple::RCLConsensus::mode

(

)

const

See also

Consensus::mode

Definition at line 463 of file RCLConsensus.h.

phase()

ConsensusPhase ripple::RCLConsensus::phase

(

)

const

Definition at line 469 of file RCLConsensus.h.

getJson()

Json::Value ripple::RCLConsensus::getJson

(

bool

full

)

const

See also

Consensus::getJson

Definition at line 893 of file RCLConsensus.cpp.

startRound()

void ripple::RCLConsensus::startRound	(	NetClock::time_point const &	now,
		RCLCxLedger::ID const &	prevLgrId,
		RCLCxLedger const &	prevLgr,
		hash_set< NodeID > const &	nowUntrusted,
		hash_set< NodeID > const &	nowTrusted
	)

Adjust the set of trusted validators and kick-off the next round of consensus.

For more details,

See also

Consensus::startRound

Definition at line 1047 of file RCLConsensus.cpp.

timerEntry()

void ripple::RCLConsensus::timerEntry

(

NetClock::time_point const &

now

)

See also

Consensus::timerEntry

Definition at line 905 of file RCLConsensus.cpp.

gotTxSet()

void ripple::RCLConsensus::gotTxSet	(	NetClock::time_point const &	now,
		RCLTxSet const &	txSet
	)

See also

Consensus::gotTxSet

Definition at line 921 of file RCLConsensus.cpp.

prevLedgerID()

RCLCxLedger::ID ripple::RCLConsensus::prevLedgerID

(

)

const

Definition at line 499 of file RCLConsensus.h.

simulate()

void ripple::RCLConsensus::simulate	(	NetClock::time_point const &	now,
		std::optional< std::chrono::milliseconds >	consensusDelay
	)

See also

Consensus::simulate

Definition at line 939 of file RCLConsensus.cpp.

peerProposal()

bool ripple::RCLConsensus::peerProposal	(	NetClock::time_point const &	now,
		RCLCxPeerPos const &	newProposal
	)

See also

Consensus::proposal

Definition at line 948 of file RCLConsensus.cpp.

parms()

ConsensusParms const& ripple::RCLConsensus::parms

(

)

const

Definition at line 518 of file RCLConsensus.h.

Member Data Documentation

censorshipWarnInternal

constexpr static unsigned int ripple::RCLConsensus::censorshipWarnInternal = 15

staticconstexprprivate

Warn for transactions that haven't been included every so many ledgers.

Definition at line 54 of file RCLConsensus.h.

mutex_

std::recursive_mutex ripple::RCLConsensus::mutex_

mutableprivate

Definition at line 527 of file RCLConsensus.h.

adaptor_

Adaptor ripple::RCLConsensus::adaptor_

private

Definition at line 529 of file RCLConsensus.h.

consensus_

Consensus<Adaptor> ripple::RCLConsensus::consensus_

private

Definition at line 530 of file RCLConsensus.h.

j_

const beast::Journal ripple::RCLConsensus::j_

private

Definition at line 531 of file RCLConsensus.h.
