Inheritance diagram for ripple::LedgerMaster:

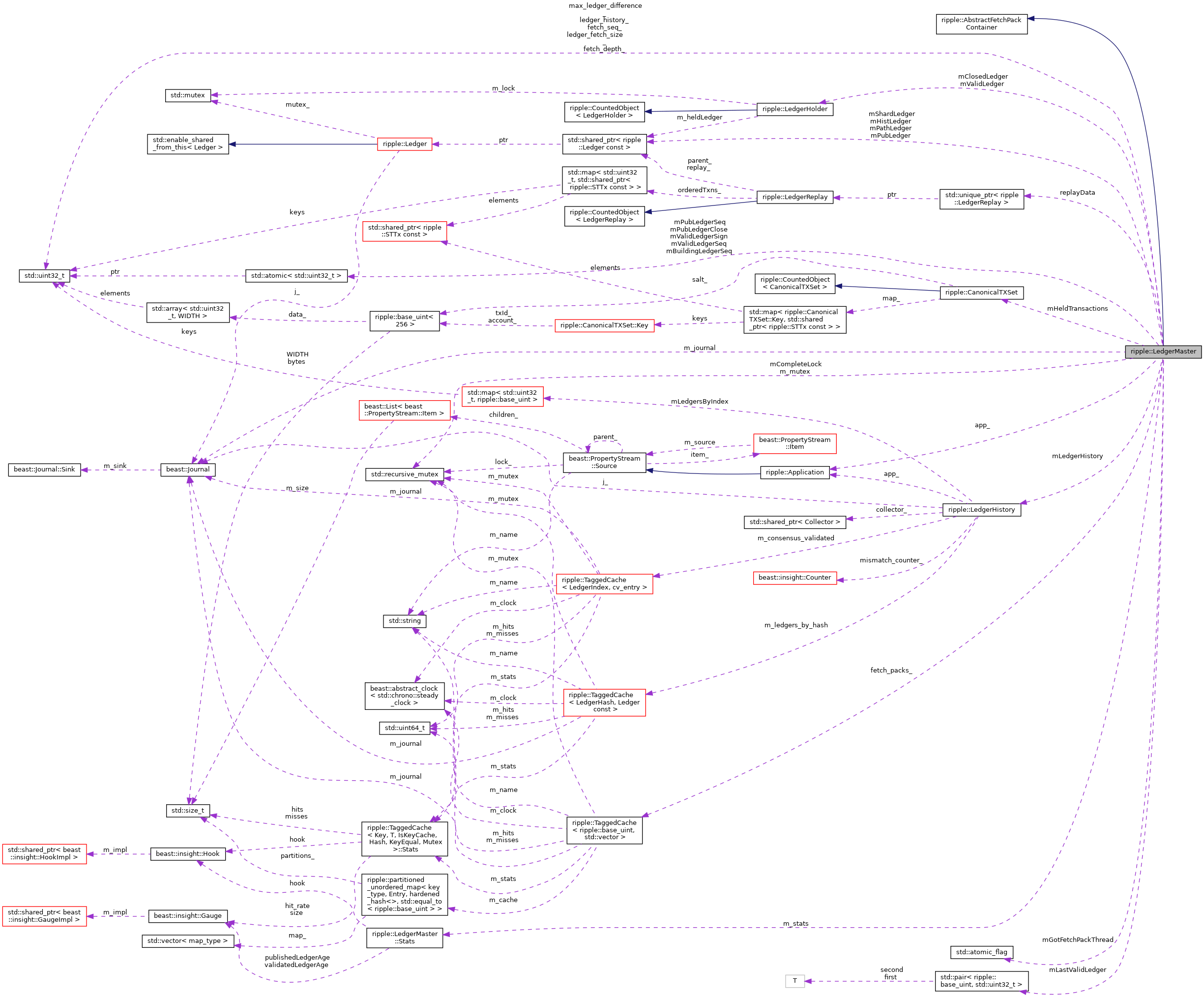

Collaboration diagram for ripple::LedgerMaster:

[legend]

Classes
struct	Stats

Public Member Functions
	LedgerMaster (Application &app, Stopwatch &stopwatch, beast::insight::Collector::ptr const &collector, beast::Journal journal)

virtual	~LedgerMaster ()=default

LedgerIndex	getCurrentLedgerIndex ()

LedgerIndex	getValidLedgerIndex ()

bool	isCompatible (ReadView const &, beast::Journal::Stream, char const *reason)

std::recursive_mutex &	peekMutex ()

std::shared_ptr< ReadView const >	getCurrentLedger ()

std::shared_ptr< Ledger const >	getClosedLedger ()

std::shared_ptr< Ledger const >	getValidatedLedger ()

Rules	getValidatedRules ()

std::shared_ptr< ReadView const >	getPublishedLedger ()

std::chrono::seconds	getPublishedLedgerAge ()

std::chrono::seconds	getValidatedLedgerAge ()

bool	isCaughtUp (std::string &reason)

std::uint32_t	getEarliestFetch ()

bool	storeLedger (std::shared_ptr< Ledger const > ledger)

void	setFullLedger (std::shared_ptr< Ledger const > const &ledger, bool isSynchronous, bool isCurrent)

bool	canBeCurrent (std::shared_ptr< Ledger const > const &ledger)
	Check the sequence number and parent close time of a ledger against our clock and last validated ledger to see if it can be the network's current ledger. More...

void	switchLCL (std::shared_ptr< Ledger const > const &lastClosed)

void	failedSave (std::uint32_t seq, uint256 const &hash)

std::string	getCompleteLedgers ()

void	applyHeldTransactions ()
	Apply held transactions to the open ledger This is normally called as we close the ledger. More...

std::shared_ptr< STTx const >	popAcctTransaction (std::shared_ptr< STTx const > const &tx)
	Get the next transaction held for a particular account if any. More...

uint256	getHashBySeq (std::uint32_t index)
	Get a ledger's hash by sequence number using the cache. More...

std::optional< LedgerHash >	walkHashBySeq (std::uint32_t index, InboundLedger::Reason reason)
	Walk to a ledger's hash using the skip list. More...

std::optional< LedgerHash >	walkHashBySeq (std::uint32_t index, std::shared_ptr< ReadView const > const &referenceLedger, InboundLedger::Reason reason)
	Walk the chain of ledger hashes to determine the hash of the ledger with the specified index. More...

std::shared_ptr< Ledger const >	getLedgerBySeq (std::uint32_t index)

std::shared_ptr< Ledger const >	getLedgerByHash (uint256 const &hash)

void	setLedgerRangePresent (std::uint32_t minV, std::uint32_t maxV)

std::optional< NetClock::time_point >	getCloseTimeBySeq (LedgerIndex ledgerIndex)

std::optional< NetClock::time_point >	getCloseTimeByHash (LedgerHash const &ledgerHash, LedgerIndex ledgerIndex)

void	addHeldTransaction (std::shared_ptr< Transaction > const &trans)

void	fixMismatch (ReadView const &ledger)

bool	haveLedger (std::uint32_t seq)

void	clearLedger (std::uint32_t seq)

bool	getValidatedRange (std::uint32_t &minVal, std::uint32_t &maxVal)

bool	getFullValidatedRange (std::uint32_t &minVal, std::uint32_t &maxVal)

void	sweep ()

float	getCacheHitRate ()

void	checkAccept (std::shared_ptr< Ledger const > const &ledger)

void	checkAccept (uint256 const &hash, std::uint32_t seq)

void	consensusBuilt (std::shared_ptr< Ledger const > const &ledger, uint256 const &consensusHash, Json::Value consensus)
	Report that the consensus process built a particular ledger. More...

void	setBuildingLedger (LedgerIndex index)

void	tryAdvance ()

bool	newPathRequest ()

bool	isNewPathRequest ()

bool	newOrderBookDB ()

bool	fixIndex (LedgerIndex ledgerIndex, LedgerHash const &ledgerHash)

void	clearPriorLedgers (LedgerIndex seq)

void	clearLedgerCachePrior (LedgerIndex seq)

void	takeReplay (std::unique_ptr< LedgerReplay > replay)

std::unique_ptr< LedgerReplay >	releaseReplay ()

void	gotFetchPack (bool progress, std::uint32_t seq)

void	addFetchPack (uint256 const &hash, std::shared_ptr< Blob > data)

std::optional< Blob >	getFetchPack (uint256 const &hash) override
	Retrieves partial ledger data of the coresponding hash from peers. More...

void	makeFetchPack (std::weak_ptr< Peer > const &wPeer, std::shared_ptr< protocol::TMGetObjectByHash > const &request, uint256 haveLedgerHash, UptimeClock::time_point uptime)

std::size_t	getFetchPackCacheSize () const

bool	haveValidated ()
	Whether we have ever fully validated a ledger. More...

std::optional< LedgerIndex >	minSqlSeq ()

Private Member Functions
void	setValidLedger (std::shared_ptr< Ledger const > const &l)

void	setPubLedger (std::shared_ptr< Ledger const > const &l)

void	tryFill (std::shared_ptr< Ledger const > ledger)

void	getFetchPack (LedgerIndex missing, InboundLedger::Reason reason)
	Request a fetch pack to get to the specified ledger. More...

std::optional< LedgerHash >	getLedgerHashForHistory (LedgerIndex index, InboundLedger::Reason reason)

std::size_t	getNeededValidations ()
	Determines how many validations are needed to fully validate a ledger. More...

void	fetchForHistory (std::uint32_t missing, bool &progress, InboundLedger::Reason reason, std::unique_lock< std::recursive_mutex > &)

void	doAdvance (std::unique_lock< std::recursive_mutex > &)

std::vector< std::shared_ptr< Ledger const > >	findNewLedgersToPublish (std::unique_lock< std::recursive_mutex > &)

void	updatePaths ()

bool	newPFWork (const char *name, std::unique_lock< std::recursive_mutex > &)
	A thread needs to be dispatched to handle pathfinding work of some kind. More...

void	collect_metrics ()

Private Attributes
Application &	app_

beast::Journal	m_journal

std::recursive_mutex	m_mutex

LedgerHolder	mClosedLedger

LedgerHolder	mValidLedger

std::shared_ptr< Ledger const >	mPubLedger

std::shared_ptr< Ledger const >	mPathLedger

std::shared_ptr< Ledger const >	mHistLedger

std::shared_ptr< Ledger const >	mShardLedger

std::pair< uint256, LedgerIndex >	mLastValidLedger {uint256(), 0}

LedgerHistory	mLedgerHistory

CanonicalTXSet	mHeldTransactions {uint256()}

std::unique_ptr< LedgerReplay >	replayData

std::recursive_mutex	mCompleteLock

RangeSet< std::uint32_t >	mCompleteLedgers

bool	mAdvanceThread {false}

bool	mAdvanceWork {false}

int	mFillInProgress {0}

int	mPathFindThread {0}

bool	mPathFindNewRequest {false}

std::atomic_flag	mGotFetchPackThread

std::atomic< std::uint32_t >	mPubLedgerClose {0}

std::atomic< LedgerIndex >	mPubLedgerSeq {0}

std::atomic< std::uint32_t >	mValidLedgerSign {0}

std::atomic< LedgerIndex >	mValidLedgerSeq {0}

std::atomic< LedgerIndex >	mBuildingLedgerSeq {0}

const bool	standalone_

const std::uint32_t	fetch_depth_

const std::uint32_t	ledger_history_

const std::uint32_t	ledger_fetch_size_

TaggedCache< uint256, Blob >	fetch_packs_

std::uint32_t	fetch_seq_ {0}

const LedgerIndex	max_ledger_difference_ {1000000}

TimeKeeper::time_point	upgradeWarningPrevTime_ {}

Stats	m_stats

Detailed Description

Definition at line 70 of file LedgerMaster.h.

Constructor & Destructor Documentation

◆ LedgerMaster()

ripple::LedgerMaster::LedgerMaster	(	Application &	app,
		Stopwatch &	stopwatch,
		beast::insight::Collector::ptr const &	collector,
		beast::Journal	journal
	)

explicit

Definition at line 183 of file LedgerMaster.cpp.

◆ ~LedgerMaster()

virtual ripple::LedgerMaster::~LedgerMaster ( )

virtualdefault

Member Function Documentation

◆ getCurrentLedgerIndex()

LedgerIndex ripple::LedgerMaster::getCurrentLedgerIndex ( )

Definition at line 207 of file LedgerMaster.cpp.

◆ getValidLedgerIndex()

LedgerIndex ripple::LedgerMaster::getValidLedgerIndex ( )

Definition at line 213 of file LedgerMaster.cpp.

◆ isCompatible()

bool ripple::LedgerMaster::isCompatible	(	ReadView const &	view,
		beast::Journal::Stream	s,
		char const *	reason
	)

Definition at line 219 of file LedgerMaster.cpp.

◆ peekMutex()

std::recursive_mutex & ripple::LedgerMaster::peekMutex ( )

Definition at line 1647 of file LedgerMaster.cpp.

◆ getCurrentLedger()

std::shared_ptr< ReadView const > ripple::LedgerMaster::getCurrentLedger ( )

Definition at line 1654 of file LedgerMaster.cpp.

◆ getClosedLedger()

std::shared_ptr<Ledger const> ripple::LedgerMaster::getClosedLedger ( )

Definition at line 98 of file LedgerMaster.h.

◆ getValidatedLedger()

std::shared_ptr< Ledger const > ripple::LedgerMaster::getValidatedLedger ( )

Definition at line 1664 of file LedgerMaster.cpp.

◆ getValidatedRules()

Rules ripple::LedgerMaster::getValidatedRules ( )

Definition at line 1679 of file LedgerMaster.cpp.

◆ getPublishedLedger()

std::shared_ptr< ReadView const > ripple::LedgerMaster::getPublishedLedger ( )

Definition at line 1694 of file LedgerMaster.cpp.

◆ getPublishedLedgerAge()

std::chrono::seconds ripple::LedgerMaster::getPublishedLedgerAge ( )

Definition at line 250 of file LedgerMaster.cpp.

◆ getValidatedLedgerAge()

std::chrono::seconds ripple::LedgerMaster::getValidatedLedgerAge ( )

Definition at line 274 of file LedgerMaster.cpp.

◆ isCaughtUp()

bool ripple::LedgerMaster::isCaughtUp ( std::string & reason )

Definition at line 305 of file LedgerMaster.cpp.

◆ getEarliestFetch()

std::uint32_t ripple::LedgerMaster::getEarliestFetch ( )

Definition at line 697 of file LedgerMaster.cpp.

◆ storeLedger()

bool ripple::LedgerMaster::storeLedger ( std::shared_ptr< Ledger const > ledger )

Definition at line 536 of file LedgerMaster.cpp.

◆ setFullLedger()

void ripple::LedgerMaster::setFullLedger	(	std::shared_ptr< Ledger const > const &	ledger,
		bool	isSynchronous,
		bool	isCurrent
	)

Definition at line 911 of file LedgerMaster.cpp.

◆ canBeCurrent()

bool ripple::LedgerMaster::canBeCurrent ( std::shared_ptr< Ledger const > const & ledger )

Check the sequence number and parent close time of a ledger against our clock and last validated ledger to see if it can be the network's current ledger.

Definition at line 436 of file LedgerMaster.cpp.

◆ switchLCL()

void ripple::LedgerMaster::switchLCL ( std::shared_ptr< Ledger const > const & lastClosed )

Definition at line 504 of file LedgerMaster.cpp.

◆ failedSave()

void ripple::LedgerMaster::failedSave	(	std::uint32_t	seq,
		uint256 const &	hash
	)

Definition at line 972 of file LedgerMaster.cpp.

◆ getCompleteLedgers()

std::string ripple::LedgerMaster::getCompleteLedgers ( )

Definition at line 1701 of file LedgerMaster.cpp.

◆ applyHeldTransactions()

void ripple::LedgerMaster::applyHeldTransactions ( )

Apply held transactions to the open ledger This is normally called as we close the ledger.

The open ledger remains open to handle new transactions until a new open ledger is built.

Definition at line 549 of file LedgerMaster.cpp.

◆ popAcctTransaction()

std::shared_ptr< STTx const > ripple::LedgerMaster::popAcctTransaction ( std::shared_ptr< STTx const > const & tx )

Get the next transaction held for a particular account if any.

This is normally called when a transaction for that account is successfully applied to the open ledger so the next transaction can be resubmitted without waiting for ledger close.

Definition at line 574 of file LedgerMaster.cpp.

◆ getHashBySeq()

uint256 ripple::LedgerMaster::getHashBySeq ( std::uint32_t index )

Get a ledger's hash by sequence number using the cache.

Definition at line 1743 of file LedgerMaster.cpp.

◆ walkHashBySeq() [1/2]

std::optional< LedgerHash > ripple::LedgerMaster::walkHashBySeq	(	std::uint32_t	index,
		InboundLedger::Reason	reason
	)

Walk to a ledger's hash using the skip list.

Definition at line 1754 of file LedgerMaster.cpp.

◆ walkHashBySeq() [2/2]

std::optional< LedgerHash > ripple::LedgerMaster::walkHashBySeq	(	std::uint32_t	index,
		std::shared_ptr< ReadView const > const &	referenceLedger,
		InboundLedger::Reason	reason
	)

Walk the chain of ledger hashes to determine the hash of the ledger with the specified index.

The referenceLedger is used as the base of the chain and should be fully validated and must not precede the target index. This function may throw if nodes from the reference ledger or any prior ledger are not present in the node store.

Definition at line 1765 of file LedgerMaster.cpp.

◆ getLedgerBySeq()

std::shared_ptr< Ledger const > ripple::LedgerMaster::getLedgerBySeq ( std::uint32_t index )

Definition at line 1818 of file LedgerMaster.cpp.

◆ getLedgerByHash()

std::shared_ptr< Ledger const > ripple::LedgerMaster::getLedgerByHash ( uint256 const & hash )

Definition at line 1854 of file LedgerMaster.cpp.

◆ setLedgerRangePresent()

void ripple::LedgerMaster::setLedgerRangePresent	(	std::uint32_t	minV,
		std::uint32_t	maxV
	)

Definition at line 1867 of file LedgerMaster.cpp.

◆ getCloseTimeBySeq()

std::optional< NetClock::time_point > ripple::LedgerMaster::getCloseTimeBySeq ( LedgerIndex ledgerIndex )

Definition at line 1713 of file LedgerMaster.cpp.

◆ getCloseTimeByHash()

std::optional< NetClock::time_point > ripple::LedgerMaster::getCloseTimeByHash	(	LedgerHash const &	ledgerHash,
		LedgerIndex	ledgerIndex
	)

Definition at line 1721 of file LedgerMaster.cpp.

◆ addHeldTransaction()

void ripple::LedgerMaster::addHeldTransaction ( std::shared_ptr< Transaction > const & trans )

Definition at line 425 of file LedgerMaster.cpp.

◆ fixMismatch()

void ripple::LedgerMaster::fixMismatch ( ReadView const & ledger )

Definition at line 856 of file LedgerMaster.cpp.

◆ haveLedger()

bool ripple::LedgerMaster::haveLedger ( std::uint32_t seq )

Definition at line 588 of file LedgerMaster.cpp.

◆ clearLedger()

void ripple::LedgerMaster::clearLedger ( std::uint32_t seq )

Definition at line 595 of file LedgerMaster.cpp.

◆ getValidatedRange()

bool ripple::LedgerMaster::getValidatedRange	(	std::uint32_t &	minVal,
		std::uint32_t &	maxVal
	)

Definition at line 630 of file LedgerMaster.cpp.

◆ getFullValidatedRange()

bool ripple::LedgerMaster::getFullValidatedRange	(	std::uint32_t &	minVal,
		std::uint32_t &	maxVal
	)

Definition at line 603 of file LedgerMaster.cpp.

◆ sweep()

void ripple::LedgerMaster::sweep ( )

Definition at line 1874 of file LedgerMaster.cpp.

◆ getCacheHitRate()

float ripple::LedgerMaster::getCacheHitRate ( )

Definition at line 1881 of file LedgerMaster.cpp.

◆ checkAccept() [1/2]

void ripple::LedgerMaster::checkAccept ( std::shared_ptr< Ledger const > const & ledger )

Definition at line 1042 of file LedgerMaster.cpp.

◆ checkAccept() [2/2]

void ripple::LedgerMaster::checkAccept	(	uint256 const &	hash,
		std::uint32_t	seq
	)

Definition at line 981 of file LedgerMaster.cpp.

◆ consensusBuilt()

void ripple::LedgerMaster::consensusBuilt	(	std::shared_ptr< Ledger const > const &	ledger,
		uint256 const &	consensusHash,
		Json::Value	consensus
	)

Report that the consensus process built a particular ledger.

Definition at line 1190 of file LedgerMaster.cpp.

◆ setBuildingLedger()

void ripple::LedgerMaster::setBuildingLedger ( LedgerIndex index )

Definition at line 582 of file LedgerMaster.cpp.

◆ tryAdvance()

void ripple::LedgerMaster::tryAdvance ( )

Definition at line 1459 of file LedgerMaster.cpp.

◆ newPathRequest()

bool ripple::LedgerMaster::newPathRequest ( )

Definition at line 1595 of file LedgerMaster.cpp.

◆ isNewPathRequest()

bool ripple::LedgerMaster::isNewPathRequest ( )

Definition at line 1603 of file LedgerMaster.cpp.

◆ newOrderBookDB()

bool ripple::LedgerMaster::newOrderBookDB ( )

Definition at line 1614 of file LedgerMaster.cpp.

◆ fixIndex()

bool ripple::LedgerMaster::fixIndex	(	LedgerIndex	ledgerIndex,
		LedgerHash const &	ledgerHash
	)

Definition at line 530 of file LedgerMaster.cpp.

◆ clearPriorLedgers()

void ripple::LedgerMaster::clearPriorLedgers ( LedgerIndex seq )

Definition at line 1887 of file LedgerMaster.cpp.

◆ clearLedgerCachePrior()

void ripple::LedgerMaster::clearLedgerCachePrior ( LedgerIndex seq )

Definition at line 1895 of file LedgerMaster.cpp.

◆ takeReplay()

void ripple::LedgerMaster::takeReplay ( std::unique_ptr< LedgerReplay > replay )

Definition at line 1901 of file LedgerMaster.cpp.

◆ releaseReplay()

std::unique_ptr< LedgerReplay > ripple::LedgerMaster::releaseReplay ( )

Definition at line 1907 of file LedgerMaster.cpp.

◆ gotFetchPack()

void ripple::LedgerMaster::gotFetchPack	(	bool	progress,
		std::uint32_t	seq
	)

Definition at line 2159 of file LedgerMaster.cpp.

◆ addFetchPack()

void ripple::LedgerMaster::addFetchPack	(	uint256 const &	hash,
		std::shared_ptr< Blob >	data
	)

Definition at line 2140 of file LedgerMaster.cpp.

◆ getFetchPack() [1/2]

std::optional< Blob > ripple::LedgerMaster::getFetchPack ( uint256 const & nodeHash )

overridevirtual

Retrieves partial ledger data of the coresponding hash from peers.

`

Parameters

nodeHash The 256-bit hash of the data to fetch.

Returns: std::nullopt if the hash isn't cached, otherwise, the hash associated data.

Implements ripple::AbstractFetchPackContainer.

Definition at line 2146 of file LedgerMaster.cpp.

◆ makeFetchPack()

void ripple::LedgerMaster::makeFetchPack	(	std::weak_ptr< Peer > const &	wPeer,
		std::shared_ptr< protocol::TMGetObjectByHash > const &	request,
		uint256	haveLedgerHash,
		UptimeClock::time_point	uptime
	)

Definition at line 2229 of file LedgerMaster.cpp.

◆ getFetchPackCacheSize()

std::size_t ripple::LedgerMaster::getFetchPackCacheSize ( ) const

Definition at line 2360 of file LedgerMaster.cpp.

◆ haveValidated()

bool ripple::LedgerMaster::haveValidated ( )

Whether we have ever fully validated a ledger.

Definition at line 286 of file LedgerMaster.h.

◆ minSqlSeq()

std::optional< LedgerIndex > ripple::LedgerMaster::minSqlSeq ( )

Definition at line 2367 of file LedgerMaster.cpp.

◆ setValidLedger()

void ripple::LedgerMaster::setValidLedger ( std::shared_ptr< Ledger const > const & l )

private

Definition at line 336 of file LedgerMaster.cpp.

◆ setPubLedger()

void ripple::LedgerMaster::setPubLedger ( std::shared_ptr< Ledger const > const & l )

private

Definition at line 417 of file LedgerMaster.cpp.

◆ tryFill()

void ripple::LedgerMaster::tryFill ( std::shared_ptr< Ledger const > ledger )

private

Definition at line 711 of file LedgerMaster.cpp.

◆ getFetchPack() [2/2]

void ripple::LedgerMaster::getFetchPack	(	LedgerIndex	missing,
		InboundLedger::Reason	reason
	)

private

Request a fetch pack to get to the specified ledger.

Definition at line 783 of file LedgerMaster.cpp.

◆ getLedgerHashForHistory()

std::optional< LedgerHash > ripple::LedgerMaster::getLedgerHashForHistory	(	LedgerIndex	index,
		InboundLedger::Reason	reason
	)

private

Definition at line 1291 of file LedgerMaster.cpp.

◆ getNeededValidations()

std::size_t ripple::LedgerMaster::getNeededValidations ( )

private

Determines how many validations are needed to fully validate a ledger.

Returns: Number of validations needed

Definition at line 1036 of file LedgerMaster.cpp.

◆ fetchForHistory()

void ripple::LedgerMaster::fetchForHistory	(	std::uint32_t	missing,
		bool &	progress,
		InboundLedger::Reason	reason,
		std::unique_lock< std::recursive_mutex > &	sl
	)

private

Definition at line 1913 of file LedgerMaster.cpp.

◆ doAdvance()

void ripple::LedgerMaster::doAdvance ( std::unique_lock< std::recursive_mutex > & sl )

private

Definition at line 2039 of file LedgerMaster.cpp.

◆ findNewLedgersToPublish()

std::vector< std::shared_ptr< Ledger const > > ripple::LedgerMaster::findNewLedgersToPublish ( std::unique_lock< std::recursive_mutex > & sl )

private

Definition at line 1314 of file LedgerMaster.cpp.

◆ updatePaths()

void ripple::LedgerMaster::updatePaths ( )

private

Definition at line 1491 of file LedgerMaster.cpp.

◆ newPFWork()

bool ripple::LedgerMaster::newPFWork	(	const char *	name,
		std::unique_lock< std::recursive_mutex > &
	)

private

A thread needs to be dispatched to handle pathfinding work of some kind.

Definition at line 1625 of file LedgerMaster.cpp.

◆ collect_metrics()

void ripple::LedgerMaster::collect_metrics ( )

private

Definition at line 435 of file LedgerMaster.h.

Member Data Documentation

◆ app_

Application& ripple::LedgerMaster::app_

private

Definition at line 334 of file LedgerMaster.h.

◆ m_journal

beast::Journal ripple::LedgerMaster::m_journal

private

Definition at line 335 of file LedgerMaster.h.

◆ m_mutex

std::recursive_mutex ripple::LedgerMaster::m_mutex

mutableprivate

Definition at line 337 of file LedgerMaster.h.

◆ mClosedLedger

LedgerHolder ripple::LedgerMaster::mClosedLedger

private

Definition at line 340 of file LedgerMaster.h.

◆ mValidLedger

LedgerHolder ripple::LedgerMaster::mValidLedger

private

Definition at line 343 of file LedgerMaster.h.

◆ mPubLedger

std::shared_ptr<Ledger const> ripple::LedgerMaster::mPubLedger

private

Definition at line 346 of file LedgerMaster.h.

◆ mPathLedger

std::shared_ptr<Ledger const> ripple::LedgerMaster::mPathLedger

private

Definition at line 349 of file LedgerMaster.h.

◆ mHistLedger

std::shared_ptr<Ledger const> ripple::LedgerMaster::mHistLedger

private

Definition at line 352 of file LedgerMaster.h.

◆ mShardLedger

std::shared_ptr<Ledger const> ripple::LedgerMaster::mShardLedger

private

Definition at line 355 of file LedgerMaster.h.

◆ mLastValidLedger

std::pair<uint256, LedgerIndex> ripple::LedgerMaster::mLastValidLedger {uint256(), 0}

private

Definition at line 358 of file LedgerMaster.h.

◆ mLedgerHistory

LedgerHistory ripple::LedgerMaster::mLedgerHistory

private

Definition at line 360 of file LedgerMaster.h.

◆ mHeldTransactions

CanonicalTXSet ripple::LedgerMaster::mHeldTransactions {uint256()}

private

Definition at line 362 of file LedgerMaster.h.

◆ replayData

std::unique_ptr<LedgerReplay> ripple::LedgerMaster::replayData

private

Definition at line 365 of file LedgerMaster.h.

◆ mCompleteLock

std::recursive_mutex ripple::LedgerMaster::mCompleteLock

private

Definition at line 367 of file LedgerMaster.h.

◆ mCompleteLedgers

RangeSet<std::uint32_t> ripple::LedgerMaster::mCompleteLedgers

private

Definition at line 368 of file LedgerMaster.h.

◆ mAdvanceThread

bool ripple::LedgerMaster::mAdvanceThread {false}

private

Definition at line 371 of file LedgerMaster.h.

◆ mAdvanceWork

bool ripple::LedgerMaster::mAdvanceWork {false}

private

Definition at line 374 of file LedgerMaster.h.

◆ mFillInProgress

int ripple::LedgerMaster::mFillInProgress {0}

private

Definition at line 375 of file LedgerMaster.h.

◆ mPathFindThread

int ripple::LedgerMaster::mPathFindThread {0}

private

Definition at line 377 of file LedgerMaster.h.

◆ mPathFindNewRequest

bool ripple::LedgerMaster::mPathFindNewRequest {false}

private

Definition at line 378 of file LedgerMaster.h.

◆ mGotFetchPackThread

std::atomic_flag ripple::LedgerMaster::mGotFetchPackThread

private

Initial value:

=

ATOMIC_FLAG_INIT

Definition at line 380 of file LedgerMaster.h.

◆ mPubLedgerClose

std::atomic<std::uint32_t> ripple::LedgerMaster::mPubLedgerClose {0}

private

Definition at line 383 of file LedgerMaster.h.

◆ mPubLedgerSeq

std::atomic<LedgerIndex> ripple::LedgerMaster::mPubLedgerSeq {0}

private

Definition at line 384 of file LedgerMaster.h.

◆ mValidLedgerSign

std::atomic<std::uint32_t> ripple::LedgerMaster::mValidLedgerSign {0}

private

Definition at line 385 of file LedgerMaster.h.

◆ mValidLedgerSeq

std::atomic<LedgerIndex> ripple::LedgerMaster::mValidLedgerSeq {0}

private

Definition at line 386 of file LedgerMaster.h.

◆ mBuildingLedgerSeq

std::atomic<LedgerIndex> ripple::LedgerMaster::mBuildingLedgerSeq {0}

private

Definition at line 387 of file LedgerMaster.h.

◆ standalone_

const bool ripple::LedgerMaster::standalone_

private

Definition at line 390 of file LedgerMaster.h.

◆ fetch_depth_

const std::uint32_t ripple::LedgerMaster::fetch_depth_

private

Definition at line 393 of file LedgerMaster.h.

◆ ledger_history_

const std::uint32_t ripple::LedgerMaster::ledger_history_

private

Definition at line 396 of file LedgerMaster.h.

◆ ledger_fetch_size_

const std::uint32_t ripple::LedgerMaster::ledger_fetch_size_

private

Definition at line 398 of file LedgerMaster.h.

◆ fetch_packs_

TaggedCache<uint256, Blob> ripple::LedgerMaster::fetch_packs_

private

Definition at line 400 of file LedgerMaster.h.

◆ fetch_seq_

std::uint32_t ripple::LedgerMaster::fetch_seq_ {0}

private

Definition at line 402 of file LedgerMaster.h.

◆ max_ledger_difference_

const LedgerIndex ripple::LedgerMaster::max_ledger_difference_ {1000000}

private

Definition at line 406 of file LedgerMaster.h.

◆ upgradeWarningPrevTime_

TimeKeeper::time_point ripple::LedgerMaster::upgradeWarningPrevTime_ {}

private

Definition at line 409 of file LedgerMaster.h.

◆ m_stats

Stats ripple::LedgerMaster::m_stats

private

Definition at line 431 of file LedgerMaster.h.

Classes

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ LedgerMaster()

◆ ~LedgerMaster()

Member Function Documentation

◆ getCurrentLedgerIndex()

◆ getValidLedgerIndex()

◆ isCompatible()

◆ peekMutex()

◆ getCurrentLedger()

◆ getClosedLedger()

◆ getValidatedLedger()

◆ getValidatedRules()

◆ getPublishedLedger()

◆ getPublishedLedgerAge()

◆ getValidatedLedgerAge()

◆ isCaughtUp()

◆ getEarliestFetch()

◆ storeLedger()

◆ setFullLedger()

◆ canBeCurrent()

◆ switchLCL()

◆ failedSave()

◆ getCompleteLedgers()

◆ applyHeldTransactions()

◆ popAcctTransaction()

◆ getHashBySeq()

◆ walkHashBySeq() [1/2]

◆ walkHashBySeq() [2/2]

◆ getLedgerBySeq()

◆ getLedgerByHash()

◆ setLedgerRangePresent()

◆ getCloseTimeBySeq()

◆ getCloseTimeByHash()

◆ addHeldTransaction()

◆ fixMismatch()

◆ haveLedger()

◆ clearLedger()

◆ getValidatedRange()

◆ getFullValidatedRange()

◆ sweep()

◆ getCacheHitRate()

◆ checkAccept() [1/2]

◆ checkAccept() [2/2]

◆ consensusBuilt()

◆ setBuildingLedger()

◆ tryAdvance()

◆ newPathRequest()

◆ isNewPathRequest()

◆ newOrderBookDB()

◆ fixIndex()

◆ clearPriorLedgers()

◆ clearLedgerCachePrior()

◆ takeReplay()

◆ releaseReplay()

◆ gotFetchPack()

◆ addFetchPack()

◆ getFetchPack() [1/2]

◆ makeFetchPack()

◆ getFetchPackCacheSize()

◆ haveValidated()

◆ minSqlSeq()

◆ setValidLedger()

◆ setPubLedger()

◆ tryFill()

◆ getFetchPack() [2/2]

◆ getLedgerHashForHistory()

◆ getNeededValidations()

◆ fetchForHistory()

◆ doAdvance()

◆ findNewLedgersToPublish()

◆ updatePaths()

◆ newPFWork()

◆ collect_metrics()

Member Data Documentation

◆ app_
