ripple::ledger_trie_detail::Node< Ledger > Struct Template Reference

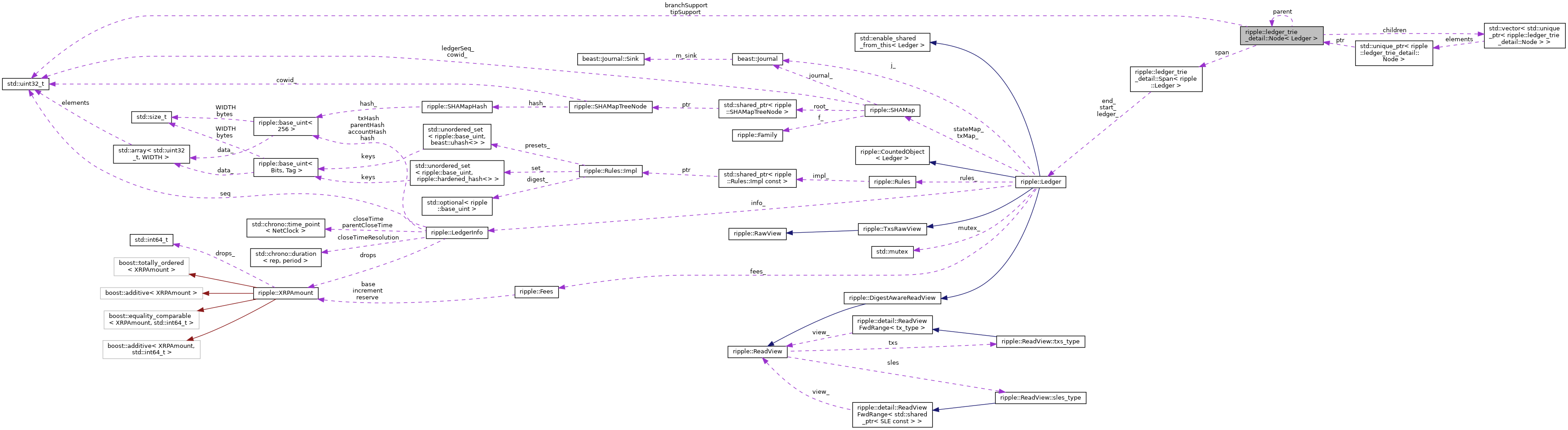

Collaboration diagram for ripple::ledger_trie_detail::Node< Ledger >:

Public Member Functions
	Node ()=default
	Node (Ledger const &l)
	Node (Span< Ledger > s)
void	erase (Node const *child)
	Remove the given node from this Node's children. More...
Json::Value	getJson () const

Public Attributes
Span< Ledger >	span
std::uint32_t	tipSupport = 0
std::uint32_t	branchSupport = 0
std::vector< std::unique_ptr< Node > >	children
Node *	parent = nullptr

Friends
std::ostream &	operator<< (std::ostream &o, Node const &s)

Detailed Description

template<class Ledger>
struct ripple::ledger_trie_detail::Node< Ledger >

Definition at line 198 of file LedgerTrie.h.

Constructor & Destructor Documentation

Node() [1/3]

template<class Ledger >

ripple::ledger_trie_detail::Node< Ledger >::Node ( )

default

Node() [2/3]

template<class Ledger >

ripple::ledger_trie_detail::Node< Ledger >::Node ( Ledger const &  l )

explicit

Definition at line 202 of file LedgerTrie.h.

Node() [3/3]

template<class Ledger >

ripple::ledger_trie_detail::Node< Ledger >::Node ( Span< Ledger >  s )

explicit

Definition at line 206 of file LedgerTrie.h.

Member Function Documentation

erase()

template<class Ledger >

void ripple::ledger_trie_detail::Node< Ledger >::erase

(

Node< Ledger > const *

child

)

Remove the given node from this Node's children.

Parameters

child

The address of the child node to remove

Note

The child must be a member of the vector. The passed pointer will be dangling as a result of this call

Definition at line 224 of file LedgerTrie.h.

getJson()

template<class Ledger >

Json::Value ripple::ledger_trie_detail::Node< Ledger >::getJson

(

)

const

Definition at line 245 of file LedgerTrie.h.

Friends And Related Function Documentation

operator<<

template<class Ledger >

std::ostream& operator<< ( std::ostream &  o, Node< Ledger > const &  s  )

friend

Definition at line 238 of file LedgerTrie.h.

Member Data Documentation

span

template<class Ledger >

Span<Ledger> ripple::ledger_trie_detail::Node< Ledger >::span

Definition at line 210 of file LedgerTrie.h.

tipSupport

template<class Ledger >

std::uint32_t ripple::ledger_trie_detail::Node< Ledger >::tipSupport = 0

Definition at line 211 of file LedgerTrie.h.

branchSupport

template<class Ledger >

std::uint32_t ripple::ledger_trie_detail::Node< Ledger >::branchSupport = 0

Definition at line 212 of file LedgerTrie.h.

children

template<class Ledger >

std::vector<std::unique_ptr<Node> > ripple::ledger_trie_detail::Node< Ledger >::children

Definition at line 214 of file LedgerTrie.h.

parent

template<class Ledger >

Node* ripple::ledger_trie_detail::Node< Ledger >::parent = nullptr

Definition at line 215 of file LedgerTrie.h.
