A collection of historical shards. More...

Inheritance diagram for ripple::NodeStore::DatabaseShard:

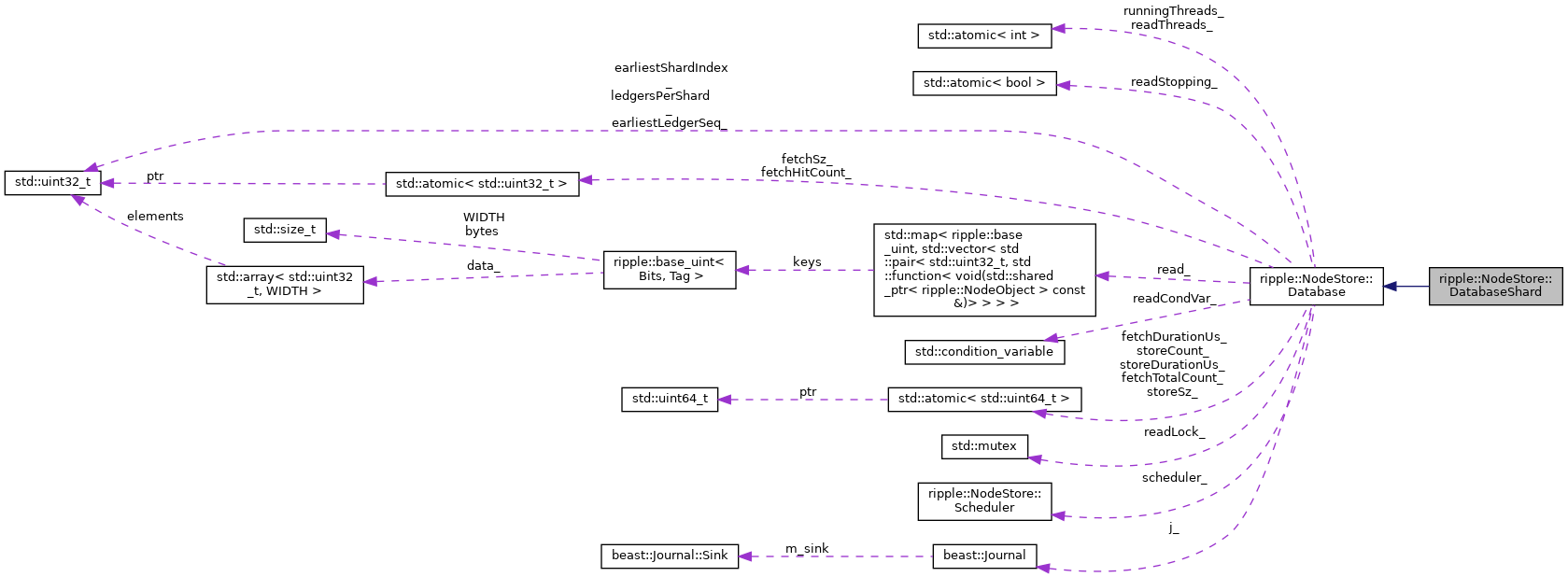

Collaboration diagram for ripple::NodeStore::DatabaseShard:

[legend]

Public Member Functions
	DatabaseShard (Scheduler &scheduler, int readThreads, Section const &config, beast::Journal journal)
	Construct a shard store. More...

virtual bool	init ()=0
	Initialize the database. More...

virtual std::optional< std::uint32_t >	prepareLedger (std::uint32_t validLedgerSeq)=0
	Prepare to store a new ledger in the shard being acquired. More...

virtual bool	prepareShards (std::vector< std::uint32_t > const &shardIndexes)=0
	Prepare one or more shard indexes to be imported into the database. More...

virtual void	removePreShard (std::uint32_t shardIndex)=0
	Remove a previously prepared shard index for import. More...

virtual std::string	getPreShards ()=0
	Get shard indexes being imported. More...

virtual bool	importShard (std::uint32_t shardIndex, boost::filesystem::path const &srcDir)=0
	Import a shard from the shard archive handler into the shard database. More...

virtual std::shared_ptr< Ledger >	fetchLedger (uint256 const &hash, std::uint32_t seq)=0
	Fetch a ledger from the shard store. More...

virtual void	setStored (std::shared_ptr< Ledger const > const &ledger)=0
	Notifies the database that the given ledger has been fully acquired and stored. More...

virtual bool	callForLedgerSQLByLedgerSeq (LedgerIndex ledgerSeq, std::function< bool(soci::session &session)> const &callback)=0
	Invoke a callback on the SQLite db holding the corresponding ledger. More...

virtual bool	callForLedgerSQLByShardIndex (std::uint32_t shardIndex, std::function< bool(soci::session &session)> const &callback)=0
	Invoke a callback on the ledger SQLite db for the corresponding shard. More...

virtual bool	callForTransactionSQLByLedgerSeq (LedgerIndex ledgerSeq, std::function< bool(soci::session &session)> const &callback)=0
	Invoke a callback on the transaction SQLite db for the corresponding ledger. More...

virtual bool	callForTransactionSQLByShardIndex (std::uint32_t shardIndex, std::function< bool(soci::session &session)> const &callback)=0
	Invoke a callback on the transaction SQLite db for the corresponding shard. More...

virtual bool	iterateLedgerSQLsForward (std::optional< std::uint32_t > minShardIndex, std::function< bool(soci::session &session, std::uint32_t shardIndex)> const &callback)=0
	iterateLedgerSQLsForward Checks out ledger databases for all shards in ascending order starting from given shard index until shard with the largest index visited or callback returned false. More...

virtual bool	iterateTransactionSQLsForward (std::optional< std::uint32_t > minShardIndex, std::function< bool(soci::session &session, std::uint32_t shardIndex)> const &callback)=0
	iterateTransactionSQLsForward Checks out transaction databases for all shards in ascending order starting from given shard index until shard with the largest index visited or callback returned false. More...

virtual bool	iterateLedgerSQLsBack (std::optional< std::uint32_t > maxShardIndex, std::function< bool(soci::session &session, std::uint32_t shardIndex)> const &callback)=0
	iterateLedgerSQLsBack Checks out ledger databases for all shards in descending order starting from given shard index until shard with the smallest index visited or callback returned false. More...

virtual bool	iterateTransactionSQLsBack (std::optional< std::uint32_t > maxShardIndex, std::function< bool(soci::session &session, std::uint32_t shardIndex)> const &callback)=0
	iterateTransactionSQLsBack Checks out transaction databases for all shards in descending order starting from given shard index until shard with the smallest index visited or callback returned false. More...

virtual std::unique_ptr< ShardInfo >	getShardInfo () const =0
	Query information about shards held. More...

virtual boost::filesystem::path const &	getRootDir () const =0
	Returns the root database directory. More...

virtual Json::Value	getDatabaseImportStatus () const =0
	Returns a JSON object detailing the status of an ongoing database import if one is running, otherwise an error object. More...

virtual Json::Value	startNodeToShard ()=0
	Initiates a NodeStore to ShardStore import and returns the result in a JSON object. More...

virtual Json::Value	stopNodeToShard ()=0
	Terminates a NodeStore to ShardStore import and returns the result in a JSON object. More...

virtual std::optional< std::uint32_t >	getDatabaseImportSequence () const =0
	Returns the first ledger sequence of the shard currently being imported from the NodeStore. More...

virtual size_t	getNumTasks () const =0
	Returns the number of queued tasks. More...

virtual std::string	getName () const =0
	Retrieve the name associated with this backend. More...

virtual void	importDatabase (Database &source)=0
	Import objects from another database. More...

virtual std::int32_t	getWriteLoad () const =0
	Retrieve the estimated number of pending write operations. More...

virtual void	store (NodeObjectType type, Blob &&data, uint256 const &hash, std::uint32_t ledgerSeq)=0
	Store the object. More...

virtual bool	isSameDB (std::uint32_t s1, std::uint32_t s2)=0

virtual void	sync ()=0

std::shared_ptr< NodeObject >	fetchNodeObject (uint256 const &hash, std::uint32_t ledgerSeq=0, FetchType fetchType=FetchType::synchronous, bool duplicate=false)
	Fetch a node object. More...

virtual void	asyncFetch (uint256 const &hash, std::uint32_t ledgerSeq, std::function< void(std::shared_ptr< NodeObject > const &)> &&callback)
	Fetch an object without waiting. More...

virtual bool	storeLedger (std::shared_ptr< Ledger const > const &srcLedger)=0
	Store a ledger from a different database. More...

virtual void	sweep ()=0
	Remove expired entries from the positive and negative caches. More...

std::uint64_t	getStoreCount () const
	Gather statistics pertaining to read and write activities. More...

std::uint32_t	getFetchTotalCount () const

std::uint32_t	getFetchHitCount () const

std::uint64_t	getStoreSize () const

std::uint32_t	getFetchSize () const

void	getCountsJson (Json::Value &obj)

int	fdRequired () const
	Returns the number of file descriptors the database expects to need. More...

virtual void	stop ()

bool	isStopping () const

std::uint32_t	ledgersPerShard () const noexcept

std::uint32_t	earliestLedgerSeq () const noexcept

std::uint32_t	earliestShardIndex () const noexcept

std::uint32_t	firstLedgerSeq (std::uint32_t shardIndex) const noexcept
	Calculates the first ledger sequence for a given shard index. More...

std::uint32_t	lastLedgerSeq (std::uint32_t shardIndex) const noexcept
	Calculates the last ledger sequence for a given shard index. More...

std::uint32_t	seqToShardIndex (std::uint32_t ledgerSeq) const noexcept
	Calculates the shard index for a given ledger sequence. More...

std::uint32_t	maxLedgers (std::uint32_t shardIndex) const noexcept
	Calculates the maximum ledgers for a given shard index. More...

Protected Member Functions
bool	storeLedger (Ledger const &srcLedger, std::shared_ptr< Backend > dstBackend)

void	storeStats (std::uint64_t count, std::uint64_t sz)

void	importInternal (Backend &dstBackend, Database &srcDB)

void	updateFetchMetrics (uint64_t fetches, uint64_t hits, uint64_t duration)

Protected Attributes
const beast::Journal	j_

Scheduler &	scheduler_

int	fdRequired_ {0}

std::atomic< std::uint32_t >	fetchHitCount_ {0}

std::atomic< std::uint32_t >	fetchSz_ {0}

const std::uint32_t	ledgersPerShard_

const std::uint32_t	earliestLedgerSeq_

const std::uint32_t	earliestShardIndex_

const int	requestBundle_

Private Member Functions
virtual std::shared_ptr< NodeObject >	fetchNodeObject (uint256 const &hash, std::uint32_t ledgerSeq, FetchReport &fetchReport, bool duplicate)=0

virtual void	for_each (std::function< void(std::shared_ptr< NodeObject >)> f)=0
	Visit every object in the database This is usually called during import. More...

virtual std::optional< Backend::Counters< std::uint64_t > >	getCounters () const
	Retrieve backend read and write stats. More...

void	threadEntry ()

Private Attributes
std::atomic< std::uint64_t >	storeCount_ {0}

std::atomic< std::uint64_t >	storeSz_ {0}

std::atomic< std::uint64_t >	fetchTotalCount_ {0}

std::atomic< std::uint64_t >	fetchDurationUs_ {0}

std::atomic< std::uint64_t >	storeDurationUs_ {0}

std::mutex	readLock_

std::condition_variable	readCondVar_

std::map< uint256, std::vector< std::pair< std::uint32_t, std::function< void(std::shared_ptr< NodeObject > const &)> > > >	read_

std::atomic< bool >	readStopping_ = false

std::atomic< int >	readThreads_ = 0

std::atomic< int >	runningThreads_ = 0

Detailed Description

A collection of historical shards.

Definition at line 37 of file DatabaseShard.h.

Constructor & Destructor Documentation

◆ DatabaseShard()

ripple::NodeStore::DatabaseShard::DatabaseShard	(	Scheduler &	scheduler,
		int	readThreads,
		Section const &	config,
		beast::Journal	journal
	)

Construct a shard store.

Parameters

scheduler	The scheduler to use for performing asynchronous tasks
readThreads	The number of asynchronous read threads to create
config	The shard configuration section for the database
journal	Destination for logging output

Definition at line 47 of file DatabaseShard.h.

Member Function Documentation

◆ init()

virtual bool ripple::NodeStore::DatabaseShard::init ( )

pure virtual

Initialize the database.

Returns: true if the database initialized without error

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ prepareLedger()

virtual std::optional<std::uint32_t> ripple::NodeStore::DatabaseShard::prepareLedger ( std::uint32_t validLedgerSeq )

pure virtual

Prepare to store a new ledger in the shard being acquired.

Parameters

validLedgerSeq The sequence of the maximum valid ledgers

Returns: If a ledger should be fetched and stored, then returns the ledger sequence of the ledger to request. Otherwise returns std::nullopt. Some reasons this may return std::nullopt are: all shards are stored and full, max allowed disk space would be exceeded, or a ledger was recently requested and not enough time has passed between requests. @implNote adds a new writable shard if necessary

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ prepareShards()

virtual bool ripple::NodeStore::DatabaseShard::prepareShards ( std::vector< std::uint32_t > const & shardIndexes )

pure virtual

Prepare one or more shard indexes to be imported into the database.

Parameters

shardIndexes Shard indexes to be prepared for import

Returns: true if all shard indexes successfully prepared for import

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ removePreShard()

virtual void ripple::NodeStore::DatabaseShard::removePreShard ( std::uint32_t shardIndex )

pure virtual

Remove a previously prepared shard index for import.

Parameters

shardIndex Shard index to be removed from import

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ getPreShards()

virtual std::string ripple::NodeStore::DatabaseShard::getPreShards ( )

pure virtual

Get shard indexes being imported.

Returns: a string representing the shards prepared for import

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ importShard()

virtual bool ripple::NodeStore::DatabaseShard::importShard	(	std::uint32_t	shardIndex,
		boost::filesystem::path const &	srcDir
	)

pure virtual

Import a shard from the shard archive handler into the shard database.

This differs from 'importDatabase' which imports the contents of the NodeStore

Parameters

shardIndex	Shard index to import
srcDir	The directory to import from

Returns: true If the shard was successfully imported @implNote if successful, srcDir is moved to the database directory

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ fetchLedger()

virtual std::shared_ptr<Ledger> ripple::NodeStore::DatabaseShard::fetchLedger	(	uint256 const &	hash,
		std::uint32_t	seq
	)

pure virtual

Fetch a ledger from the shard store.

Parameters

hash	The key of the ledger to retrieve
seq	The sequence of the ledger

Returns: The ledger if found, nullptr otherwise

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ setStored()

virtual void ripple::NodeStore::DatabaseShard::setStored ( std::shared_ptr< Ledger const > const & ledger )

pure virtual

Notifies the database that the given ledger has been fully acquired and stored.

Parameters

ledger The stored ledger to be marked as complete

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ callForLedgerSQLByLedgerSeq()

virtual bool ripple::NodeStore::DatabaseShard::callForLedgerSQLByLedgerSeq	(	LedgerIndex	ledgerSeq,
		std::function< bool(soci::session &session)> const &	callback
	)

pure virtual

Invoke a callback on the SQLite db holding the corresponding ledger.

Returns: Value returned by callback function.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ callForLedgerSQLByShardIndex()

virtual bool ripple::NodeStore::DatabaseShard::callForLedgerSQLByShardIndex	(	std::uint32_t	shardIndex,
		std::function< bool(soci::session &session)> const &	callback
	)

pure virtual

Invoke a callback on the ledger SQLite db for the corresponding shard.

Returns: Value returned by callback function.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ callForTransactionSQLByLedgerSeq()

virtual bool ripple::NodeStore::DatabaseShard::callForTransactionSQLByLedgerSeq	(	LedgerIndex	ledgerSeq,
		std::function< bool(soci::session &session)> const &	callback
	)

pure virtual

Invoke a callback on the transaction SQLite db for the corresponding ledger.

Returns: Value returned by callback function.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ callForTransactionSQLByShardIndex()

virtual bool ripple::NodeStore::DatabaseShard::callForTransactionSQLByShardIndex	(	std::uint32_t	shardIndex,
		std::function< bool(soci::session &session)> const &	callback
	)

pure virtual

Invoke a callback on the transaction SQLite db for the corresponding shard.

Returns: Value returned by callback function.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ iterateLedgerSQLsForward()

virtual bool ripple::NodeStore::DatabaseShard::iterateLedgerSQLsForward	(	std::optional< std::uint32_t >	minShardIndex,
		std::function< bool(soci::session &session, std::uint32_t shardIndex)> const &	callback
	)

pure virtual

iterateLedgerSQLsForward Checks out ledger databases for all shards in ascending order starting from given shard index until shard with the largest index visited or callback returned false.

For each visited shard calls given callback function passing shard index and session with the database to it.

Parameters

minShardIndex	Start shard index to visit or none if all shards should be visited.
callback	Callback function to call.

Returns: True if each callback function returns true, false otherwise.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ iterateTransactionSQLsForward()

virtual bool ripple::NodeStore::DatabaseShard::iterateTransactionSQLsForward	(	std::optional< std::uint32_t >	minShardIndex,
		std::function< bool(soci::session &session, std::uint32_t shardIndex)> const &	callback
	)

pure virtual

iterateTransactionSQLsForward Checks out transaction databases for all shards in ascending order starting from given shard index until shard with the largest index visited or callback returned false.

For each visited shard calls given callback function passing shard index and session with the database to it.

Parameters

minShardIndex	Start shard index to visit or none if all shards should be visited.
callback	Callback function to call.

Returns: True if each callback function returns true, false otherwise.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ iterateLedgerSQLsBack()

virtual bool ripple::NodeStore::DatabaseShard::iterateLedgerSQLsBack	(	std::optional< std::uint32_t >	maxShardIndex,
		std::function< bool(soci::session &session, std::uint32_t shardIndex)> const &	callback
	)

pure virtual

iterateLedgerSQLsBack Checks out ledger databases for all shards in descending order starting from given shard index until shard with the smallest index visited or callback returned false.

For each visited shard calls given callback function passing shard index and session with the database to it.

Parameters

maxShardIndex	Start shard index to visit or none if all shards should be visited.
callback	Callback function to call.

Returns: True if each callback function returns true, false otherwise.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ iterateTransactionSQLsBack()

virtual bool ripple::NodeStore::DatabaseShard::iterateTransactionSQLsBack	(	std::optional< std::uint32_t >	maxShardIndex,
		std::function< bool(soci::session &session, std::uint32_t shardIndex)> const &	callback
	)

pure virtual

iterateTransactionSQLsBack Checks out transaction databases for all shards in descending order starting from given shard index until shard with the smallest index visited or callback returned false.

For each visited shard calls given callback function passing shard index and session with the database to it.

Parameters

maxShardIndex	Start shard index to visit or none if all shards should be visited.
callback	Callback function to call.

Returns: True if each callback function returns true, false otherwise.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ getShardInfo()

virtual std::unique_ptr<ShardInfo> ripple::NodeStore::DatabaseShard::getShardInfo ( ) const

pure virtual

Query information about shards held.

Returns: Information about shards held by this node

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ getRootDir()

virtual boost::filesystem::path const& ripple::NodeStore::DatabaseShard::getRootDir ( ) const

pure virtual

Returns the root database directory.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ getDatabaseImportStatus()

virtual Json::Value ripple::NodeStore::DatabaseShard::getDatabaseImportStatus ( ) const

pure virtual

Returns a JSON object detailing the status of an ongoing database import if one is running, otherwise an error object.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ startNodeToShard()

virtual Json::Value ripple::NodeStore::DatabaseShard::startNodeToShard ( )

pure virtual

Initiates a NodeStore to ShardStore import and returns the result in a JSON object.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ stopNodeToShard()

virtual Json::Value ripple::NodeStore::DatabaseShard::stopNodeToShard ( )

pure virtual

Terminates a NodeStore to ShardStore import and returns the result in a JSON object.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ getDatabaseImportSequence()

virtual std::optional<std::uint32_t> ripple::NodeStore::DatabaseShard::getDatabaseImportSequence ( ) const

pure virtual

Returns the first ledger sequence of the shard currently being imported from the NodeStore.

Returns: The ledger sequence or an unseated value if no import is running

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ getNumTasks()

virtual size_t ripple::NodeStore::DatabaseShard::getNumTasks ( ) const

pure virtual

Returns the number of queued tasks.

Implemented in ripple::NodeStore::DatabaseShardImp.

◆ getName()

virtual std::string ripple::NodeStore::Database::getName ( ) const

pure virtualinherited

Retrieve the name associated with this backend.

This is used for diagnostics and may not reflect the actual path or paths used by the underlying backend.

Implemented in ripple::NodeStore::DatabaseShardImp, ripple::NodeStore::DatabaseNodeImp, and ripple::NodeStore::DatabaseRotatingImp.

◆ importDatabase()

virtual void ripple::NodeStore::Database::importDatabase ( Database & source )

pure virtualinherited

Import objects from another database.

Implemented in ripple::NodeStore::DatabaseShardImp, ripple::NodeStore::DatabaseNodeImp, and ripple::NodeStore::DatabaseRotatingImp.

◆ getWriteLoad()

virtual std::int32_t ripple::NodeStore::Database::getWriteLoad ( ) const

pure virtualinherited

Retrieve the estimated number of pending write operations.

This is used for diagnostics.

Implemented in ripple::NodeStore::DatabaseShardImp, ripple::NodeStore::DatabaseNodeImp, and ripple::NodeStore::DatabaseRotatingImp.

◆ store()

virtual void ripple::NodeStore::Database::store	(	NodeObjectType	type,
		Blob &&	data,
		uint256 const &	hash,
		std::uint32_t	ledgerSeq
	)

pure virtualinherited

Store the object.

The caller's Blob parameter is overwritten.

Parameters

type	The type of object.
data	The payload of the object. The caller's variable is overwritten.
hash	The 256-bit hash of the payload data.
ledgerSeq	The sequence of the ledger the object belongs to.

Returns: true if the object was stored?

Implemented in ripple::NodeStore::DatabaseNodeImp, ripple::NodeStore::DatabaseRotatingImp, and ripple::NodeStore::DatabaseShardImp.

◆ isSameDB()

virtual bool ripple::NodeStore::Database::isSameDB	(	std::uint32_t	s1,
		std::uint32_t	s2
	)

pure virtualinherited

Implemented in ripple::NodeStore::DatabaseNodeImp, ripple::NodeStore::DatabaseRotatingImp, and ripple::NodeStore::DatabaseShardImp.

◆ sync()

virtual void ripple::NodeStore::Database::sync ( )

pure virtualinherited

Implemented in ripple::NodeStore::DatabaseShardImp, ripple::NodeStore::DatabaseNodeImp, and ripple::NodeStore::DatabaseRotatingImp.

◆ fetchNodeObject() [1/2]

std::shared_ptr< NodeObject > ripple::NodeStore::Database::fetchNodeObject	(	uint256 const &	hash,
		std::uint32_t	ledgerSeq = `0`,
		FetchType	fetchType = `FetchType::synchronous`,
		bool	duplicate = `false`
	)

inherited

Fetch a node object.

If the object is known to be not in the database, isn't found in the database during the fetch, or failed to load correctly during the fetch, nullptr is returned.

Note: This can be called concurrently.

Parameters

hash	The key of the object to retrieve.
ledgerSeq	The sequence of the ledger where the object is stored.
fetchType	the type of fetch, synchronous or asynchronous.

Returns: The object, or nullptr if it couldn't be retrieved.

Definition at line 252 of file Database.cpp.

◆ fetchNodeObject() [2/2]

virtual std::shared_ptr<NodeObject> ripple::NodeStore::Database::fetchNodeObject	(	uint256 const &	hash,
		std::uint32_t	ledgerSeq,
		FetchReport &	fetchReport,
		bool	duplicate
	)

privatepure virtualinherited

Implemented in ripple::NodeStore::DatabaseNodeImp, ripple::NodeStore::DatabaseRotatingImp, and ripple::NodeStore::DatabaseShardImp.

◆ asyncFetch()

void ripple::NodeStore::Database::asyncFetch	(	uint256 const &	hash,
		std::uint32_t	ledgerSeq,
		std::function< void(std::shared_ptr< NodeObject > const &)> &&	callback
	)

virtualinherited

Fetch an object without waiting.

If I/O is required to determine whether or not the object is present, false is returned. Otherwise, true is returned and object is set to refer to the object, or nullptr if the object is not present. If I/O is required, the I/O is scheduled and true is returned

Note: This can be called concurrently.

Parameters

hash	The key of the object to retrieve
ledgerSeq	The sequence of the ledger where the object is stored, used by the shard store.
callback	Callback function when read completes

Reimplemented in ripple::NodeStore::DatabaseNodeImp.

Definition at line 198 of file Database.cpp.

◆ storeLedger() [1/2]

virtual bool ripple::NodeStore::Database::storeLedger ( std::shared_ptr< Ledger const > const & srcLedger )

pure virtualinherited

Store a ledger from a different database.

Parameters

srcLedger The ledger to store.

Returns: true if the operation was successful

Implemented in ripple::NodeStore::DatabaseNodeImp, ripple::NodeStore::DatabaseShardImp, and ripple::NodeStore::DatabaseRotatingImp.

◆ storeLedger() [2/2]

bool ripple::NodeStore::Database::storeLedger	(	Ledger const &	srcLedger,
		std::shared_ptr< Backend >	dstBackend
	)

protectedinherited

Definition at line 279 of file Database.cpp.

◆ sweep()

virtual void ripple::NodeStore::Database::sweep ( )

pure virtualinherited

Remove expired entries from the positive and negative caches.

Implemented in ripple::NodeStore::DatabaseNodeImp, ripple::NodeStore::DatabaseShardImp, and ripple::NodeStore::DatabaseRotatingImp.

◆ getStoreCount()

std::uint64_t ripple::NodeStore::Database::getStoreCount ( ) const

inherited

Gather statistics pertaining to read and write activities.

Parameters

obj	Json object reference into which to place counters.

Definition at line 182 of file Database.h.

◆ getFetchTotalCount()

std::uint32_t ripple::NodeStore::Database::getFetchTotalCount ( ) const

inherited

Definition at line 188 of file Database.h.

◆ getFetchHitCount()

std::uint32_t ripple::NodeStore::Database::getFetchHitCount ( ) const

inherited

Definition at line 194 of file Database.h.

◆ getStoreSize()

std::uint64_t ripple::NodeStore::Database::getStoreSize ( ) const

inherited

Definition at line 200 of file Database.h.

◆ getFetchSize()

std::uint32_t ripple::NodeStore::Database::getFetchSize ( ) const

inherited

Definition at line 206 of file Database.h.

◆ getCountsJson()

void ripple::NodeStore::Database::getCountsJson ( Json::Value & obj )

inherited

Definition at line 378 of file Database.cpp.

◆ fdRequired()

int ripple::NodeStore::Database::fdRequired ( ) const

inherited

Returns the number of file descriptors the database expects to need.

Definition at line 216 of file Database.h.

◆ stop()

void ripple::NodeStore::Database::stop ( )

virtualinherited

Reimplemented in ripple::NodeStore::DatabaseShardImp.

Definition at line 165 of file Database.cpp.

◆ isStopping()

bool ripple::NodeStore::Database::isStopping ( ) const

inherited

Definition at line 146 of file Database.cpp.

◆ ledgersPerShard()

std::uint32_t ripple::NodeStore::Database::ledgersPerShard ( ) const

noexceptinherited

Returns: The maximum number of ledgers stored in a shard

Definition at line 230 of file Database.h.

◆ earliestLedgerSeq()

std::uint32_t ripple::NodeStore::Database::earliestLedgerSeq ( ) const

noexceptinherited

Returns: The earliest ledger sequence allowed

Definition at line 238 of file Database.h.

◆ earliestShardIndex()

std::uint32_t ripple::NodeStore::Database::earliestShardIndex ( ) const

noexceptinherited

Returns: The earliest shard index

Definition at line 246 of file Database.h.

◆ firstLedgerSeq()

std::uint32_t ripple::NodeStore::Database::firstLedgerSeq ( std::uint32_t shardIndex ) const

noexceptinherited

Calculates the first ledger sequence for a given shard index.

Parameters

shardIndex The shard index considered

Returns: The first ledger sequence pertaining to the shard index

Definition at line 257 of file Database.h.

◆ lastLedgerSeq()

std::uint32_t ripple::NodeStore::Database::lastLedgerSeq ( std::uint32_t shardIndex ) const

noexceptinherited

Calculates the last ledger sequence for a given shard index.

Parameters

shardIndex The shard index considered

Returns: The last ledger sequence pertaining to the shard index

Definition at line 271 of file Database.h.

◆ seqToShardIndex()

std::uint32_t ripple::NodeStore::Database::seqToShardIndex ( std::uint32_t ledgerSeq ) const

noexceptinherited

Calculates the shard index for a given ledger sequence.

Parameters

ledgerSeq ledger sequence

Returns: The shard index of the ledger sequence

Definition at line 283 of file Database.h.

◆ maxLedgers()

std::uint32_t ripple::NodeStore::Database::maxLedgers ( std::uint32_t shardIndex ) const

noexceptinherited

Calculates the maximum ledgers for a given shard index.

Parameters

shardIndex The shard index considered

Returns: The maximum ledgers pertaining to the shard index

Note: The earliest shard may store less if the earliest ledger sequence truncates its beginning

Definition at line 152 of file Database.cpp.

◆ storeStats()

void ripple::NodeStore::Database::storeStats	(	std::uint64_t	count,
		std::uint64_t	sz
	)

protectedinherited

Definition at line 333 of file Database.h.

◆ importInternal()

void ripple::NodeStore::Database::importInternal	(	Backend &	dstBackend,
		Database &	srcDB
	)

protectedinherited

Definition at line 213 of file Database.cpp.

◆ updateFetchMetrics()

void ripple::NodeStore::Database::updateFetchMetrics	(	uint64_t	fetches,
		uint64_t	hits,
		uint64_t	duration
	)

protectedinherited

Definition at line 349 of file Database.h.

◆ for_each()

virtual void ripple::NodeStore::Database::for_each ( std::function< void(std::shared_ptr< NodeObject >)> f )

privatepure virtualinherited

Visit every object in the database This is usually called during import.

Note: This routine will not be called concurrently with itself or other methods.

See also: import

Implemented in ripple::NodeStore::DatabaseShardImp, ripple::NodeStore::DatabaseNodeImp, and ripple::NodeStore::DatabaseRotatingImp.

◆ getCounters()

virtual std::optional<Backend::Counters<std::uint64_t> > ripple::NodeStore::Database::getCounters ( ) const

privatevirtualinherited

Retrieve backend read and write stats.

Note: The Counters struct is specific to and only used by CassandraBackend.

Reimplemented in ripple::NodeStore::DatabaseNodeImp.

Definition at line 401 of file Database.h.

◆ threadEntry()

void ripple::NodeStore::Database::threadEntry ( )

privateinherited

Member Data Documentation

◆ j_

const beast::Journal ripple::NodeStore::Database::j_

protectedinherited

Definition at line 301 of file Database.h.

◆ scheduler_

Scheduler& ripple::NodeStore::Database::scheduler_

protectedinherited

Definition at line 302 of file Database.h.

◆ fdRequired_

int ripple::NodeStore::Database::fdRequired_ {0}

protectedinherited

Definition at line 303 of file Database.h.

◆ fetchHitCount_

std::atomic<std::uint32_t> ripple::NodeStore::Database::fetchHitCount_ {0}

protectedinherited

Definition at line 305 of file Database.h.

◆ fetchSz_

std::atomic<std::uint32_t> ripple::NodeStore::Database::fetchSz_ {0}

protectedinherited

Definition at line 306 of file Database.h.

◆ ledgersPerShard_

const std::uint32_t ripple::NodeStore::Database::ledgersPerShard_

protectedinherited

Definition at line 314 of file Database.h.

◆ earliestLedgerSeq_

const std::uint32_t ripple::NodeStore::Database::earliestLedgerSeq_

protectedinherited

Definition at line 322 of file Database.h.

◆ earliestShardIndex_

const std::uint32_t ripple::NodeStore::Database::earliestShardIndex_

protectedinherited

Definition at line 325 of file Database.h.

◆ requestBundle_

const int ripple::NodeStore::Database::requestBundle_

protectedinherited

Definition at line 330 of file Database.h.

◆ storeCount_

std::atomic<std::uint64_t> ripple::NodeStore::Database::storeCount_ {0}

privateinherited

Definition at line 357 of file Database.h.

◆ storeSz_

std::atomic<std::uint64_t> ripple::NodeStore::Database::storeSz_ {0}

privateinherited

Definition at line 358 of file Database.h.

◆ fetchTotalCount_

std::atomic<std::uint64_t> ripple::NodeStore::Database::fetchTotalCount_ {0}

privateinherited

Definition at line 359 of file Database.h.

◆ fetchDurationUs_

std::atomic<std::uint64_t> ripple::NodeStore::Database::fetchDurationUs_ {0}

privateinherited

Definition at line 360 of file Database.h.

◆ storeDurationUs_

std::atomic<std::uint64_t> ripple::NodeStore::Database::storeDurationUs_ {0}

privateinherited

Definition at line 361 of file Database.h.

◆ readLock_

std::mutex ripple::NodeStore::Database::readLock_

mutableprivateinherited

Definition at line 363 of file Database.h.

◆ readCondVar_

std::condition_variable ripple::NodeStore::Database::readCondVar_

privateinherited

Definition at line 364 of file Database.h.

◆ read_

std::map< uint256, std::vector<std::pair< std::uint32_t, std::function<void(std::shared_ptr<NodeObject> const&)> > > > ripple::NodeStore::Database::read_

privateinherited

Definition at line 372 of file Database.h.

◆ readStopping_

std::atomic<bool> ripple::NodeStore::Database::readStopping_ = false

privateinherited

Definition at line 374 of file Database.h.

◆ readThreads_

std::atomic<int> ripple::NodeStore::Database::readThreads_ = 0

privateinherited

Definition at line 375 of file Database.h.

◆ runningThreads_

std::atomic<int> ripple::NodeStore::Database::runningThreads_ = 0

privateinherited

Definition at line 376 of file Database.h.

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DatabaseShard()

Member Function Documentation

◆ init()

◆ prepareLedger()

◆ prepareShards()

◆ removePreShard()

◆ getPreShards()

◆ importShard()

◆ fetchLedger()

◆ setStored()

◆ callForLedgerSQLByLedgerSeq()

◆ callForLedgerSQLByShardIndex()

◆ callForTransactionSQLByLedgerSeq()

◆ callForTransactionSQLByShardIndex()

◆ iterateLedgerSQLsForward()

◆ iterateTransactionSQLsForward()

◆ iterateLedgerSQLsBack()

◆ iterateTransactionSQLsBack()

◆ getShardInfo()

◆ getRootDir()

◆ getDatabaseImportStatus()

◆ startNodeToShard()

◆ stopNodeToShard()

◆ getDatabaseImportSequence()

◆ getNumTasks()

◆ getName()

◆ importDatabase()

◆ getWriteLoad()

◆ store()

◆ isSameDB()

◆ sync()

◆ fetchNodeObject() [1/2]

◆ fetchNodeObject() [2/2]

◆ asyncFetch()

◆ storeLedger() [1/2]

◆ storeLedger() [2/2]

◆ sweep()

◆ getStoreCount()

◆ getFetchTotalCount()

◆ getFetchHitCount()

◆ getStoreSize()

◆ getFetchSize()

◆ getCountsJson()

◆ fdRequired()

◆ stop()

◆ isStopping()

◆ ledgersPerShard()

◆ earliestLedgerSeq()

◆ earliestShardIndex()

◆ firstLedgerSeq()

◆ lastLedgerSeq()

◆ seqToShardIndex()

◆ maxLedgers()

◆ storeStats()

◆ importInternal()

◆ updateFetchMetrics()

◆ for_each()

◆ getCounters()

◆ threadEntry()

Member Data Documentation

◆ j_

◆ scheduler_

◆ fdRequired_

◆ fetchHitCount_

◆ fetchSz_

◆ ledgersPerShard_

◆ earliestLedgerSeq_

◆ earliestShardIndex_

◆ requestBundle_

◆ storeCount_

◆ storeSz_

◆ fetchTotalCount_

◆ fetchDurationUs_
