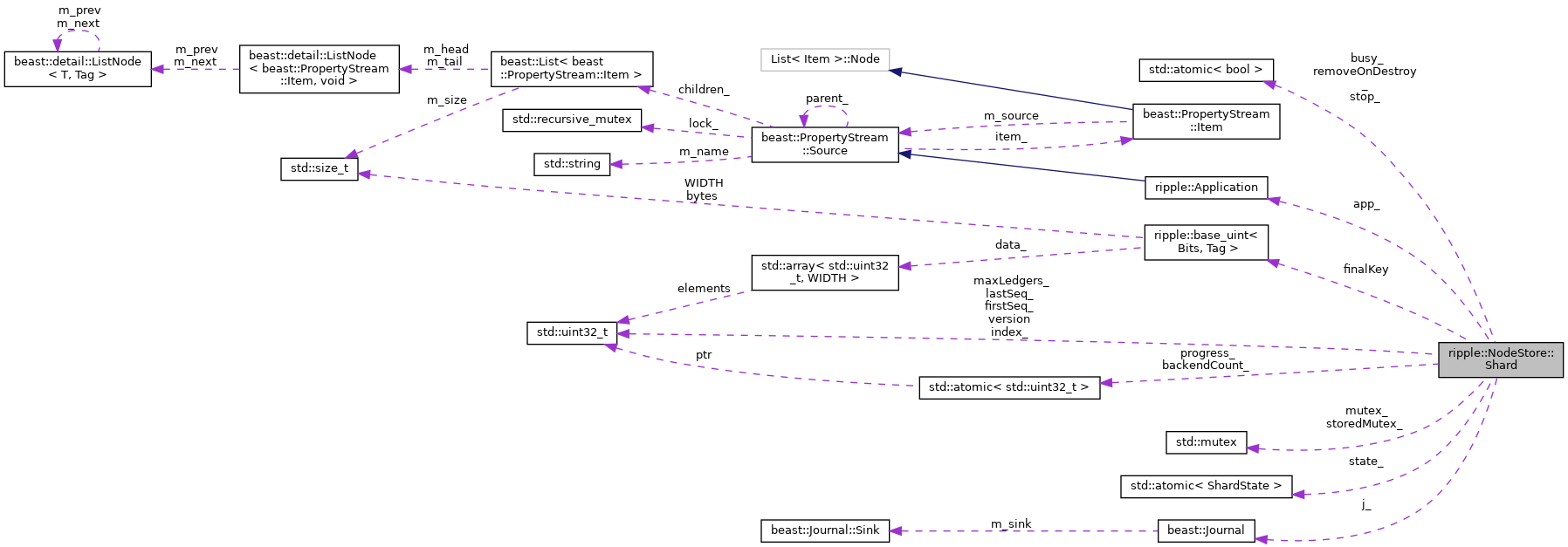

Collaboration diagram for ripple::NodeStore::Shard:

[legend]

Classes
struct	AcquireInfo

class	Count

struct	StoreLedgerResult
	Store a ledger. More...

Public Member Functions
	Shard (Shard const &)=delete
	Copy constructor (disallowed) More...

	Shard (Shard &&)=delete
	Move constructor (disallowed) More...

Shard &	operator= (Shard const &)=delete

Shard &	operator= (Shard &&)=delete

	Shard (Application &app, DatabaseShard const &db, std::uint32_t index, boost::filesystem::path const &dir, beast::Journal j)

	Shard (Application &app, DatabaseShard const &db, std::uint32_t index, beast::Journal j)

	~Shard ()

bool	init (Scheduler &scheduler, nudb::context &context)
	Initialize shard. More...

bool	isOpen () const
	Returns true if the database are open. More...

bool	tryClose ()
	Try to close databases if not in use. More...

void	stop () noexcept
	Notify shard to prepare for shutdown. More...

std::optional< std::uint32_t >	prepare ()

bool	storeNodeObject (std::shared_ptr< NodeObject > const &nodeObject)

std::shared_ptr< NodeObject >	fetchNodeObject (uint256 const &hash, FetchReport &fetchReport)

StoreLedgerResult	storeLedger (std::shared_ptr< Ledger const > const &srcLedger, std::shared_ptr< Ledger const > const &next)

bool	setLedgerStored (std::shared_ptr< Ledger const > const &ledger)

bool	containsLedger (std::uint32_t ledgerSeq) const

std::uint32_t	index () const noexcept

boost::filesystem::path const &	getDir () const noexcept

std::chrono::steady_clock::time_point	getLastUse () const

std::pair< std::uint64_t, std::uint32_t >	getFileInfo () const
	Returns a pair where the first item describes the storage space utilized and the second item is the number of file descriptors required. More...

ShardState	getState () const noexcept

std::uint32_t	getPercentProgress () const noexcept
	Returns a percent signifying how complete the current state of the shard is. More...

std::int32_t	getWriteLoad ()

bool	isLegacy () const
	Returns `true` if shard is older, without final key data. More...

bool	finalize (bool writeSQLite, std::optional< uint256 > const &referenceHash)
	Finalize shard by walking its ledgers, verifying each Merkle tree and creating a deterministic backend. More...

void	removeOnDestroy () noexcept
	Enables removal of the shard directory on destruction. More...

std::string	getStoredSeqs ()

template<typename... Args>
bool	callForLedgerSQL (std::function< bool(Args... args)> const &callback)
	Invoke a callback on the ledger SQLite db. More...

template<typename... Args>
bool	callForTransactionSQL (std::function< bool(Args... args)> const &callback)
	Invoke a callback on the transaction SQLite db. More...

Static Public Attributes
static constexpr std::uint32_t	version {2}

static const uint256	finalKey {0}

Private Member Functions
GUARDED_BY(mutex_) std GUARDED_BY(mutex_) std std::unique_ptr< Backend > backend_	GUARDED_BY (mutex_)

std::unique_ptr< DatabaseCon > lgrSQLiteDB_	GUARDED_BY (mutex_)

std::unique_ptr< DatabaseCon > txSQLiteDB_	GUARDED_BY (mutex_)

std::unique_ptr< AcquireInfo > acquireInfo_	GUARDED_BY (mutex_)

	GUARDED_BY (mutex_) bool legacy_

std::chrono::steady_clock::time_point lastAccess_	GUARDED_BY (mutex_)

bool	open (std::lock_guard< std::mutex > const &lock) REQUIRES(mutex_)

bool	initSQLite (std::lock_guard< std::mutex > const &) REQUIRES(mutex_)

bool	storeSQLite (std::shared_ptr< Ledger const > const &ledger)

void	setFileStats (std::lock_guard< std::mutex > const &) REQUIRES(mutex_)

bool	verifyLedger (std::shared_ptr< Ledger const > const &ledger, std::shared_ptr< Ledger const > const &next, std::shared_ptr< DeterministicShard > const &dShard) const

std::shared_ptr< NodeObject >	verifyFetch (uint256 const &hash) const

Shard::Count	makeBackendCount ()

template<typename... Args>
bool	callForSQL (std::function< bool(Args... args)> const &callback, LockedSociSession &&db)

bool	doCallForSQL (std::function< bool(soci::session &session)> const &callback, LockedSociSession &&db)

bool	doCallForSQL (std::function< bool(soci::session &session, std::uint32_t shardIndex)> const &callback, LockedSociSession &&db)

Private Attributes
Application &	app_

const beast::Journal	j_

std::mutex	mutex_

std::mutex	storedMutex_

const std::uint32_t	index_

const std::uint32_t	firstSeq_

const std::uint32_t	lastSeq_

const std::uint32_t	maxLedgers_

const boost::filesystem::path	dir_

std::atomic< std::uint32_t >	backendCount_ {0}

std::atomic< bool >	stop_ {false}

std::atomic< bool >	busy_ {false}

std::atomic< ShardState >	state_ {ShardState::acquire}

std::atomic< std::uint32_t >	progress_ {0}

std::atomic< bool >	removeOnDestroy_ {false}

Detailed Description

Definition at line 55 of file nodestore/impl/Shard.h.

Constructor & Destructor Documentation

◆ Shard() [1/4]

ripple::NodeStore::Shard::Shard ( Shard const & )

delete

Copy constructor (disallowed)

◆ Shard() [2/4]

ripple::NodeStore::Shard::Shard ( Shard && )

delete

Move constructor (disallowed)

◆ Shard() [3/4]

ripple::NodeStore::Shard::Shard	(	Application &	app,
		DatabaseShard const &	db,
		std::uint32_t	index,
		boost::filesystem::path const &	dir,
		beast::Journal	j
	)

Definition at line 44 of file nodestore/impl/Shard.cpp.

◆ Shard() [4/4]

ripple::NodeStore::Shard::Shard	(	Application &	app,
		DatabaseShard const &	db,
		std::uint32_t	index,
		beast::Journal	j
	)

Definition at line 35 of file nodestore/impl/Shard.cpp.

◆ ~Shard()

ripple::NodeStore::Shard::~Shard ( )

Definition at line 60 of file nodestore/impl/Shard.cpp.

Member Function Documentation

◆ operator=() [1/2]

Shard& ripple::NodeStore::Shard::operator= ( Shard const & )

delete

◆ operator=() [2/2]

Shard& ripple::NodeStore::Shard::operator= ( Shard && )

delete

◆ init()

bool ripple::NodeStore::Shard::init	(	Scheduler &	scheduler,
		nudb::context &	context
	)

Initialize shard.

Parameters

scheduler	The scheduler to use for performing asynchronous tasks.
context	The context to use for the backend.

Definition at line 95 of file nodestore/impl/Shard.cpp.

◆ isOpen()

bool ripple::NodeStore::Shard::isOpen ( ) const

Returns true if the database are open.

Definition at line 127 of file nodestore/impl/Shard.cpp.

◆ tryClose()

bool ripple::NodeStore::Shard::tryClose ( )

Try to close databases if not in use.

Returns: true if databases were closed.

Definition at line 140 of file nodestore/impl/Shard.cpp.

◆ stop()

void ripple::NodeStore::Shard::stop ( )

noexcept

Notify shard to prepare for shutdown.

Definition at line 110 of file nodestore/impl/Shard.h.

◆ prepare()

std::optional< std::uint32_t > ripple::NodeStore::Shard::prepare ( )

Definition at line 184 of file nodestore/impl/Shard.cpp.

◆ storeNodeObject()

bool ripple::NodeStore::Shard::storeNodeObject ( std::shared_ptr< NodeObject > const & nodeObject )

Definition at line 207 of file nodestore/impl/Shard.cpp.

◆ fetchNodeObject()

std::shared_ptr< NodeObject > ripple::NodeStore::Shard::fetchNodeObject	(	uint256 const &	hash,
		FetchReport &	fetchReport
	)

Definition at line 241 of file nodestore/impl/Shard.cpp.

◆ storeLedger()

Shard::StoreLedgerResult ripple::NodeStore::Shard::storeLedger	(	std::shared_ptr< Ledger const > const &	srcLedger,
		std::shared_ptr< Ledger const > const &	next
	)

Definition at line 290 of file nodestore/impl/Shard.cpp.

◆ setLedgerStored()

bool ripple::NodeStore::Shard::setLedgerStored ( std::shared_ptr< Ledger const > const & ledger )

Definition at line 416 of file nodestore/impl/Shard.cpp.

◆ containsLedger()

bool ripple::NodeStore::Shard::containsLedger ( std::uint32_t ledgerSeq ) const

Definition at line 507 of file nodestore/impl/Shard.cpp.

◆ index()

std::uint32_t ripple::NodeStore::Shard::index ( ) const

noexcept

Definition at line 149 of file nodestore/impl/Shard.h.

◆ getDir()

boost::filesystem::path const& ripple::NodeStore::Shard::getDir ( ) const

noexcept

Definition at line 155 of file nodestore/impl/Shard.h.

◆ getLastUse()

std::chrono::steady_clock::time_point ripple::NodeStore::Shard::getLastUse ( ) const

Definition at line 525 of file nodestore/impl/Shard.cpp.

◆ getFileInfo()

std::pair< std::uint64_t, std::uint32_t > ripple::NodeStore::Shard::getFileInfo ( ) const

Returns a pair where the first item describes the storage space utilized and the second item is the number of file descriptors required.

Definition at line 532 of file nodestore/impl/Shard.cpp.

◆ getState()

ShardState ripple::NodeStore::Shard::getState ( ) const

noexcept

Definition at line 170 of file nodestore/impl/Shard.h.

◆ getPercentProgress()

std::uint32_t ripple::NodeStore::Shard::getPercentProgress ( ) const

noexcept

Returns a percent signifying how complete the current state of the shard is.

Definition at line 179 of file nodestore/impl/Shard.h.

◆ getWriteLoad()

std::int32_t ripple::NodeStore::Shard::getWriteLoad ( )

Definition at line 539 of file nodestore/impl/Shard.cpp.

◆ isLegacy()

bool ripple::NodeStore::Shard::isLegacy ( ) const

Returns true if shard is older, without final key data.

Definition at line 549 of file nodestore/impl/Shard.cpp.

◆ finalize()

bool ripple::NodeStore::Shard::finalize	(	bool	writeSQLite,
		std::optional< uint256 > const &	referenceHash
	)

Finalize shard by walking its ledgers, verifying each Merkle tree and creating a deterministic backend.

Parameters

writeSQLite	If true, SQLite entries will be rewritten using verified backend data.
referenceHash	If present, this hash must match the hash of the last ledger in the shard.

Definition at line 556 of file nodestore/impl/Shard.cpp.

◆ removeOnDestroy()

void ripple::NodeStore::Shard::removeOnDestroy ( )

noexcept

Enables removal of the shard directory on destruction.

Definition at line 206 of file nodestore/impl/Shard.h.

◆ getStoredSeqs()

std::string ripple::NodeStore::Shard::getStoredSeqs ( )

Definition at line 212 of file nodestore/impl/Shard.h.

◆ callForLedgerSQL()

template<typename... Args>

bool ripple::NodeStore::Shard::callForLedgerSQL ( std::function< bool(Args... args)> const & callback )

Invoke a callback on the ledger SQLite db.

Parameters

callback Callback function to call.

Returns: Value returned by callback function.

Definition at line 228 of file nodestore/impl/Shard.h.

◆ callForTransactionSQL()

template<typename... Args>

bool ripple::NodeStore::Shard::callForTransactionSQL ( std::function< bool(Args... args)> const & callback )

Invoke a callback on the transaction SQLite db.

Parameters

callback Callback function to call.

Returns: Value returned by callback function.

Definition at line 240 of file nodestore/impl/Shard.h.

◆ GUARDED_BY() [1/6]

GUARDED_BY (mutex_) std GUARDED_BY (mutex_) std std::unique_ptr<Backend> backend_ ripple::NodeStore::Shard::GUARDED_BY ( mutex_ )

private

◆ GUARDED_BY() [2/6]

std::unique_ptr<DatabaseCon> lgrSQLiteDB_ ripple::NodeStore::Shard::GUARDED_BY ( mutex_ )

private

◆ GUARDED_BY() [3/6]

std::unique_ptr<DatabaseCon> txSQLiteDB_ ripple::NodeStore::Shard::GUARDED_BY ( mutex_ )

private

◆ GUARDED_BY() [4/6]

std::unique_ptr<AcquireInfo> acquireInfo_ ripple::NodeStore::Shard::GUARDED_BY ( mutex_ )

private

◆ GUARDED_BY() [5/6]

ripple::NodeStore::Shard::GUARDED_BY ( mutex_ )

private

Definition at line 344 of file nodestore/impl/Shard.h.

◆ GUARDED_BY() [6/6]

std::chrono::steady_clock::time_point lastAccess_ ripple::NodeStore::Shard::GUARDED_BY ( mutex_ )

private

◆ open()

bool ripple::NodeStore::Shard::open ( std::lock_guard< std::mutex > const & lock )

private

Definition at line 831 of file nodestore/impl/Shard.cpp.

◆ initSQLite()

bool ripple::NodeStore::Shard::initSQLite ( std::lock_guard< std::mutex > const & )

private

Definition at line 958 of file nodestore/impl/Shard.cpp.

◆ storeSQLite()

bool ripple::NodeStore::Shard::storeSQLite ( std::shared_ptr< Ledger const > const & ledger )

private

Definition at line 1034 of file nodestore/impl/Shard.cpp.

◆ setFileStats()

void ripple::NodeStore::Shard::setFileStats ( std::lock_guard< std::mutex > const & )

private

Definition at line 1081 of file nodestore/impl/Shard.cpp.

◆ verifyLedger()

bool ripple::NodeStore::Shard::verifyLedger	(	std::shared_ptr< Ledger const > const &	ledger,
		std::shared_ptr< Ledger const > const &	next,
		std::shared_ptr< DeterministicShard > const &	dShard
	)		const

private

Definition at line 1106 of file nodestore/impl/Shard.cpp.

◆ verifyFetch()

std::shared_ptr< NodeObject > ripple::NodeStore::Shard::verifyFetch ( uint256 const & hash ) const

private

Definition at line 1192 of file nodestore/impl/Shard.cpp.

◆ makeBackendCount()

Shard::Count ripple::NodeStore::Shard::makeBackendCount ( )

private

Definition at line 1231 of file nodestore/impl/Shard.cpp.

◆ callForSQL()

template<typename... Args>

bool ripple::NodeStore::Shard::callForSQL	(	std::function< bool(Args... args)> const &	callback,
		LockedSociSession &&	db
	)

private

Definition at line 402 of file nodestore/impl/Shard.h.

◆ doCallForSQL() [1/2]

bool ripple::NodeStore::Shard::doCallForSQL	(	std::function< bool(soci::session &session)> const &	callback,
		LockedSociSession &&	db
	)

private

Definition at line 1254 of file nodestore/impl/Shard.cpp.

◆ doCallForSQL() [2/2]

bool ripple::NodeStore::Shard::doCallForSQL	(	std::function< bool(soci::session &session, std::uint32_t shardIndex)> const &	callback,
		LockedSociSession &&	db
	)

private

Definition at line 1262 of file nodestore/impl/Shard.cpp.

Member Data Documentation

◆ version

constexpr std::uint32_t ripple::NodeStore::Shard::version {2}

staticconstexpr

Definition at line 246 of file nodestore/impl/Shard.h.

◆ finalKey

const uint256 ripple::NodeStore::Shard::finalKey {0}

static

Definition at line 251 of file nodestore/impl/Shard.h.

◆ app_

Application& ripple::NodeStore::Shard::app_

private

Definition at line 299 of file nodestore/impl/Shard.h.

◆ j_

const beast::Journal ripple::NodeStore::Shard::j_

private

Definition at line 300 of file nodestore/impl/Shard.h.

◆ mutex_

std::mutex ripple::NodeStore::Shard::mutex_

mutableprivate

Definition at line 301 of file nodestore/impl/Shard.h.

◆ storedMutex_

std::mutex ripple::NodeStore::Shard::storedMutex_

mutableprivate

Definition at line 302 of file nodestore/impl/Shard.h.

◆ index_

const std::uint32_t ripple::NodeStore::Shard::index_

private

Definition at line 305 of file nodestore/impl/Shard.h.

◆ firstSeq_

const std::uint32_t ripple::NodeStore::Shard::firstSeq_

private

Definition at line 308 of file nodestore/impl/Shard.h.

◆ lastSeq_

const std::uint32_t ripple::NodeStore::Shard::lastSeq_

private

Definition at line 311 of file nodestore/impl/Shard.h.

◆ maxLedgers_

const std::uint32_t ripple::NodeStore::Shard::maxLedgers_

private

Definition at line 315 of file nodestore/impl/Shard.h.

◆ dir_

const boost::filesystem::path ripple::NodeStore::Shard::dir_

private

Definition at line 318 of file nodestore/impl/Shard.h.

◆ backendCount_

std::atomic<std::uint32_t> ripple::NodeStore::Shard::backendCount_ {0}

private

Definition at line 329 of file nodestore/impl/Shard.h.

◆ stop_

std::atomic<bool> ripple::NodeStore::Shard::stop_ {false}

private

Definition at line 347 of file nodestore/impl/Shard.h.

◆ busy_

std::atomic<bool> ripple::NodeStore::Shard::busy_ {false}

private

Definition at line 350 of file nodestore/impl/Shard.h.

◆ state_

std::atomic<ShardState> ripple::NodeStore::Shard::state_ {ShardState::acquire}

private

Definition at line 353 of file nodestore/impl/Shard.h.

◆ progress_

std::atomic<std::uint32_t> ripple::NodeStore::Shard::progress_ {0}

private

Definition at line 356 of file nodestore/impl/Shard.h.

◆ removeOnDestroy_

std::atomic<bool> ripple::NodeStore::Shard::removeOnDestroy_ {false}

private

Definition at line 359 of file nodestore/impl/Shard.h.

Classes

Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Shard() [1/4]

◆ Shard() [2/4]

◆ Shard() [3/4]

◆ Shard() [4/4]

◆ ~Shard()

Member Function Documentation

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ init()

◆ isOpen()

◆ tryClose()

◆ stop()

◆ prepare()

◆ storeNodeObject()

◆ fetchNodeObject()

◆ storeLedger()

◆ setLedgerStored()

◆ containsLedger()

◆ index()

◆ getDir()

◆ getLastUse()

◆ getFileInfo()

◆ getState()

◆ getPercentProgress()

◆ getWriteLoad()

◆ isLegacy()

◆ finalize()

◆ removeOnDestroy()

◆ getStoredSeqs()

◆ callForLedgerSQL()

◆ callForTransactionSQL()

◆ GUARDED_BY() [1/6]

◆ GUARDED_BY() [2/6]

◆ GUARDED_BY() [3/6]

◆ GUARDED_BY() [4/6]

◆ GUARDED_BY() [5/6]

◆ GUARDED_BY() [6/6]

◆ open()

◆ initSQLite()

◆ storeSQLite()

◆ setFileStats()

◆ verifyLedger()

◆ verifyFetch()

◆ makeBackendCount()

◆ callForSQL()

◆ doCallForSQL() [1/2]

◆ doCallForSQL() [2/2]

Member Data Documentation

◆ version

◆ finalKey

◆ app_

◆ j_

◆ mutex_

◆ storedMutex_

◆ index_

◆ firstSeq_

◆ lastSeq_

◆ maxLedgers_

◆ dir_

◆ backendCount_

◆ stop_

◆ busy_

◆ state_

◆ progress_

◆ removeOnDestroy_
